LINK V2 JTAG SWD Programmer for M8 to M32 Microcontrollers

$25.56 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Shipping calculated at checkout.

Default Title Default Title

Quantity

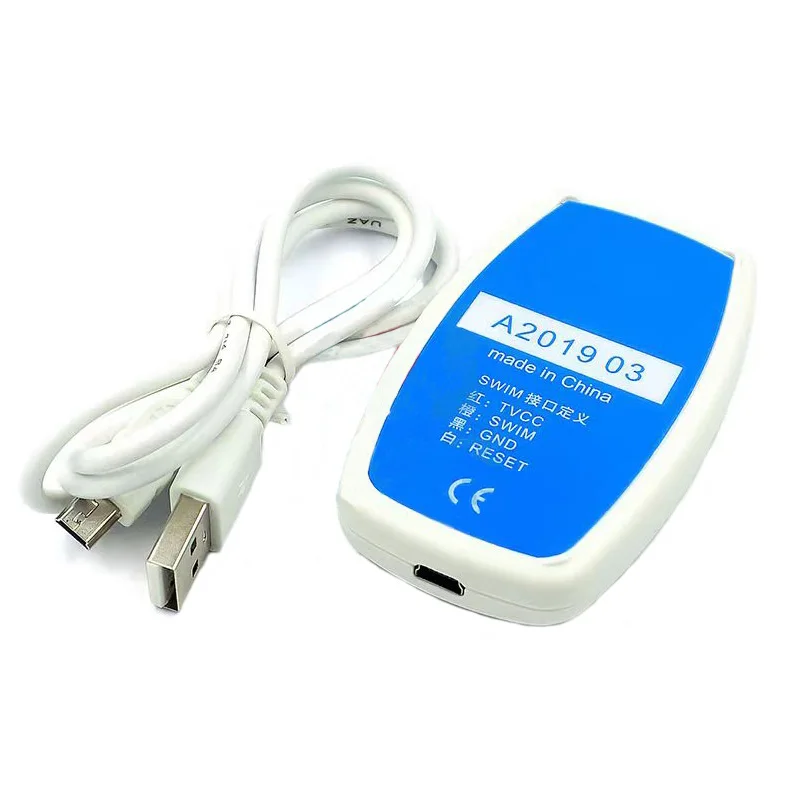

LINK V2 JTAG / SWD Programmer & Debugger — STM8 to STM32 Microcontrollers

The LINK V2 is a USB JTAG/SWD in-circuit programmer and debugger compatible with the full range of STMicroelectronics STM8 and STM32 microcontrollers (M8 to M32 series). It provides a direct USB connection to the host PC and communicates with the target MCU via the standard SWIM (STM8) or SWD/JTAG (STM32) debug interface, enabling firmware flashing, real-time debugging, breakpoint setting, and register inspection without removing the MCU from the target board.

Technical Specifications

Parameter	Value
Compatible MCUs	STM8 series (SWIM), STM32 series (SWD/JTAG)
Debug Interfaces	SWIM (STM8), SWD, JTAG (STM32)
Host Interface	USB 2.0 Full Speed
Target Voltage	1.65V – 5.5V (auto-detect)
Max Clock Speed	Up to 4MHz (SWD/JTAG)
Supported IDEs	IAR EWARM, Keil MDK, STM32CubeIDE, OpenOCD
OS Support	Windows 7/8/10/11, Linux, macOS

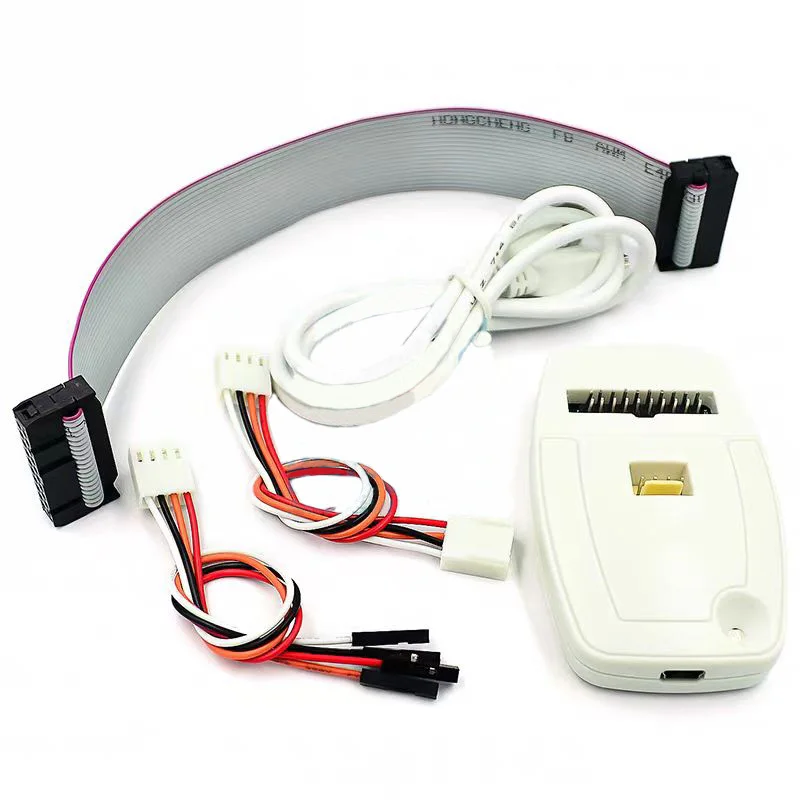

Connector	20-pin JTAG / 4-pin SWD / SWIM header
Certification	CE, RoHS

Supported MCU Families

Family	Interface	Examples
STM8S / STM8L / STM8AF	SWIM	STM8S003, STM8S105, STM8L152
STM32F0 / F1 / F2 / F3 / F4	SWD / JTAG	STM32F103, STM32F407, STM32F030
STM32F7 / H7 / G0 / G4	SWD / JTAG	STM32F746, STM32H743, STM32G071
STM32L0 / L1 / L4 / L5	SWD / JTAG	STM32L073, STM32L476, STM32L552
STM32WB / WL / U5	SWD / JTAG	STM32WB55, STM32WL55, STM32U575

Typical Applications

Firmware Flashing: Program STM8 and STM32 microcontrollers in-circuit via SWIM or SWD without a bootloader — flash .hex or .bin files directly to internal flash memory
Real-Time Debugging: Set breakpoints, inspect registers, watch variables, and step through code in IAR EWARM, Keil MDK, or STM32CubeIDE during firmware development
Production Programming: Batch-program STM32 devices on a production line using STM32CubeProgrammer CLI with the LINK V2 as the programming interface
Bootloader Recovery: Recover STM32 devices with corrupted bootloaders or option bytes by direct SWD flash access, bypassing the UART/USB DFU bootloader
Embedded Systems Education: Learn STM32 development with a low-cost programmer compatible with all major STM32 development boards and Nucleo boards

FAQ

Q: Is this compatible with STM32 Blue Pill and Black Pill boards?
A: Yes. Connect the LINK V2 SWD pins (SWDIO, SWDCLK, GND, 3.3V) to the SWD header on the Blue Pill (STM32F103C8T6) or Black Pill (STM32F401/F411) board for programming and debugging.

Q: Does this work with STM32CubeIDE?
A: Yes. STM32CubeIDE detects the LINK V2 as an ST-LINK compatible programmer. Select ST-LINK as the debug probe in the Run/Debug configuration.
