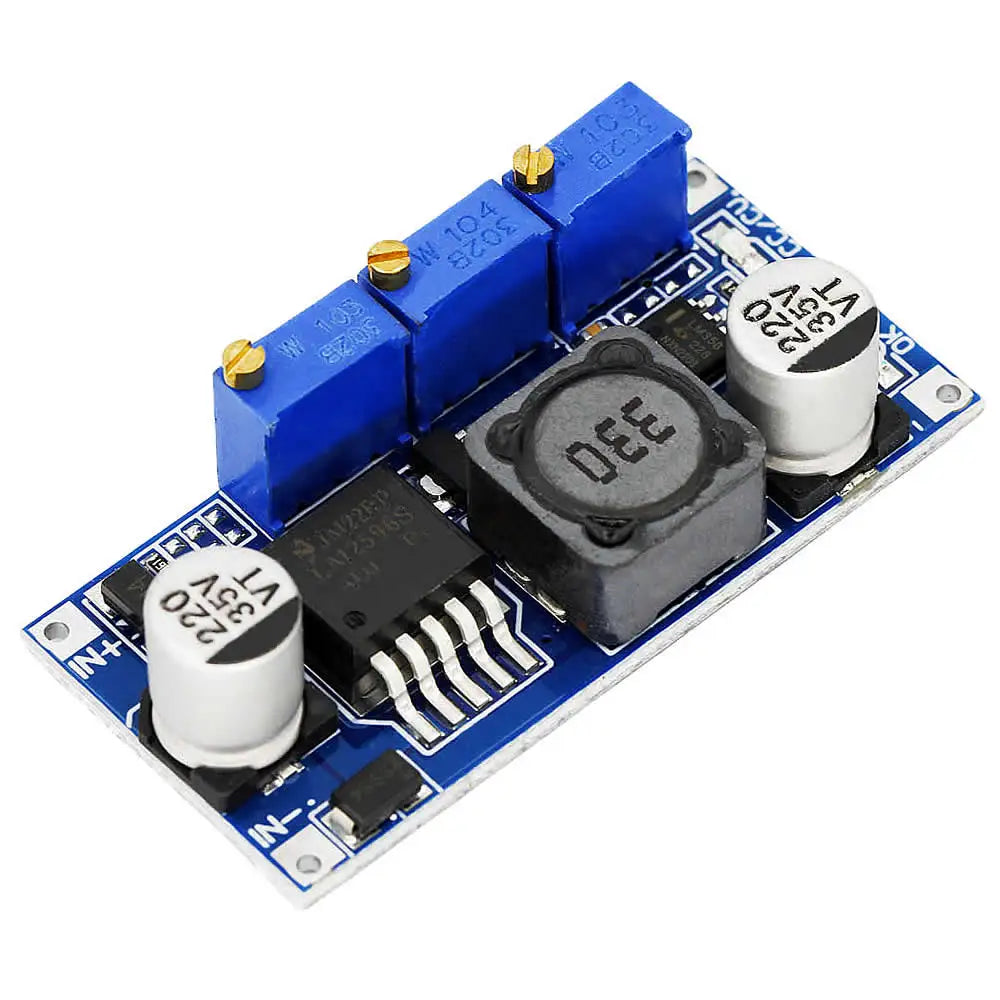

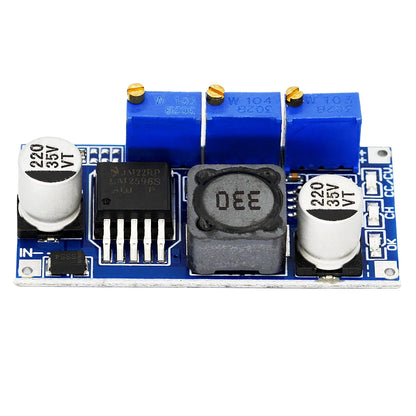

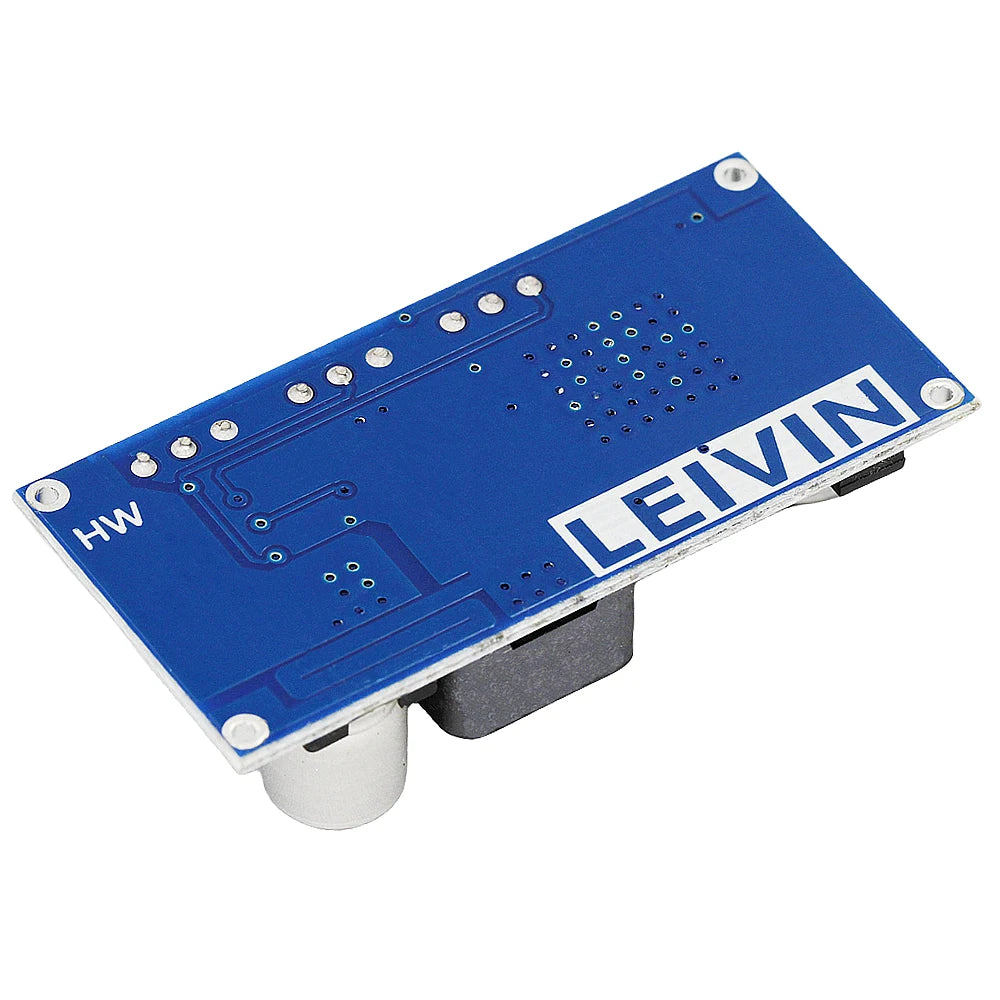

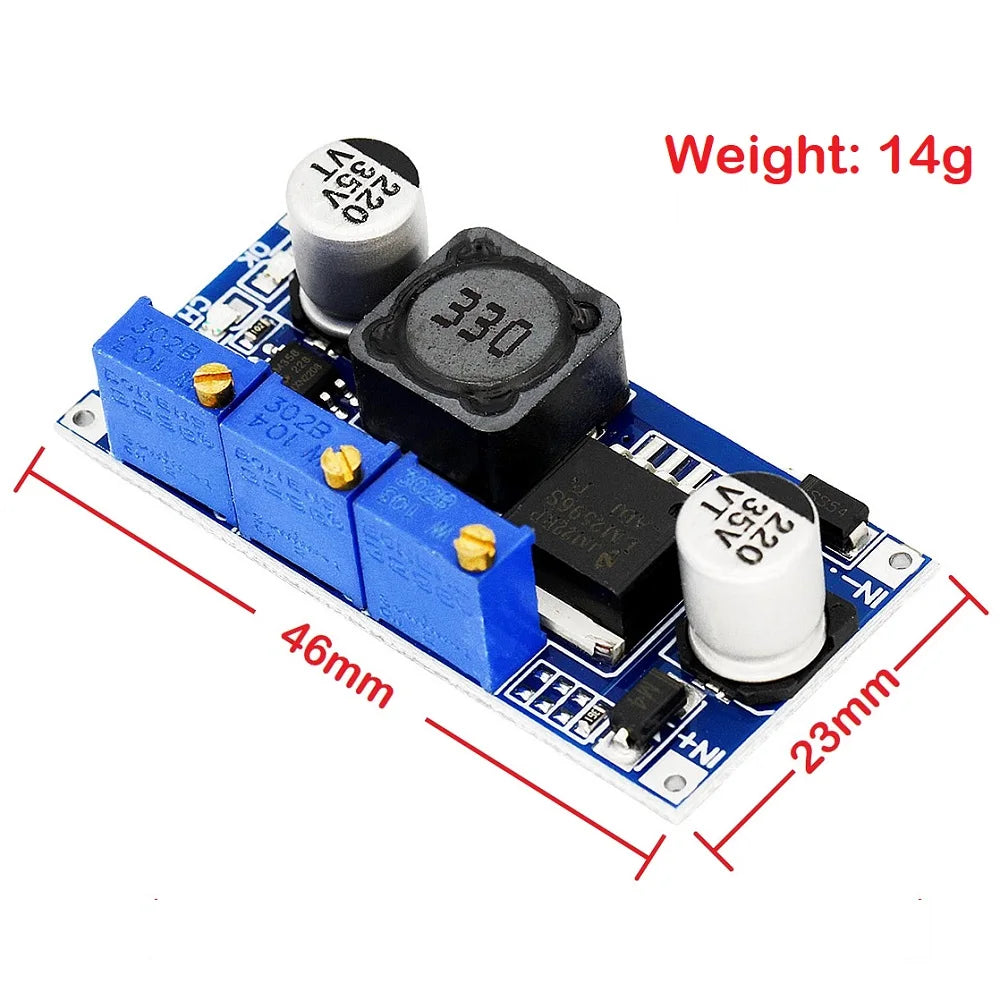

LM2596 DC-DC Step-Down Module 3A Adjustable LED Driver Constant Current/Voltage Regulator

$6.40 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Default Title Default Title

Quantity

SPECIFICATIONS

Application: Computer

Brand Name: Keszoox

Condition: New

Dissipation Power: --

High-concerned chemical: None

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: 7-35V to 1.25V-30V

Type: Voltage Regulator

is_customized: Yes

LM2596 DC-DC Step-down Module 3A Adjustable LED Driver Constant Current Voltage Regulator High Efficiency Low Heat Power Supply

Warm Tips:
Our store support wholesale, the more quantity the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks! ^_^

Features:

1. The Fixed turn the lamp current to 0.1 times the value of the constant current (at the when 2 identify been the 'is full);

2. Increased input reverse polarity for protection, diode;

3. Using dedicated reference for IC, and high - precision from the resistor, so that the constant current is more stable;

(20 degrees to 100 degrees, the constant current 1 a, when the temperature drift of less than 1%).

Particularly suitable for the LED driver

* Charging curve as to: Red is current, blue is voltage.

* High power LED constant current drive

* Lithium charger (o ferroelectric)

* 4V, 6V, 12V, 14V, 24V charger

* Nickel cadmium, Nickel metal hydride pack charger

* For Solar panels and wind turbines

Specifications:

* Module Properties: non - isolated constant current and voltage of the Module

* Rectification: Non - synchronous Rectification

* Input voltage: 7V to 35V

* Output voltage: 1.25V to 30V

* Output current: Adjustable maximum 3A

* Conversion efficiency: 92% (the highest)

* Switching frequency: 150 KHZ

* Output ripple: 50mv (Max) 20 m bandwidth

* Load Regulation: Plus or minus 0.5%

* Voltage Regulation: Plus or minus 2.5%

* Operating Temperature: - 40 ° to + 85 °

Usage:

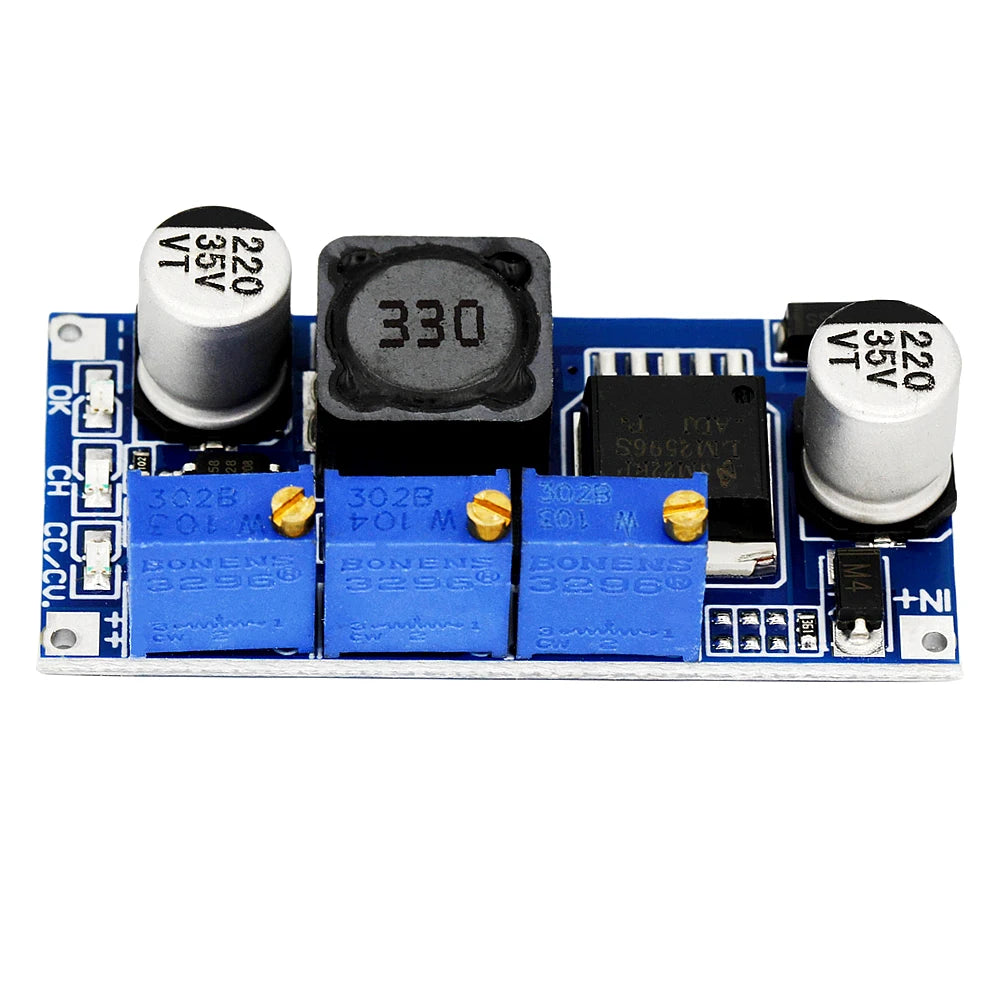

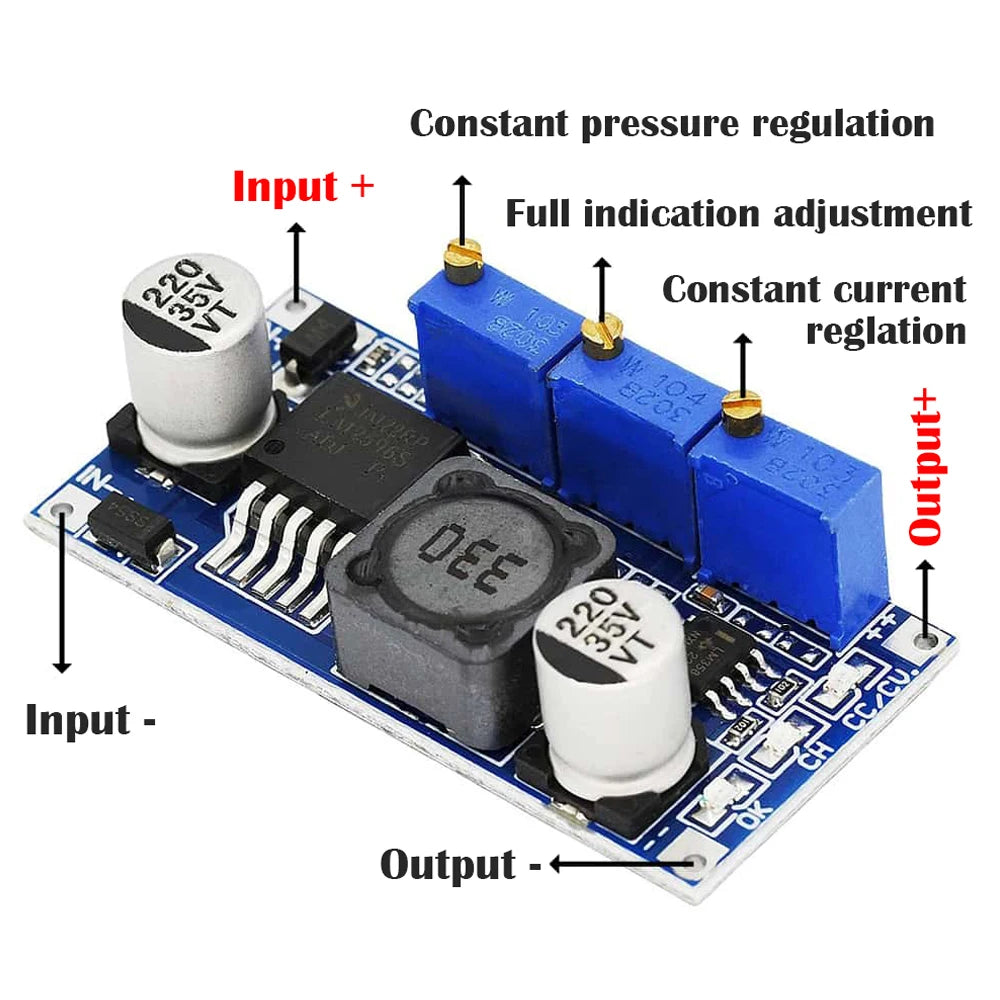

* Make sure of the voltage and current of the 'you need to charge

* Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage

* Potentiometer Adjustment Direction: Clockwise (happens), counterclockwise (decrease)

* Use the multimeter in 10 a current scale to measure the output short - circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value

* The charge current of transfer lamp is The default 0.1 times of The charging current (constant current value)

* Connected to the and try to charging (for previous five steps, the module input terminal is Connected to the power source, the output load is NOT Connected to batteries).

LED Constant Current Driver Use:

* Make sure operating current and Max operating Voltage of the LED you need to drive.

* Adjust the constant voltage potentiometer to make sure the output voltage is up to the LED Max operating voltage.

* Use the multimeter in 10 a current scale to measure the output short - circuit current, and adjust the current potentiometer. To make sure the output current to the expected LED operating current.

* Join the LED test (For the above three steps, the module input terminal is connected to the power source, the output load is NOT connected to the LED).

The scope of application:
Charging for lithium ion batteries: when the lithium ion 'voltage is low. If use the constant voltage Charging directly. Due to pressure is too large, leading to the' damage. So from the beginning to use the constant current Charging. When Charging the to a certain, automatic switch back to the constant voltage Charging.
