Molex 2.0mm Dupont Pre-Crimped Terminal both sided Cable (Without Connector), 24AWG UL1007 PVC
Molex 2.0mm Dupont Pre-Crimped Terminal both sided Cable (Without Connector), 24AWG UL1007 PVC
| Quantity | Discount | You Save |
|---|---|---|
| 1 – 9 pcs | — | — |
| 10 – 49 pcs | 3% OFF | Save 3% |
| 50 – 99 pcs | 7% OFF | Save 7% |
| 100+ pcs | 11% OFF | 🏆 Best Value |
✓ Discount applied automatically at checkout · No code needed
Couldn't load pickup availability

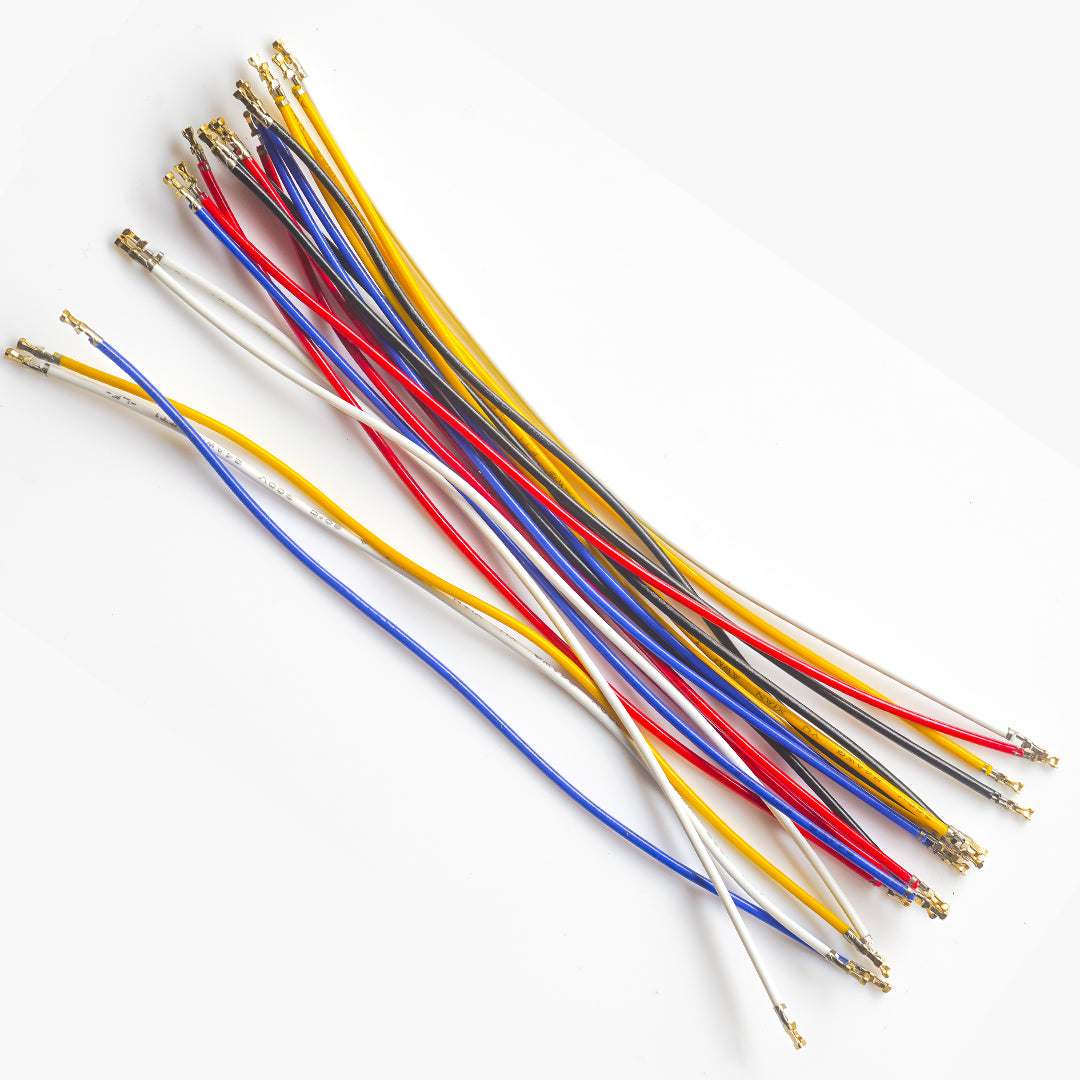

DuPont 2.0mm Both-Sided Pre-Crimped Terminal Cable — 24AWG UL1007 PVC, No Housing
The Keszoox DuPont 2.0mm both-sided pre-crimped terminal cable features bare female crimp terminals on both ends — without housings — for direct insertion into 2.0mm DuPont housings or custom connector bodies. At 2.00mm pitch, this cable bridges the gap between the ultra-compact 1.25mm JST SH/GH series and the standard 2.54mm DuPont pitch, making it the correct choice for compact PCB designs where 2.54mm is too large but 1.25mm is too small.
Built with 24AWG UL1007 PVC conductor, rated at 300V / 80°C, RoHS compliant. Factory-crimped terminals ensure consistent crimp geometry and reliable contact retention across all units.
What Is a Pre-Crimped Terminal Cable (No Housing)?

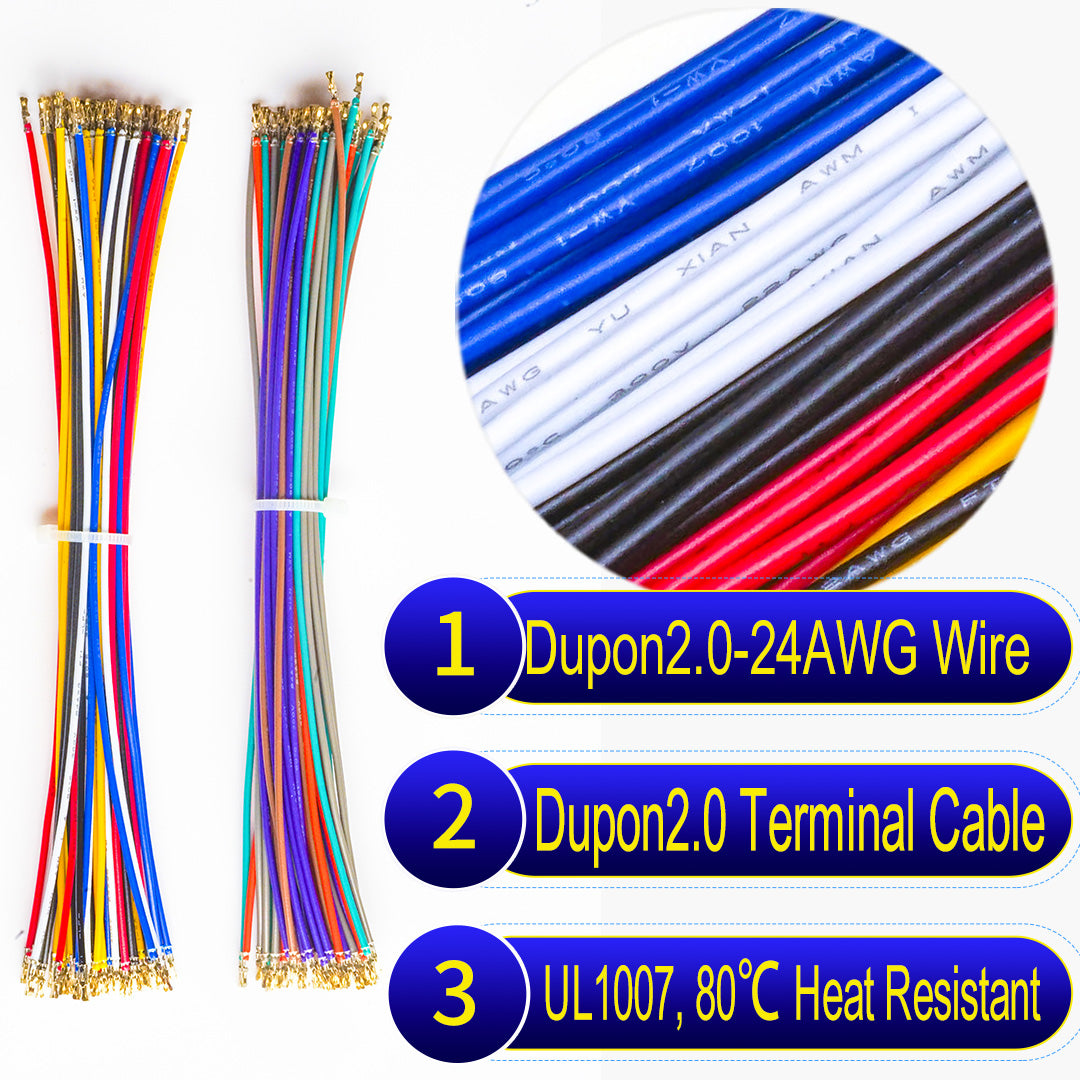

A pre-crimped terminal cable without housing consists of a wire with factory-crimped female crimp terminals on one or both ends, but no plastic housing shell. The terminals are designed for insertion into a separate 2.0mm DuPont housing that the user provides or already has installed. This configuration is used when: (1) the housing is already in place and only the terminal-wire assembly needs to be replaced, (2) a custom housing or connector body is being used, or (3) the assembly requires individual wire insertion into a multi-position housing one terminal at a time. The both-sided variant has terminals on both ends; the single-head variant has a terminal on one end and a bare tinned lead on the other.
Key Features
- Female DuPont crimp terminals both ends — no housing, for direct insertion into 2.0mm DuPont housings or custom connector bodies
- 2.0mm pitch — compact pitch between 1.25mm JST and 2.54mm DuPont, ideal for space-constrained PCB designs
- 24AWG UL1007 PVC insulation — rated 80°C, 300V, fine-gauge for compact wiring
- Factory pre-crimped assembly — consistent, reliable crimp quality; no manual crimping required
- RoHS compliant — EU Directive 2011/65/EU
Common Applications
- Replacement terminal-wire assemblies for existing 2.0mm DuPont housings
- Custom harness assembly where individual terminals are inserted into a pre-installed housing
- Compact PCB harness assembly where 2.54mm pitch is too large
- Wearable electronics and fitness device signal wiring
- Miniature IoT sensor and module connections
- Repair and rework of existing 2.0mm DuPont cable assemblies
Technical Specifications
- Connector Series: DuPont 2.0mm
- Pitch: 2.00mm (0.079 inch)

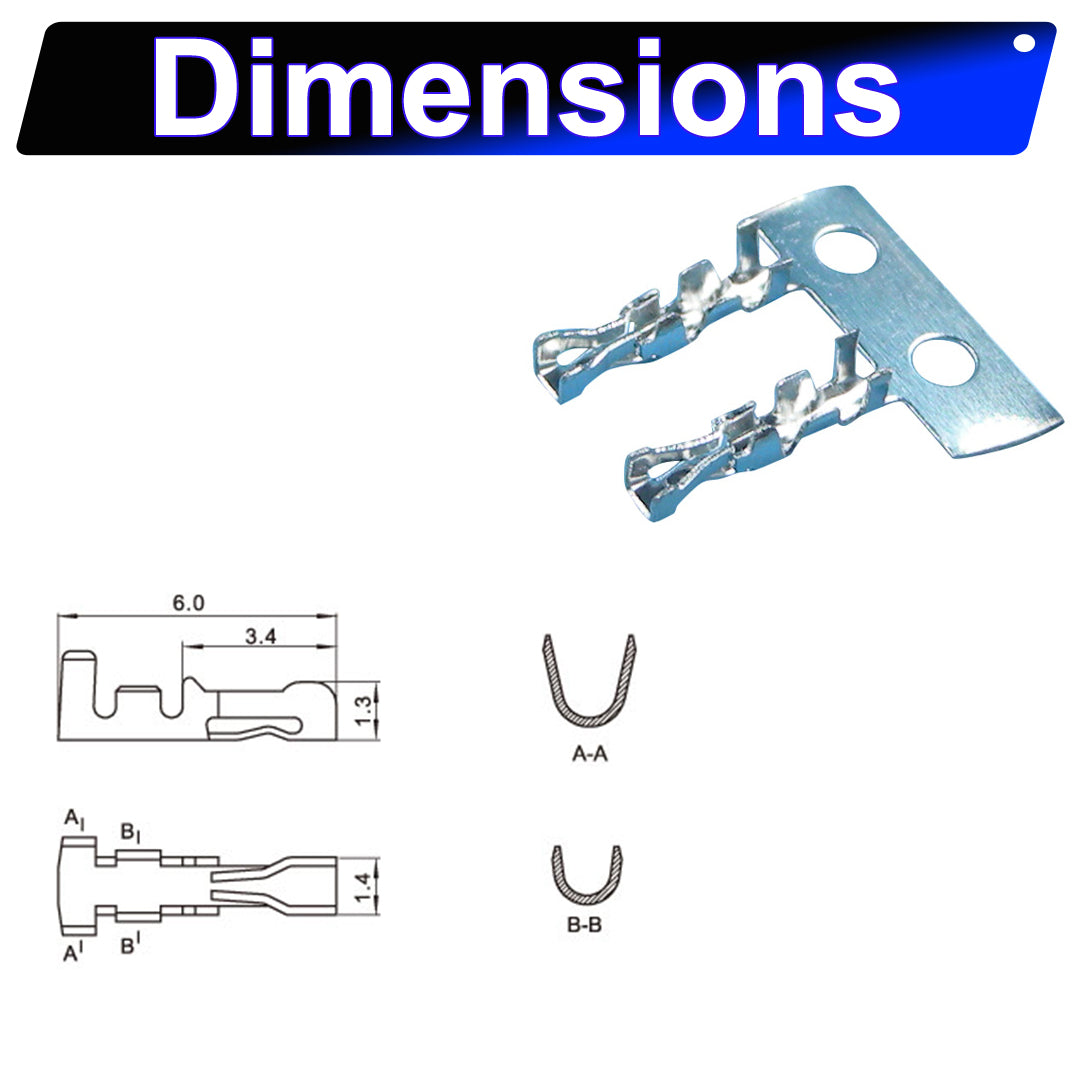

- Terminal Type: Female crimp terminal, both ends (no housing)
- Wire Gauge: 24 AWG stranded copper
- Insulation: UL1007 PVC
- Voltage Rating: 300V
- Temperature Rating: 80°C
- Housing Material: N/A (no housing included)
- RoHS Compliant: Yes — EU Directive 2011/65/EU
- Brand: Keszoox | Origin: Mainland China
Frequently Asked Questions
Product & Compatibility
What is the difference between JST PH, XH, ZH, and SH connectors?
JST connectors differ primarily in pitch (pin spacing): SH = 1.0mm, ZH = 1.5mm, PH = 2.0mm, XH = 2.5mm. Smaller pitch connectors are used in compact electronics like drones and wearables, while larger pitch connectors suit general prototyping and power applications. Always verify pitch before ordering to ensure compatibility.
Are your connectors compatible with standard Arduino and Raspberry Pi projects?
Yes. Our DuPont 2.54mm connectors are the industry standard for Arduino, Raspberry Pi, and most development boards. JST PH 2.0mm is widely used for LiPo batteries in RC and robotics projects. We recommend checking your board's datasheet to confirm the exact connector type and pin count required.
What wire gauge (AWG) should I choose for my application?
Wire gauge depends on current load: 28–30 AWG suits signal lines up to 0.5A; 24–26 AWG handles 1–3A for moderate power; 22 AWG is suitable for up to 5A. For high-current applications, always use appropriately rated wire and connectors. Our product listings specify the AWG and rated current for each cable.
What is the difference between UL1007 and Silicone wire?
UL1007 is a PVC-insulated wire rated for 80°C and 300V, suitable for most indoor electronics applications. Silicone wire is rated for higher temperatures (up to 200°C), is more flexible, and performs better in harsh environments or high-vibration applications such as RC vehicles and industrial equipment.
