Molex 2.5mm Dupont Male to Male Pre-Crimped Terminal Cable (Without Connector), 22AWG UL1007 PVC
Molex 2.5mm Dupont Male to Male Pre-Crimped Terminal Cable (Without Connector), 22AWG UL1007 PVC
| Quantity | Discount | You Save |
|---|---|---|
| 1 – 9 pcs | — | — |
| 10 – 49 pcs | 3% OFF | Save 3% |
| 50 – 99 pcs | 7% OFF | Save 7% |
| 100+ pcs | 11% OFF | 🏆 Best Value |
✓ Discount applied automatically at checkout · No code needed
Couldn't load pickup availability
Molex 2.5mm DuPont Male-to-Male Pre-Crimped Terminal Cable — 22AWG UL1007 PVC, 3A / 250V

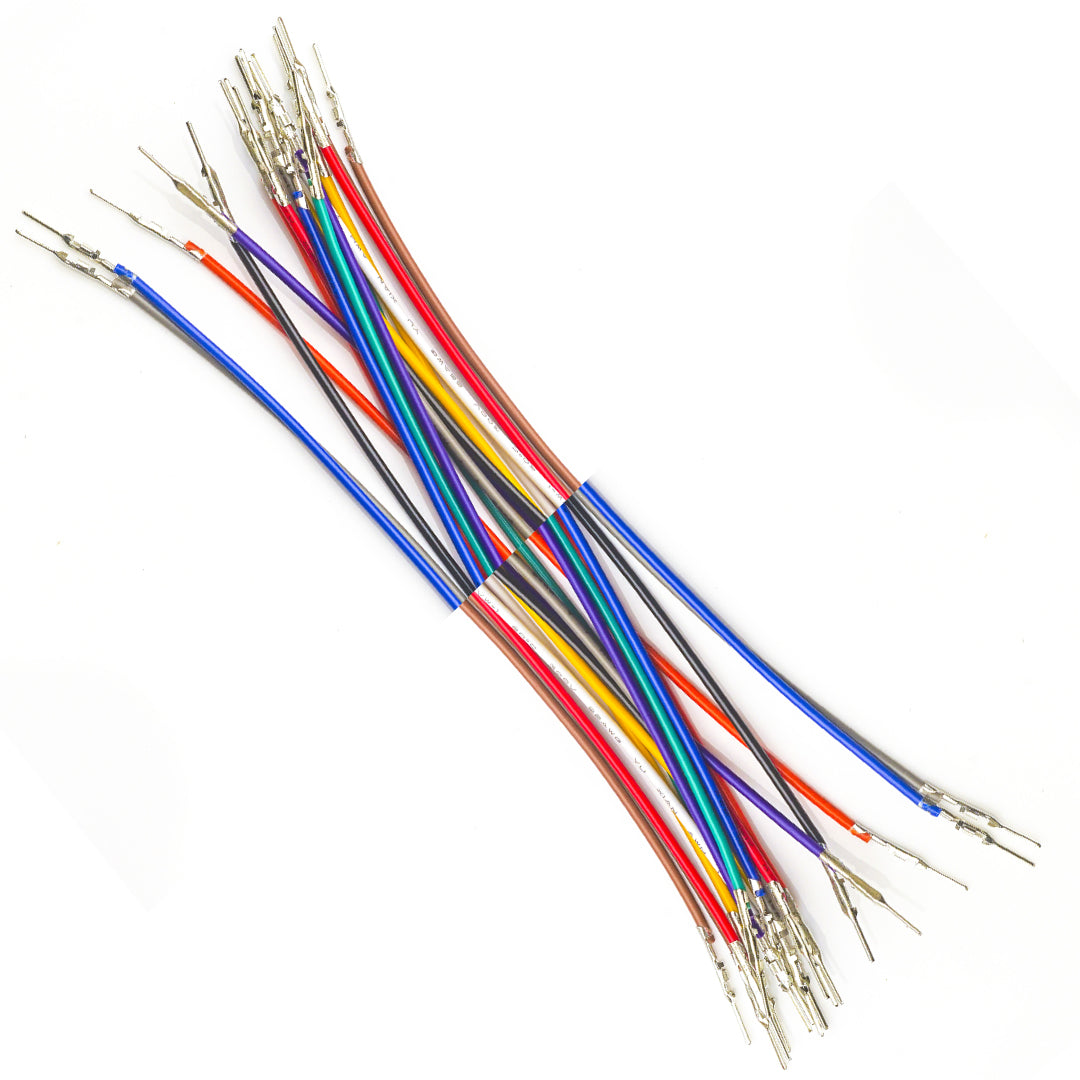

The Molex 2.5mm DuPont male-to-male pre-crimped terminal cable features bare male crimp terminals on both ends — without housings — for direct insertion into DuPont 2.5mm female housings or custom connector bodies. This configuration is ideal for custom harness assembly, breadboard prototyping, and Arduino wiring where both ends need to be inserted into pre-installed female housings or soldered to PCB pads.
The 2.5mm DuPont pitch is the standard for Arduino GPIO headers, breadboard jumper wires, and general-purpose PCB connectors — making this cable the go-to choice for prototyping, maker projects, and industrial PCB wiring alike.
Key Features
- Male DuPont crimp terminals both ends — no housing, for direct insertion into 2.5mm female DuPont housings
- 2.5mm pitch — compatible with Arduino GPIO headers, breadboard connectors, and standard 0.1" pitch PCB headers
- 22AWG UL1007 PVC insulation — rated 80°C, 300V, 3A per contact
- 3A / 250V rating — suitable for both signal and moderate power lines
- Pre-crimped factory assembly — consistent, reliable crimp quality
- RoHS compliant
Typical Applications
- Arduino GPIO and shield wiring with pre-installed female housings
- Breadboard prototyping and maker project wiring
- Custom PCB harness assembly where both ends insert into female housings
- Industrial PCB signal wiring and sensor connections
- Replacement terminal cables for existing DuPont harnesses
Technical Specifications
- Connector Series: DuPont 2.5mm
- Pitch: 2.5 mm
- Terminal Type: Male crimp terminal (both ends)
- Wire Gauge: 22 AWG
- Insulation: UL1007 PVC, 300V
- Voltage Rating: 250V
- Current Rating: 3A per contact
- Temperature Rating: 80°C
- RoHS Compliant: Yes
- Brand: Keszoox
- Origin: Mainland China
Frequently Asked Questions
Product & Compatibility
What is the difference between JST PH, XH, ZH, and SH connectors?
JST connectors differ primarily in pitch (pin spacing): SH = 1.0mm, ZH = 1.5mm, PH = 2.0mm, XH = 2.5mm. Smaller pitch connectors are used in compact electronics like drones and wearables, while larger pitch connectors suit general prototyping and power applications. Always verify pitch before ordering to ensure compatibility.
Are your connectors compatible with standard Arduino and Raspberry Pi projects?
Yes. Our DuPont 2.54mm connectors are the industry standard for Arduino, Raspberry Pi, and most development boards. JST PH 2.0mm is widely used for LiPo batteries in RC and robotics projects. We recommend checking your board's datasheet to confirm the exact connector type and pin count required.
What wire gauge (AWG) should I choose for my application?
Wire gauge depends on current load: 28–30 AWG suits signal lines up to 0.5A; 24–26 AWG handles 1–3A for moderate power; 22 AWG is suitable for up to 5A. For high-current applications, always use appropriately rated wire and connectors. Our product listings specify the AWG and rated current for each cable.
What is the difference between UL1007 and Silicone wire?
UL1007 is a PVC-insulated wire rated for 80°C and 300V, suitable for most indoor electronics applications. Silicone wire is rated for higher temperatures (up to 200°C), is more flexible, and performs better in harsh environments or high-vibration applications such as RC vehicles and industrial equipment.
Orders & Customization
Can I order custom cable lengths or connector configurations?
Yes. We offer custom wire harness solutions including custom lengths, connector types, pin counts, and wire colors. Please contact us via the Contact page with your specifications and we will provide a quote within 1–2 business days.
Do you offer bulk or wholesale pricing?
Yes. Volume discounts are available for orders of 50 units or more. Please reach out through our Contact page with your requirements for a customized wholesale quote.
How do I know which connector polarity or pin orientation to order?
Always refer to your device's datasheet or existing connector for pin 1 orientation. Our product images include wiring diagrams where applicable. If you are unsure, contact us with your device model and we will help identify the correct part.
Shipping & Returns
How long does shipping take?
Standard international shipping typically takes 7–15 business days depending on destination. Expedited options are available at checkout. Orders are processed within 3 business days. Tracking information is provided via email once your order has shipped.
What is your return policy for electronic components?
We accept returns within 30 days of delivery for unused, unopened items in original packaging. Items that have been crimped, soldered, or modified cannot be returned. If you receive a defective or incorrect item, please contact us within 7 days with photos and we will arrange a replacement or refund promptly.
Do you ship to my country?
We ship worldwide to over 50 countries. Shipping availability and rates are calculated at checkout based on your delivery address. If you do not see your country at checkout, please contact us and we will do our best to accommodate your order.
