Molex KK 156 3.96mm Connector Kit — Male & Female Housing with 20AWG PVC Pre-Crimped Cables

Molex KK 156 3.96mm Connector Kit — Male & Female Housing with 20AWG PVC Pre-Crimped Cables

The Molex KK 156 3.96mm connector is the industry-standard wire-to-board connector for power supply internal wiring, industrial control panels, and high-current PCB connections. With a 3.96mm pitch and 8.5A / 250V AC/DC rating, the KK 156 series bridges the gap between the compact 2.54mm Dupont connector and the heavy-duty 4.2mm Mini-Fit Jr., making it ideal for medium-current power and signal connections in a wide range of electronics applications.

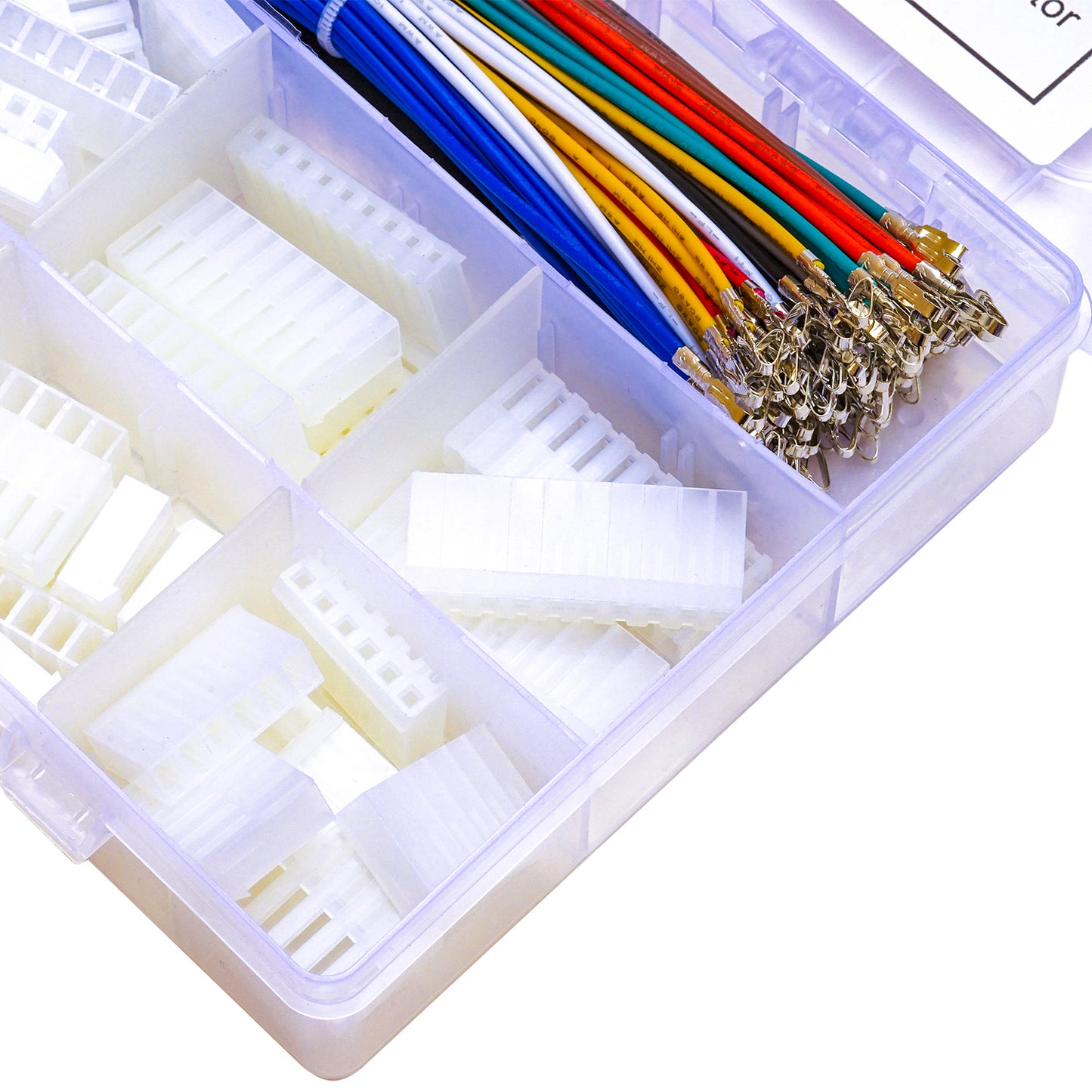

This kit includes male housings, female housings, and 20AWG PVC pre-crimped wire assemblies in assorted pin counts, providing a complete wire-to-board and wire-to-wire connection solution without the need for a crimping tool.

Key Specifications

• Series: Molex KK 156 | Pitch: 3.96mm
• Wire gauge: 20AWG PVC | Rated current: 8.5A | Rated voltage: 250V AC/DC
• Contact: Tin-plated copper | Housing material: PA nylon, UL94 V-0
• Operating temperature: -40°C to +105°C | Compliance: RoHS2
• Pin counts: Assorted (see listing for exact configuration)

Why Choose Molex KK 156 3.96mm?

• ✅ 3.96mm pitch — ideal medium-current connector between 2.54mm Dupont and 4.2mm Mini-Fit Jr.
• ✅ 8.5A / 250V rating — suitable for power supply internal wiring, motor connections, and relay outputs
• ✅ 20AWG PVC pre-crimped cables — ready to insert into housings, no crimping tool required
• ✅ Complete kit — male housings, female housings, and pre-crimped cables in one package
• ✅ Positive-lock housing — locking latch prevents accidental disconnection under vibration
• ✅ RoHS2 compliant — tin-plated copper contacts, PA nylon housing

Typical Applications

• PC power supply internal wiring (fan, HDD, peripheral connectors)
• Industrial control panel power and signal wiring
• Motor driver and relay board connections
• LED driver and lighting control board power connections
• Appliance and consumer electronics internal wiring
• DIY electronics and prototyping requiring medium-current connections

Compatibility

Compatible with Molex KK 156 series (3.96mm pitch) male and female housings and 2478 series crimp contacts. Also compatible with third-party 3.96mm pitch KK-equivalent housings and pre-crimped cables.
