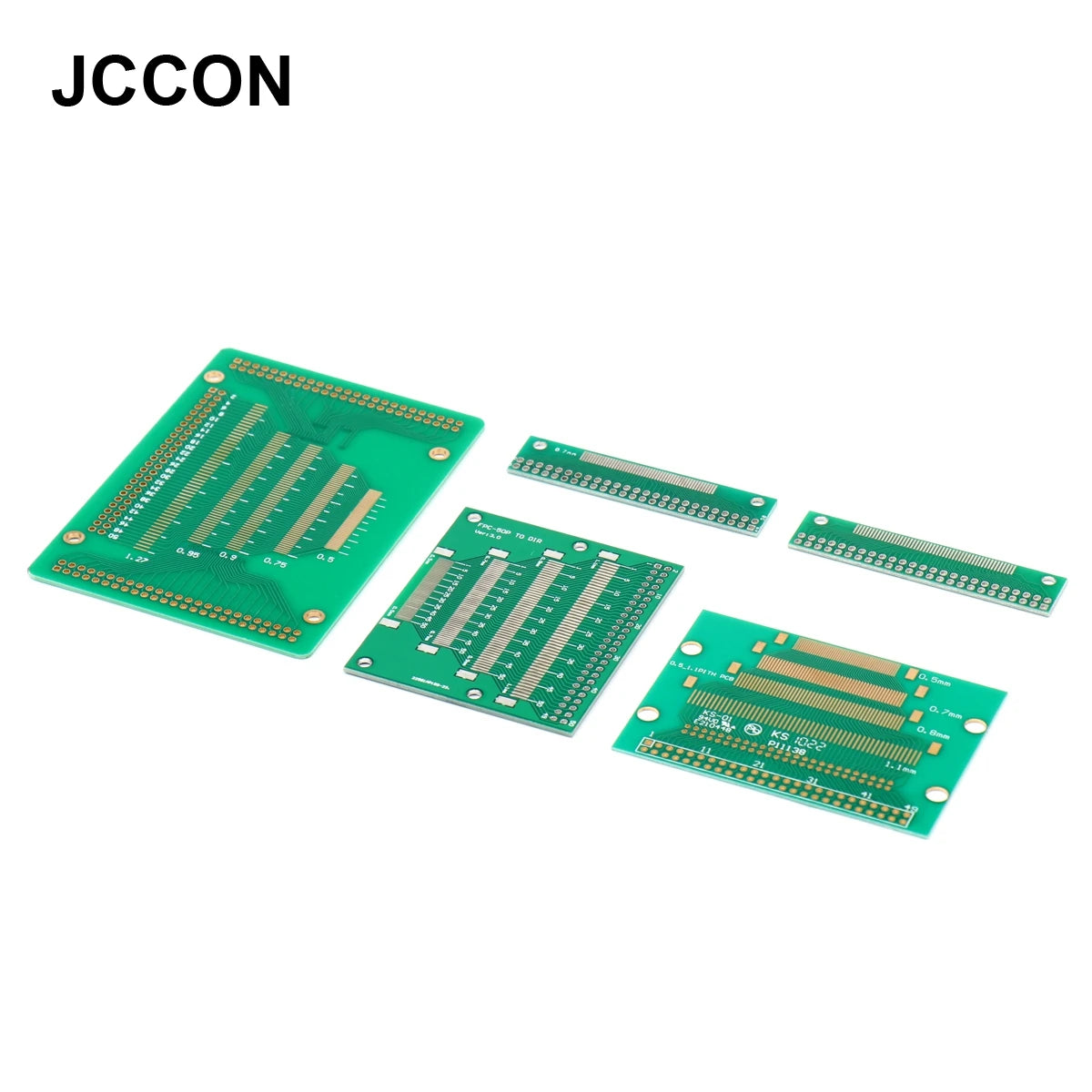

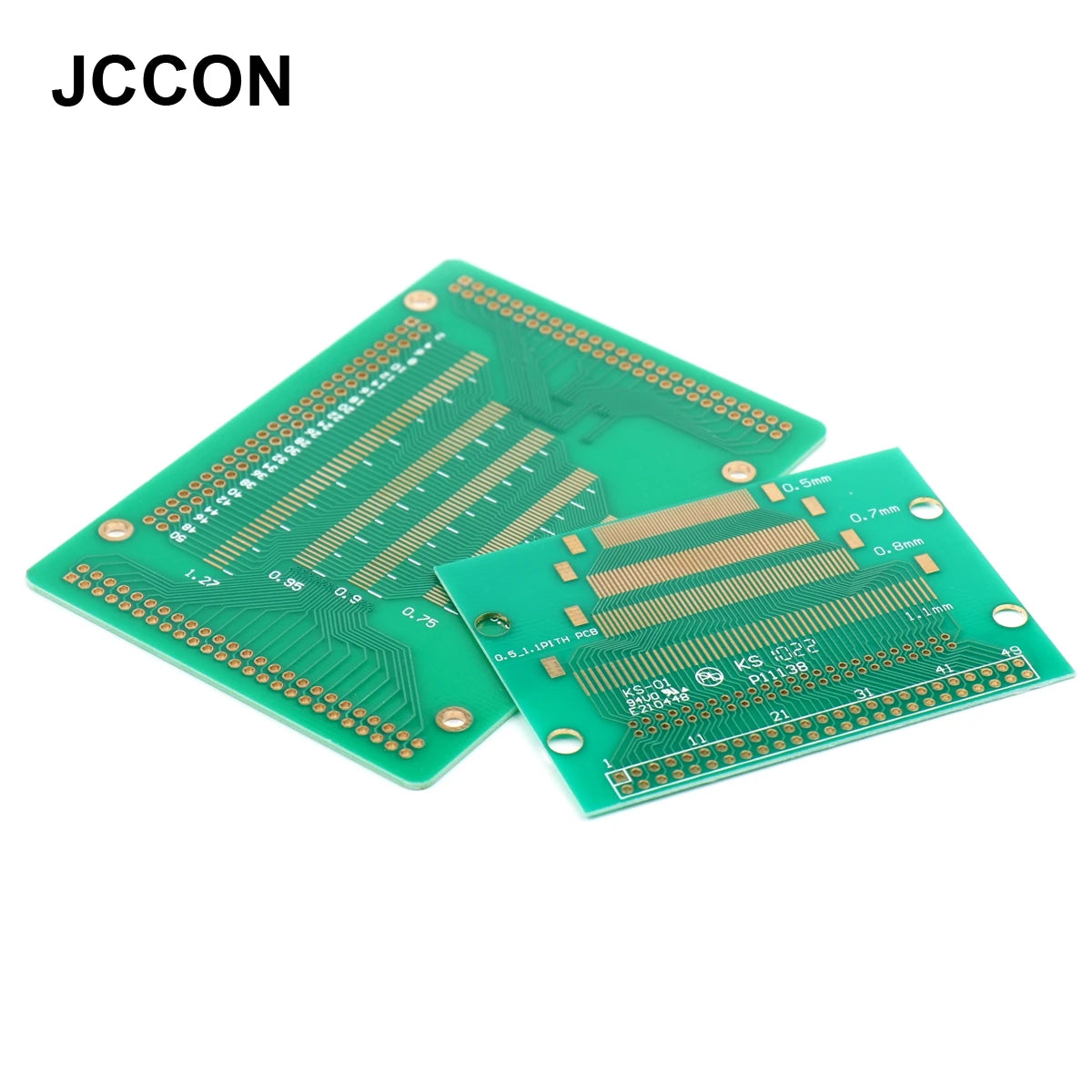

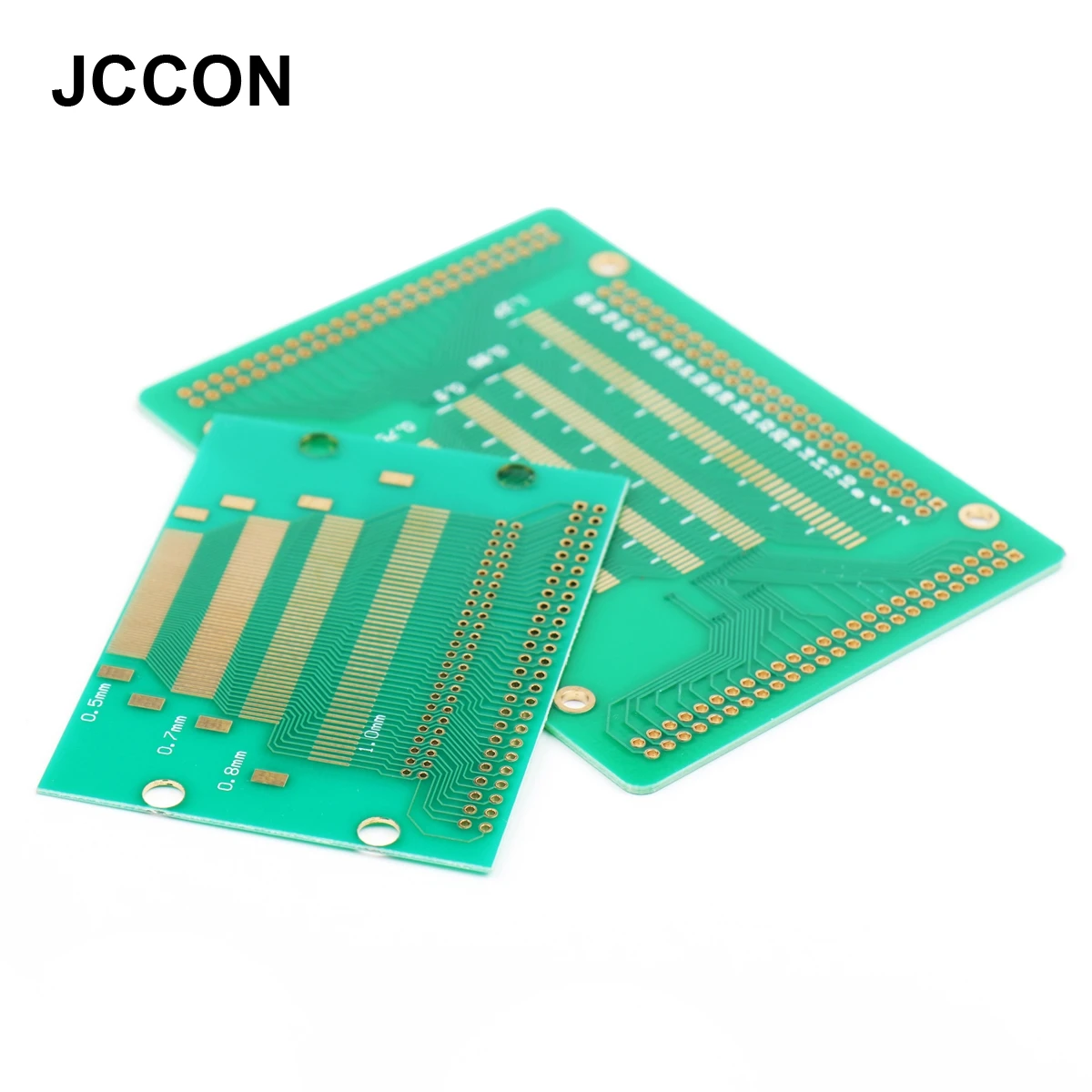

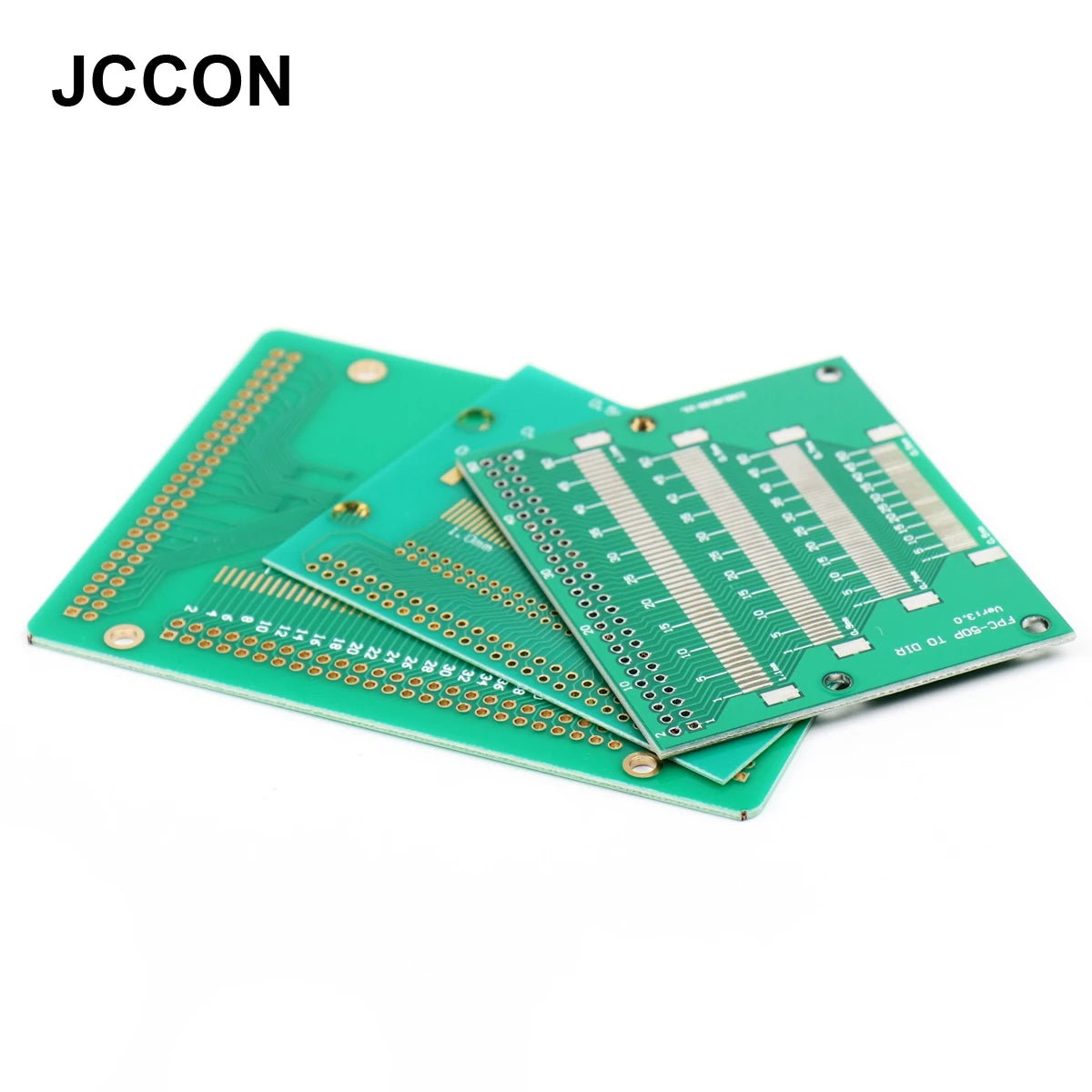

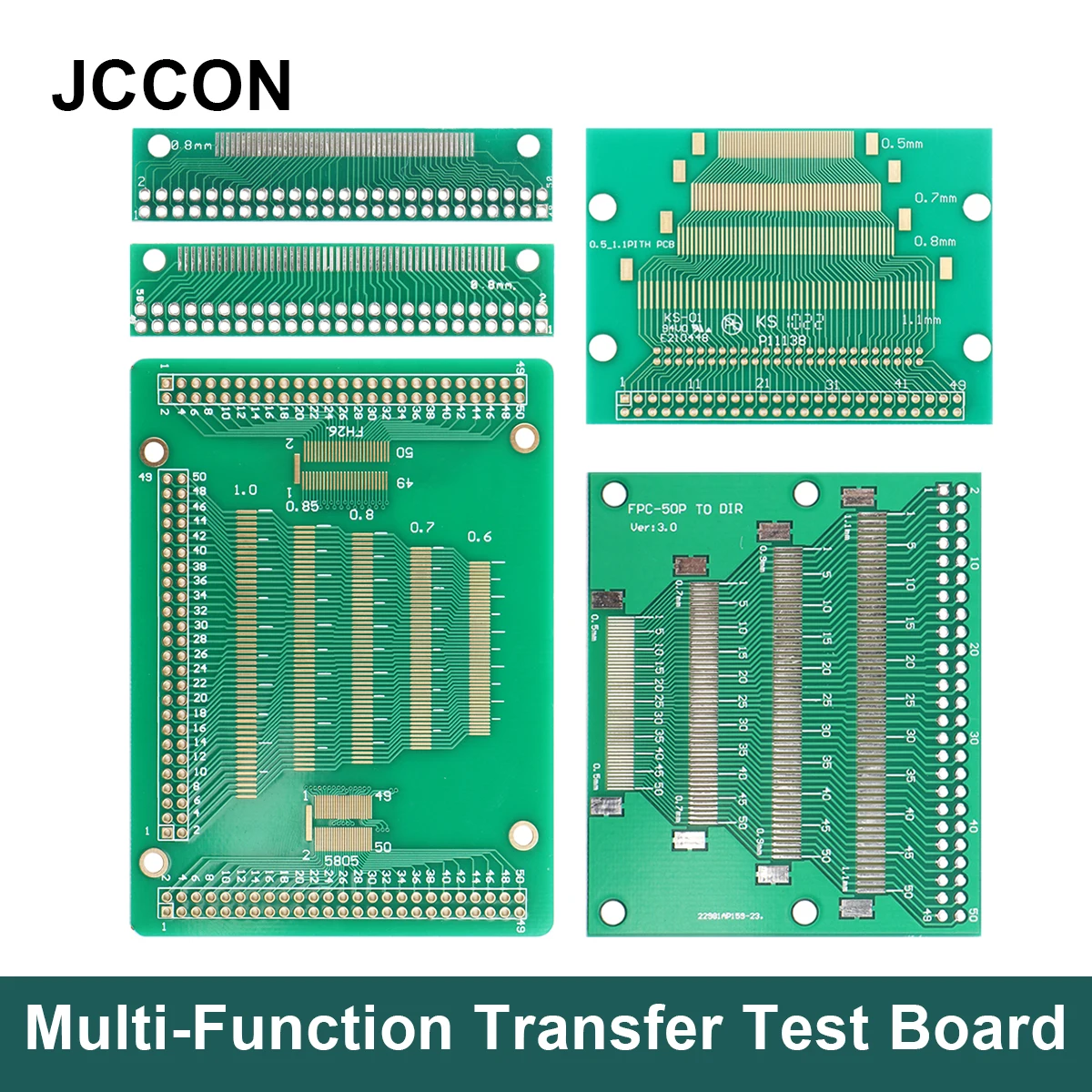

5Pcs Multi-Function Transfer Test Board 50PIN 0.5-1.27mm Pitch LCM TFT LCD Transfer Test Board

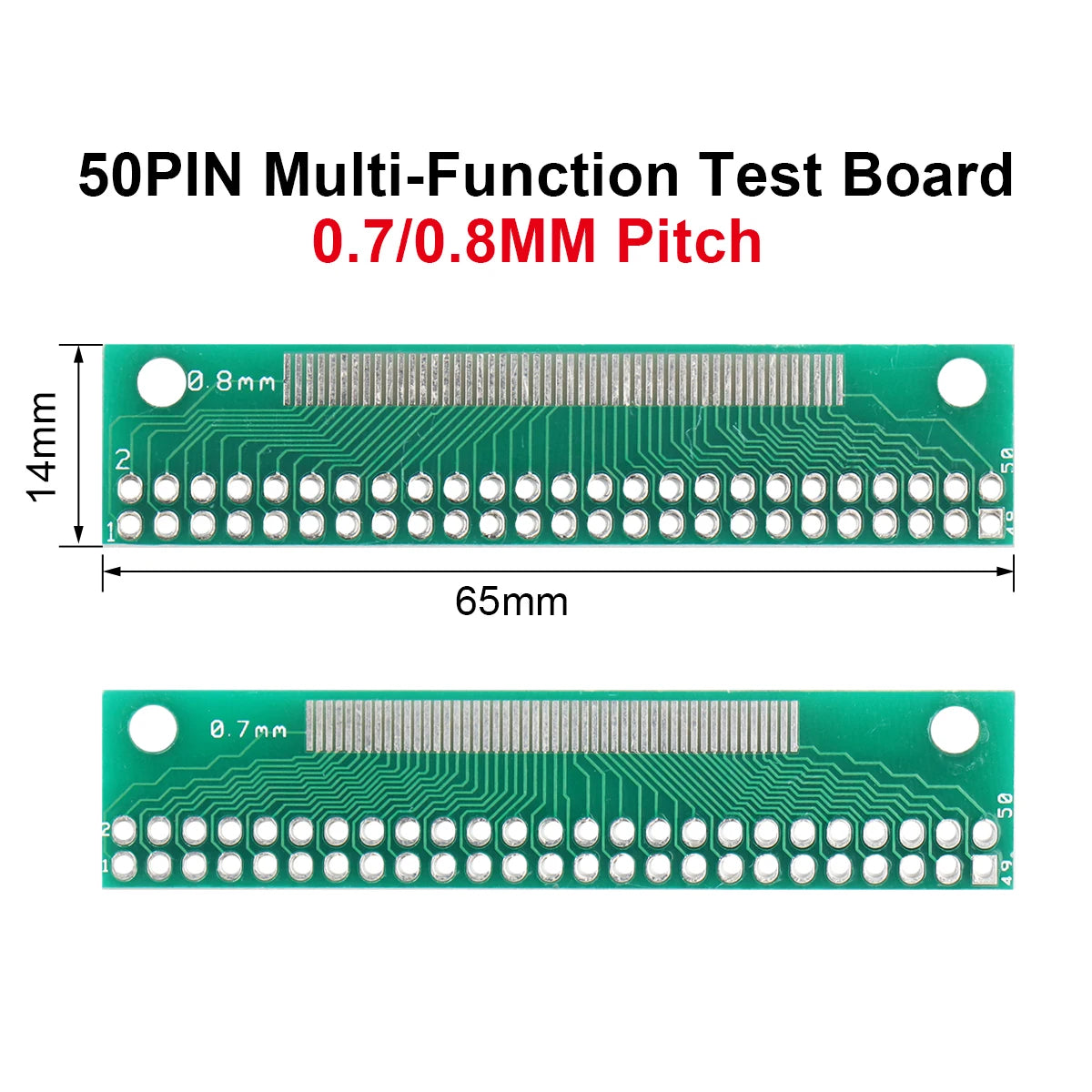

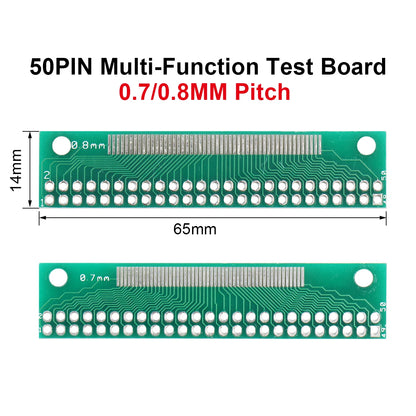

50P 0.7-0.8mm Pitch Test Board:

Front pin spacing: 07mm

Reverse pin spacing: 0.8mm

Size: 15*65mm

Aperture: 1.0mm

Hole distance: 2.54mm

Board thickness: 1.6mm

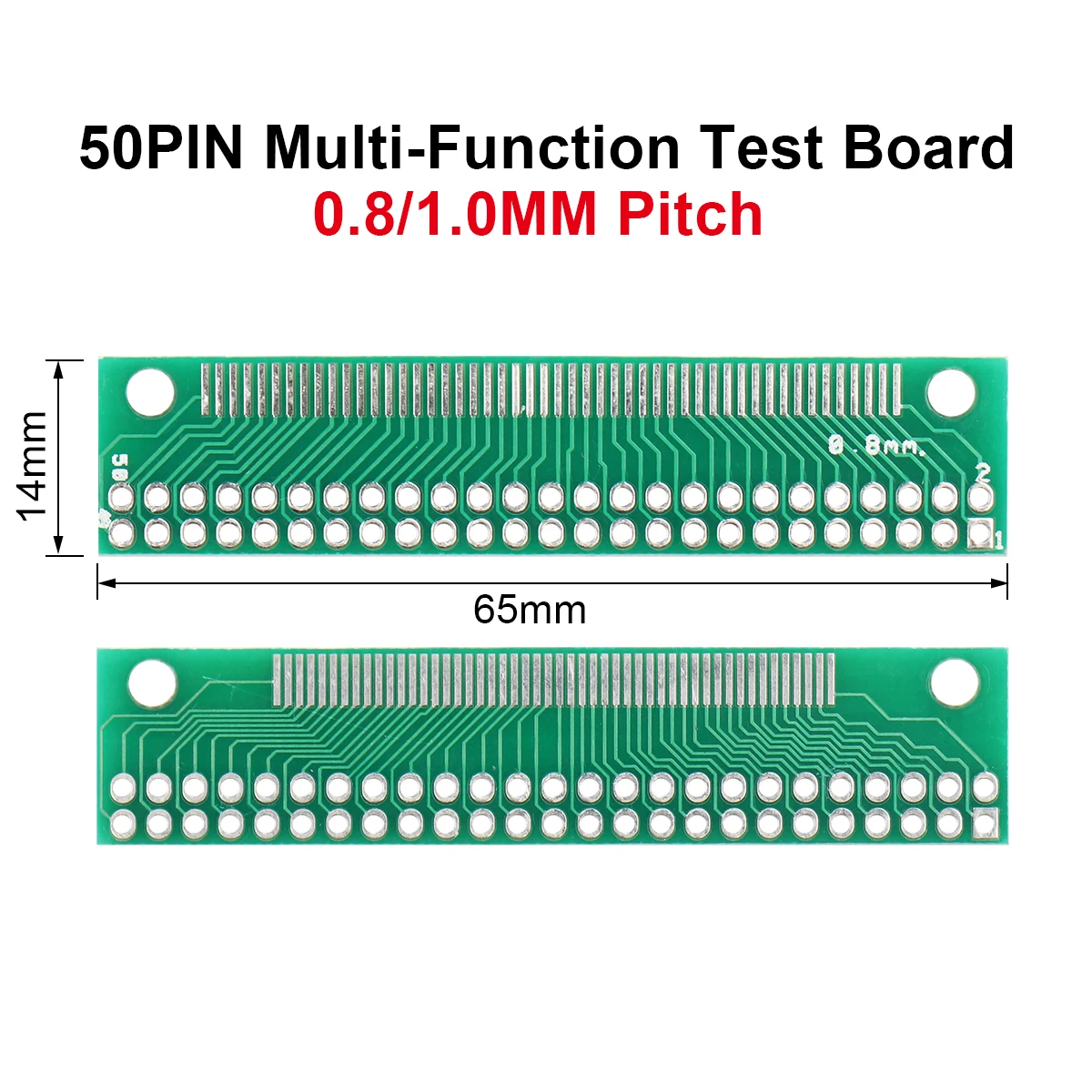

50P 0.8-1.0mm Pitch Test Board:

Front pin spacing: 0.8mm

Backside pin spacing: 1.0mm

Board size: 14*65mm

Hole distance: 2.54mm

Diameter: 1.0mm

Board thickness: 1.6mm

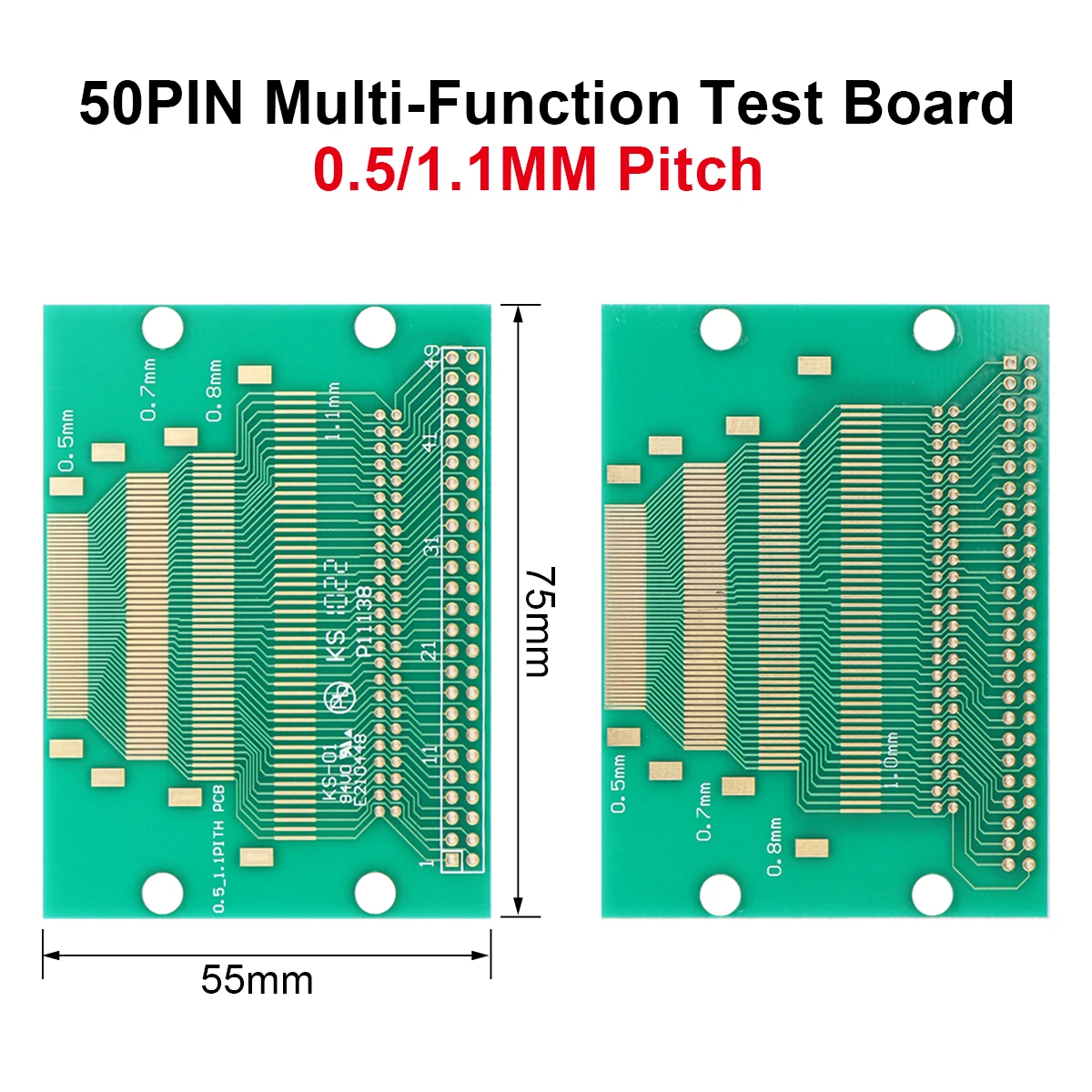

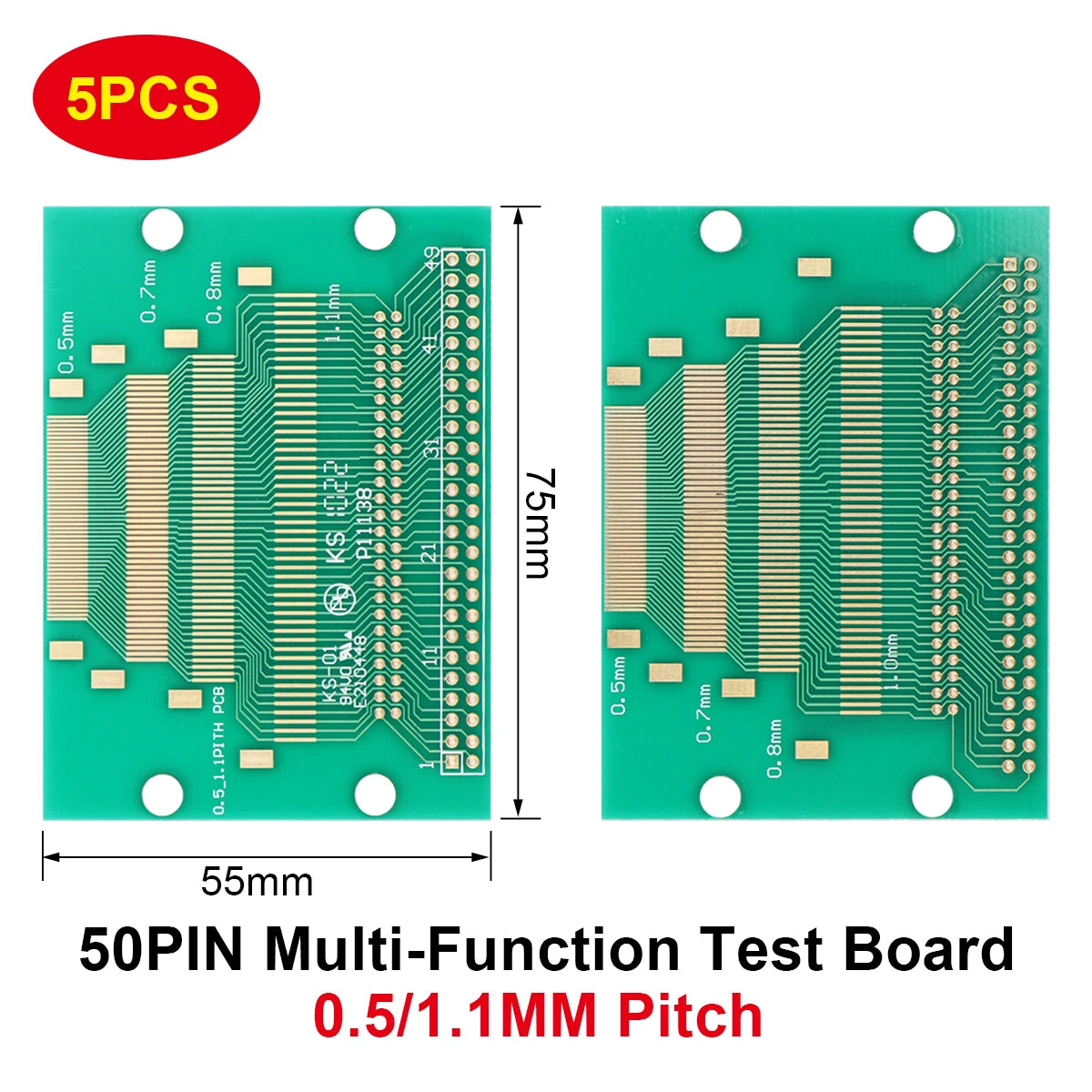

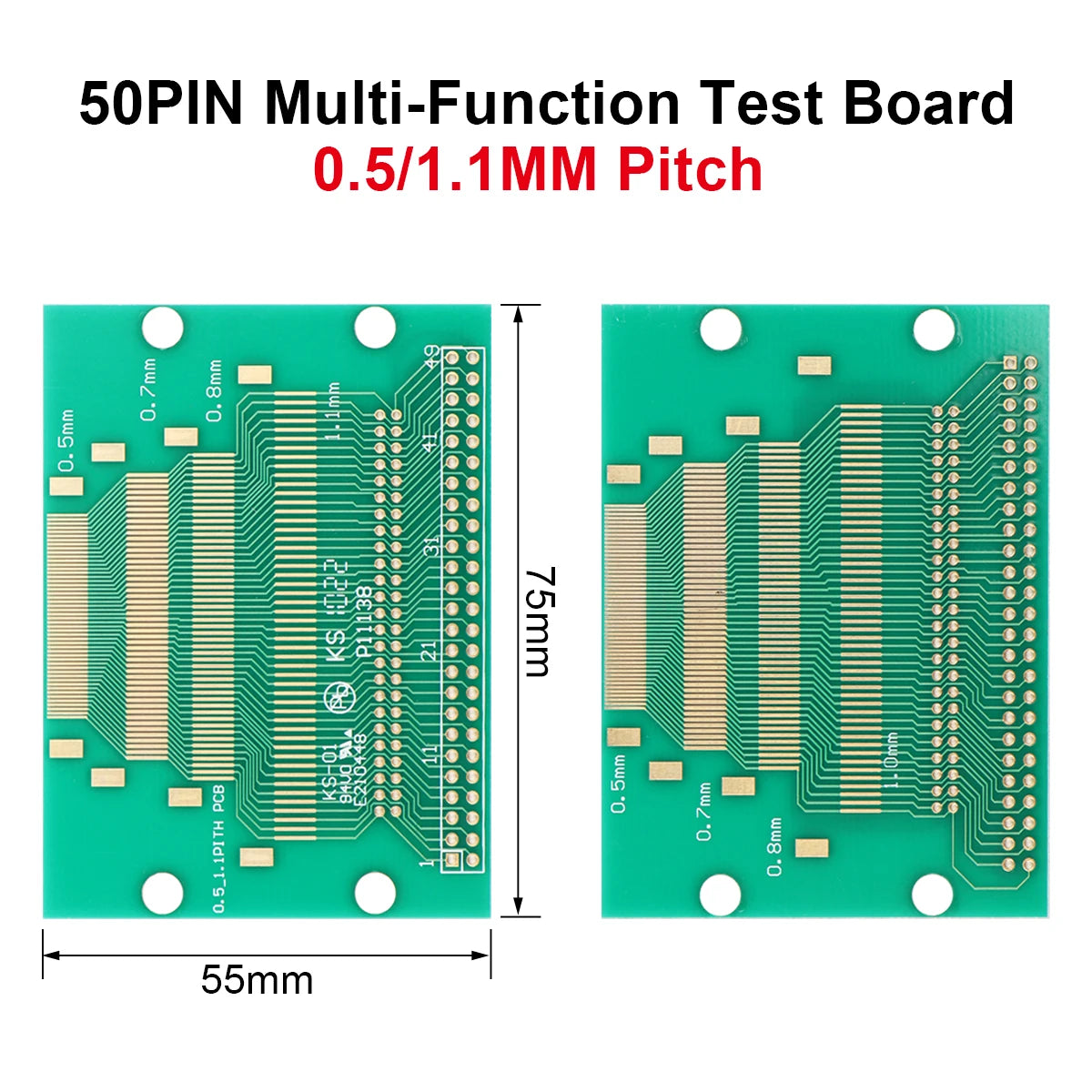

50P 0.5-1.1mm Pitch Test Board:

Front pin spacing: 0.5 0.7 0.8 1.1mm

Inter-pin spacing on the reverse side: 0.5 0.7 0.8 1.0mm

Size: 55*57mm

Aperture: 1.0M

Hole distance: 2.54mm

Board thickness: 1.0mm

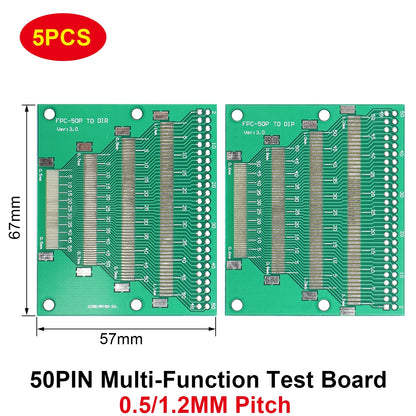

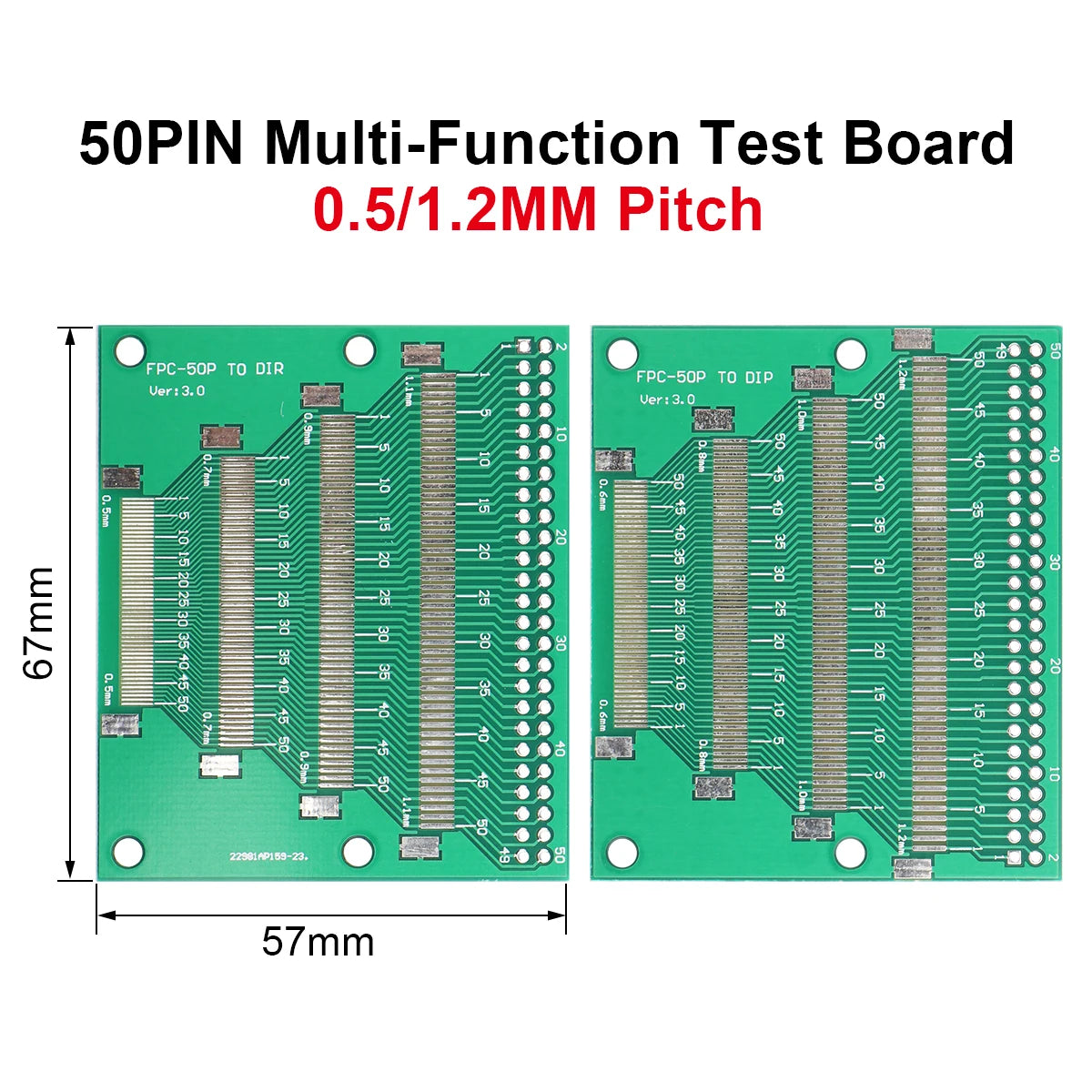

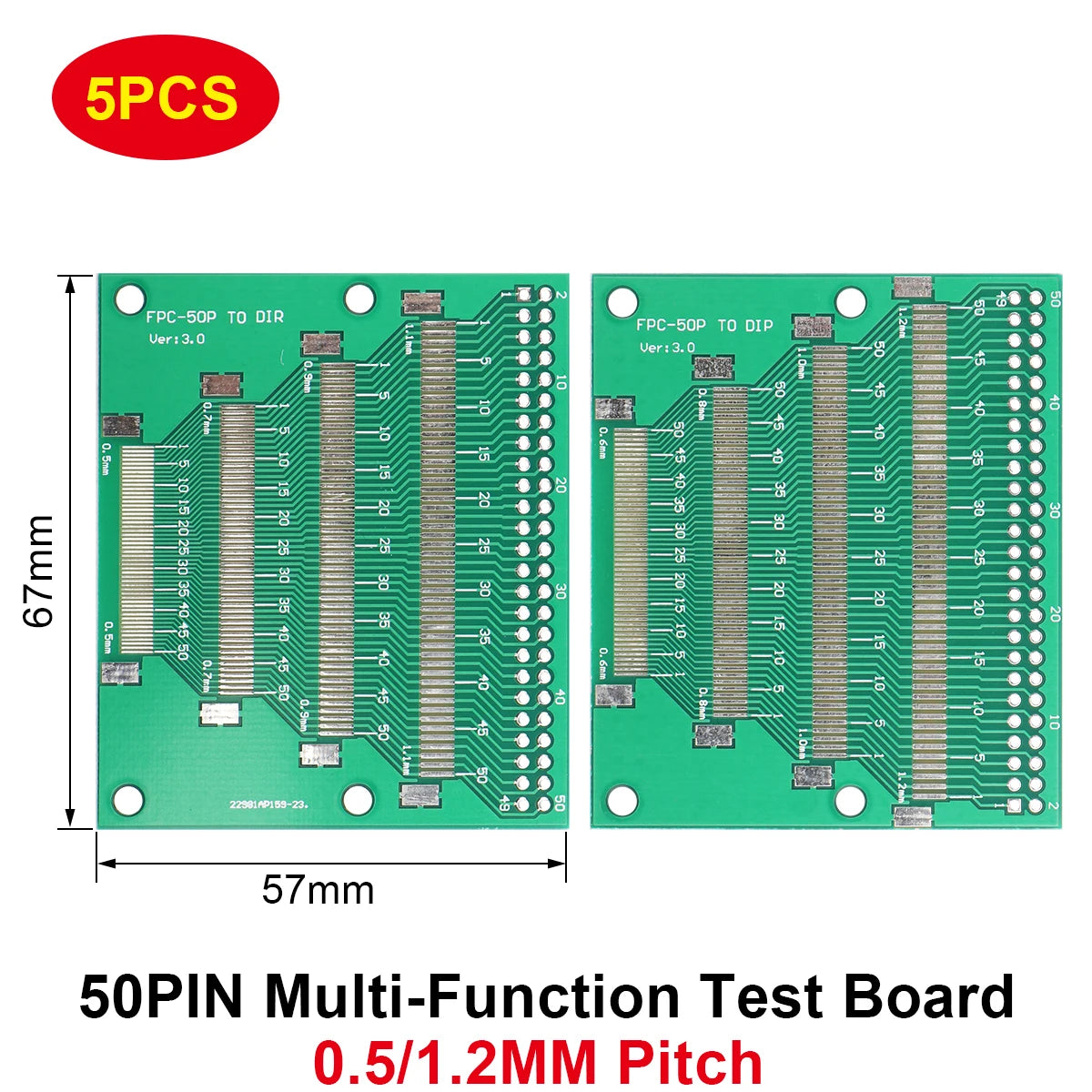

50P 0.5-1.2mm Pitch Test Board:

Front pin spacing: 0.5 0.7 0.9 1.1mm

Pin spacing on the reverse side: 0.6 0.8 1.0 1.2mm

Size: 57*67mm

Aperture: 1.0M

Hole distance: 2.54M

Board thickness: 1.0M

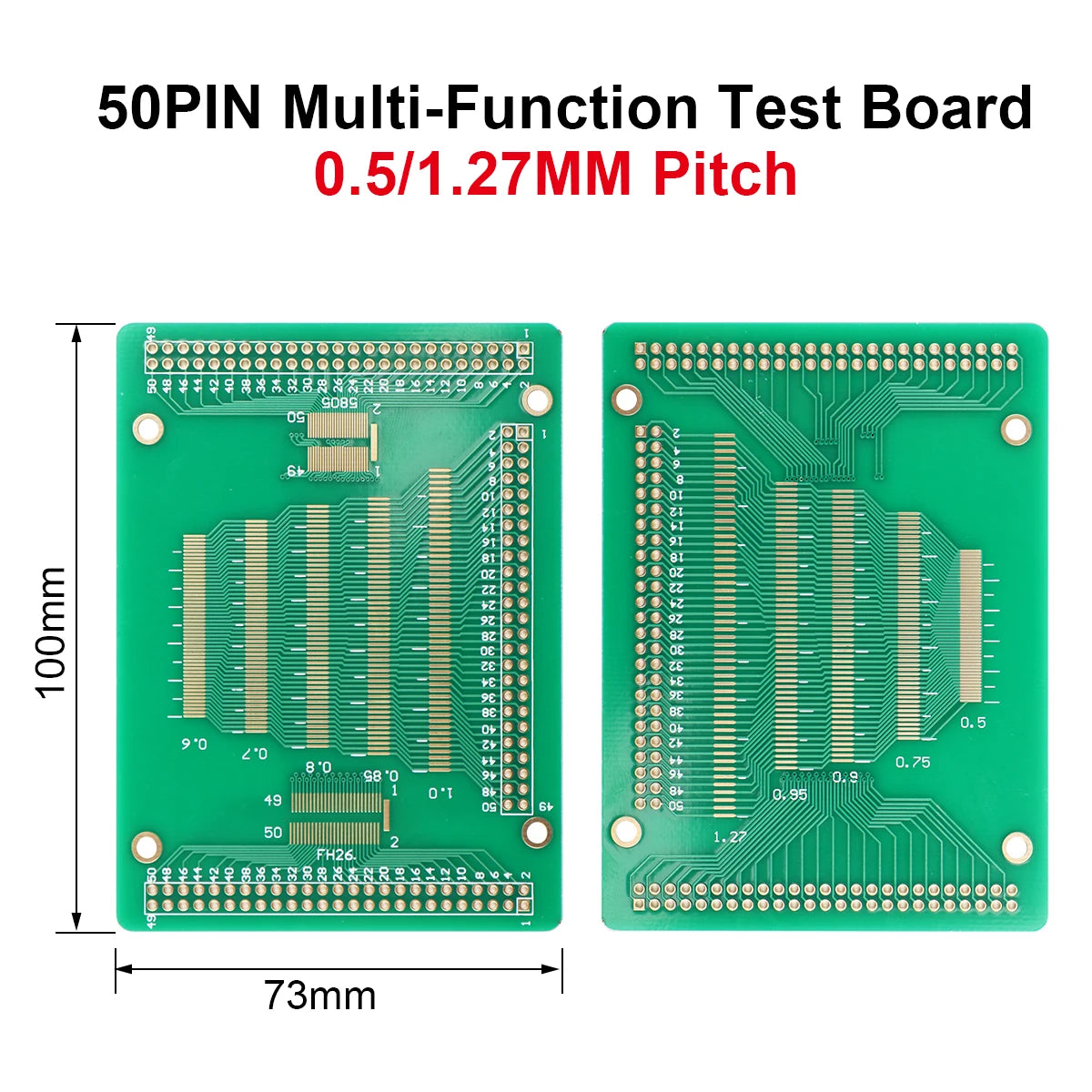

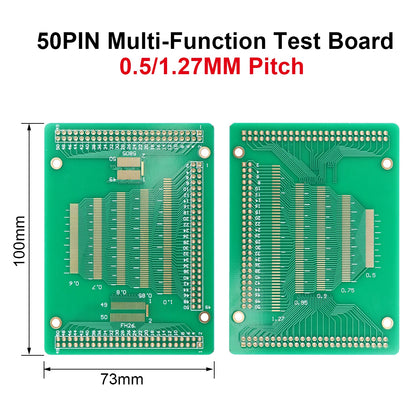

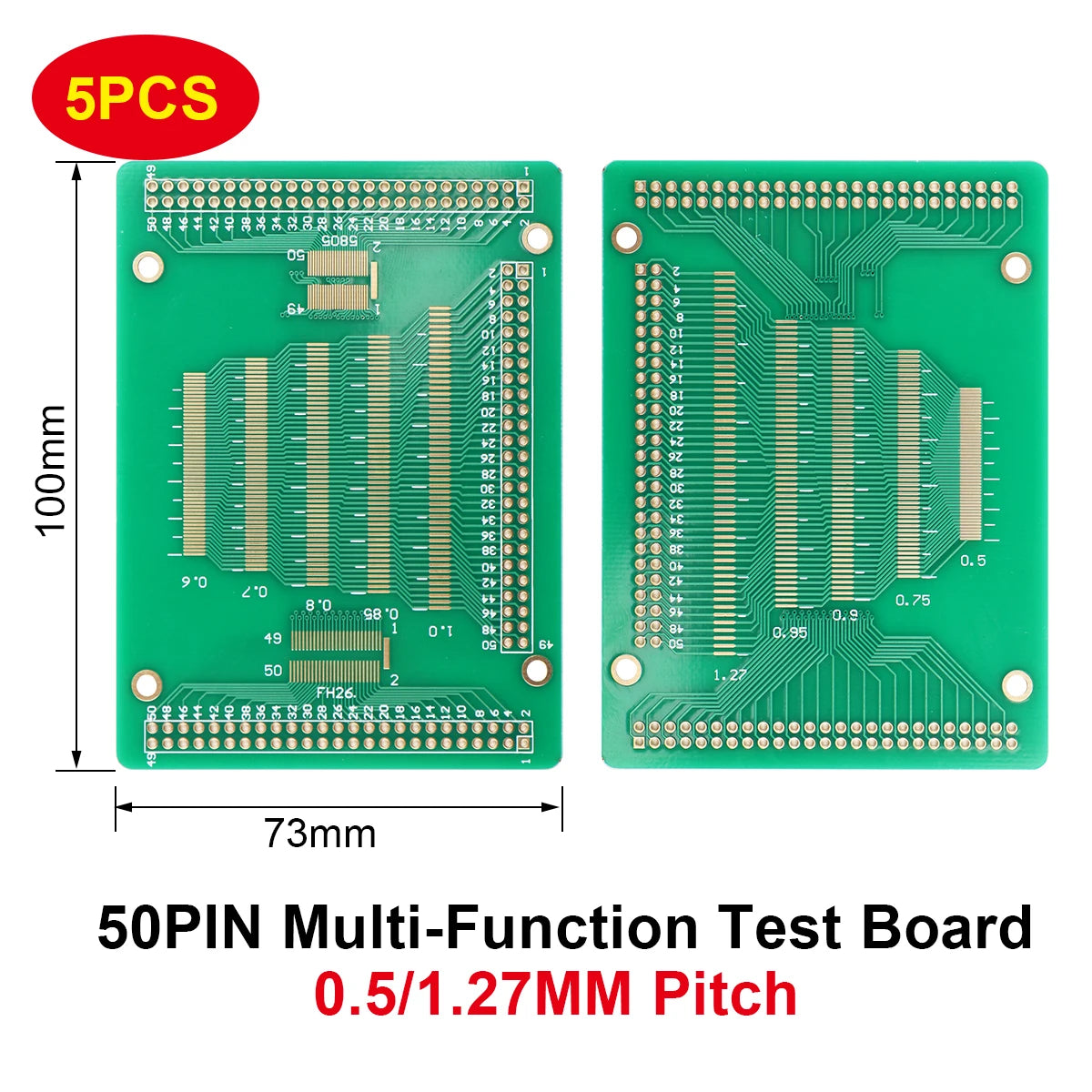

50P 0.5-1.27mm Pitch Test Board:

Front pin spacing: 0.6 0.7 0.8 0.85 1.0mm

50P staggered 0.3mm pitch

50 double row 0.35mm pitch

Pin spacing on the reverse side: 0.5 0.75 0.9 0.95 1.27mm

Size: 73*100M

L diameter: 1.0mm

Hole distance: 2.54mm

Board thickness: 1.6M

Packgae Include:

5Pcs/lot x Multi-Function Transfer Test Board

Model: As your choice!!

Quantity: As your choice!!

(We have a lot of Stocks, if you need more, please contact us.)
