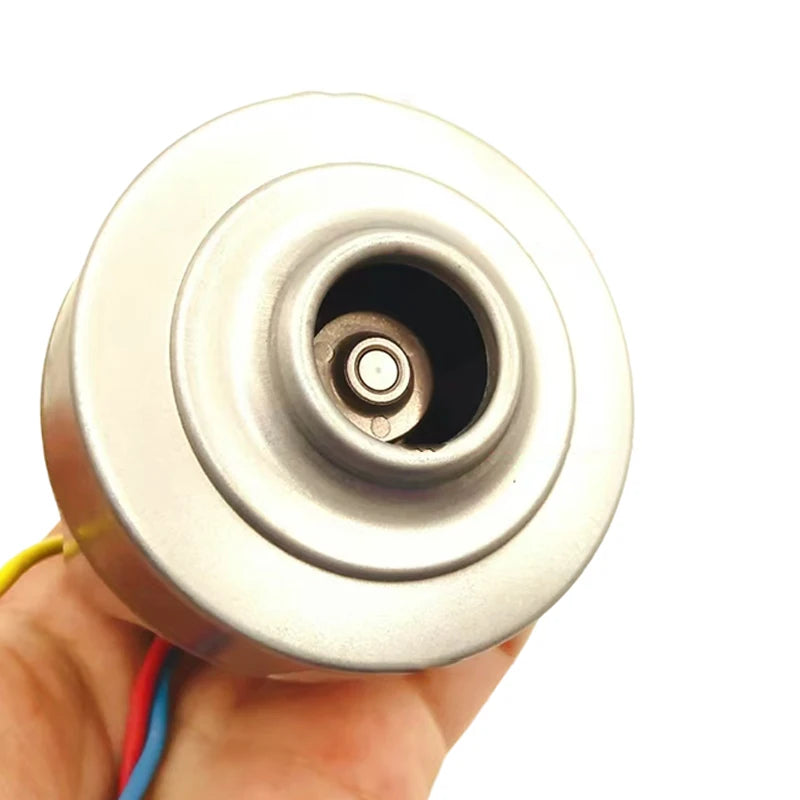

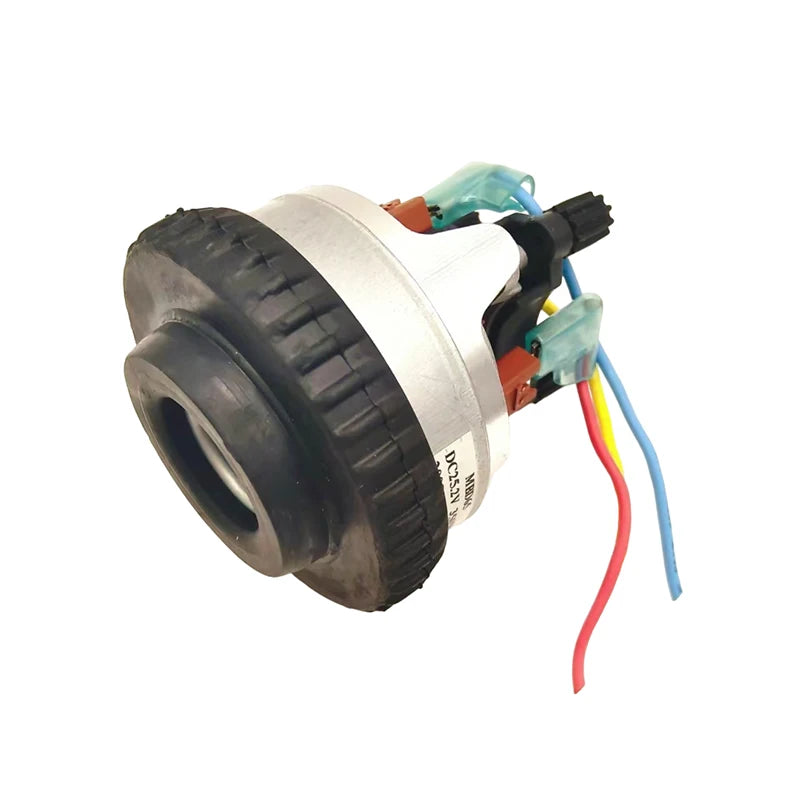

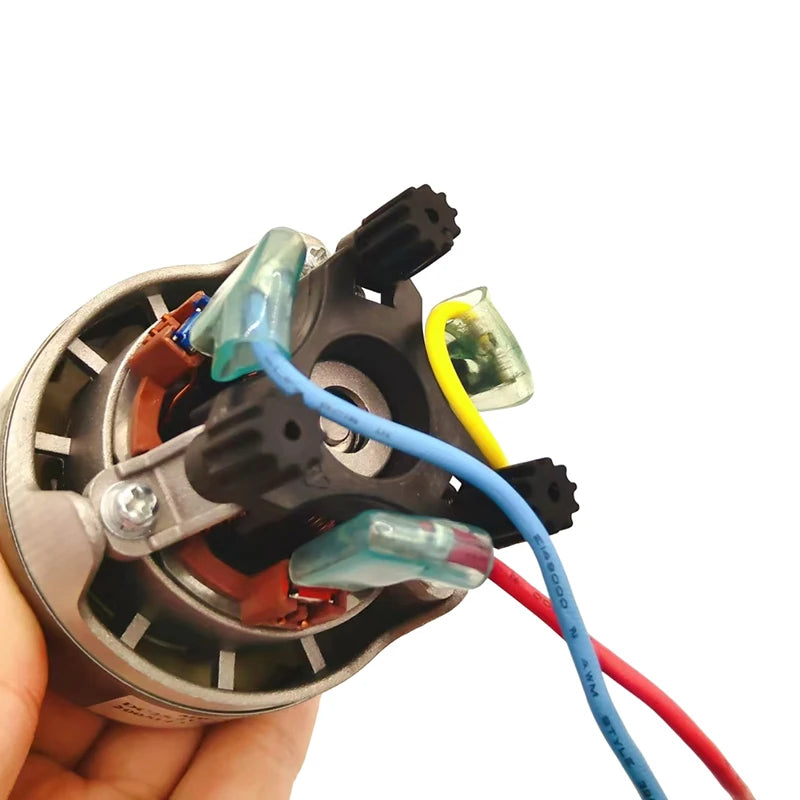

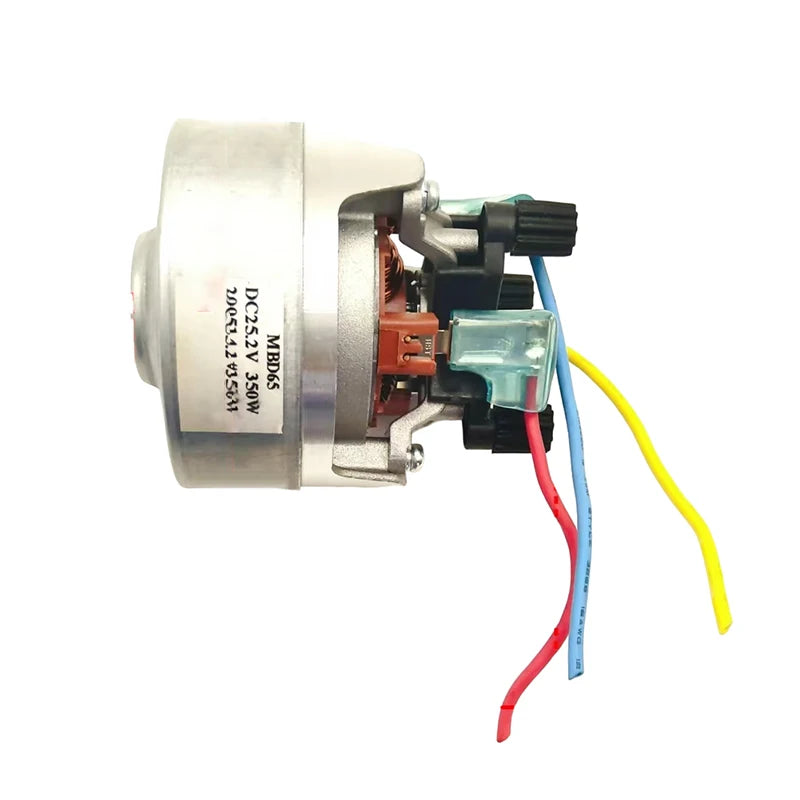

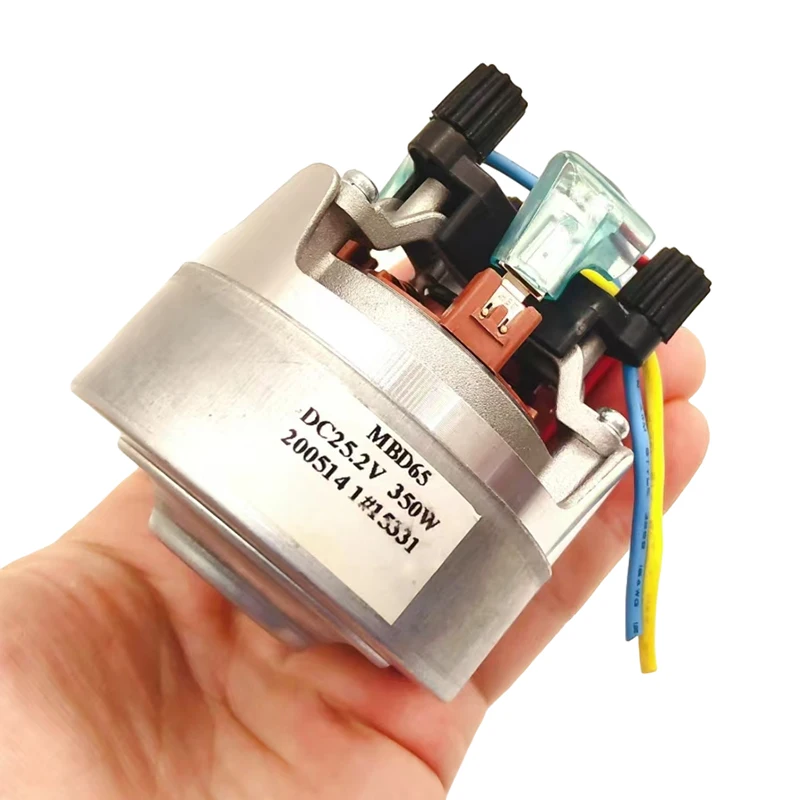

Dismantling high-power ultra high speed three-phase brushless motor vacuum cleaner fan, model MBD65, nominal 25.2V 350W. Originally used in high-end wireless vacuum cleaner products, the workmanship and materials used are very good. The high speed three-phase brushless motor, explosion-proof Ru iron boron strong magnetic rotor, and the overall frame stator bracket of the fan are all made of aluminum material. The fan blade structure of this fan is slightly different from common ones on the market. The suction impeller is made of aluminum alloy and has high-speed dynamic balance correction. An additional circle of pressure reducing guide vanes is designed on the outer side of the suction impeller.

The nominal power of a wind turbine of 300 watts is actually quite large. The original design purpose of the wind turbine was to be independent of the driving part, so the wind turbine is equipped with a brushless motor drive. It can be driven by a high-speed aircraft model brushless motor, and the measured power is even larger than the nominal power. Therefore, when modifying the DIY, it is recommended to use a power lithium battery for power supply. If using a DC sing power supply for power supply, the sing power supply is probably quite large, otherwise the performance of the wind turbine cannot be fully utilized.

Useing aircraft model electrical adjustment testing, with a current of about 6A at 12V and a power of about 80W, and a current of about 17A at 24V. DIY modification and other power supply voltage can be determined according to the needs. The higher the voltage, the higher the fan speed, and the greater the power. However, it is also necessary to consider the power of the brushless drive and power supply comprehensively.

Color: As the pictures show

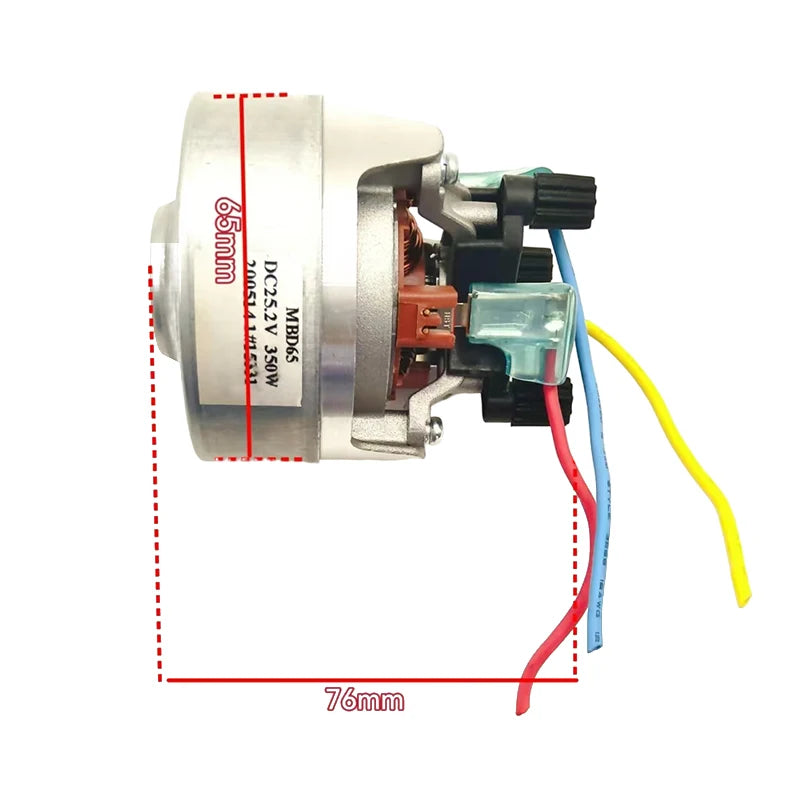

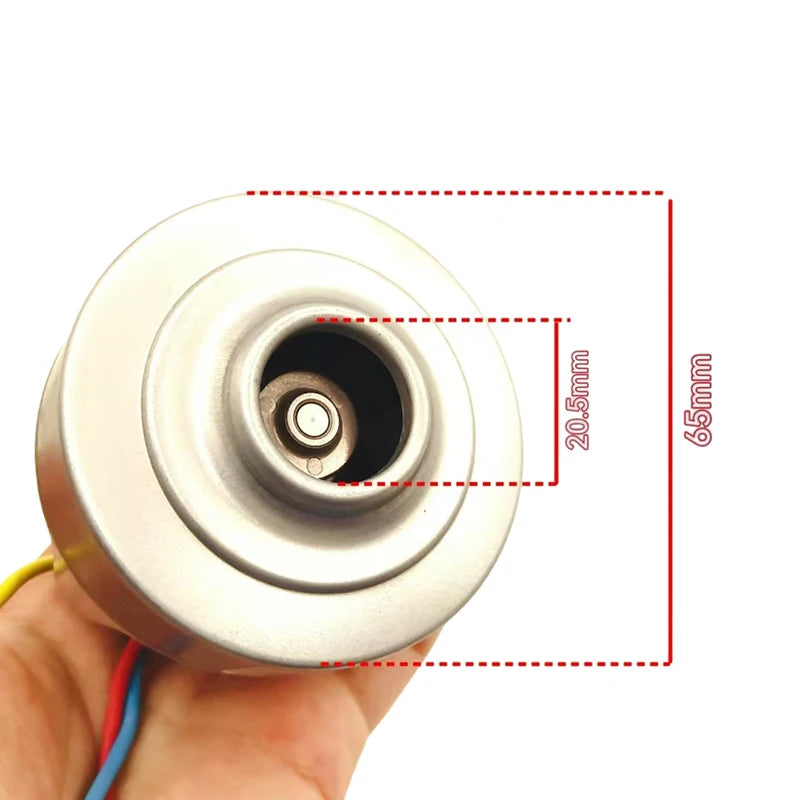

Size:As the pictures show

Package Included:1Pc

Note:

Due to manual measurement, please allow an error of 1-3mm.

As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
