PCB, SMD to DIP 8-Pin Adapter (5-Pack)

PCB, SMD to DIP 8-Pin Adapter (5-Pack)

Regular price $0.79 USD
Regular price $1.29 USD Sale price $0.79 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Adapts 8-pin SMD IC packages including SOIC, SOP, MSOP or TSSOP to DIP-8 footprint.

DESCRIPTION

This adapter can mount many 8-pin SMD IC packages such as SOIC-8, SOP-8, MSOP-8 or TSSOP-8 and convert them to an DIP-8 footprint.

PACKAGE INCLUDES:

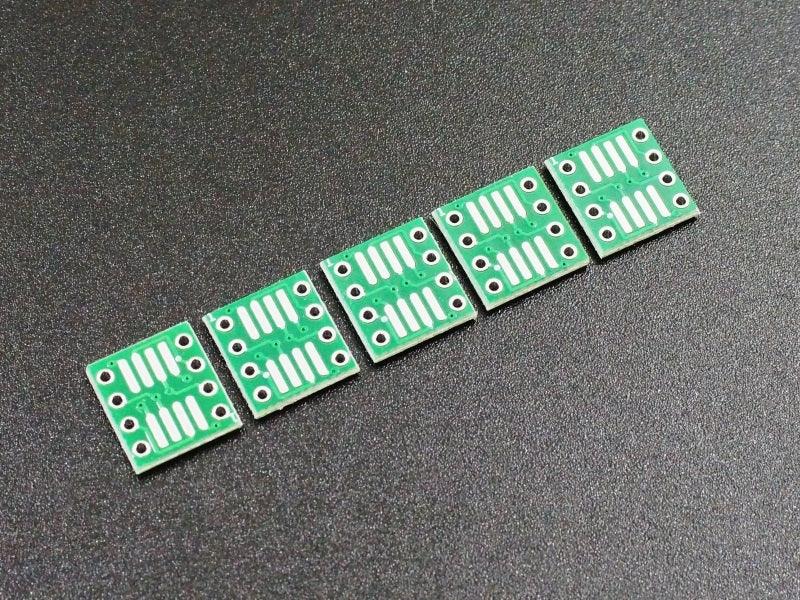

  • Qty 5 – PCB, SMD to DIP 8-Pin Adapter

KEY FEATURES OF PCB, SMD TO DIP 8-PIN ADAPTER:

This adapter board can mount many 8-pin SMD component that have either a 0.65mm or a 1.27mm lead spacing and convert it to a standard 8-pin DIP footprint on 2.54mm (0.1″) centers for use with breadboards.

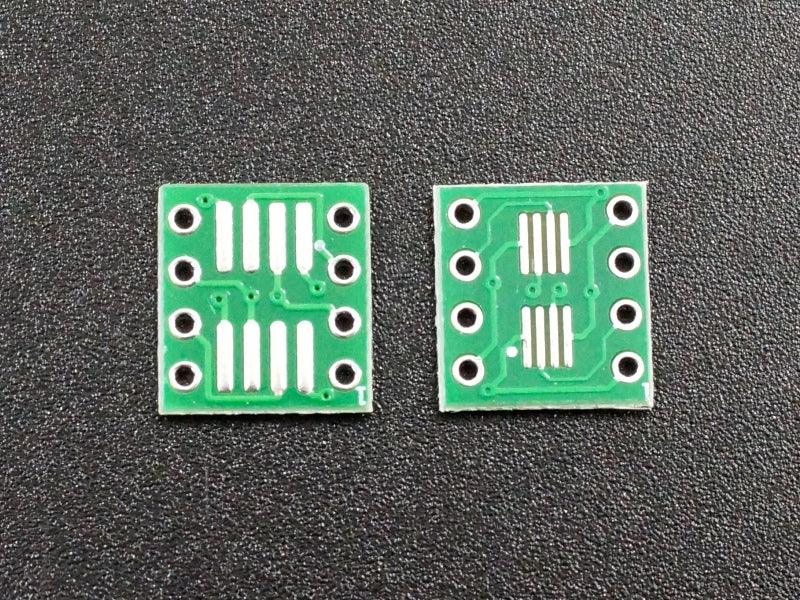

Pin 1 of the SMD package has a dot on the silkscreen while pin 1 of the DIP footprint has a 1 on the silkscreen.

The board is double-sided to support the two different SMD pin pitches.  Male headers can be soldered to either side of the board for use with breadboards.

The rows of male headers are on standard 0.3″ centers.

Notes:

  1. None

TECHNICAL SPECIFICATIONS

Material FR-4 w/ green solder mask
Plating HASL (SnPb) over copper
Silkscreen White

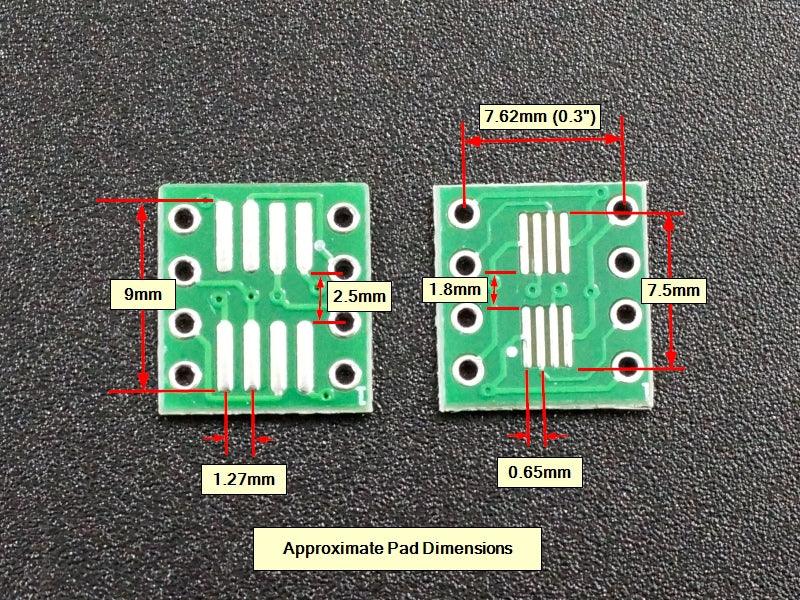

 Dimensions Board outline 11 x 10mm (0.43 x 0.39″)
Board thickness 1.6mm (0.064″)
Header row spacing 7.62mm (0.3″)
Country of Origin China
