Adapts SOT223 or SOT89 packages to standard 0.1″ footprint.
DESCRIPTION
These adapters have a HASL finish and can mount a SOT223 package on one side or a SOT89 on the other side and convert it to a 3-pin 0.1″ footprint.
PACKAGE INCLUDES:
- Qty 5 – PCB, SOT223 / SOT89 Adapter, HASL
KEY FEATURES OF PCB, SOT223 / SOT89 HASL ADAPTER:
- Mounts SOT223 and SOT89 or similar package types
- Leaded HASL (Hot Air Solder Leveling) finish
- 1.6mm / 0.62″ FR-4 construction
This adapter board can mount 3-pin plus tab SOT SMD components that either have a 1.5mm or a 2.3mm lead spacing and convert it to a 3-pin header footprint on 0.1″

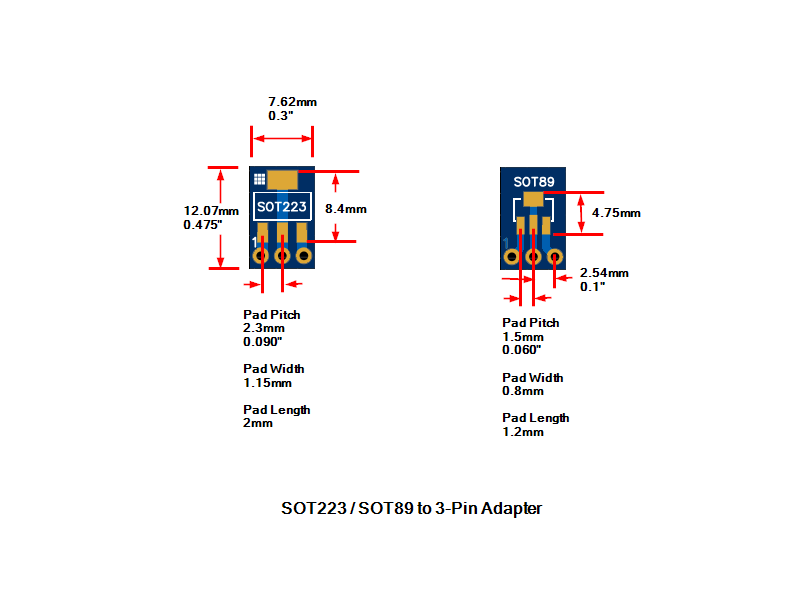

centers for use with breadboards and perf boards. Refer to the pad dimensions to determine suitability for mounting a particular package type.
The board is double-sided to support the two different SMD pin pitches. Either straight or right-angle header pins can be soldered to either side of the board for use with breadboards.
Board Finish
The boards are constructed of 1.6mm FR-4 with 1oz copper and green solder mask.
The copper has a leaded HASL (Hot Air Solder Leveling) finish for lower cost and good performance with standard leaded solder.
Notes:
- None
TECHNICAL SPECIFICATIONS
| Material | FR-4 w/ green solder mask | |
| Plating | Leaded HASL (Hot Air Solder Leveling) | |
| Silkscreen | White, double-sided | |
| Dimensions | Board outline | 12.07 x 7.62mm (0.48 x 0.3″) |
| Board thickness | 1.6mm (0.062″) | |
| Pin spacing | 2.54mm (0.1″) pin-to-pin | |
| Country of Origin | Designed in USA | Manufactured in China |
