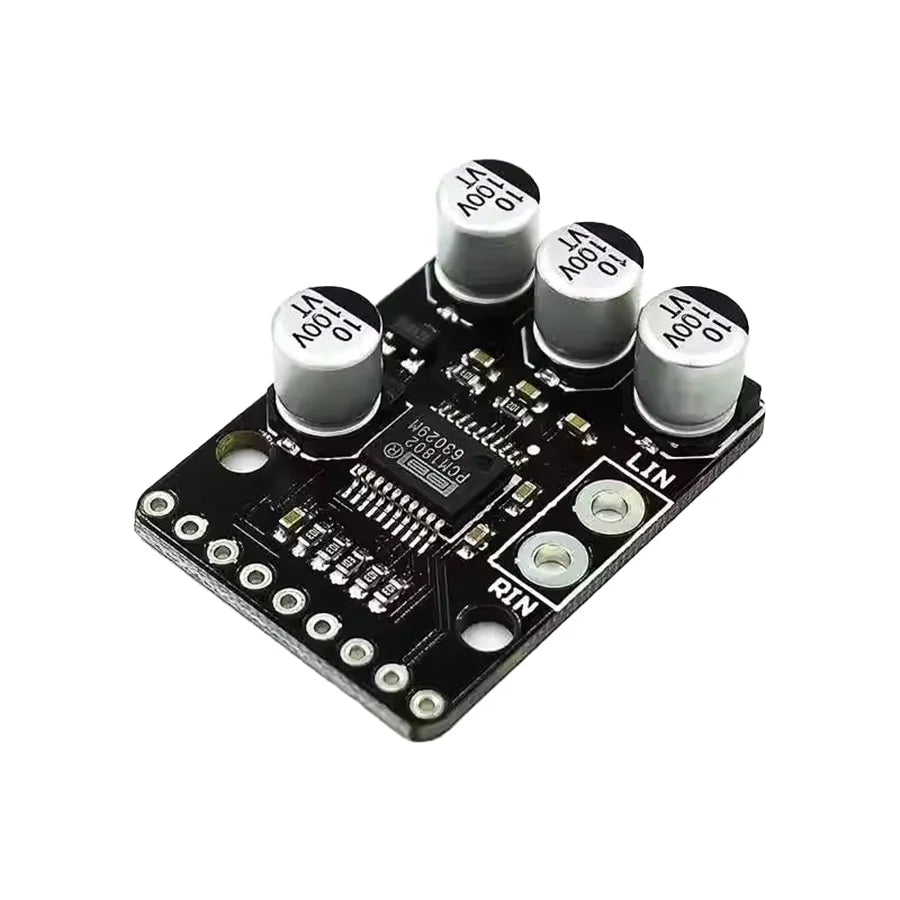

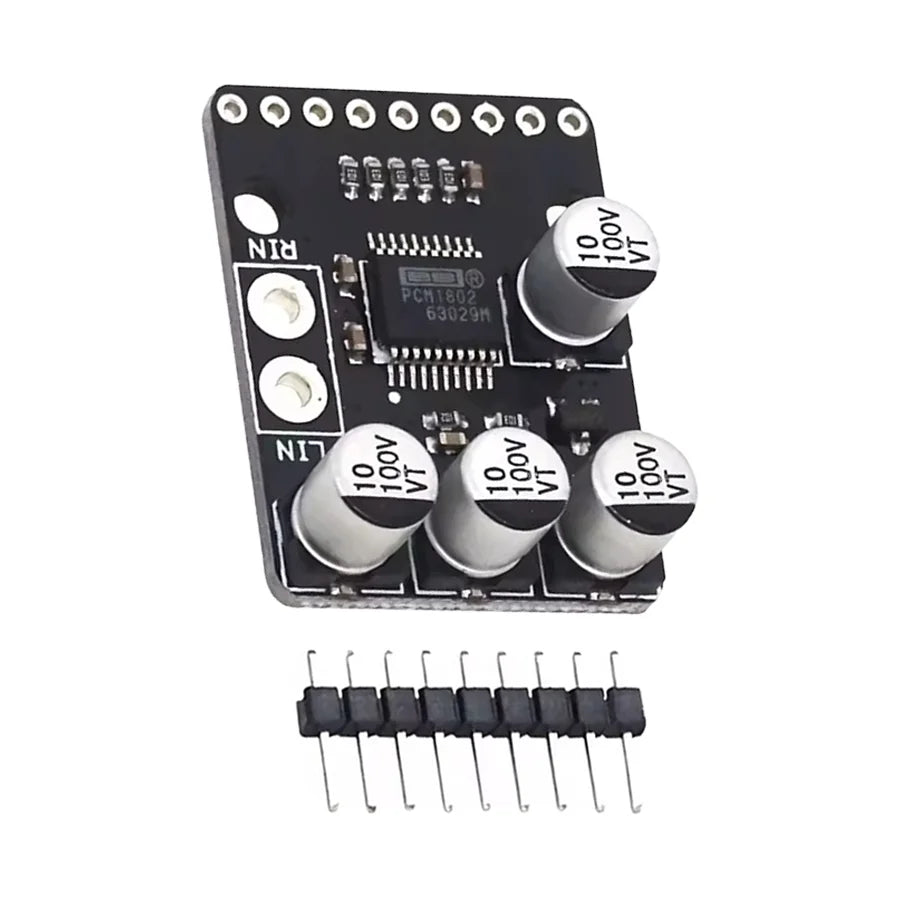

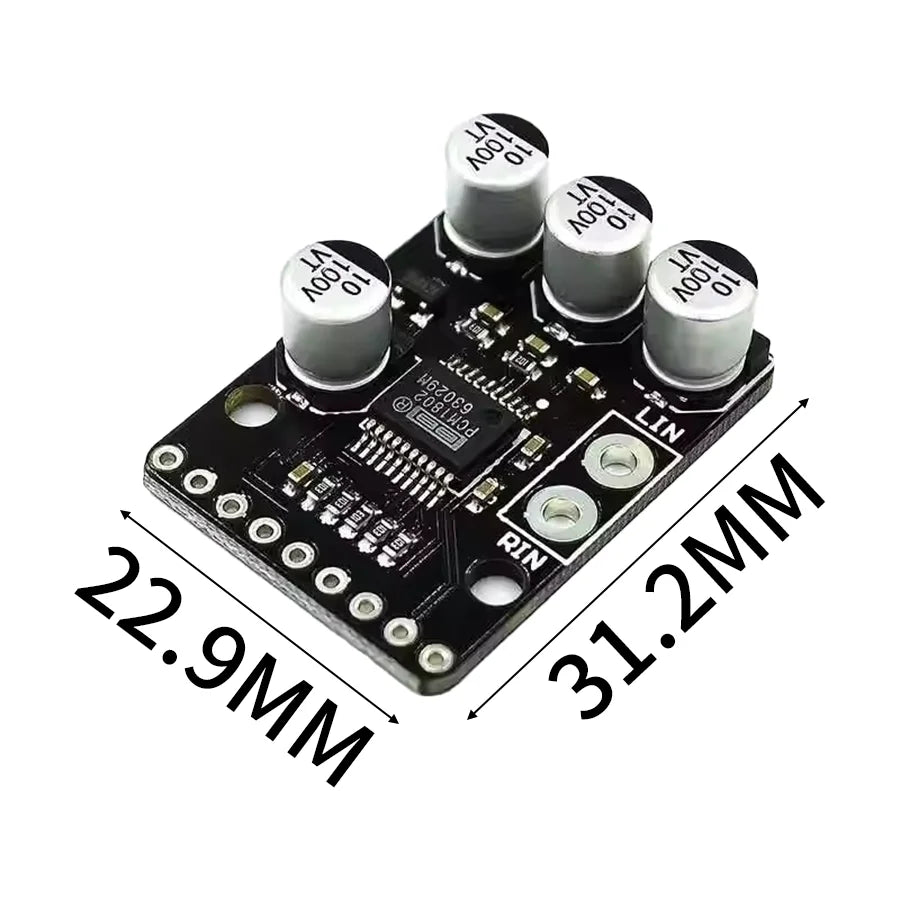

PCM1802

SINGLE-ENDED ANALOG-INPUT
24-BIT,96-kHz STEREO A/D CONVERTER
¡¤ 24-Bit Delta-Sigma Stereo A/D Converter ¡¤ AV Amplifier Receiver
¡¤ Single-Ended Voltage Input: 3 V p-p ¡¤ MD Player
¡¤ Antialiasing Filter Included ¡¤ CD Recorder
¡¤ Oversampling Decimation Filter ¡¤ Multitrack Receiver
- Oversampling Frequency: ¡ä64,¡ä128 ¡¤ Electric Musical Instrument
- Pass-Band Ripple: ¡À0.05 dB
- Stop-Band Attenuation: -65 dB

The PCM1802 is a high-performance, low-cost

- On-Chip High-Pass Filter (HPF): 0.84 Hz single-chip stereo analog-to-digital converter with (44.1 kHz) single-ended analog voltage input. The PCM1802
¡¤ High Performance uses a delta-sigma modulator with 64- or 128-times
- THD+N: 96 dB (Typical) oversampling, and includes a digital decimation filter
and high-pass filter (HPF), which removes the dc
- SNR: 105 dB (Typical) component of the input signal. For various appli-
- Dynamic Range: 105 dB (Typical) cations, the PCM1802 supports master and slave
¡¤ PCM Audio Interface modes and four data formats in serial interface.

The PCM1802 is suitable for a wide variety of cost

- Master/Slave Mode Selectable sensitive consumer applications where good perform-
- Data Formats: 24-Bit Left-Justified; 24-Bit ance,5-V analog supply,and 3.3-V digital supply
I2S; 20-,24-Bit Right-Justified operation is required. The PCM1802 is fabricated
¡¤ Sampling Rate: 16 kHz to 96 kHz using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.
¡¤ System Clock: 256 fS,384 fS,512 fS,768 fS
¡¤ Dual Power Supplies: 5 V for Analog,3.3 V for Digital
