Potentiometer 5K Single-Turn Panel Mount

Linear potentiometers can be panel or PCB mounted. DESCRIPTION These linear taper 5K single-turn potentiometers can be...
Vendor: Keszoox
$0.59
$1.29
$0.59

Shipping

The shipping fee depends on your address

Standard: 9-15 business days,fee is down to $3.99

Express: 4-7 business days,fee is down to $5.99

Support Customization

WE'RE READY TO BUILD A CUSTOM PRODUCT FOR YOU.

If you're looking for a custom product, we can help. Kindly contact us via email support@keszoox.com and send us the details for your need, then we'll let you know how we can deliver the right solution.

Built And process your order

We make into production usually Within 1 - 3 Bussiness Days.

Expect customization orders.
Potentiometer 5K Single-Turn Panel Mount

Potentiometer 5K Single-Turn Panel Mount

$1.29 $0.59

Potentiometer 5K Single-Turn Panel Mount

$1.29 $0.59

Linear potentiometers can be panel or PCB mounted.

DESCRIPTION

These linear taper 5K single-turn potentiometers can be panel or PCB mounted.

PACKAGE INCLUDES:

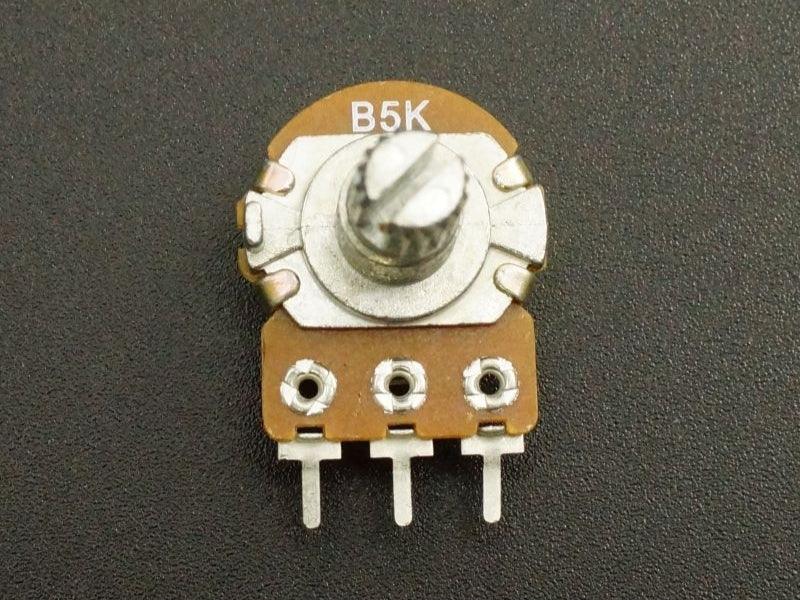

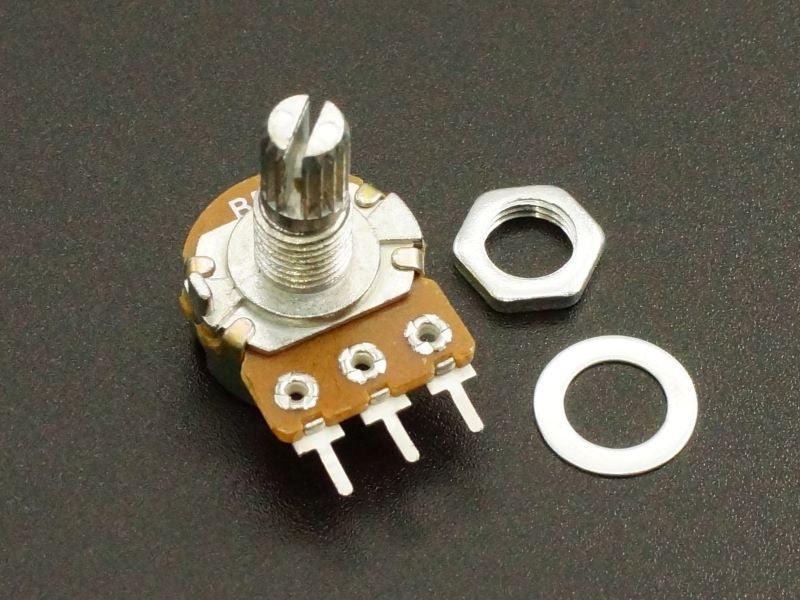

  • Qty 1 – Potentiometer 5K Ohm Single-turn Panel Mount
  • Qty 1 – Washer/Nut

KEY FEATURES OF 1K SINGLE-TURN PANEL MOUNTED POTENTIOMETER:

  • 5K Ohm
  • Linear taper, carbon film type
  • Single-Turn
  • Mountable through a panel and comes with mounting hardware

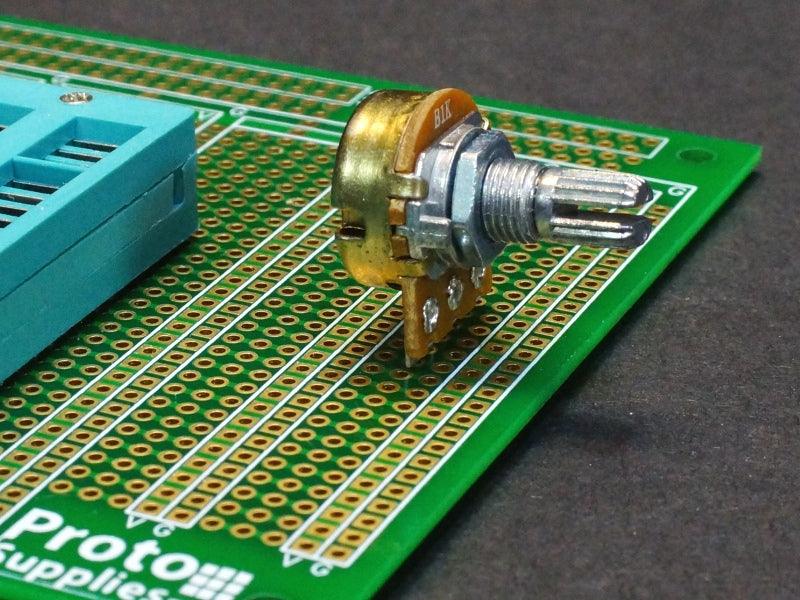

  • Can be soldered to PCB with pins on 0.2″ centers
  • Fit standard knobs designed for a 6mm diameter shaft.

These linear taper pots are single-turn with approximately 300 degrees of actual rotation.  Rotation is smooth with good linearity.

For panel mounting, the shaft can be installed through a 7mm or 9/32″ diameter hole and captured in place with the supplied washer and 10mm nut.  Wires can be soldered to the pins.

The pot has a locator tab for enclosures that have a locator slot to keep the body of the pot from rotating.  If this tab is in the way, it can be snapped off easily using a pair of pliers.

For PCB mounting, the leads are solder type with standard spacing on 5.08mm (0.2″) centers that work with standard 0.1″ perf hole spacing.  The leads are not long enough to work with solderless breadboards.

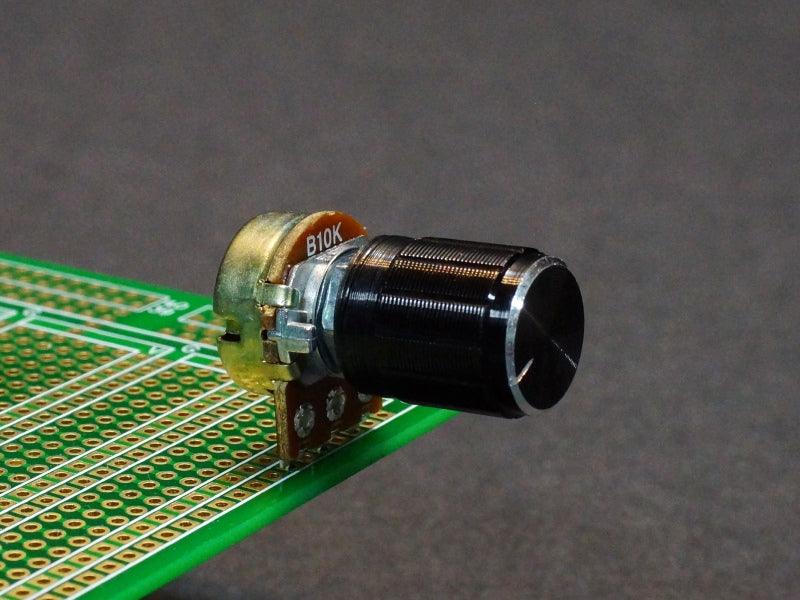

The shaft has a 6mm diameter by 15mm long.  It is slotted and knurled the last 7mm of its length.  If mounted on a PCB and recessed behind a panel, it can be adjusted with a slotted screwdriver.  If mounted through a panel, a standard knob designed for a 6mm shaft diameter can be added.

Notes:

  1. None

TECHNICAL SPECIFICATIONS

Value 5K Ohm
Wattage 1/2W
Tolerance  Max Value ±15% (typical measured)
Type Carbon Film
Number of turns End-to-End 1 turn (approx 300 degrees rotation)
Adjustment Type Knurled knob
Package  Metal, 3 radial leads
Dimensions Shaft Length 15mm (0.59″)
Shaft Diameter 6mm (0.24″)
Body + Shaft length 24mm (0.95″)
Body width 18mm (0.71″)
Mounting hole 7mm (9/32″)
Datasheet

Potentiometer Single Turn Panel Mount - Dimensions
