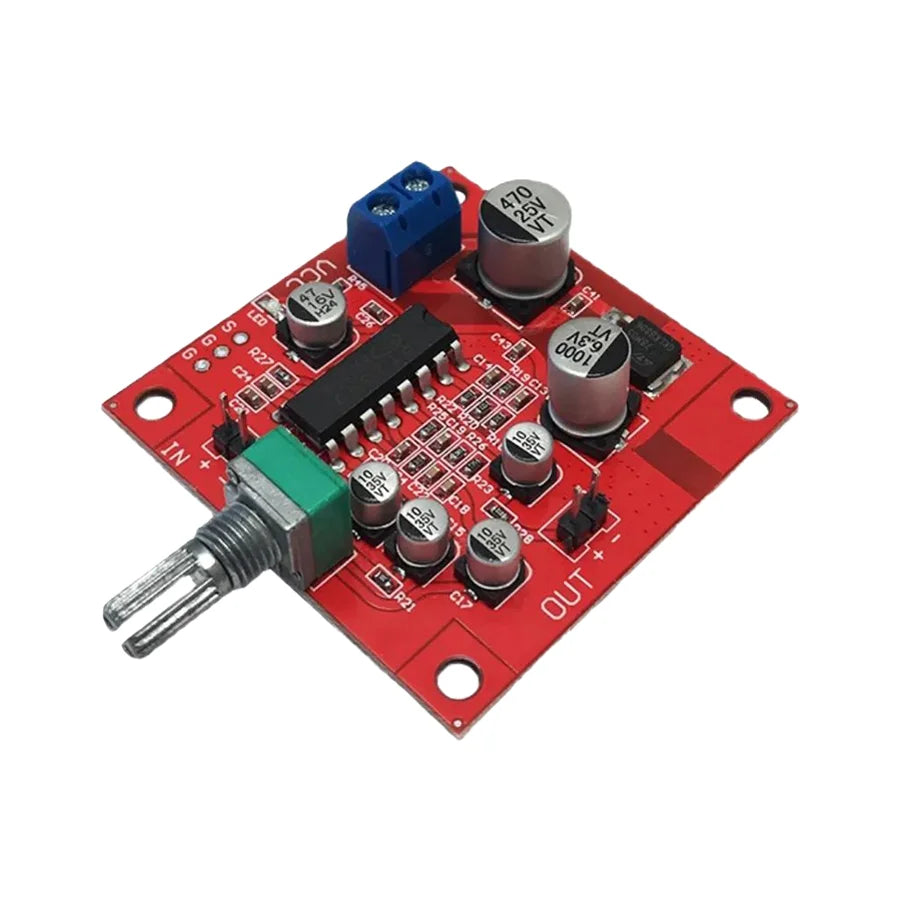

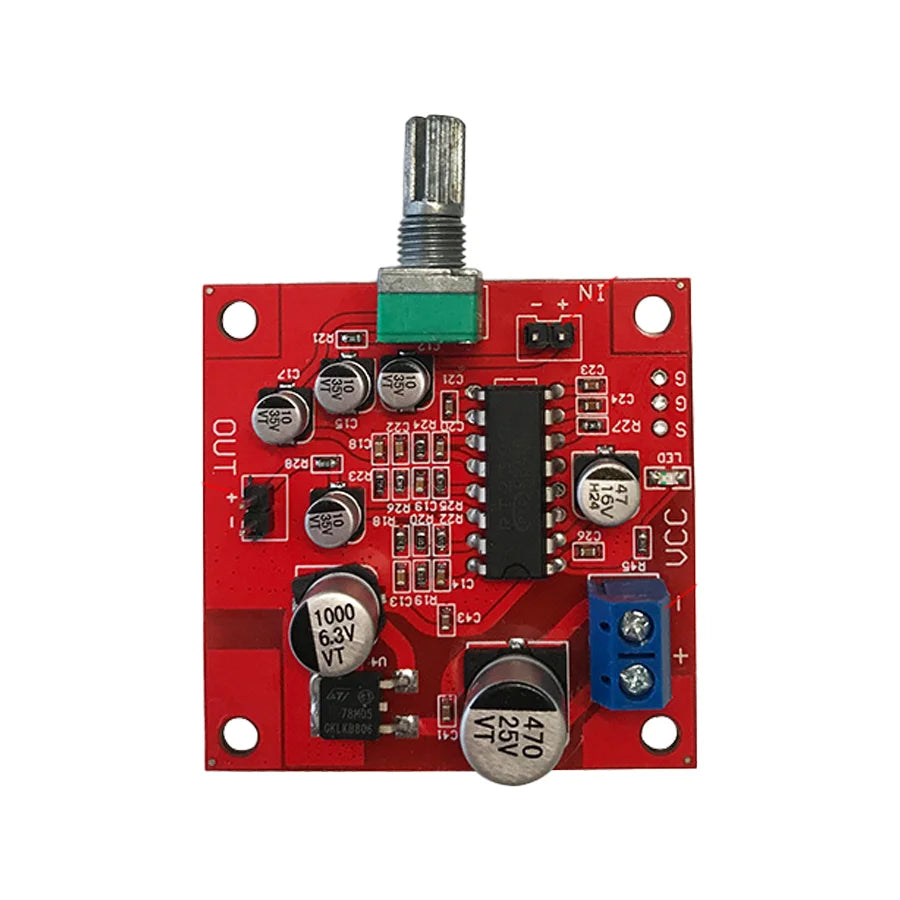

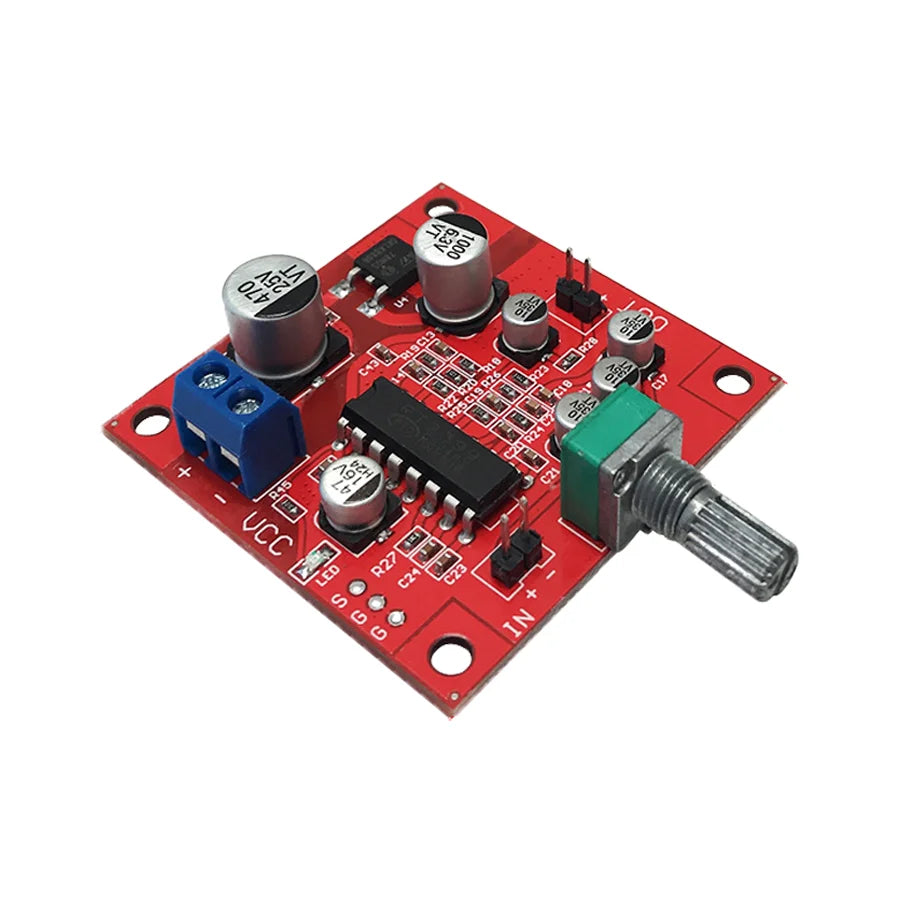

PT2399 Microphone Reverb Plate Reverberation Board Module for Audio Processing ¨C No Preamplifier
PT2399 Microphone Reverb Plate Reverberation Board Module for Audio Processing ¨C No Preamplifier
Couldn't load pickup availability
SPECIFICATIONS
Application: Speaker
Brand Name: Keszoox
Condition: New
Dissipation Power: 1
High-concerned chemical: None
Operating Temperature: 1
Origin: Mainland China
Package: SMD
Quantity: 1
Supply Voltage: 6-15V
Type: Voltage Regulator
Weight: 19g
is_customized: Yes
New revision upgrade: Made by SMD technology, the overall height of the board is only about 13mm, and the performance is more stable.
R27 is the reverberation depth resistor. If you need to change it, you can remove R27 and connect a potentiometer to the S--G--G pad to adjust it. The potentiometer can be 20k-50k.
Instructions for use: microphone--microphone preamplifier--microphone reverberation board--power amplifier. This microphone reverberation board can be combined with our MAX9812 electret microphone preamplifier to form an OK board with reverberation function.
Note: The board is a separate reverberation board without microphone preamplifier
Board working voltage: DC 6-15v

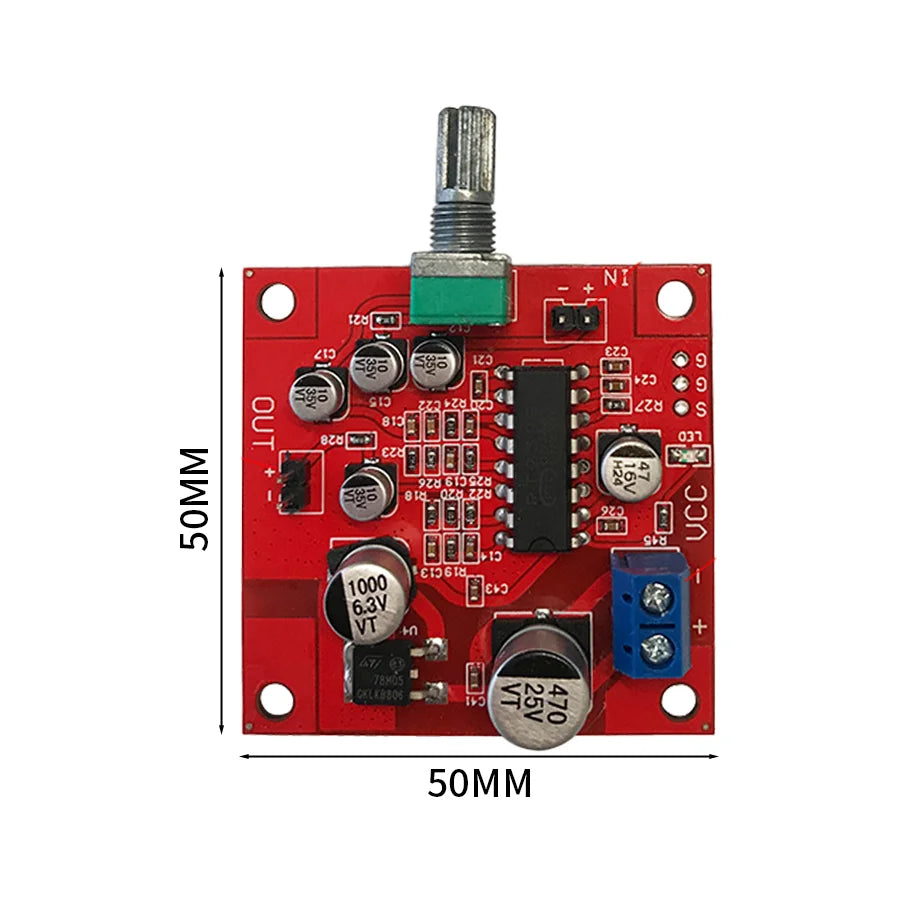

Board size: 50mm*50mm
