281934-2 Silicone Wire Seal for Tyco AMP 1.5 Series Connector — Red / Blue / Yellow | 100PCS
281934-2 Silicone Wire Seal for Tyco AMP 1.5 Series Connector Red / Blue / Yellow | 100PCS
Couldn't load pickup availability

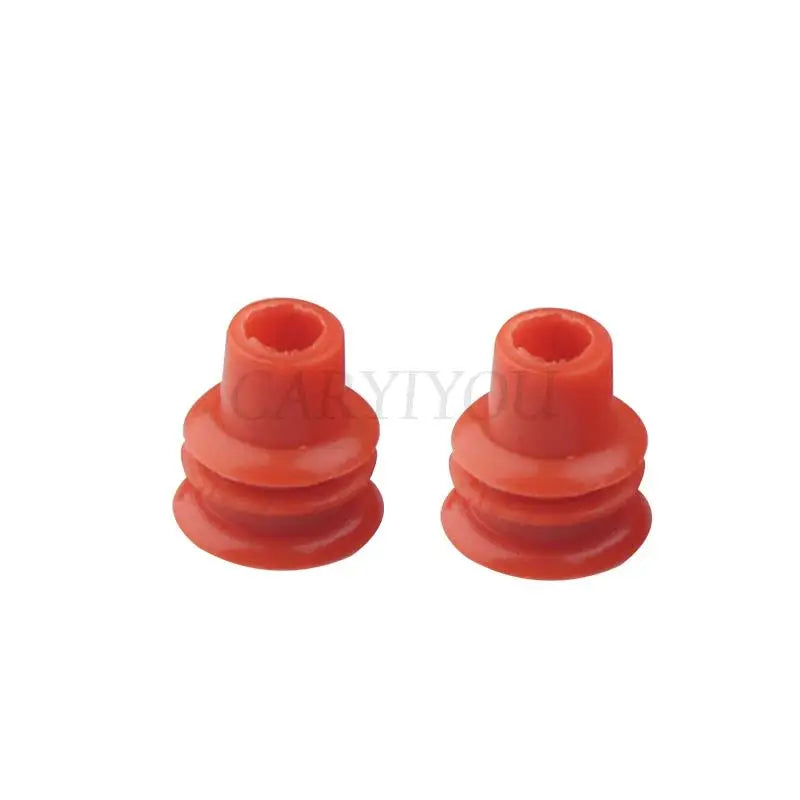

281934-2 Silicone Wire Seal for Tyco AMP 1.5 Series Waterproof Connector
OEM-specification silicone wire seals (part number 281934-2) designed for use with Tyco / TE Connectivity AMP 1.5 series waterproof automotive connectors. These single-wire seals create an IP67-rated environmental seal around each wire entry point in the connector housing, preventing moisture, dust, and contaminants from entering the connector cavity. Available in Red, Blue, and Yellow for easy wire gauge identification during assembly. Supplied in a 100PCS pack for production assembly, harness repair, and connector re-termination.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 281934-2 |
| Compatible Series | Tyco / TE Connectivity AMP 1.5 series waterproof connector |
| Material | Silicone rubber |
| Colors Available | Red, Blue, Yellow |
| Wire Range | 0.5–1.0mm² (AWG 20–18) |
| Sealing Rating | IP67 (when correctly installed) |
| Pack Quantity | 100PCS |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ Silicone rubber construction — flexible, temperature-resistant, maintains seal integrity across the full automotive temperature range (−40°C to +125°C)
- ✅ IP67 sealing — prevents moisture, dust, and contaminants from entering the connector cavity when correctly installed
- ✅ Color-coded — Red, Blue, and Yellow variants for easy wire gauge identification during harness assembly
- ✅ 281934-2 OEM specification — direct replacement for Tyco / TE Connectivity AMP 1.5 series waterproof connector wire seals
- ✅ 100PCS pack — sufficient for production assembly runs and multiple harness repair jobs
Common Applications
- Tyco / TE Connectivity AMP 1.5 series waterproof connector assembly
- Automotive wiring harness waterproofing and repair
- Sensor connector wire seal replacement
- Custom waterproof wiring harness fabrication
- OEM and aftermarket automotive electrical repair
Installation Guide
- Select the correct color seal for the wire gauge being used (Red: 0.5mm² / Blue: 0.75mm² / Yellow: 1.0mm² — verify with your connector datasheet).
- Thread the wire through the seal before crimping the terminal.
- Crimp the terminal onto the wire using the appropriate AMP 1.5 series crimping tool.
- Insert the terminal and seal assembly into the connector housing until the terminal clicks into the retention position and the seal seats flush with the housing rear.
- Verify the seal is fully seated and not twisted or folded.
FAQ
Q: What wire gauge is compatible?
A: The 281934-2 seal is designed for 0.5–1.0mm² (AWG 20–18) wire. Using the wrong gauge will compromise the IP67 seal.
Q: What do the colors indicate?
A: Colors are used for wire gauge identification during assembly. Refer to the Tyco AMP 1.5 series connector datasheet for the specific color-to-gauge mapping for your application.
Package Contents
- 100× 281934-2 Silicone Wire Seal for Tyco AMP 1.5 Series (color as selected: Red / Blue / Yellow)
