Resistor 0 Ohm (25-Pack)

Shunt resistors with the same body style as a typical 1/4W axial leaded resistor.

DESCRIPTION

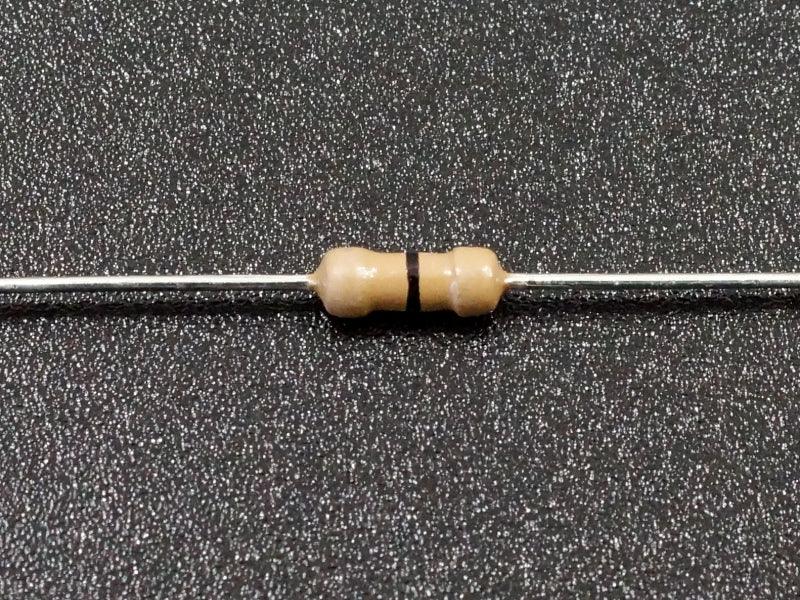

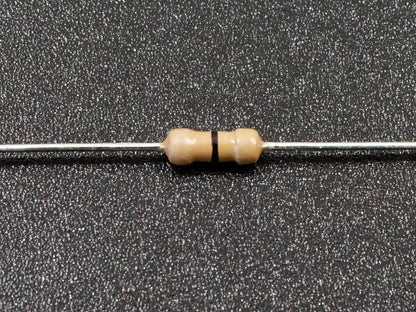

These are 0 ohm shunt resistors with the same body style as a typical 1/4W axial leaded resistor.

PACKAGE INCLUDES:

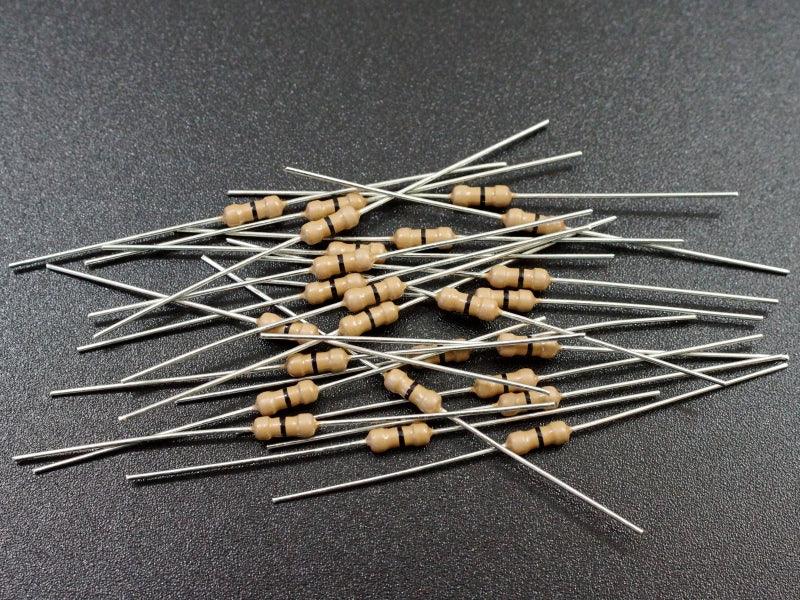

• Qty 25 – 0 Ohm Resistor

KEY FEATURES OF 0 OHM RESISTORS:

0 ohm resistors are a handy way to short a location where a resistor had been on a circuit board when it is no longer needed or for use as jumpers.  They basically serve the purpose of a piece of wire but can be a little handier to work with at times.  They can handle up to 3A of current and 500V.

We offer this particular line of resistors specifically for breadboarding because they have easy to read color-coding on a tan (5%) background so you don’t have to keep dragging out the multimeter to figure out values.

In addition the leads are very stout with a 0.55 mm diameter constructed of tin and copper plated over steel wire, so they hold up well with repeated insertions into solderless breadboards. No more trying to use needle nose pliers to get the resistor leads to insert into the breadboard.  The larger leads also grip better in the contacts.

Because the leads are strong, these resistors can also be useful when sky-wiring a project.

Notes:

1. None

---

TECHNICAL SPECIFICATIONS

Resistance		0 ohm ( < 0.01 ohm)
Tolerance		N/A
Color Code		Single black stripe
Current	Maximum Rating	3A
Voltage	Maximum Rating	500V
Polarization		None
Operating Temp		-55C – +155C
Package		Conformal Coated, Axial

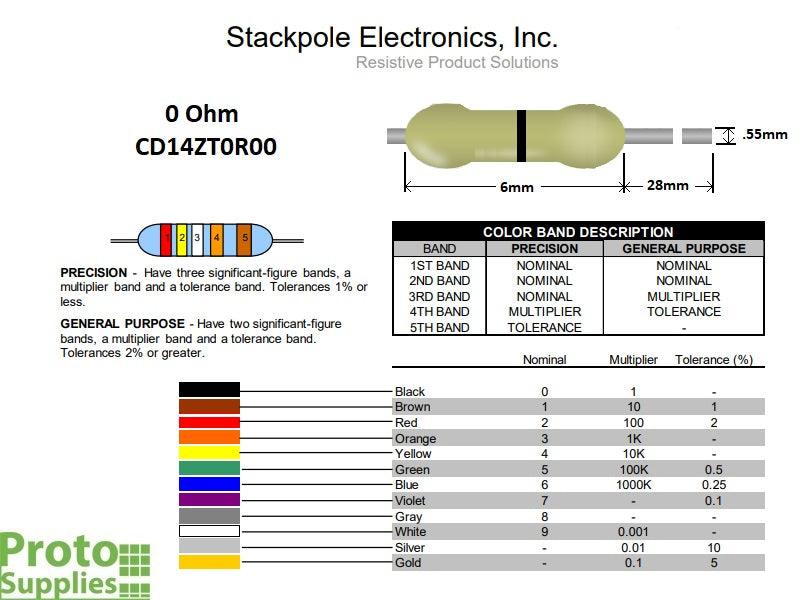

Dimensions	Body Diameter	2.3mm
	Body Length	6mm
	Lead Length	28mm
	Lead Diameter	0.55mm
Mfr		Stackpole Electronics
Datasheet		CD14ZT0600
