SPECIFICATIONS

Brand Name: OLNYLO

High-concerned chemical: None

Highlights 1: LED dimmer control switch

Highlights 2: LED strips for smart home

Highlights 3: Short-range scanning sensor

Highlights 4: Suitable for car smart home

Highlights 5: Touch On/Off Switch

Highlights 6: Sensor detector

Material: Polymer

Model 1: PIR Motion Sensor

Model 2: Short Distance Scan Sensor Sweep

Model 3: Touch Sensor Switch

Origin: Mainland China

Output: Switching Transducer

Theory: Optical Sensor

Type: vibration sensor

Use: Position Sensor

is_customized: Yes

Short Distance Scan Sensor Touch Switch Capacitive Module PIR Motion Sweep Hand Sensor V2.1 5V-24V 3A LED Dimming Control Lamps

Warm Tips:
Our store support wholesale, the more quantity the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks! ^_^

INTRODUCTIONS:

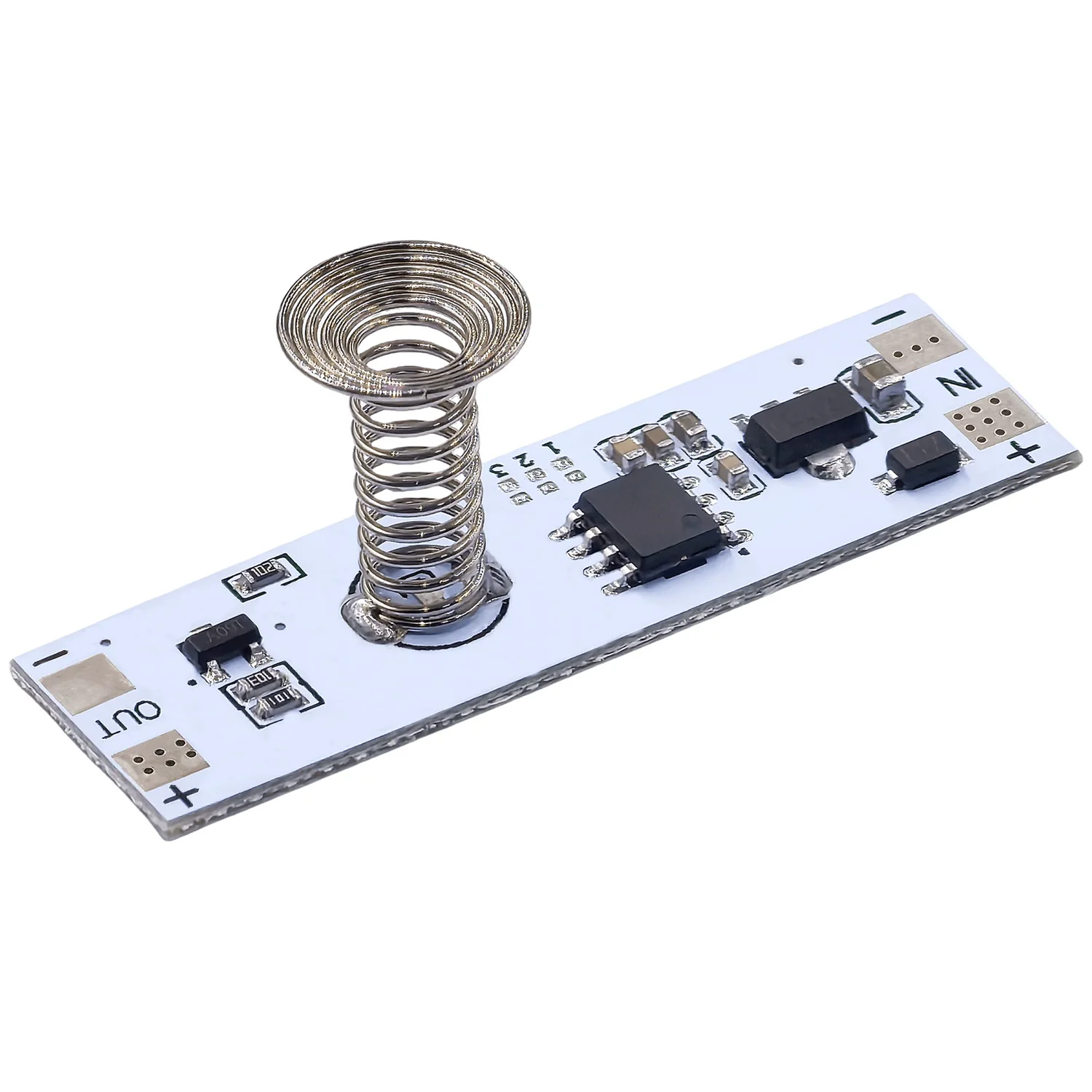

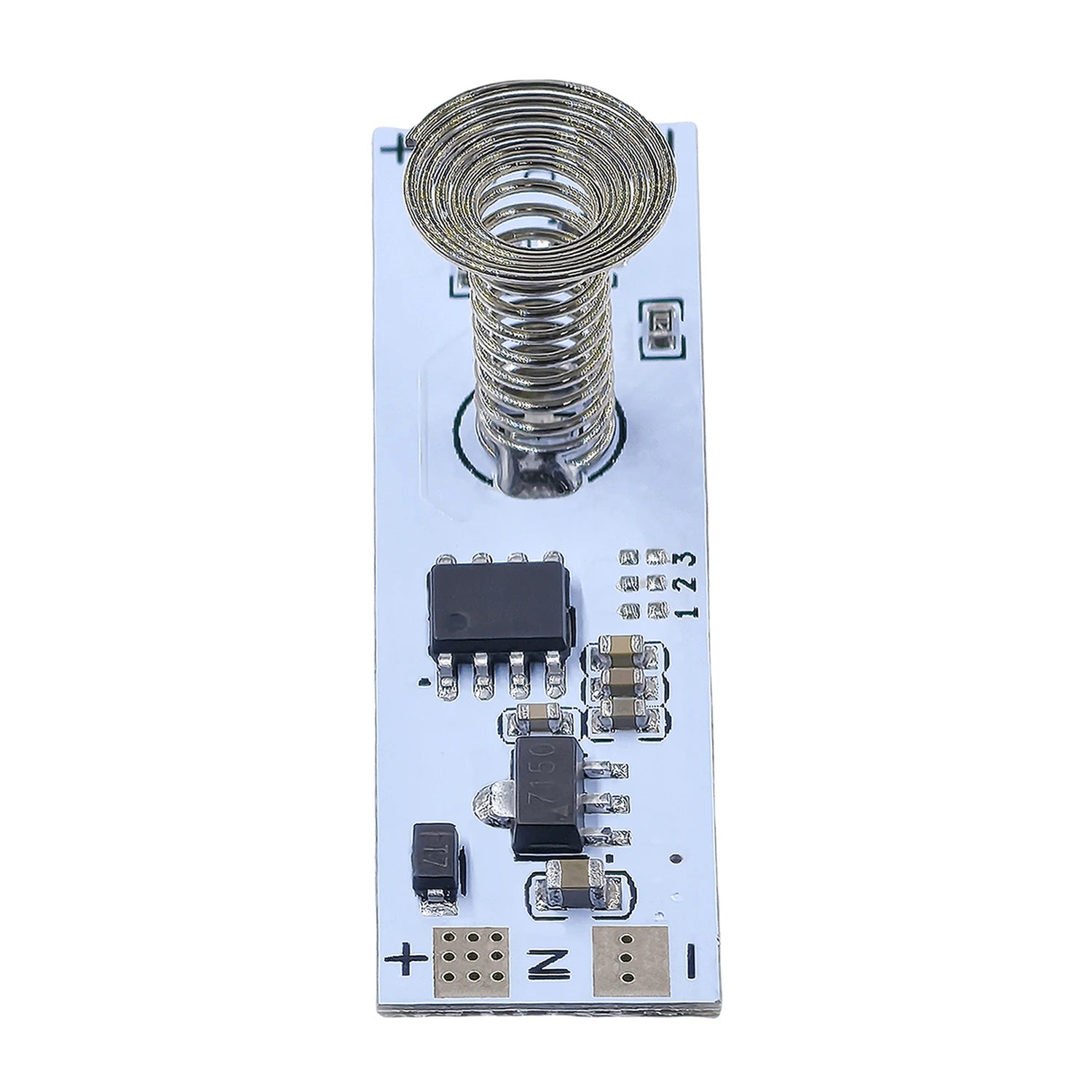

- The multi-function touch sensing module is an integrated circuit module designed for realizing a human touch interface.

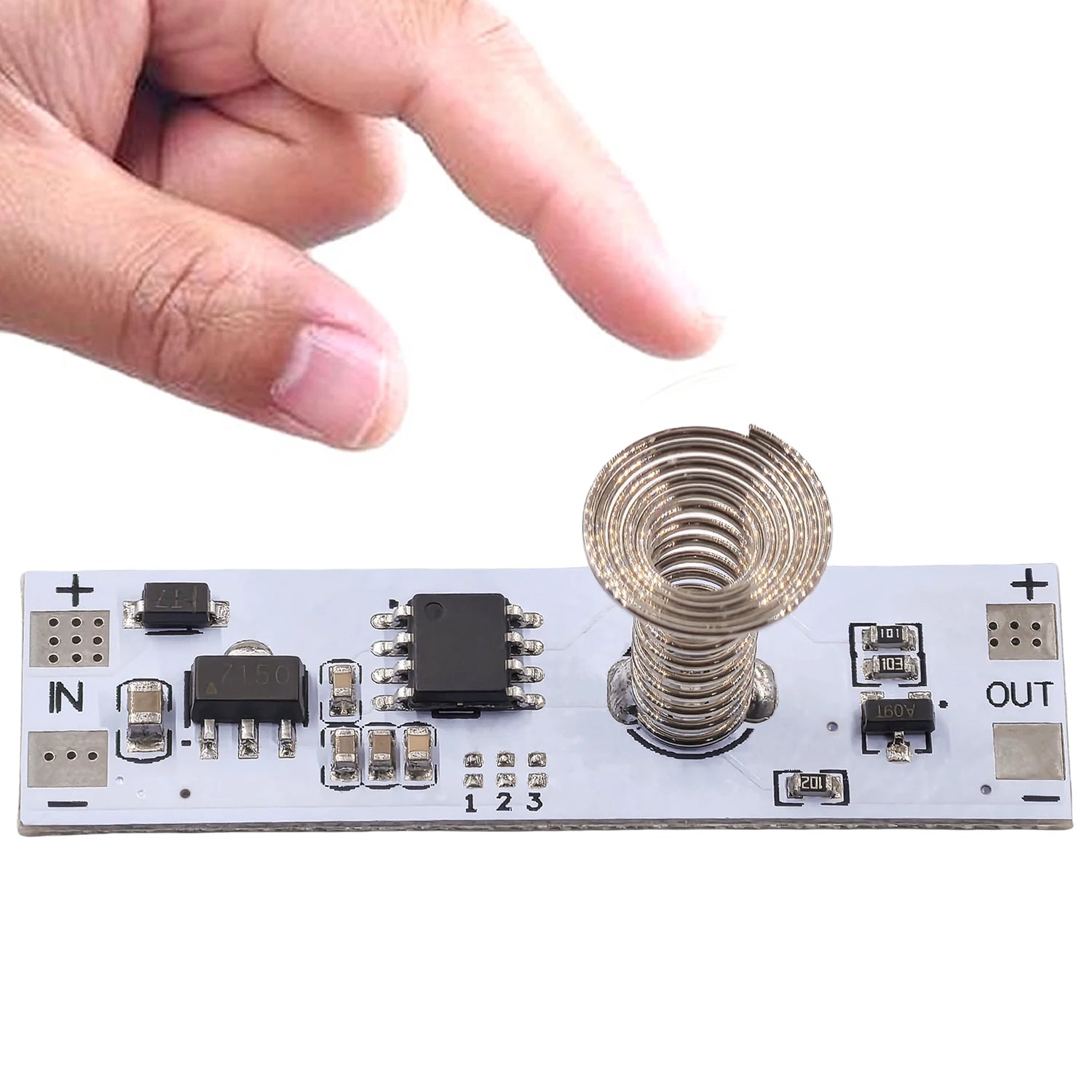

- lt can replace the mechanical light touch button, using this module can realize the touch switch control and brightness adjustment of LED light.
- This module is simple in structure and easy to operate.
- The design circuit of the module can automatically overcome all kinds of interference caused by ambient temperature, humidity, surface debris, etc. And avoid key differences caused by resistance and capacitance errors. It is the perfect choice for your product development and upgrade.

PAMETERS:

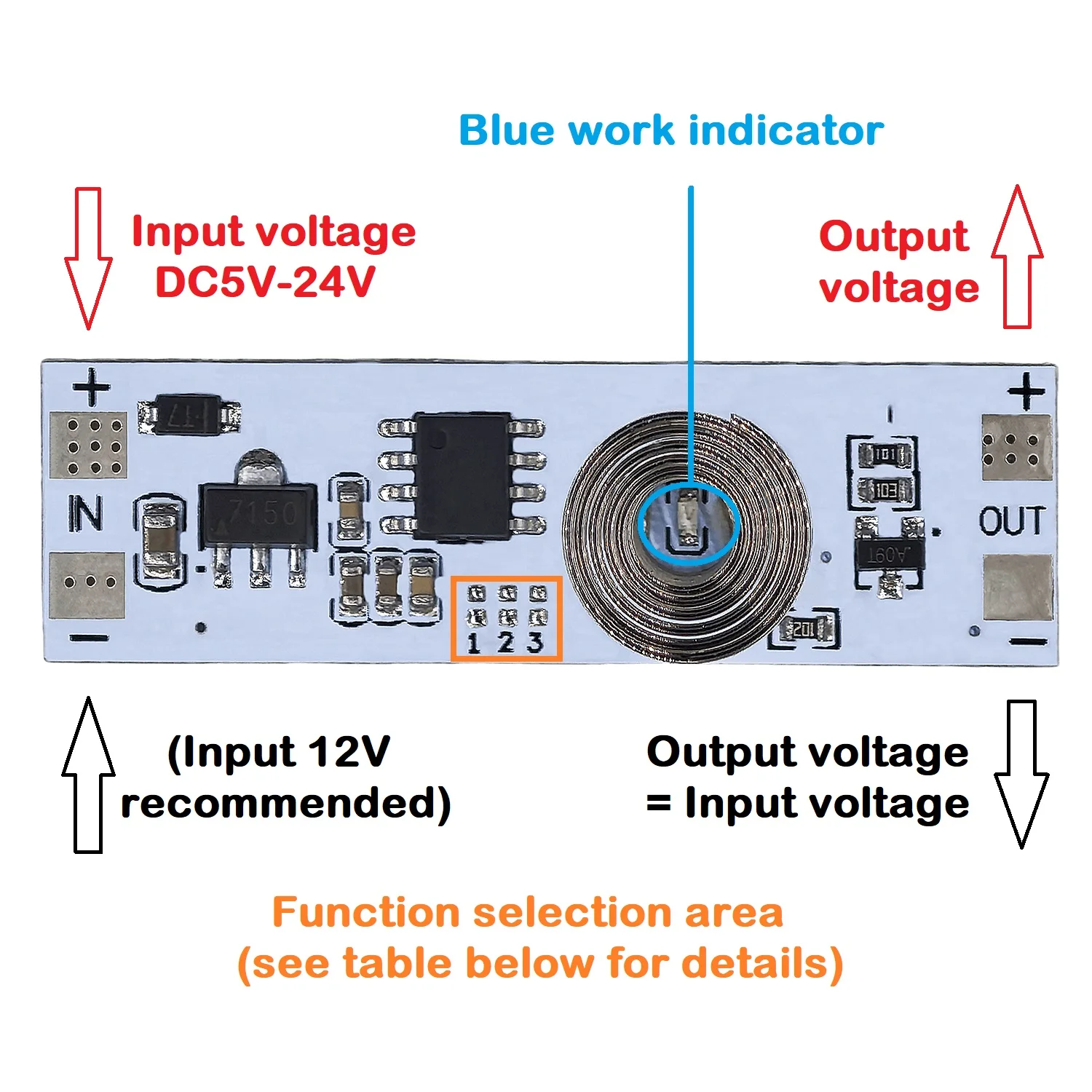

Input voltage: DC5V-24V (12V recommended)
The output voltage is equal to the input voltage
Load power: 72W (max)
Load current resistance: 3A (max)
Standby current: 10-15ma
Standby power consumption ≈ 0.01W
Working temperature: - 25 ℃- 85 ℃
Output frequency: 32kHz
Commodity weight:15g

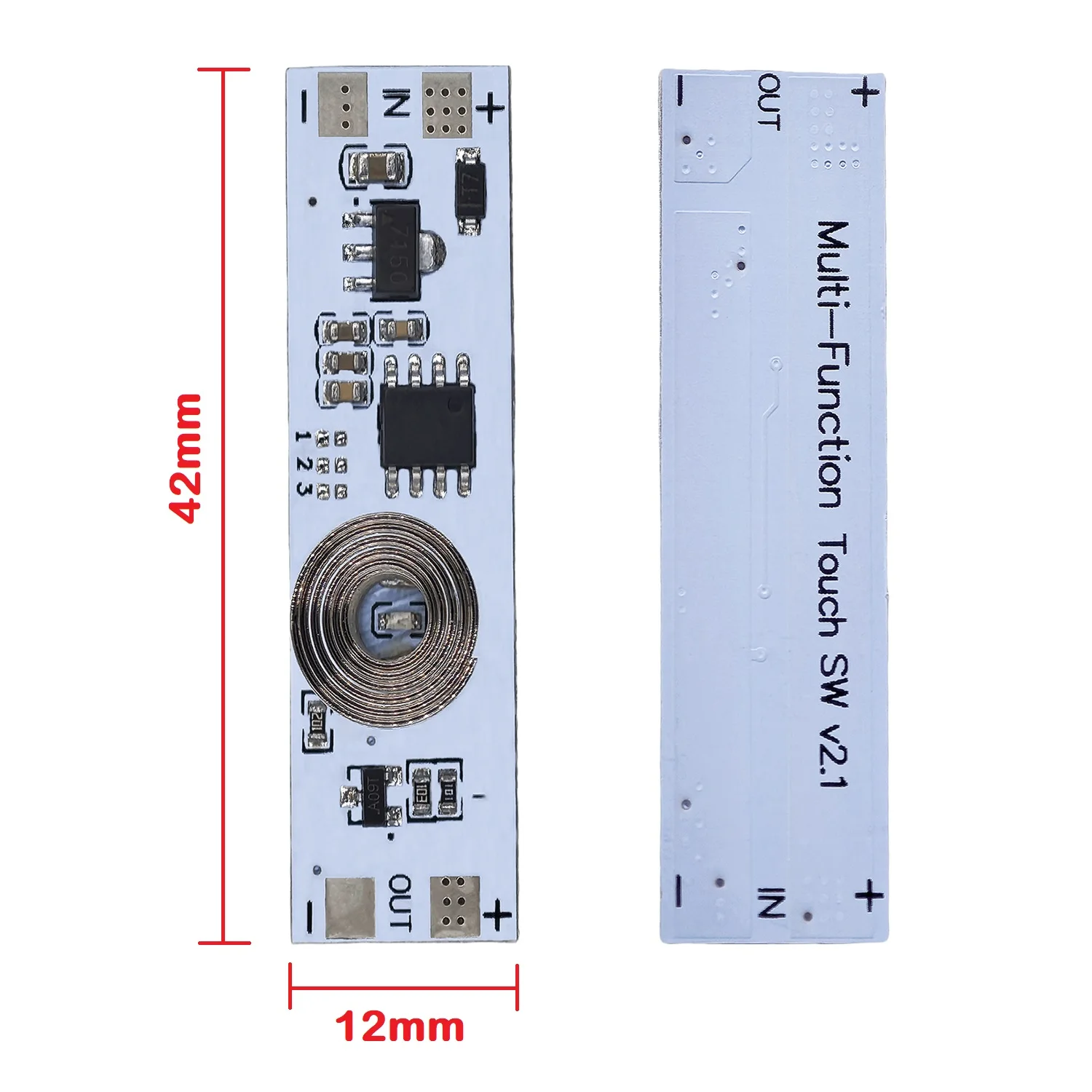

Commodity size: 42 (L) * 12 (W) * 14(H)

REMINDER:

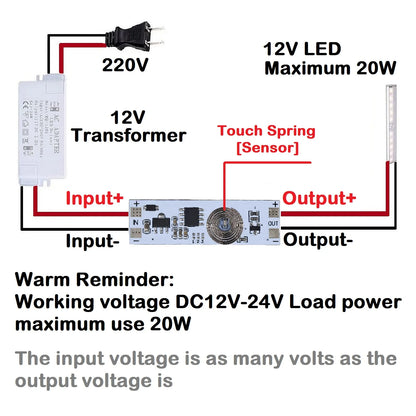

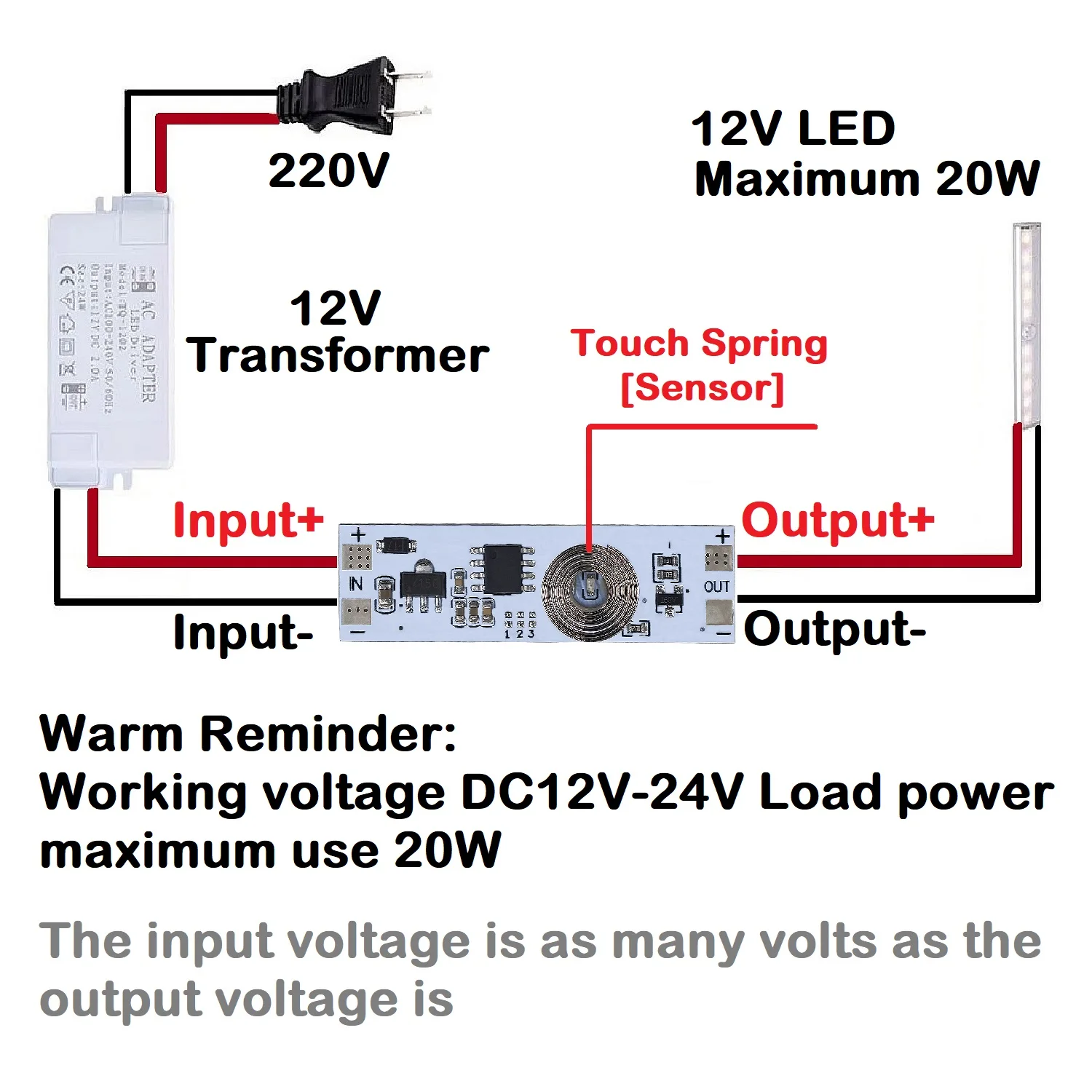

1. The input voltage shall not be lower than 5V or higher than 24V, 12V is the best
2. The load power shall not be higher than 72W, otherwise there will be inductionand the load will not act
3. Do not connect the input and output reversely. In is the input and out is the output, otherwise the circuit will be burnt
4. Do not connect the positive and negative poles of input and output reversely, otherwise the circuit will be burnt
