SV1.25mm 3mm both sided Spade Terminal Insulated Cable 18AWG

SV1.25mm 3mm Both-Sided Insulated Spade Terminal — 18AWG, Red, Crimp

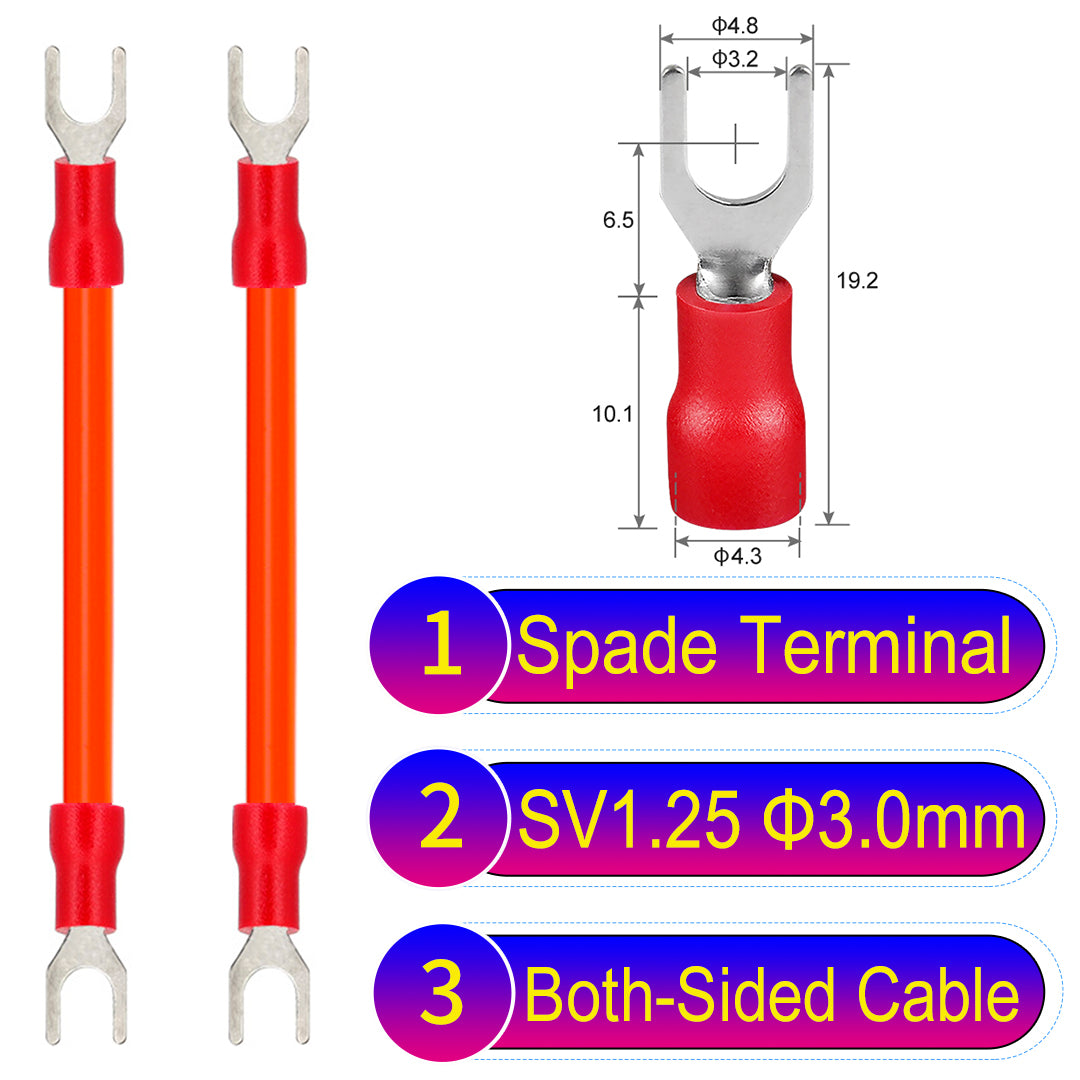

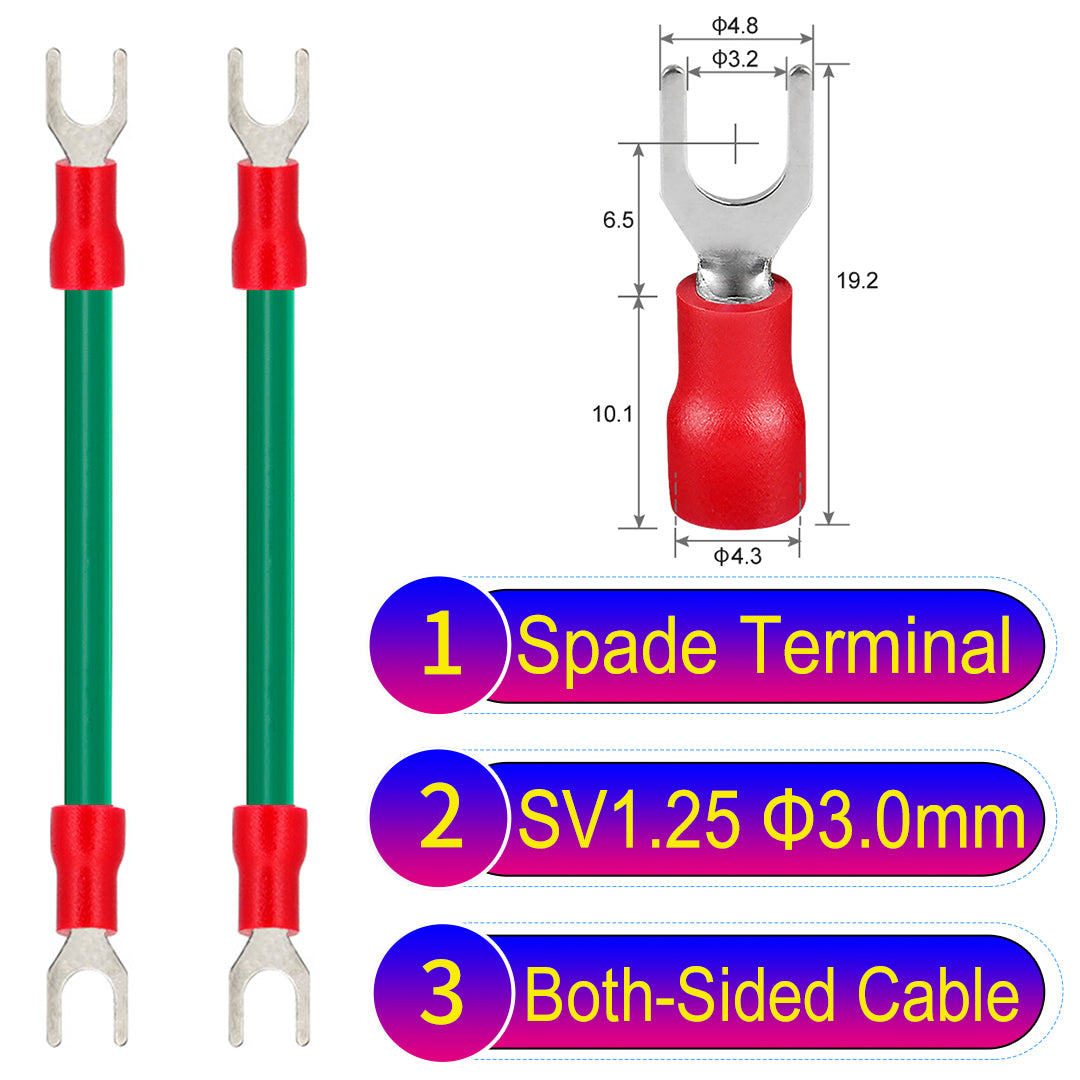

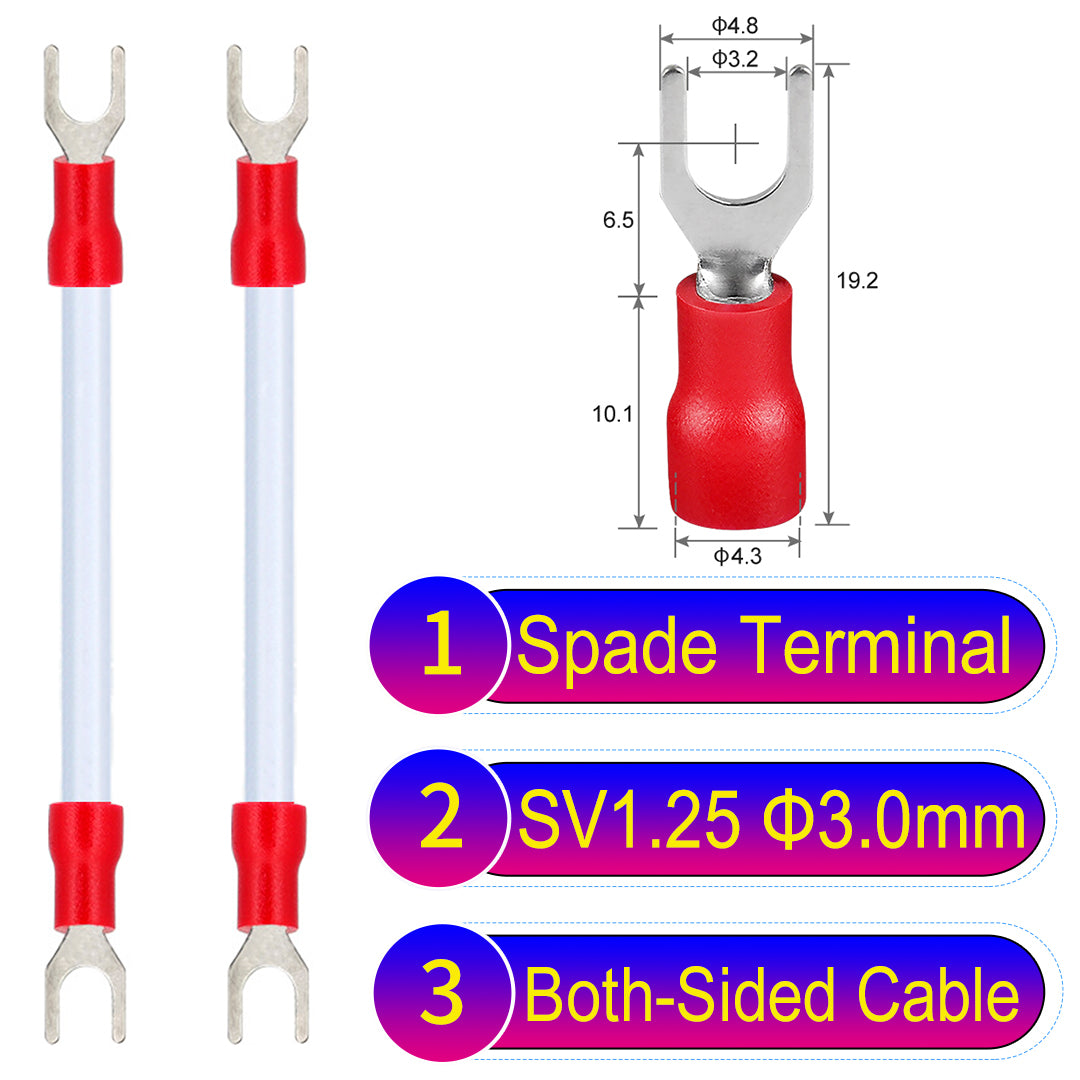

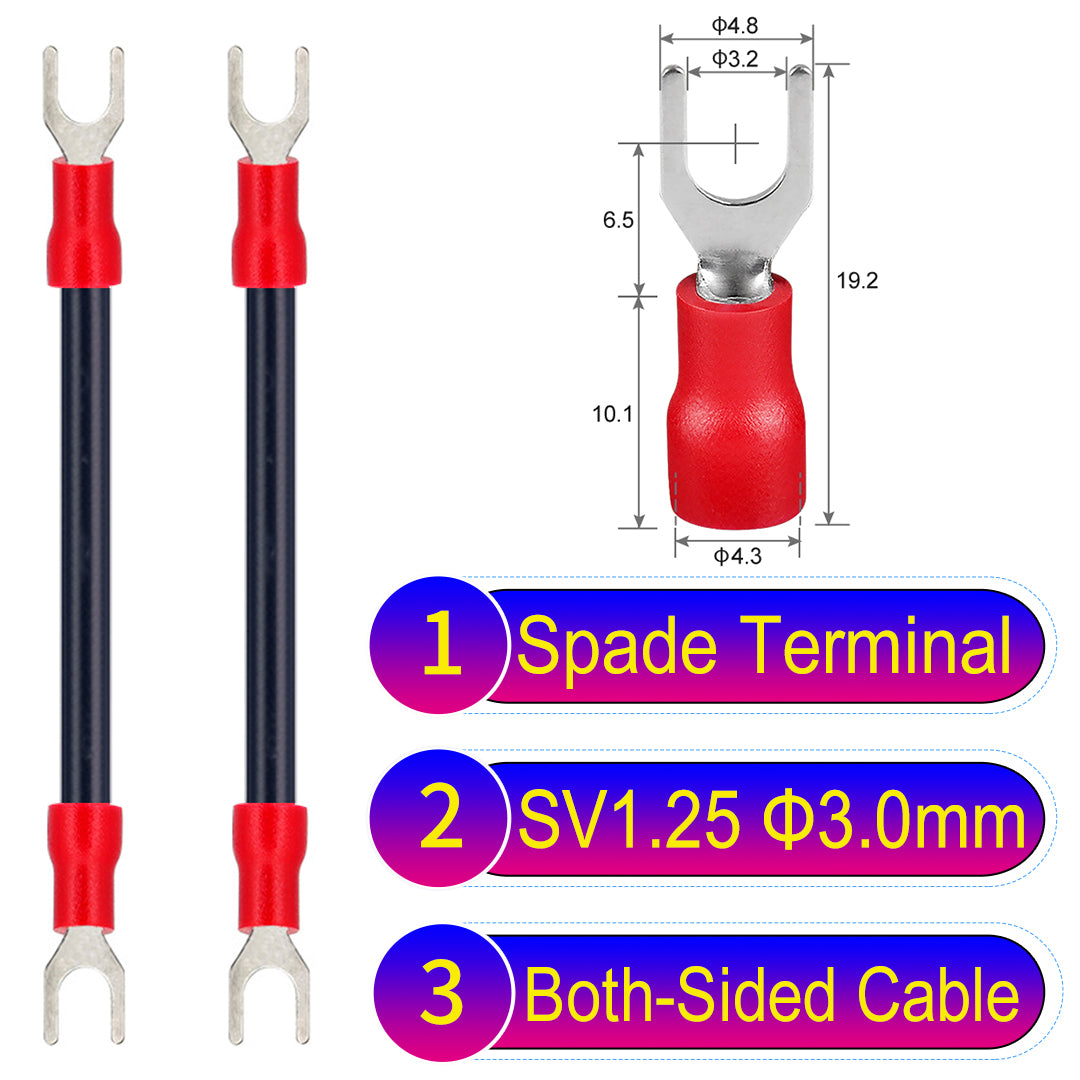

SV-series insulated spade (fork) crimp terminals with 1.25mm² wire cross-section rating and 3mm stud hole diameter, suitable for 18AWG (1.0–1.5mm²) wire. The both-sided (double-sided) spade design provides a fork terminal that fits over M3 screws and studs from either side, making it easier to install in confined spaces. The red PVC insulation sleeve provides electrical insulation and colour-coded wire gauge identification (red = 0.5–1.5mm² / 22–16AWG). Tin-plated copper construction provides good conductivity and corrosion resistance.

Technical Specifications

Parameter	Value
Series	SV (Spade / Fork terminal)
Wire Cross-Section	1.25mm² (0.5–1.5mm² range)
Wire Gauge	18AWG (16–22AWG range)
Stud Hole Diameter	3mm (M3 screw/stud)
Terminal Type	Both-sided spade (fork)
Insulation	Red PVC sleeve
Terminal Material	Copper alloy, tin-plated
Rated Voltage	600V AC/DC
Rated Current	Up to 15A (at 1.5mm²)
Crimp Tool	Standard insulated terminal crimper (AWG 22–10)
Certification	CE, RoHS, UL

Colour Code Reference (IEC 60947-1)

Colour	Wire Cross-Section	Wire Gauge
Red	0.5–1.5mm²	22–16AWG
Blue	1.5–2.5mm²	16–14AWG
Yellow	4–6mm²	12–10AWG

Typical Applications

• Automotive Wiring: Spade terminal connections for automotive fuse box, relay socket, and battery terminal wiring harness
• Electrical Panel: Spade terminal connections for circuit breaker, contactor, and terminal block wiring in electrical distribution panels
• Grounding: Spade terminal for equipment grounding connections to M3 grounding screws and studs
• Speaker Wiring: Spade terminal connections for speaker binding post and amplifier output terminal connections
• DIY Electronics: Spade terminal for connecting wires to PCB screw terminals, binding posts, and chassis ground points

Crimping Instructions

• Strip 6–8mm of insulation from the wire end
• Insert the stripped wire into the terminal barrel until the insulation butts against the barrel entry
• Crimp the barrel with an insulated terminal crimper at the correct die position for the wire gauge
• Tug the wire to verify the crimp is secure before installation

Package Contents

• SV1.25mm 3mm both-sided insulated spade terminals (quantity as selected)
