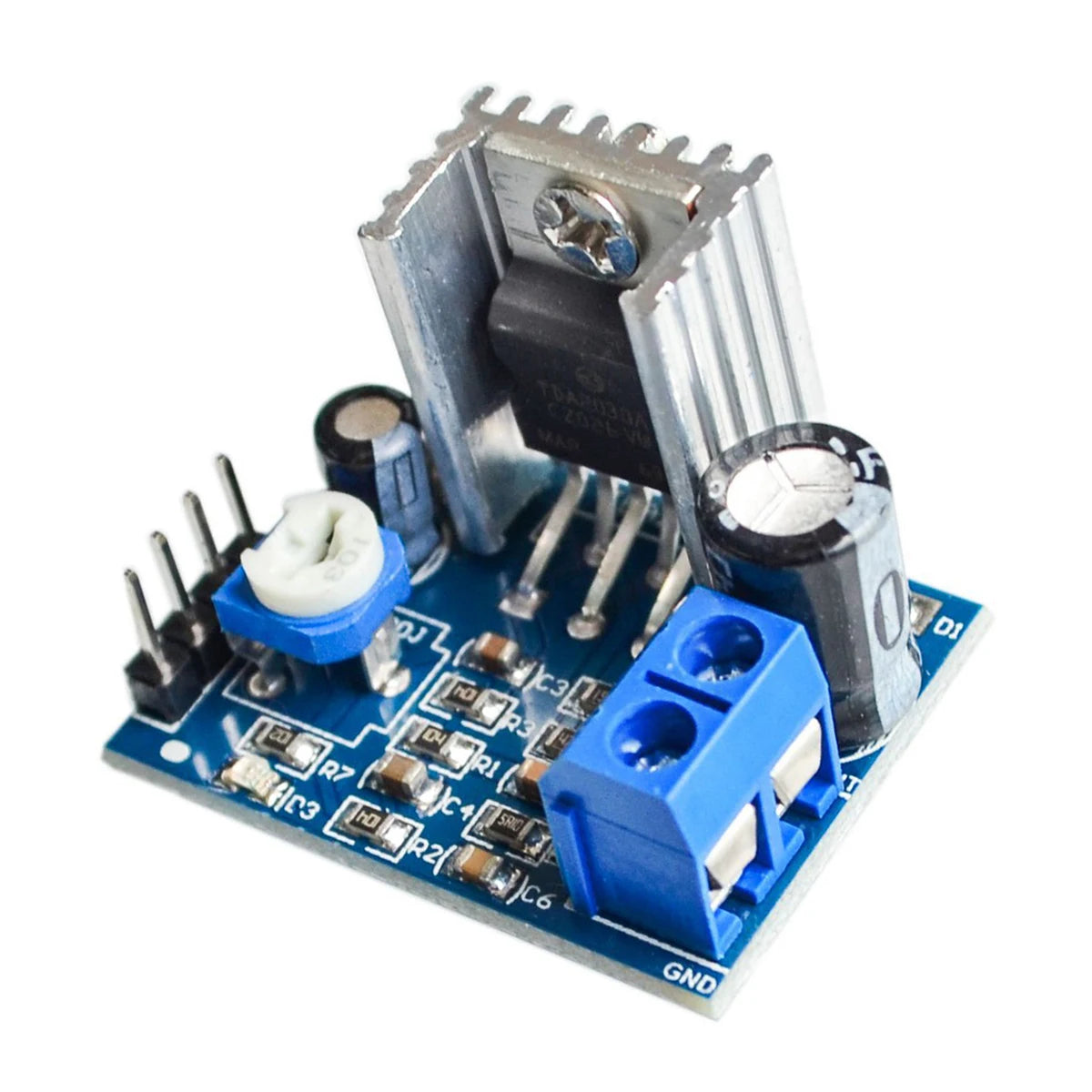

TDA2030 Audio Power Amplifier Module 6-12V DIY Kit with Digital Circuit Board
TDA2030 Audio Power Amplifier Module 6-12V DIY Kit with Digital Circuit Board
Regular price
$5.44 USD
Sale price
$5.44 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: Keszoox
Condition: New
Dissipation Power: -
High-concerned chemical: None
Operating Temperature: -45-+85
Origin: Mainland China
Package: SMD
Quantity: 1
Supply Voltage: 6 -12V
Type: Voltage Regulator
is_customized: Yes
TDA2030 Module Power Supply Audio Amplifier Board Module TDA2030A 6-12V Single DIY Kit Parts Digital Circuit Board
TDA2030A audio amplifier circuit, often using V-5-pin single in-line plastic package structure. The integrated circuit is widely used in car stereo receiver tape recorders, medium-power audio equipment, with small size, large output power, distortion and other characteristics. And has an internal protection circuit.
Feature:
1. Onboard TDA2030A audio power amplifier chip
2. Mono 18W amplifier circuit design
3. On-board speaker wiring blocks
4. Onboard 10K adjustable resistance, you can adjust the volume of amplification
5. Onboard power indicator
6. The chip has been the main pin leads, you can directly enter the audio signal
7. The working voltage: 6 ~ 12V
8. The peak output current is 3A
