Refrigeration piece of the working condition is a side of the cooling side of the heat, work must be given to the heat surface good heat dissipation, is strictly prohibited in the absence of heat dissipation under power for more than 2 seconds, resulting in overheating burned buyers at their own risk!

Always apply thermally conductive silicone grease when installing a heat sink.

The lettered side is the cold side and the unlettered side is the hot side.

Please note: This refrigeration unit has a large power, change the water dispenser. Car refrigerator do not buy this cooling pads!!!!

12703：

Piece Model:TEC1-12703

Dimension: 40*40*4.0mm±0.1 Pair of components 127

Lead wire specification: lead wire length 310mm±5mm RV standard lead wire single 5mm tin-plated

Internal resistance: 4.0~4.3Ω (ambient temperature 23±1℃, 1kHZ Ac test)

Large temperature difference: △Tmax(Qc=0) 60℃ or more.

Operating current: Imax=12 (at rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5V)

Cooling power: Qcmax 27W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃～83℃ (too high ambient temperature drop directly affects the refrigeration efficiency)

Packaging process: standard 704 silicone rubber sealing around

Packing standard: foam box packaging, storage conditions Ambient temperature -10℃ ~ 40℃

Storage conditions: -40 ~ 60 ℃

Translated with www.DeepL.com/Translator (free version)

12704：

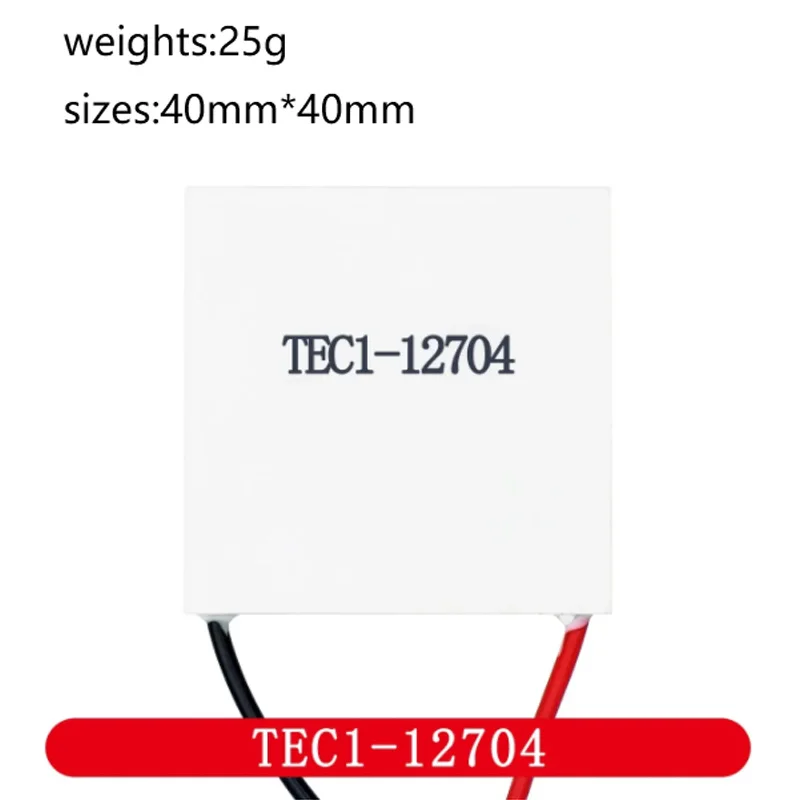

Chip Model: TEC1-12704

Overall Dimension: 40*40*4.2mm Component Pairs 127

Wire specification: lead length 100±5mm RV standard wire single head 5mm tin-plated

Internal resistance: 3.0~3.3Ω (ambient temperature 23±1℃, 1kHZ Ac test)

Large temperature difference：△Tmax(Qc=0) Above 60℃.

Operating current: Imax=12 (at rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5V)

Cooling power: Qcmax 36W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)

Encapsulation process: standard 704 silicone rubber sealing around

Packing standard: foam box packaging, storage conditions Ambient temperature -10℃ ~ 40℃

Storage conditions: -40 ~ 60 ℃

Translated with www.DeepL.com/Translator (free version)

12705：

Chip Model: TEC1-12705

Overall Dimension: 40*40*3.8mm Component Pairs 127

Lead wire specification: lead wire length 100±5mm RV standard lead wire single head 5mm tin-plated

Internal resistance: 2.4~2.7Ω (ambient temperature 23±1℃, 1kHZ Ac test)

Large temperature difference: △Tmax(Qc=0) 61℃ or more.

Operating current: Imax=5 (at rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5V)

Cooling power: Qcmax 45W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)

Packaging process: standard 704 silicone rubber sealing around

Packing standard: foam box packaging, storage conditions Ambient temperature -10℃ ~ 40℃

Storage conditions: -40 ~ 60 ℃

Translated with www.DeepL.com/Translator (free version)

12706：

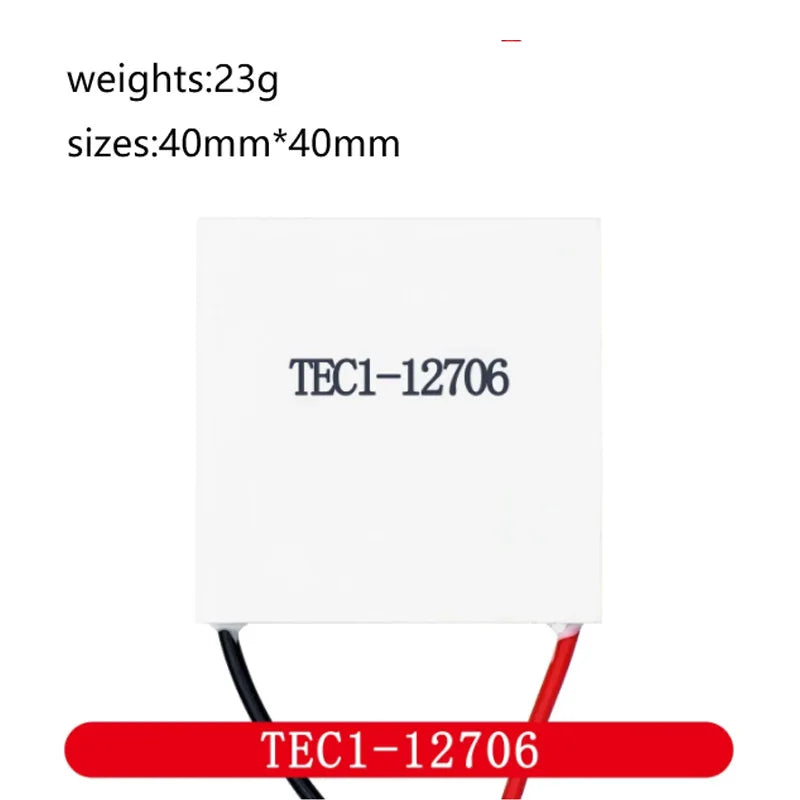

Chip Model: TEC1-12706

External Dimension: 40*40*3.75mm

Internal resistance: 2.1~2.4Ω (ambient temperature 23±1℃,1kHZ Ac test)

Large temperature difference：△Tmax(Qc=0)59℃以上。

Operating current: Imax=4.3-4.6A (at rated 12V)

Rated voltage: 12V (Vmax: 15V starting current 5.8A)

Cooling power: Qcmax 60-72W

Working environment: temperature range -55℃～83℃ (too high ambient temperature directly affects the cooling efficiency)

Translated with www.DeepL.com/Translator (free version)

12708：

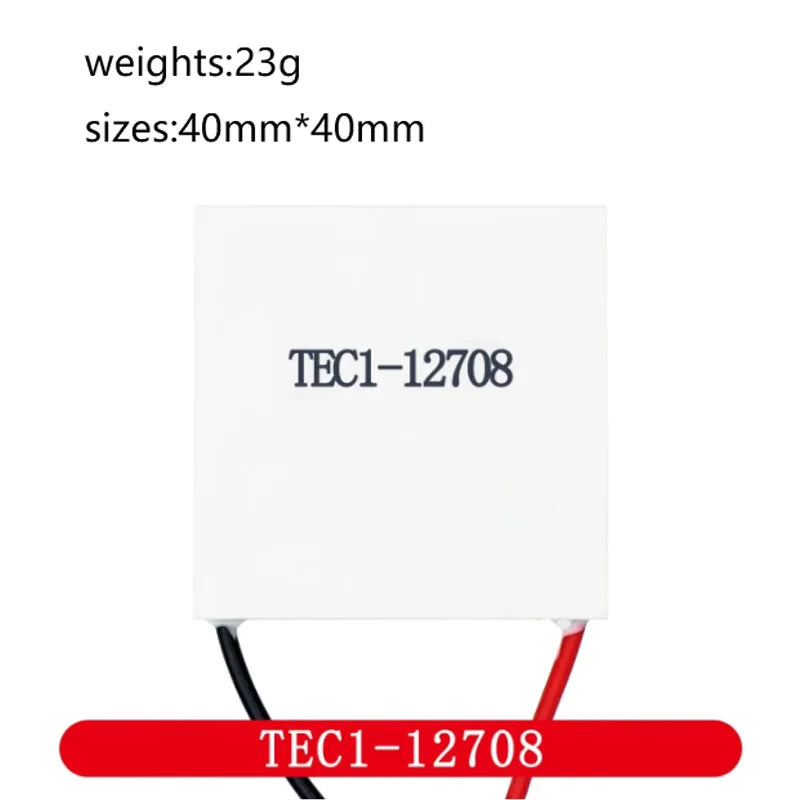

Chip Model: TEC1-12708

Overall Dimension: 40*40*3.5mm Component Pairs 127

Wire specification: lead length 300±8mm RV standard wire single 5mm tin-plated

Internal resistance: 1.5~1.7Ω (ambient temperature 23±1℃, 1kHZ Ac test)

Large temperature difference：△Tmax(Qc=0) Above 60℃.

Operating current: Imax=8A (at rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5V)

Cooling power: Qcmax 77W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)

Packaging technology: standard 704 silicone rubber sealing around

Packing standard: foam box packaging, storage conditions Ambient temperature -10℃ ~ 40℃

Storage conditions: -40 ~ 60 ℃

Translated with www.DeepL.com/Translator (free version)

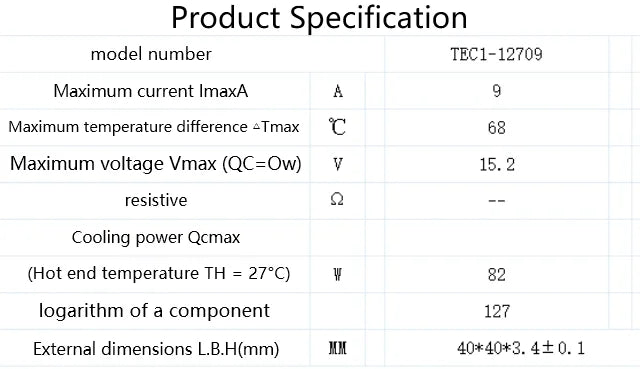

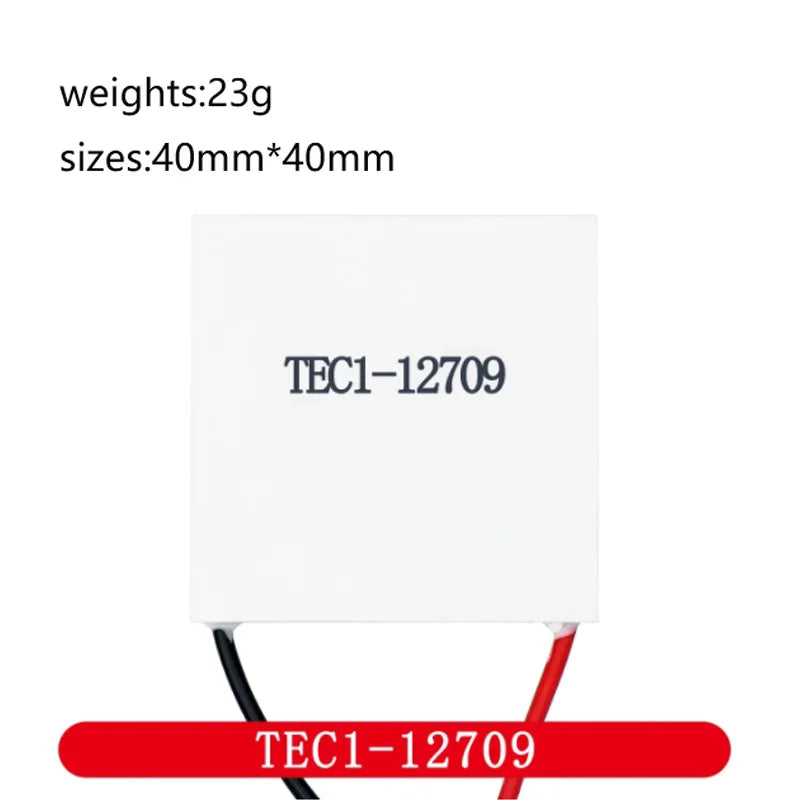

12709：

12710：

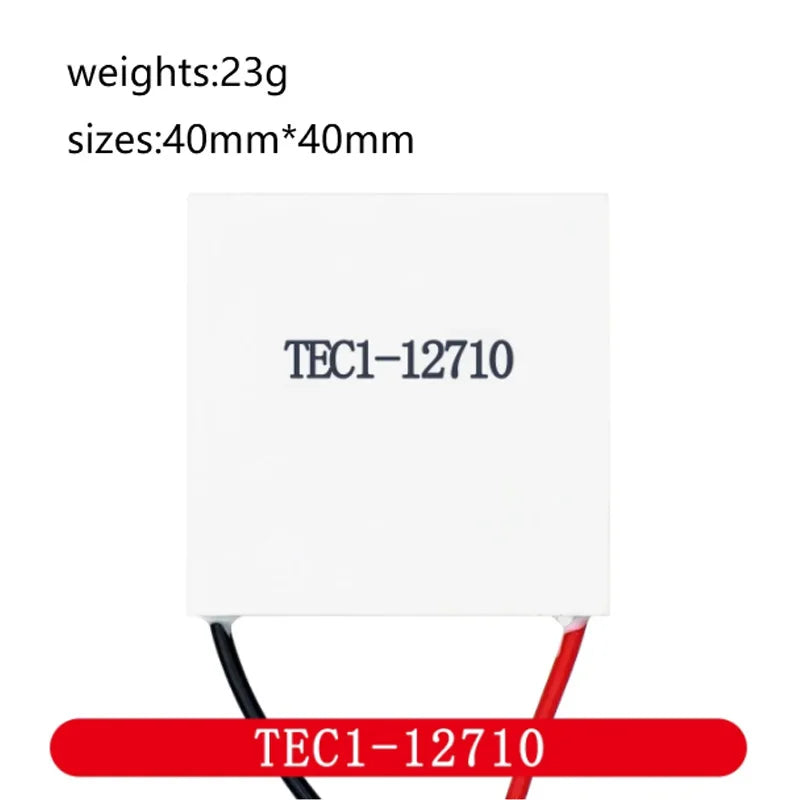

Chip Model: TEC1-12710

Overall Dimension: 40*40*3.4mm Component Pairs 127

Wire specification: lead length 300±5mm RV standard wire single 5mm tin-plated

Internal resistance: 1.2~1.5Ω (ambient temperature 23±1℃, 1kHZ Ac test)

Large temperature difference：△Tmax(Qc=0) above 60℃.

Operating current: Imax=10A (15Vmax voltage startup)

Rated voltage: DC12V (Vmax: 15.5V)

Cooling power: Qcmax 92W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃～83℃ (too high ambient temperature will directly affect the cooling efficiency)

Packaging process: four weeks standard 704 silicone rubber sealing

Packing standard: foam box packaging, storage conditions Ambient temperature -10℃ ~ 40℃

Storage conditions: -40 ~ 60 ℃

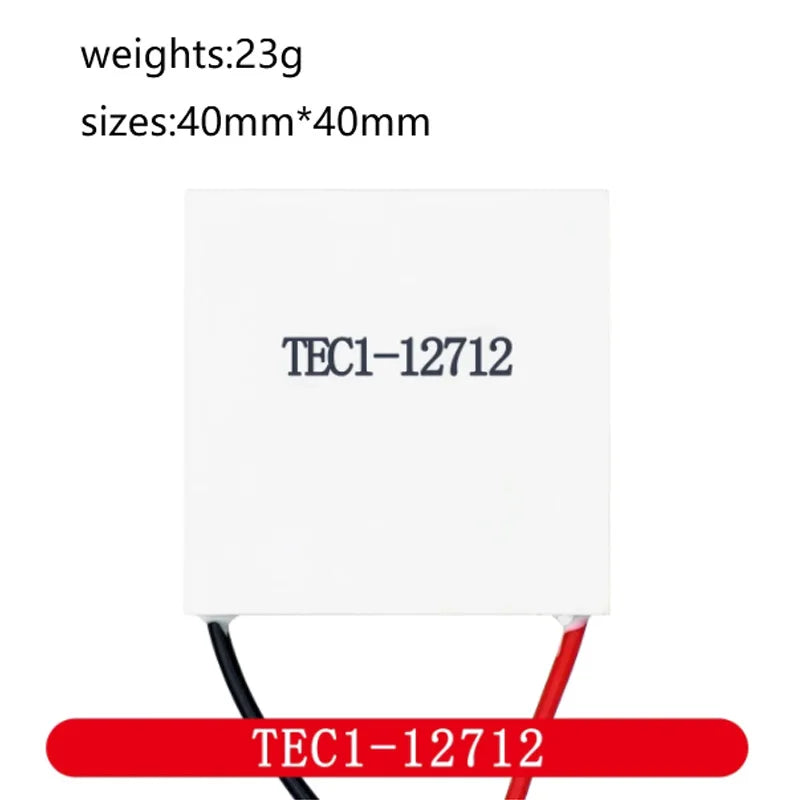

12712：

Large voltage 15.7V

Large current 12.0A

Large cooling capacity 107W

Large temperature difference 68 degrees

12715：

Product Model: TEC1-12715

Large voltage: 15.4V

Large current: 15A

Cooling capacity: 134W

Temperature difference：65℃

Overall Dimension: 40*40*3.3mm
