Contains 1 each of 15 different values from 50 Ohm to 2M Ohm.
DESCRIPTION

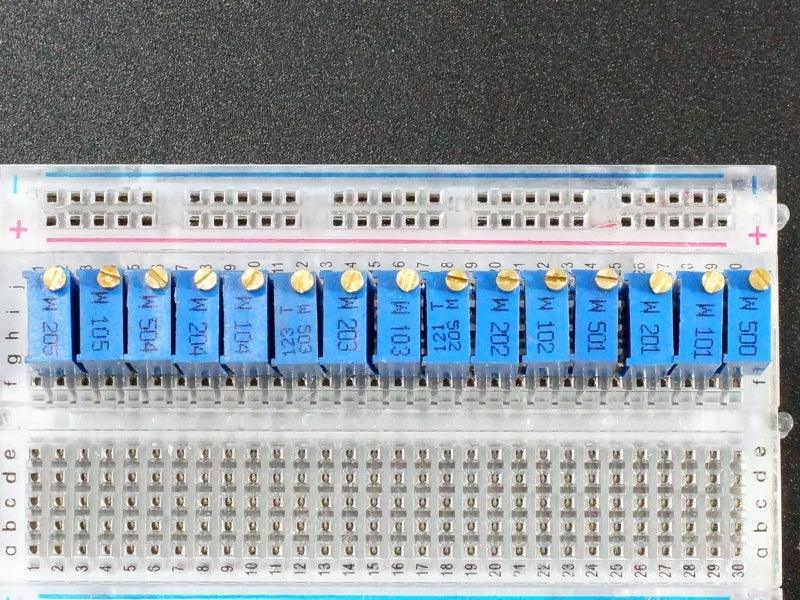

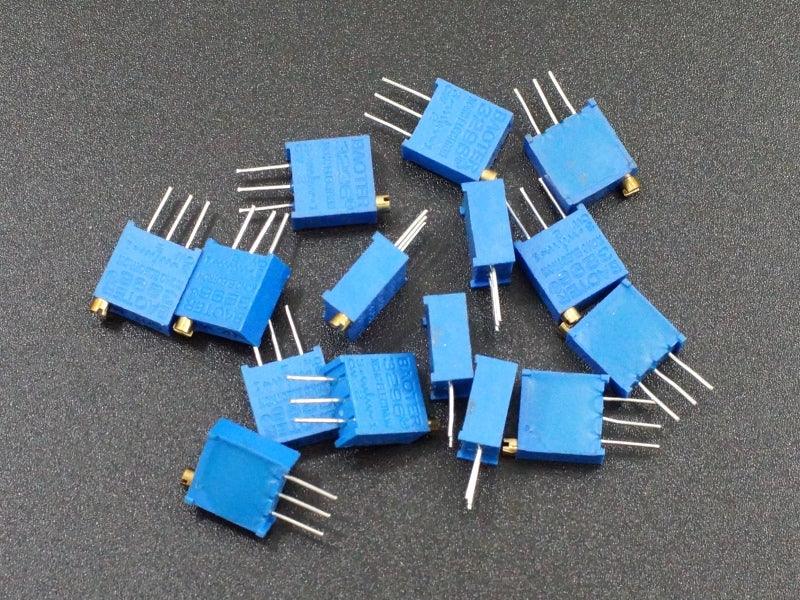

This kit of multi-turn trimmer potentiometers contains 1 each of 15 different values from 10 or 50 Ohm to 2M Ohm.
PACKAGE INCLUDES:
- Qty 1 Each – Multi-turn Trimmer Potentiometer, values as shown in the table below
| Value (Ohms) | Marking | Qty |
| 50 or 10 | 500 / 100 | 1 |
| 100 | 101 | 1 |
| 200 | 201 | 1 |
| 500 | 501 | 1 |
| 1k | 102 | 1 |
| 2k | 202 | 1 |
| 5k | 502 | 1 |
| 10k | 103 | 1 |
| 20k | 203 | 1 |
| 50k | 503 | 1 |
| 100k | 104 | 1 |
| 200k | 204 | 1 |
| 500k | 504 | 1 |
| 1M | 105 | 1 |
| 2M | 205 | 1 |
KEY FEATURES OF MULTI-TURN TRIMMER POTENTIOMETER KIT:
These potentiometers are precision multi-turn type. They are most often used to dial in an exact resistance / voltage value such as for setting a reference voltage for a comparator circuit.
Wiper pin-2 is the center pin. Turning the adjustment screw CW increases the resistance between pin-1 and the wiper while decreasing the resistance between the wiper and pin-3.
OUR EVALUATION RESULTS:
These pots have pretty good linearity based on our testing with fairly smooth operation over their range. We haven’t noted any of the jumpiness or dead-spots that you sometimes find with low cost pots. Minimum resistance has measured < 1 ohms while maximum resistance is rated value ±10%.
The leads work well in solderless breadboards.
This kit is an inexpensive way to stock your parts bin with a selection of trimmer pot values to have on-hand.
Notes:
- None
TECHNICAL SPECIFICATIONS
| Wattage | 1/2W | |
| Tolerance | Max Value | ±10% |
| Type | Cermet | |
| Number of turns | End-to-End | 20 turns typical |
| Adjustment Type | Top mounted | |
| Package | Plastic, 3 radial leads | |
| Dimensions | L x W x H | 10 x 10 x 4.5mm |
| Mfr | Various Chinese type 3296 |
