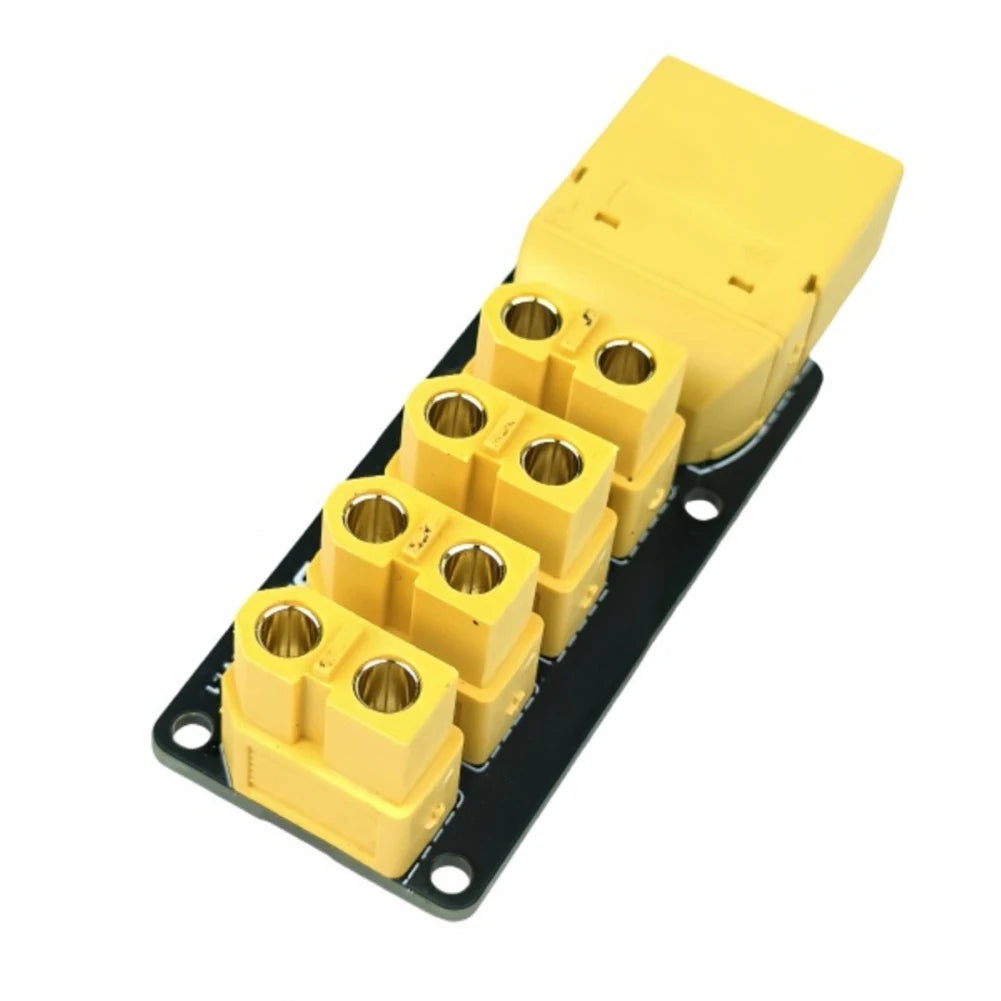

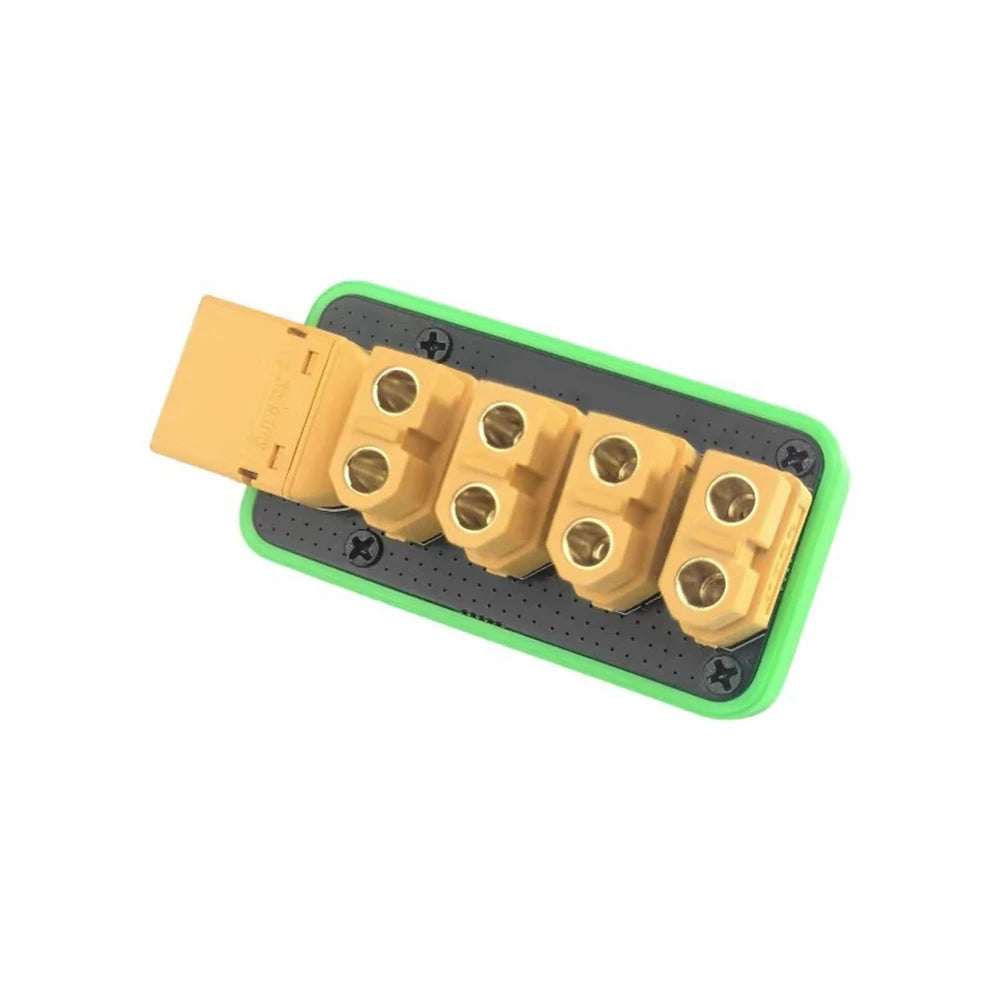

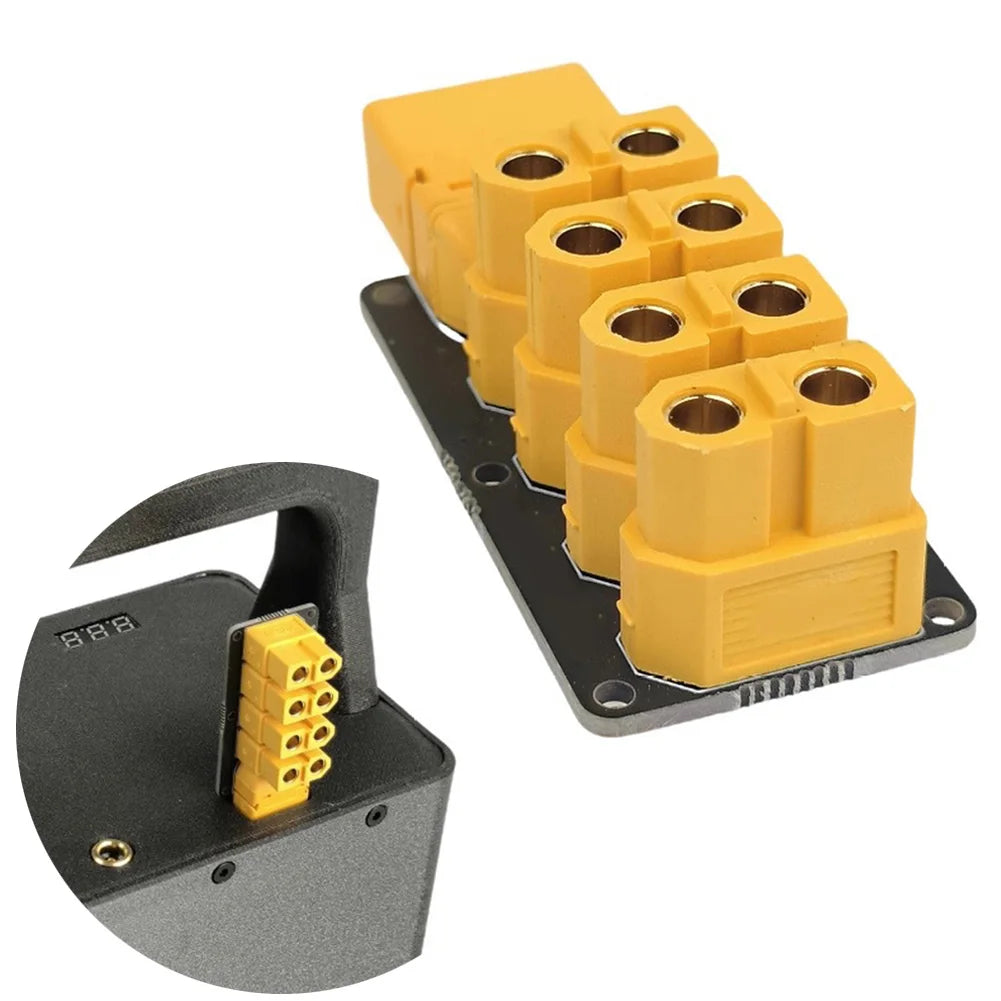

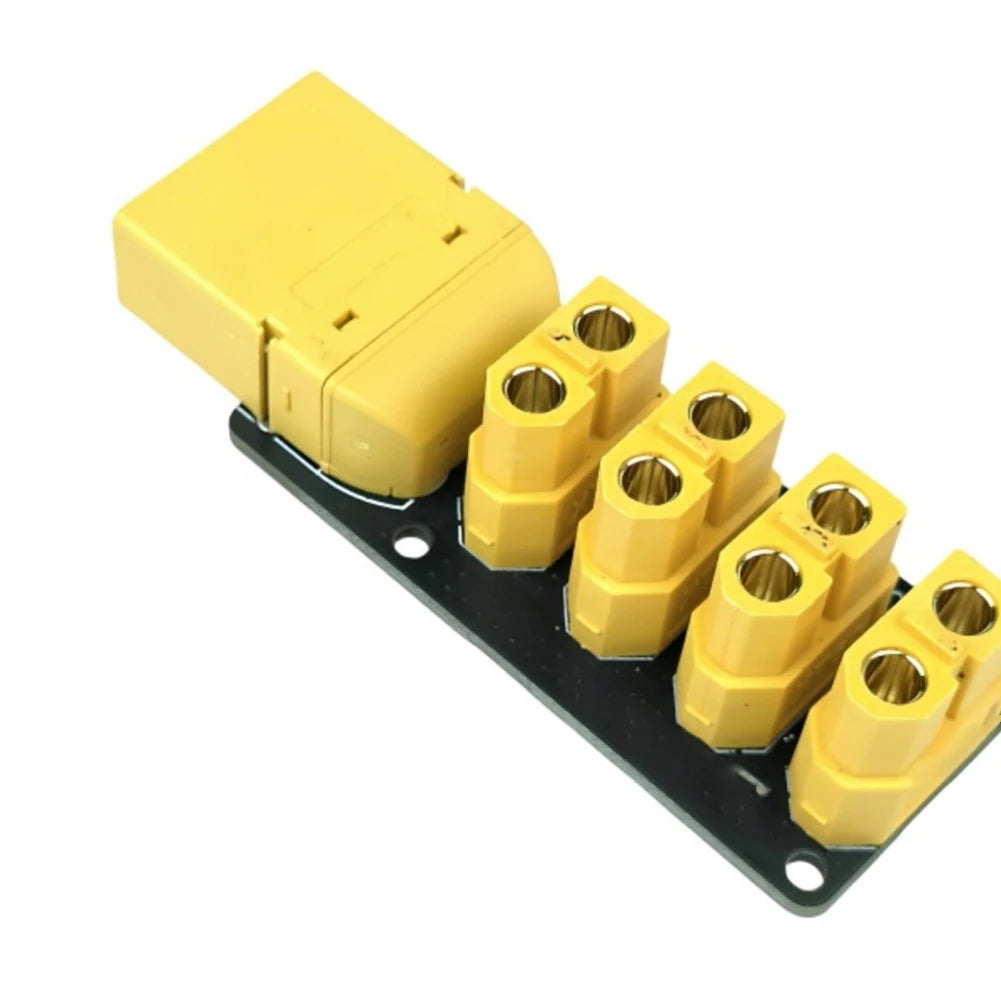

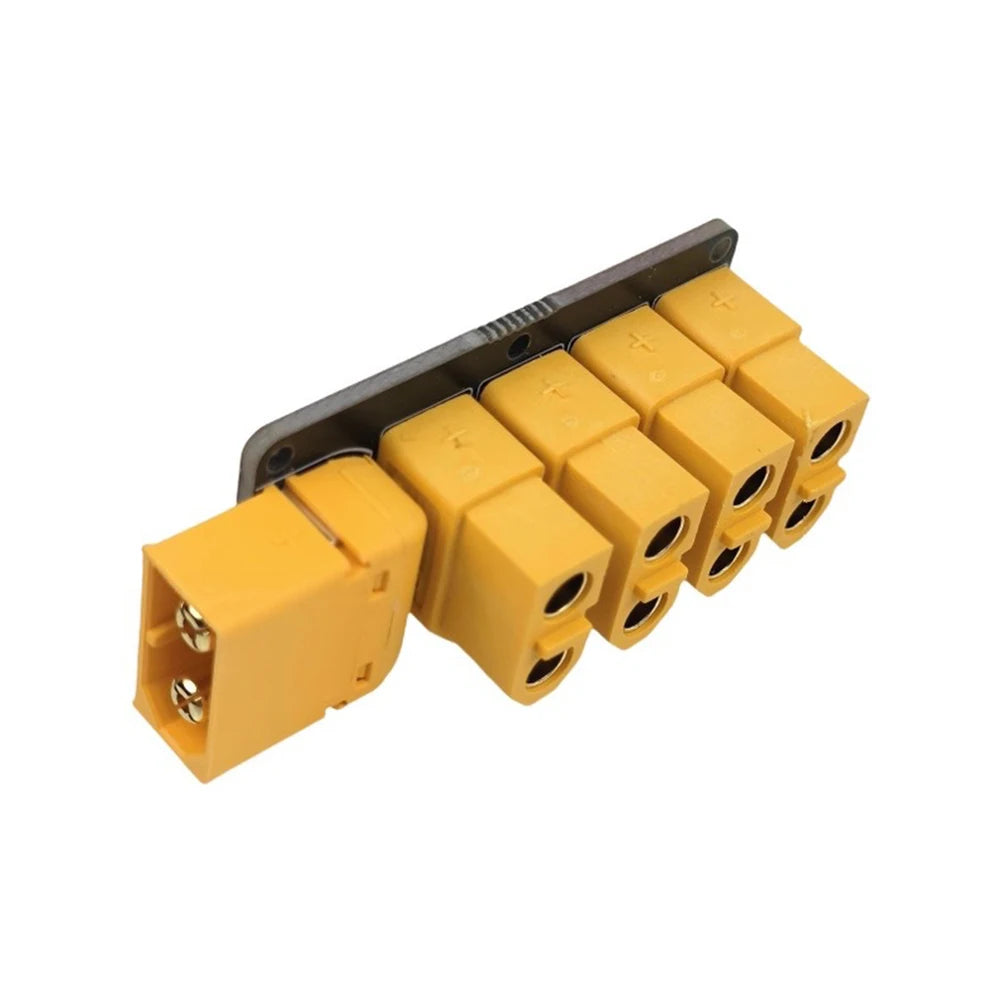

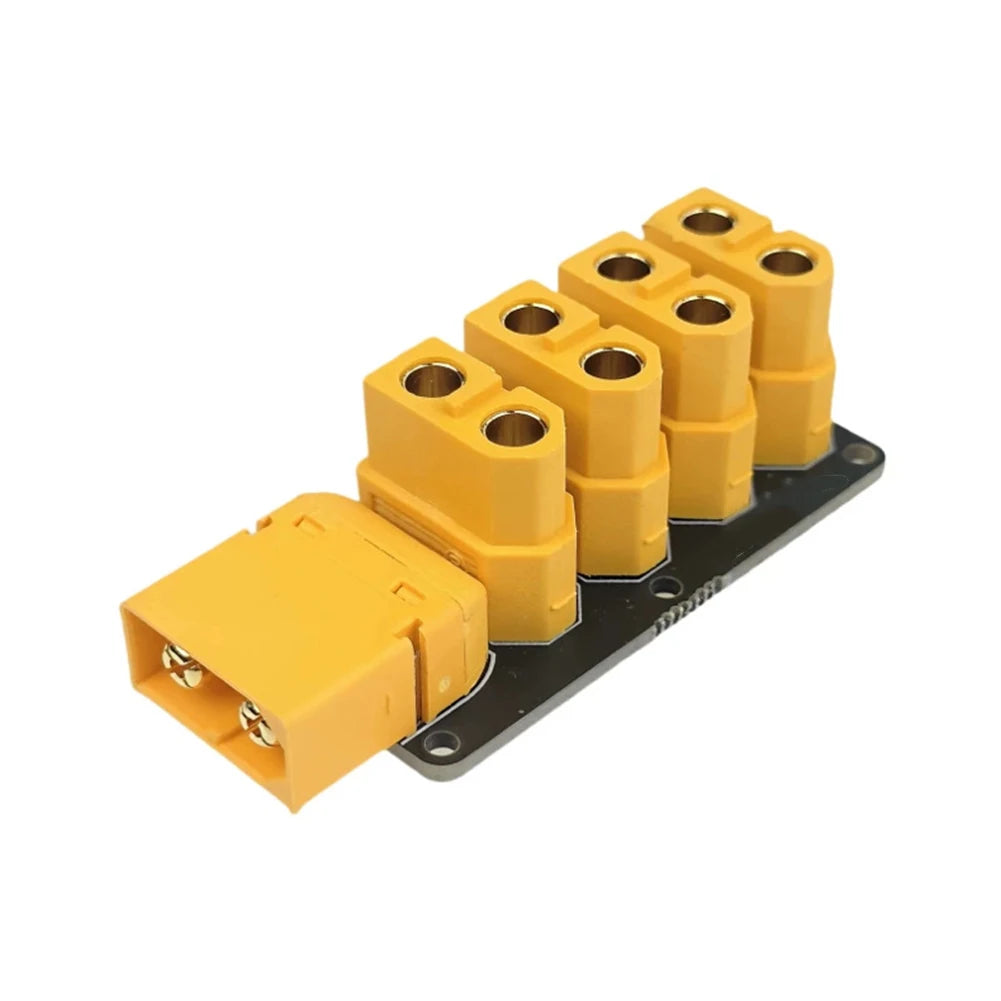

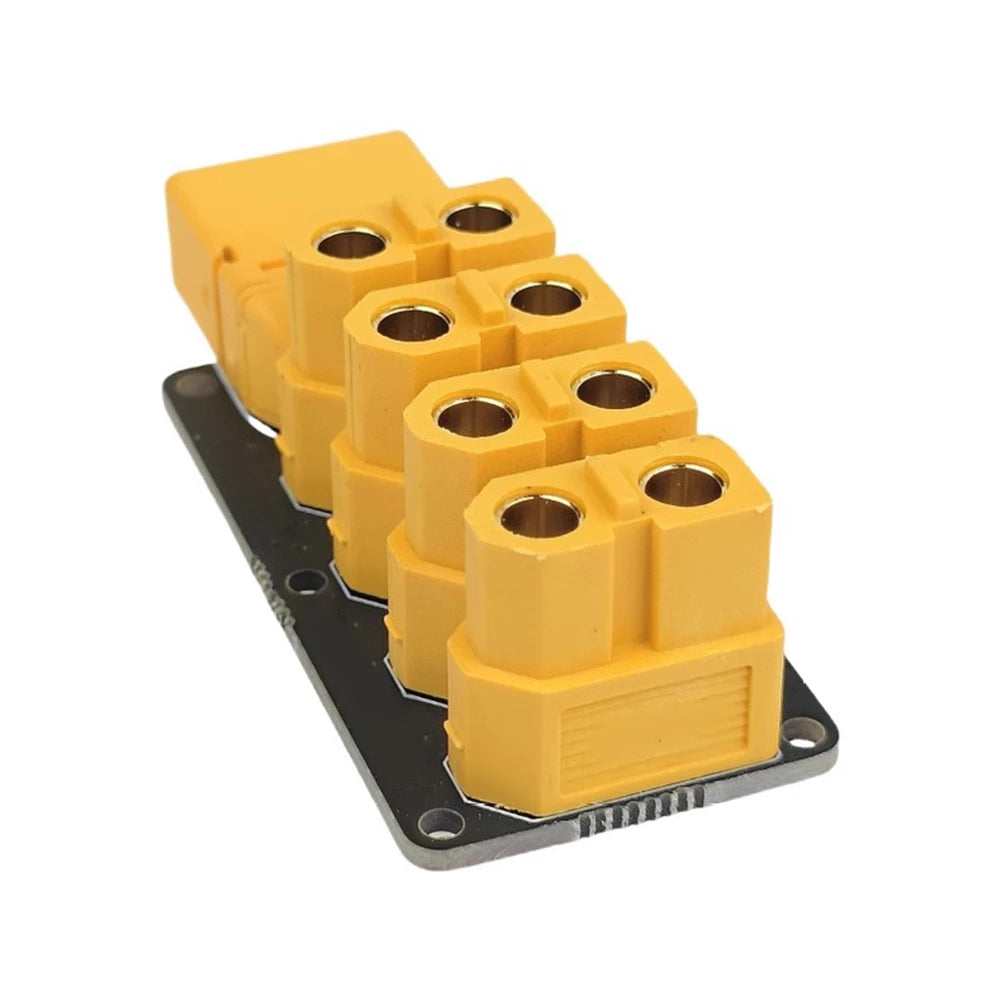

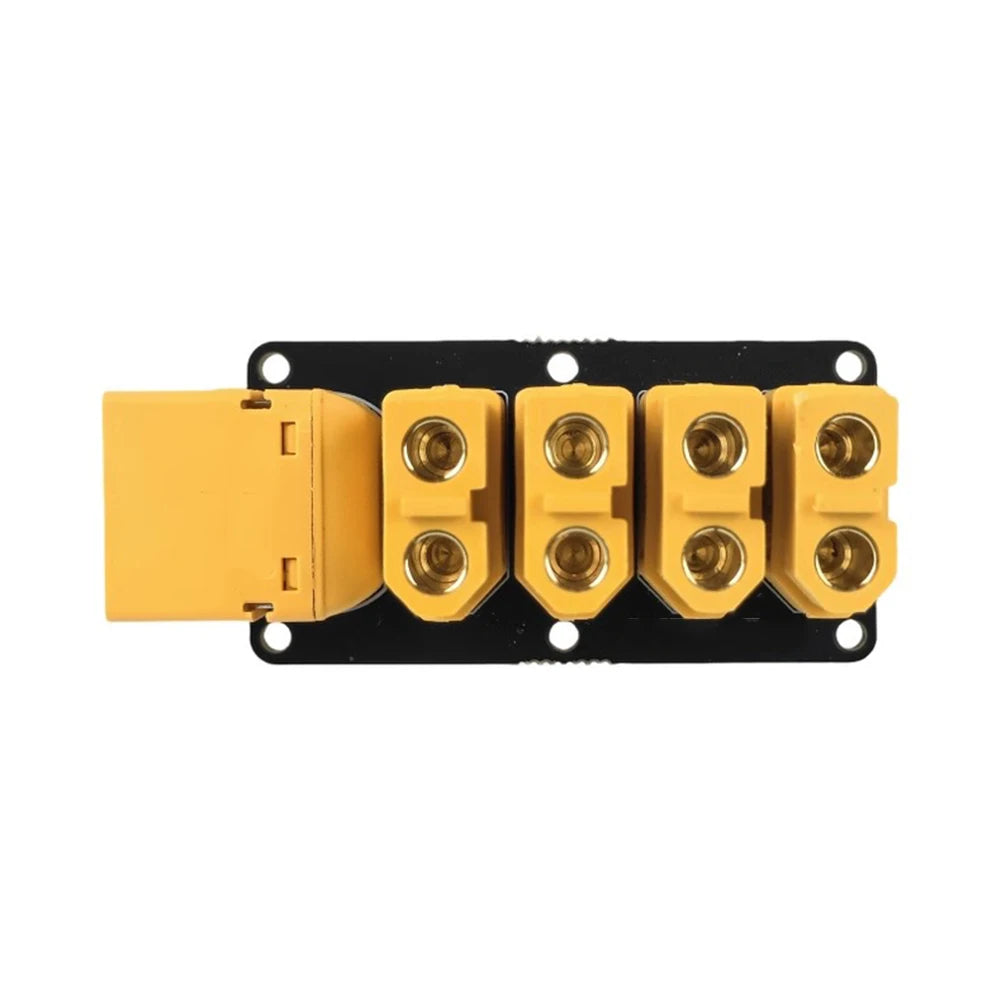

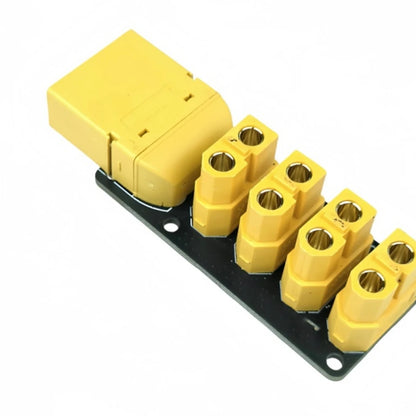

XT60 High-Current Power Distribution Board — 53×33×20mm for Drones, Robots & Multi-Motor Systems
XT60 High-Current Power Distribution Board 53×33×20mm for Drones, Robots & Multi-Motor Systems
Couldn't load pickup availability
XT60 High-Current Power Distribution Board — 53×33×20mm for Drones & Robots
This XT60 power distribution board (PDB) centralizes battery power distribution to multiple ESCs, motors, and auxiliary circuits in drones, robots, RC models, and multi-motor systems. The XT60 input connector handles high continuous current from LiPo and Li-ion battery packs, while multiple output pads distribute power cleanly to each ESC or motor driver. Onboard filtering capacitors suppress voltage spikes from motor switching transients, protecting ESCs and flight controllers from brownouts and resets.
Key Specifications
| Parameter | Value |
|---|---|

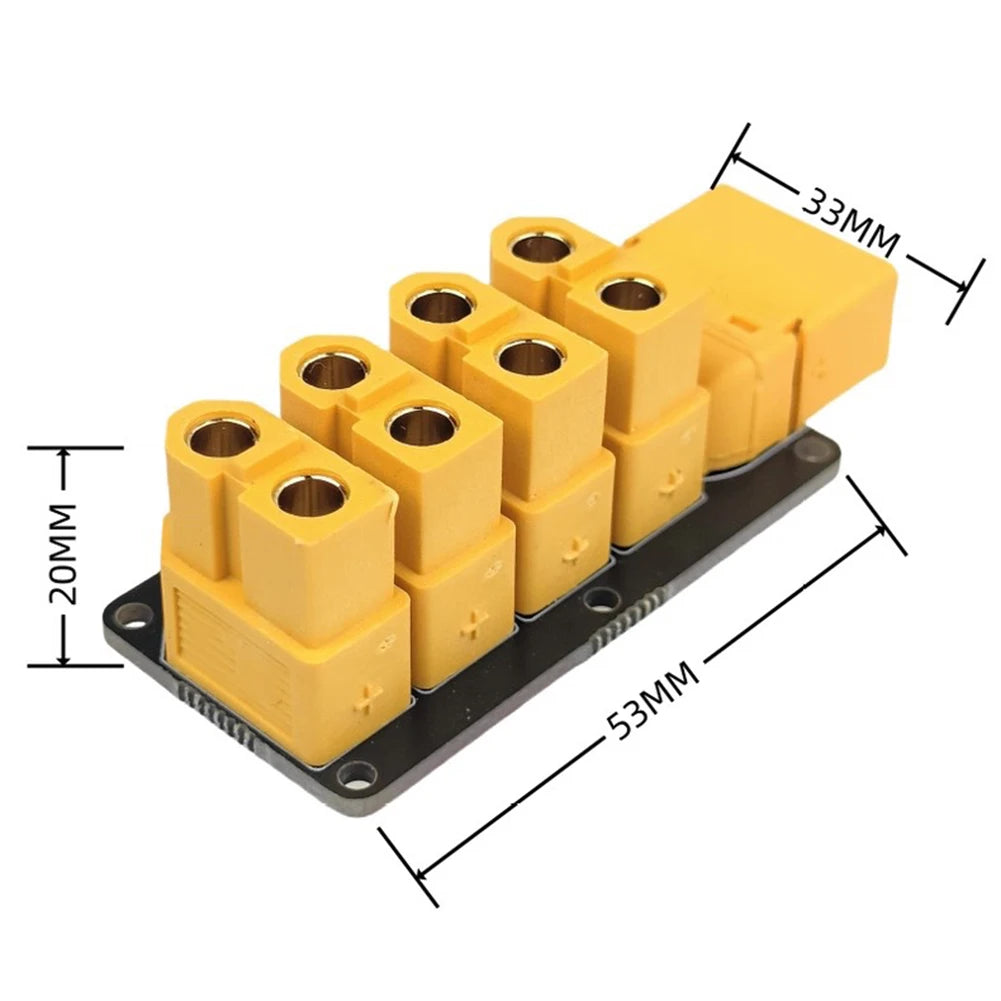

| Dimensions | 53mm × 33mm × 20mm |
| Input Connector | XT60 (high-current LiPo/Li-ion battery connector) |
| Output | Multiple solder pads for ESC/motor power distribution |
| Onboard Filtering | Electrolytic capacitors for voltage spike suppression |
| Compatible Battery | 2S–6S LiPo / Li-ion (7.4V–22.2V) |
| Application | Drone, quadcopter, robot, RC model, multi-motor system |
| Origin | CN |
Why Use a Dedicated PDB?
- Clean power distribution — Centralizes all ESC power connections at one board; eliminates the tangled wire harness of direct battery-to-ESC wiring
- Voltage spike suppression — Onboard capacitors absorb motor back-EMF spikes that cause ESC brownouts and flight controller resets
- XT60 input — Industry-standard XT60 connector rated for 60A continuous; compatible with virtually all LiPo battery packs used in drones and robots
- Compact form factor — 53×33mm fits standard 30.5×30.5mm and larger mounting patterns in drone frames and robot chassis
- Reduced wiring complexity — Single battery connection point; each ESC solders directly to the PDB output pads
Typical Applications
- Quadcopter and hexacopter ESC power distribution
- Robot chassis multi-motor power distribution
- RC car and truck dual-motor power distribution
- DIY rover and autonomous vehicle power management
- Multi-axis CNC and 3D printer motor power distribution
Frequently Asked Questions
Q: What is the maximum current this board handles?
The XT60 connector is rated for 60A continuous. The PCB trace width and copper weight determine the actual board current limit — check the product specifications for your specific board version. For high-power applications above 60A, use a dedicated high-current PDB with thicker copper traces.
Q: Can I add a 5V/12V BEC output?
This board provides battery voltage distribution only. To power a flight controller or receiver at 5V, add a separate BEC (Battery Eliminator Circuit) or use an ESC with a built-in BEC connected to the PDB output pads.
Package Contents
- 1× XT60 Power Distribution Board (53×33×20mm)
