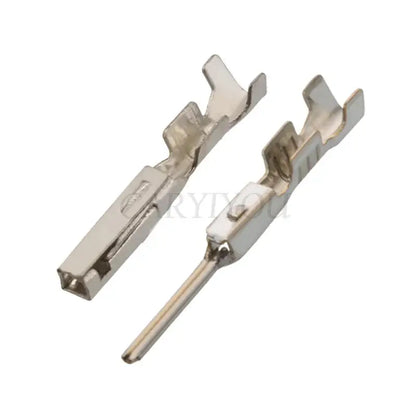

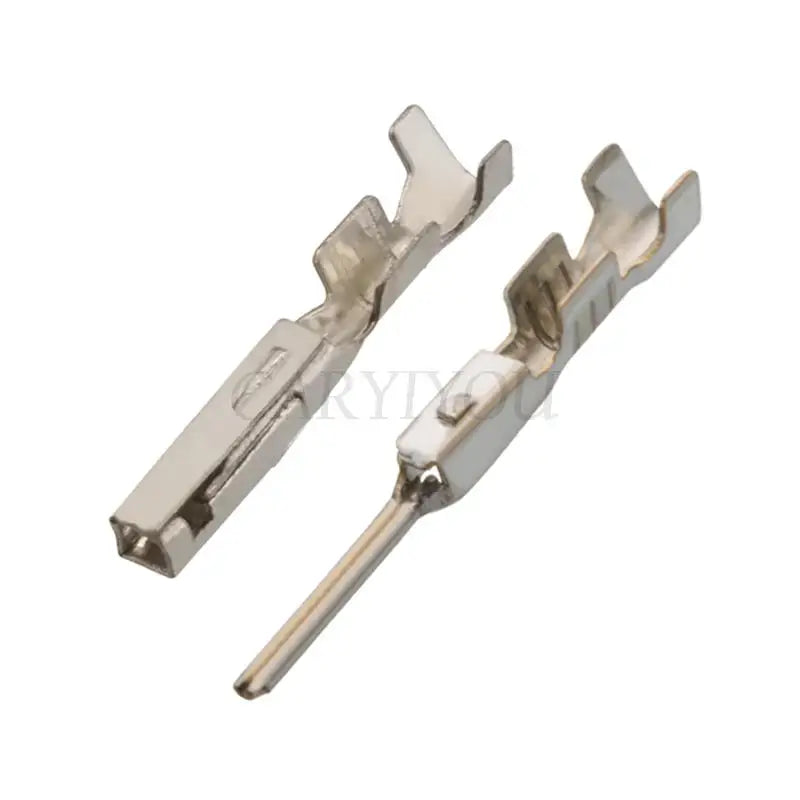

DJ622-F0.4A / DJ612-F0.4A Automotive 0.4mm Splice Crimp Terminal — 917308-1

Ultra-fine 0.4mm series automotive splice crimp terminals (DJ622-F0.4A female / DJ612-F0.4A male, cross-reference 917308-1) for high-density automotive ECU and control module wiring harness applications. These precision-stamped terminals are designed for the smallest-pitch automotive connector systems, delivering reliable electrical contact with minimal insertion force and consistent crimp retention in fine-wire signal circuits. Compatible with 0.4mm series automotive connector housings used in modern ECU, BCM, and sensor wiring harnesses. Supplied in a 50PCS pack.

Technical Specifications

Parameter	Value
Part Numbers	DJ622-F0.4A (Female) / DJ612-F0.4A (Male) / 917308-1
Terminal Pitch	0.4mm series (ultra-fine pitch)

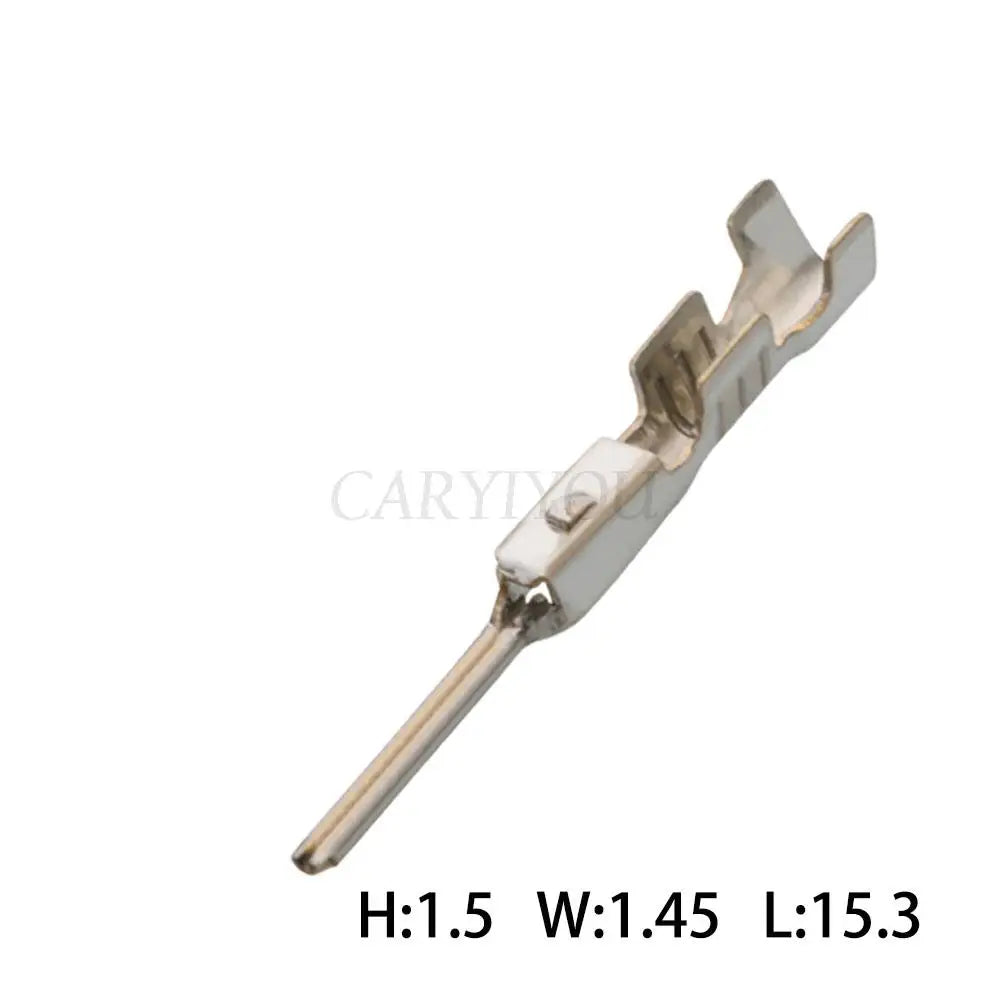

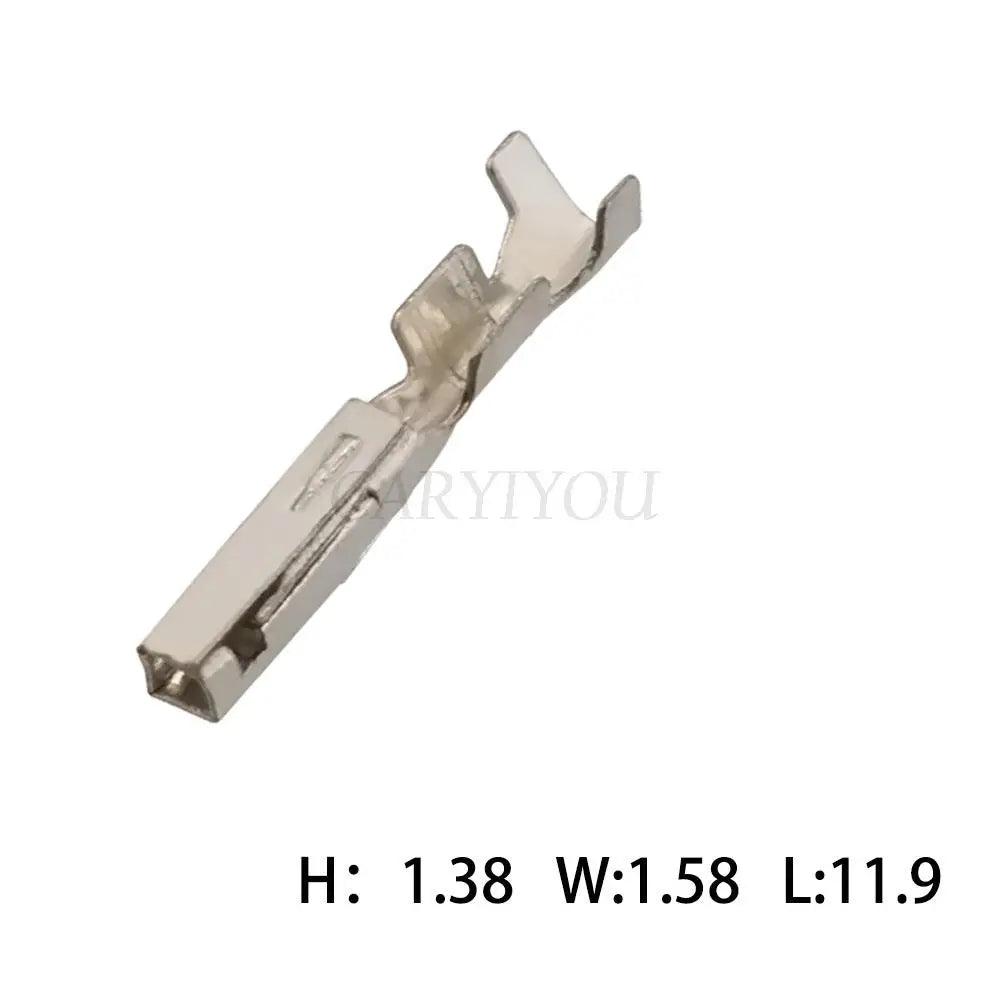

Gender	Female (DJ622-F0.4A) / Male (DJ612-F0.4A)
Material	Copper alloy, tin-plated
Wire Range	0.08–0.13mm² (AWG 28–26)
Pack Quantity	50PCS
Certification	CE
Origin	Mainland China

Key Features

✅ 0.4mm ultra-fine pitch — smallest standard automotive terminal pitch for high-density ECU and control module connectors
✅ Male and female variants — DJ622-F0.4A (female) and DJ612-F0.4A (male) for complete connector assembly
✅ 917308-1 cross-reference — compatible with Tyco / TE Connectivity 917308-1 series connector applications
✅ Tin-plated copper alloy — low contact resistance, corrosion-resistant, reliable long-term performance
✅ CE certified — meets European automotive electrical component standards

Common Applications

High-density automotive ECU connector terminal replacement
Body control module (BCM) fine-wire harness repair
Automotive sensor circuit ultra-fine pitch connector re-termination
Modern vehicle infotainment and ADAS wiring harness repair
Custom high-density automotive wiring harness fabrication

Crimping Guide

Strip 2–3mm of insulation from the wire end (use a precision wire stripper for fine gauge wire).
Insert the wire into the terminal crimp barrel under magnification.
Crimp using a precision ratchet crimping tool with the appropriate 0.4mm series die.
Inspect the crimp under magnification to verify correct engagement.
Insert the crimped terminal into the connector housing until it clicks into the retention position.

FAQ

Q: What wire gauge is compatible?
A: DJ622-F0.4A / DJ612-F0.4A terminals are designed for 0.08–0.13mm² (AWG 28–26) ultra-fine wire, typical for modern automotive ECU signal circuits.

Q: Do I need a special crimping tool?
A: Yes. Ultra-fine 0.4mm pitch terminals require a precision ratchet crimping tool with the correct die. Hand crimping will produce unreliable results.
