2.8mm Single-Head 110 Spade Cable Terminal Assorted Colours

2.8mm Single-Head 110 Spade Cable Terminal — Assorted Colours

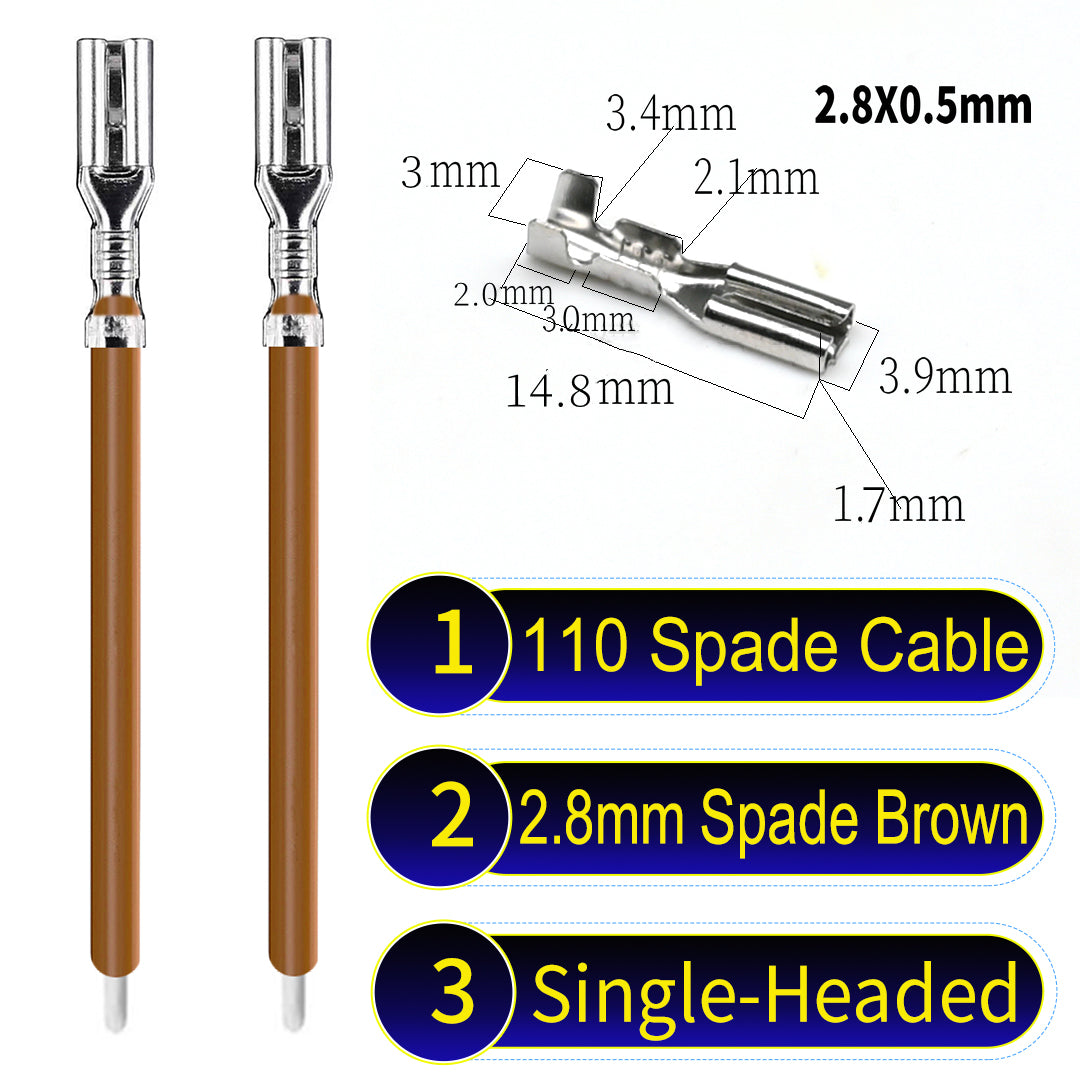

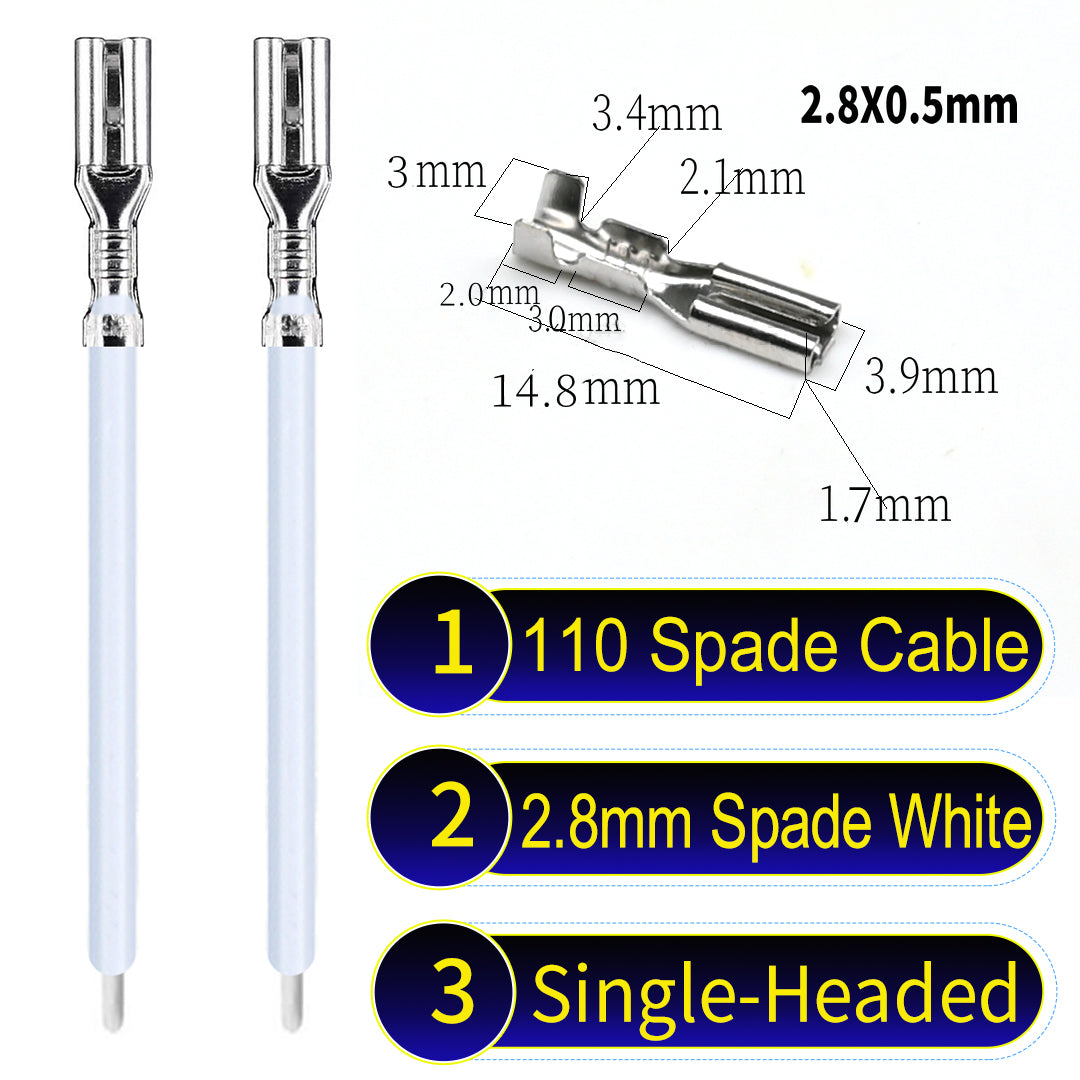

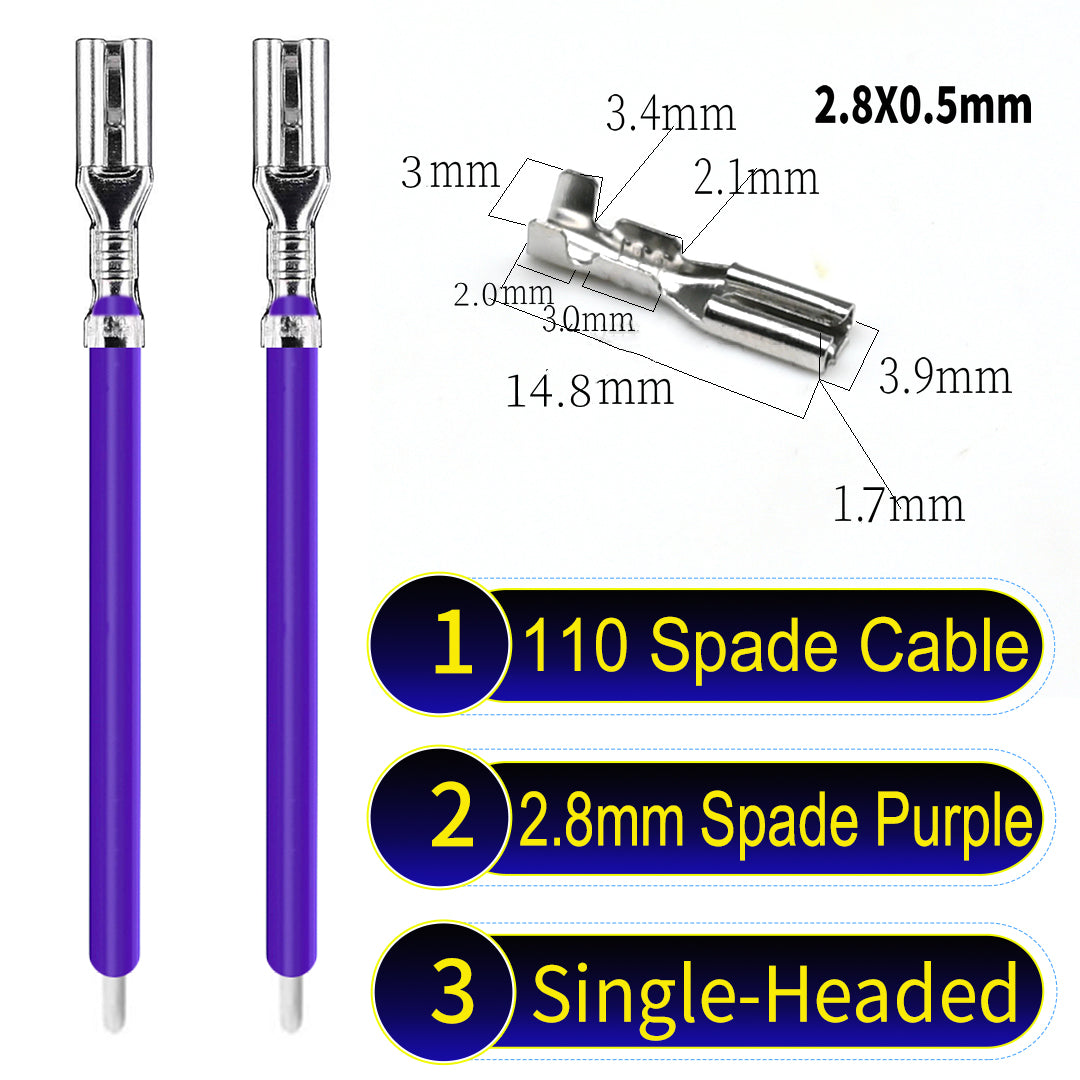

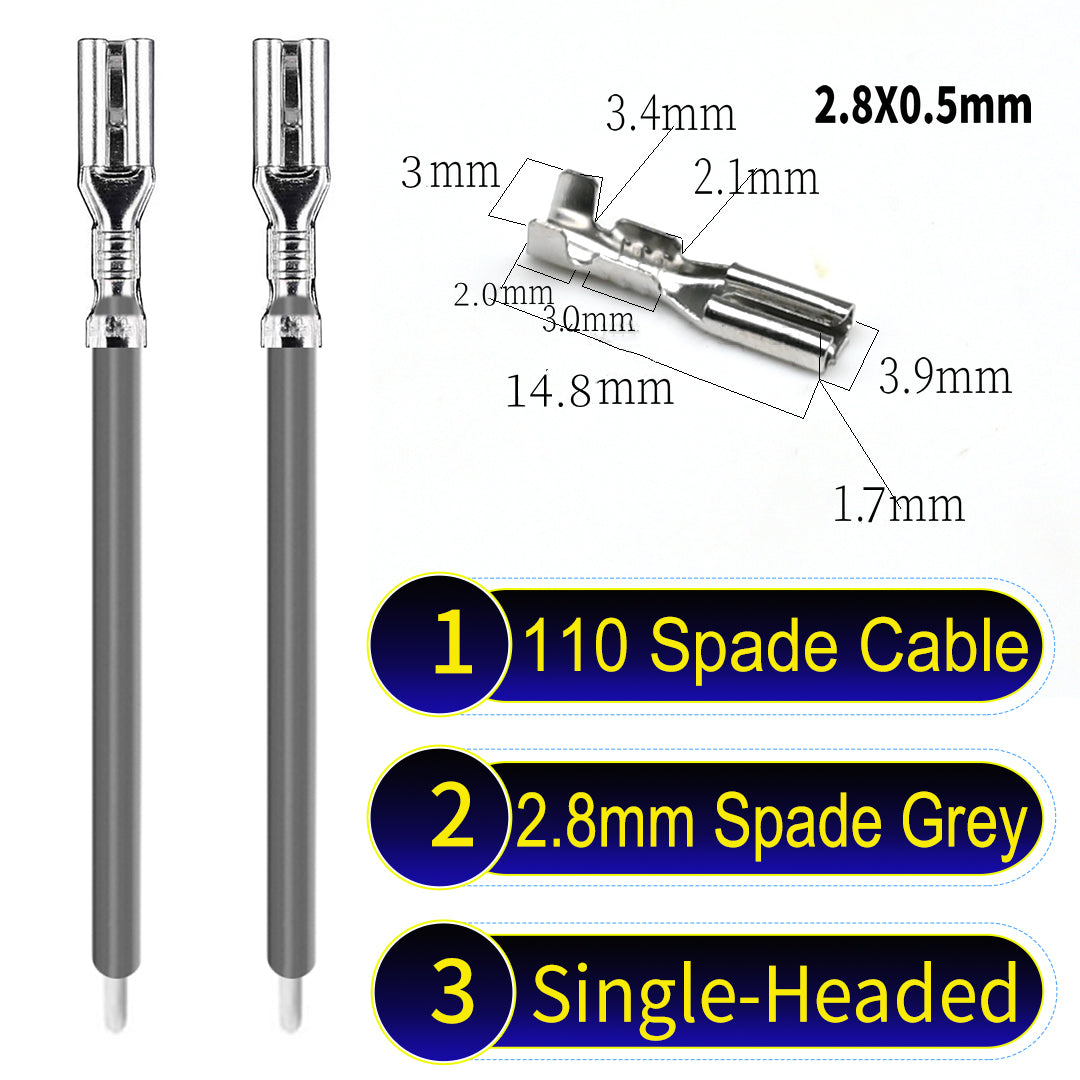

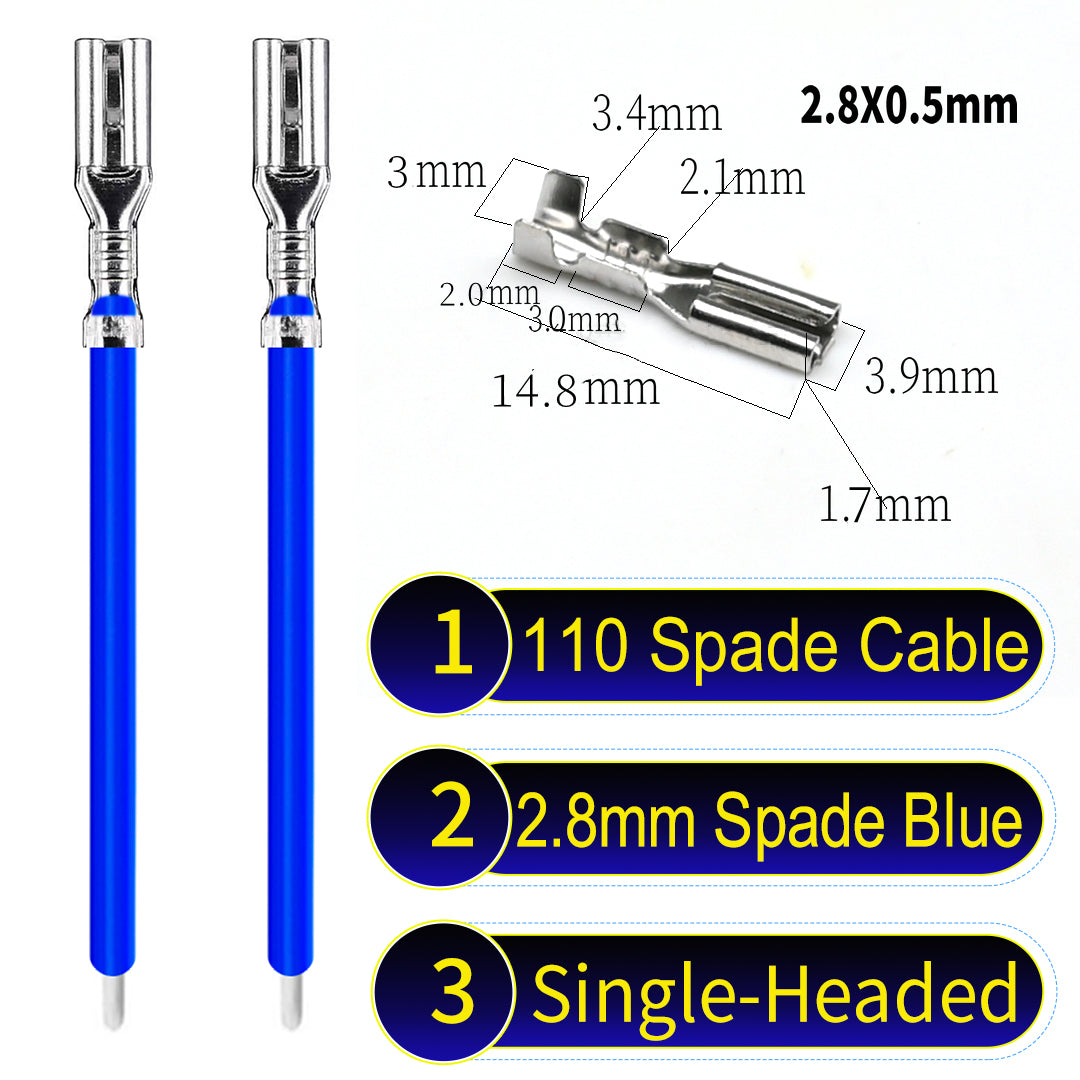

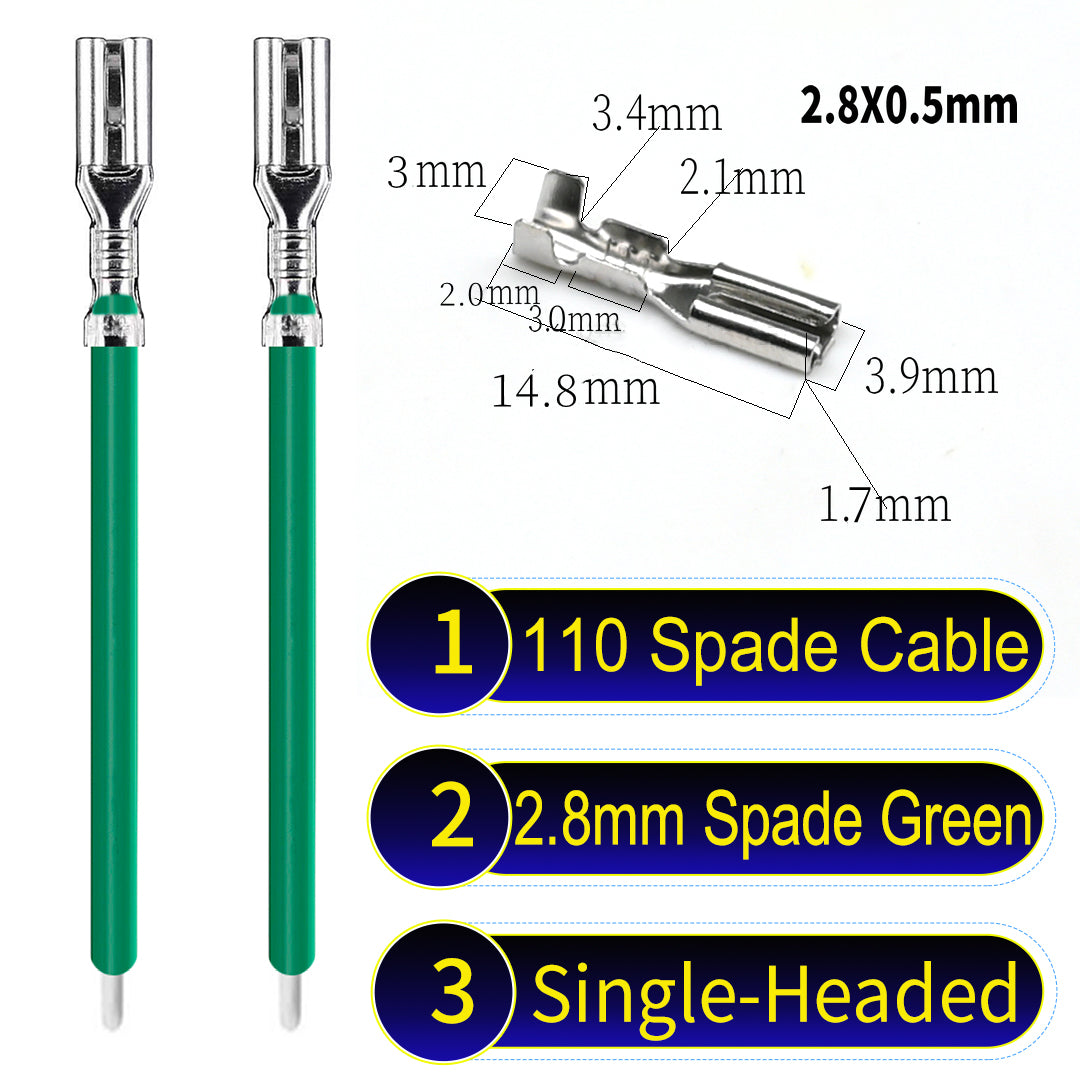

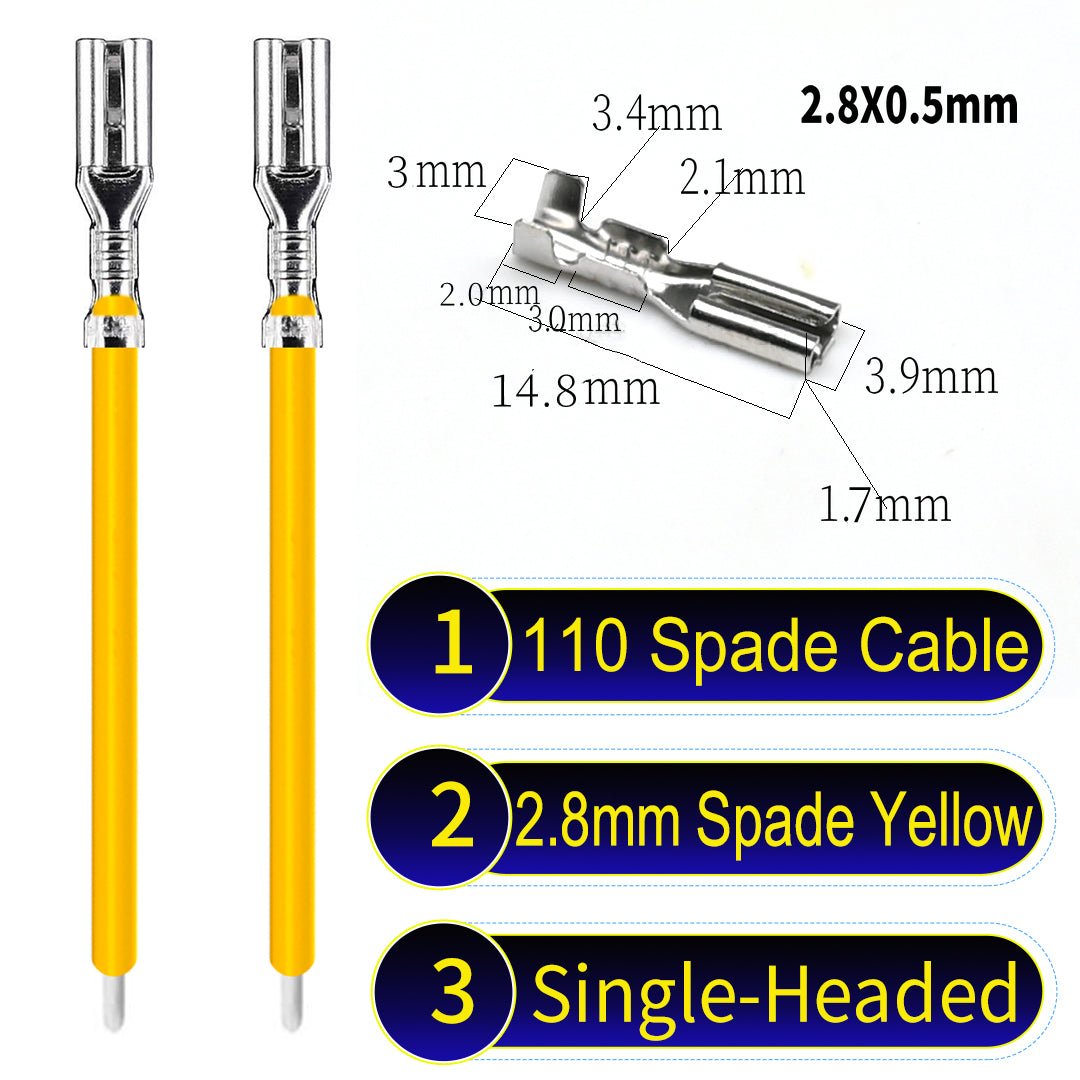

Pre-insulated 2.8mm single-head 110-series spade (blade) cable terminals in a full range of colour-coded insulation options. The 110-series spade terminal provides a quick-connect, push-on electrical connection compatible with 2.8mm (0.110") male blade receptacles widely used in automotive wiring, home appliance internal wiring, and consumer electronics. The colour-coded PVC insulation sleeve identifies wire gauge and circuit function at a glance.

Technical Specifications

Parameter	Value
Terminal Type	110-series spade (blade) — single-head female receptacle

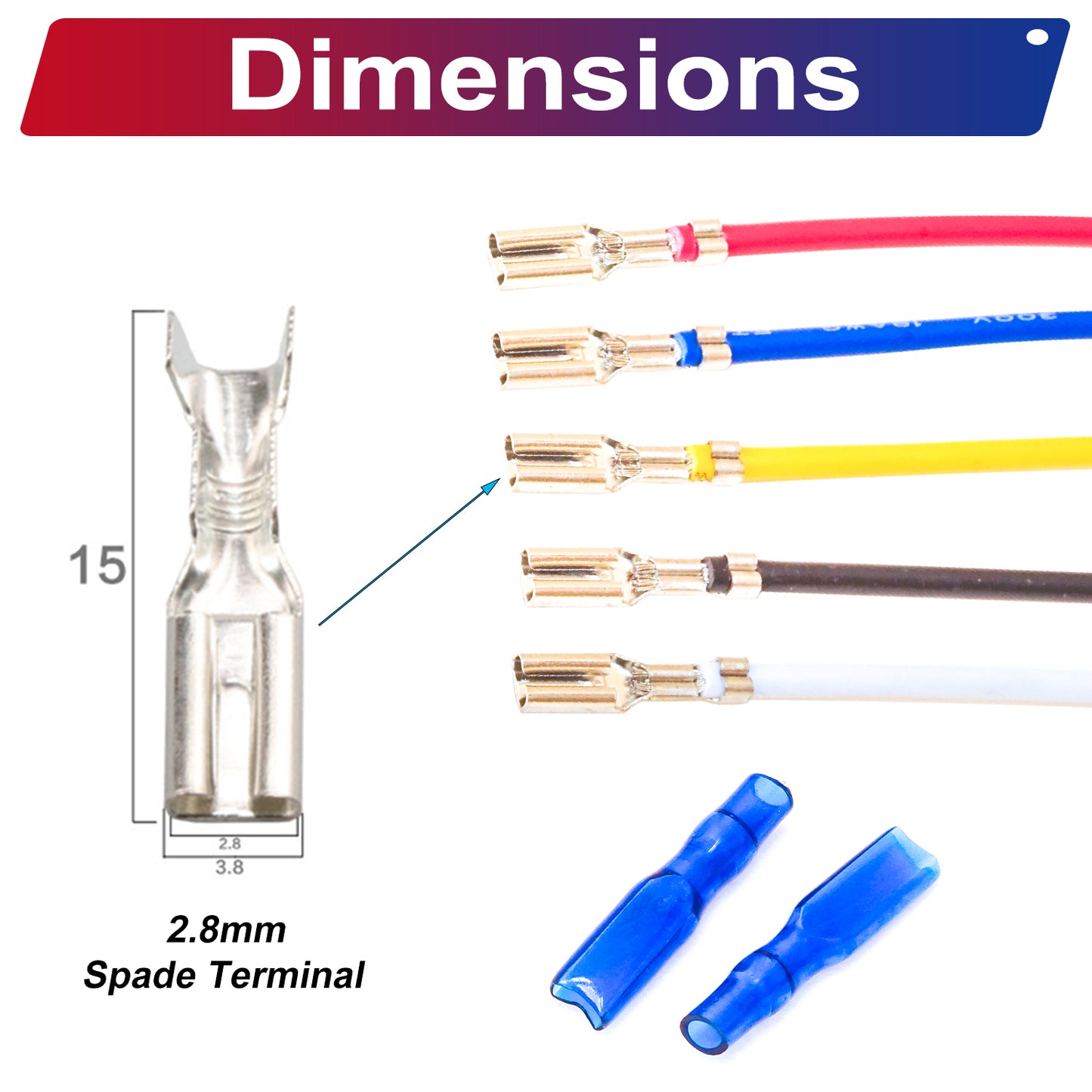

Blade Width	2.8mm (0.110")
Terminal Material	Copper alloy, tin-plated
Insulation Material	PVC (colour-coded)
Wire Range	18–22 AWG (0.5–1.0mm²) — verify by colour
Rated Voltage	600V AC/DC
Rated Current	Up to 10A (gauge dependent)
Termination	Crimp (ratchet crimping tool recommended)
Colours Available	Red, Black, Yellow, White, Blue, Green, Orange, Purple, Brown, Grey
Certification	RoHS

Colour Code Guide

Colour	Wire Gauge	Current Rating
Red	18–22 AWG (0.5–1.0mm²)	Up to 10A
Blue	14–16 AWG (1.5–2.5mm²)	Up to 15A
Yellow	10–12 AWG (4–6mm²)	Up to 30A
Other colours	Circuit identification (same gauge range as red)	Up to 10A

Typical Applications

Automotive Wiring: Quick-connect terminals for car audio speakers, relay sockets, fuse holders, and accessory wiring harnesses using 2.8mm blade connectors
Home Appliance Repair: Internal wiring connections in washing machines, dishwashers, refrigerators, and HVAC systems using 110-series blade terminals
Motorcycle & ATV Wiring: Colour-coded circuit identification for motorcycle lighting, ignition, and accessory wiring harness repair
Relay & Fuse Box Wiring: Terminate wires to relay socket pins and fuse holder tabs in automotive and marine electrical panels
Consumer Electronics: Internal wiring connections in power tools, garden equipment, and consumer electronics using 2.8mm blade receptacles

FAQ

Q: What male blade size do these terminals connect to?
A: These are 2.8mm (0.110") female receptacles that connect to 2.8mm male blade tabs. Do not use with 4.8mm (0.187") or 6.3mm (0.250") blade terminals — the fit will be loose and unreliable.

Q: Do I need a special crimping tool?
A: A ratchet crimping tool with an insulated terminal jaw (typically colour-coded red for 18–22 AWG) is recommended for a reliable gas-tight crimp. Pliers may be used for temporary connections but are not recommended for permanent wiring.
