Phoenix Contact 3.81mm Right-Angle Pin Header 2–24P, MC Series, Green Pluggable Terminal Block, Fits 28–16 AWG Wire
Phoenix Contact 3.81mm Right-Angle Pin Header 2–24P, MC Series, Green Pluggable Terminal Block, Fits 28–16 AWG Wire
Couldn't load pickup availability
Phoenix Contact 3.81mm Right-Angle Pin Header — 2–24P, MC Series, 8A/160V
The Phoenix Contact MC series 3.81mm right-angle pin header mounts horizontally on the PCB, with the mating direction parallel to the board surface. Ideal for space-constrained enclosures. Mates with the corresponding 3.81mm MC series plug connector.

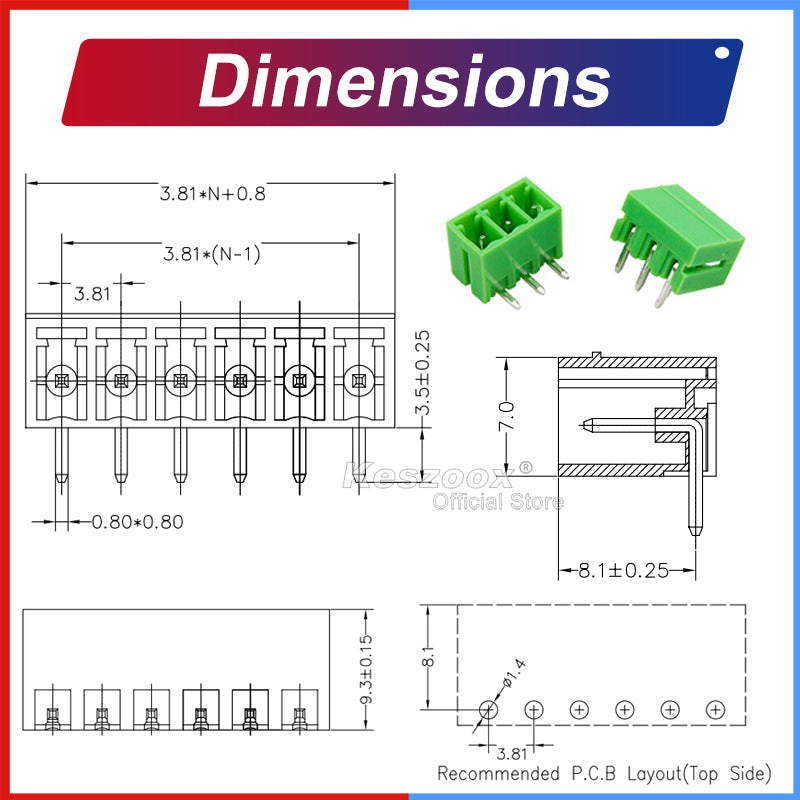

- Pitch: 3.81mm

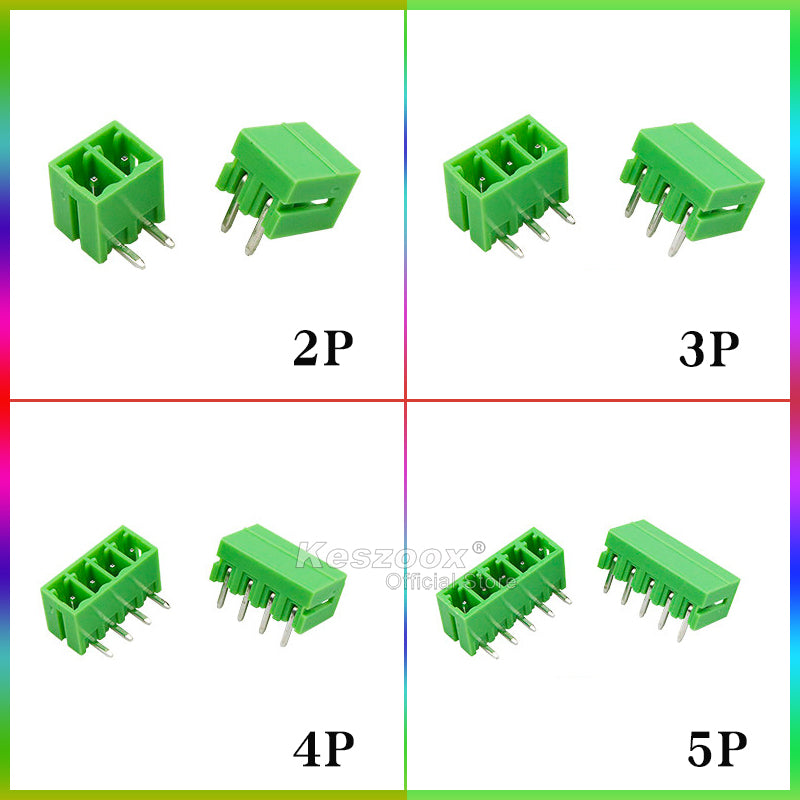

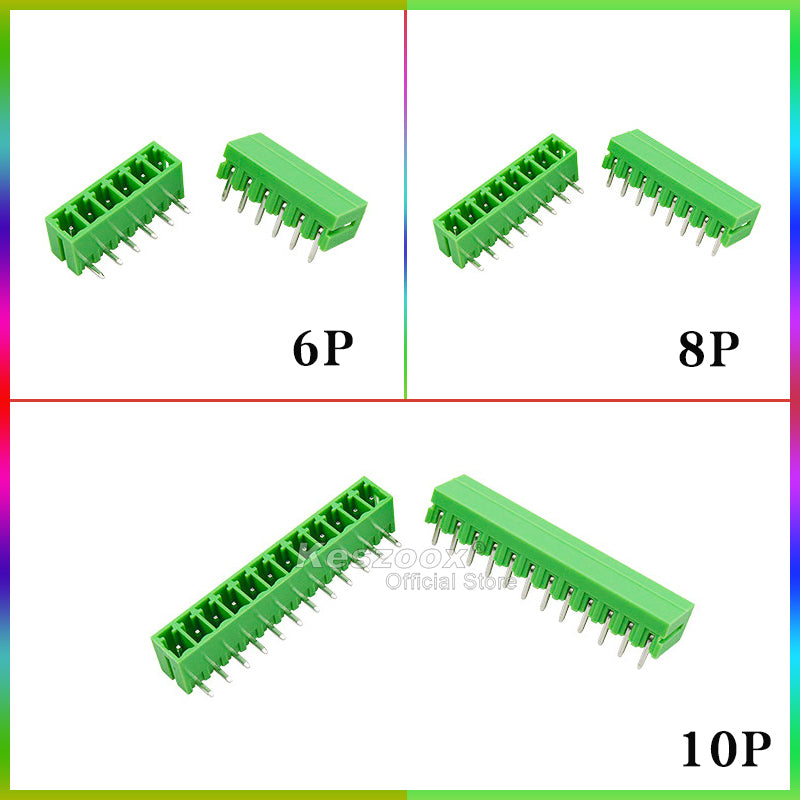

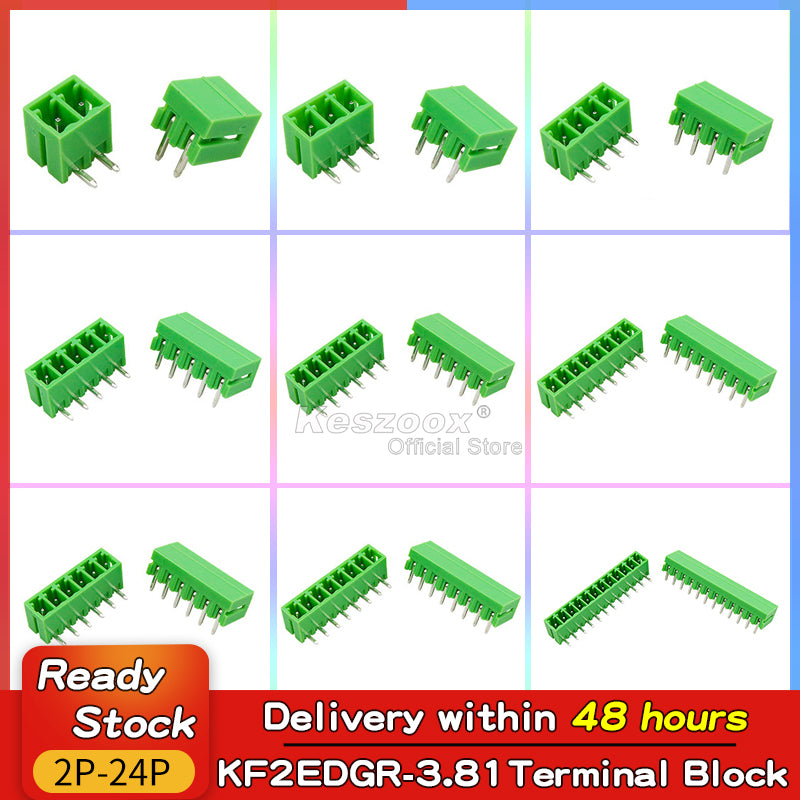

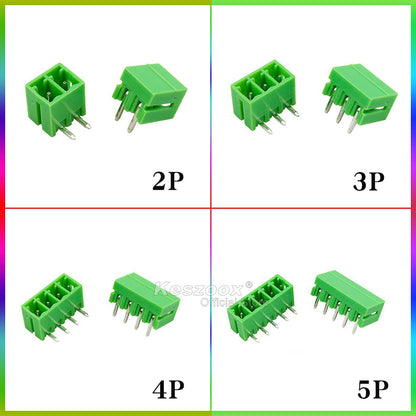

- Positions: 2 to 24 pins
- Mount type: Right-angle (horizontal) THT PCB mount
- Wire range (plug side): 0.14–1.5 mm² (28–16 AWG)
- Rating: 8A / 160V AC/DC
- Housing: Green, UL94 V-0 flame-retardant polyamide
- Contact: Tin-plated copper alloy
- Compliance: RoHS2, UL Listed
Typical applications: Narrow enclosures, PLC systems, industrial automation panels where vertical connector clearance is restricted.
