Phoenix‑Contact 3.5 mm Green Pluggable Terminal Block 2‑24P Fits 28–16 AWG Wire (MC Series)

📦 Product Overview

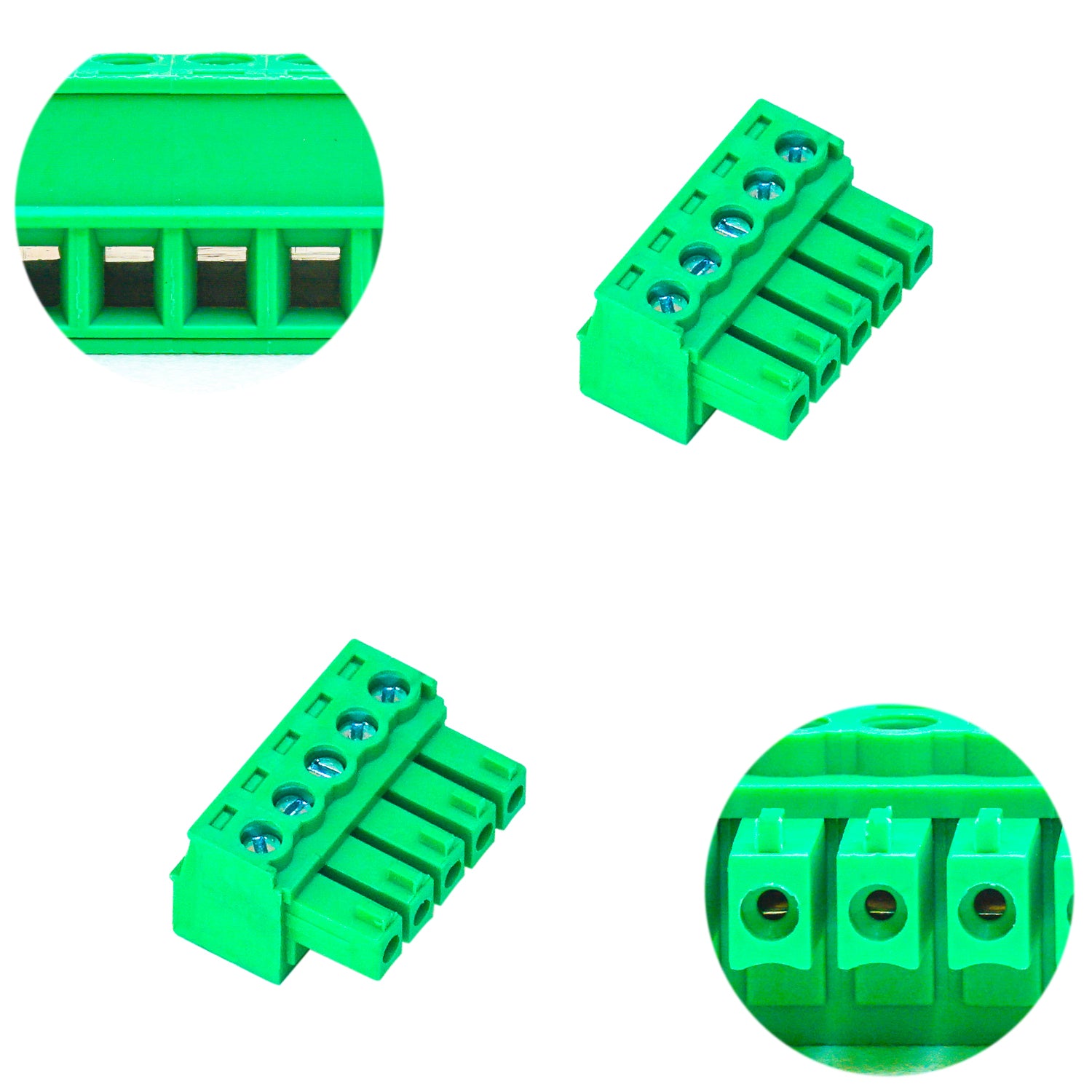

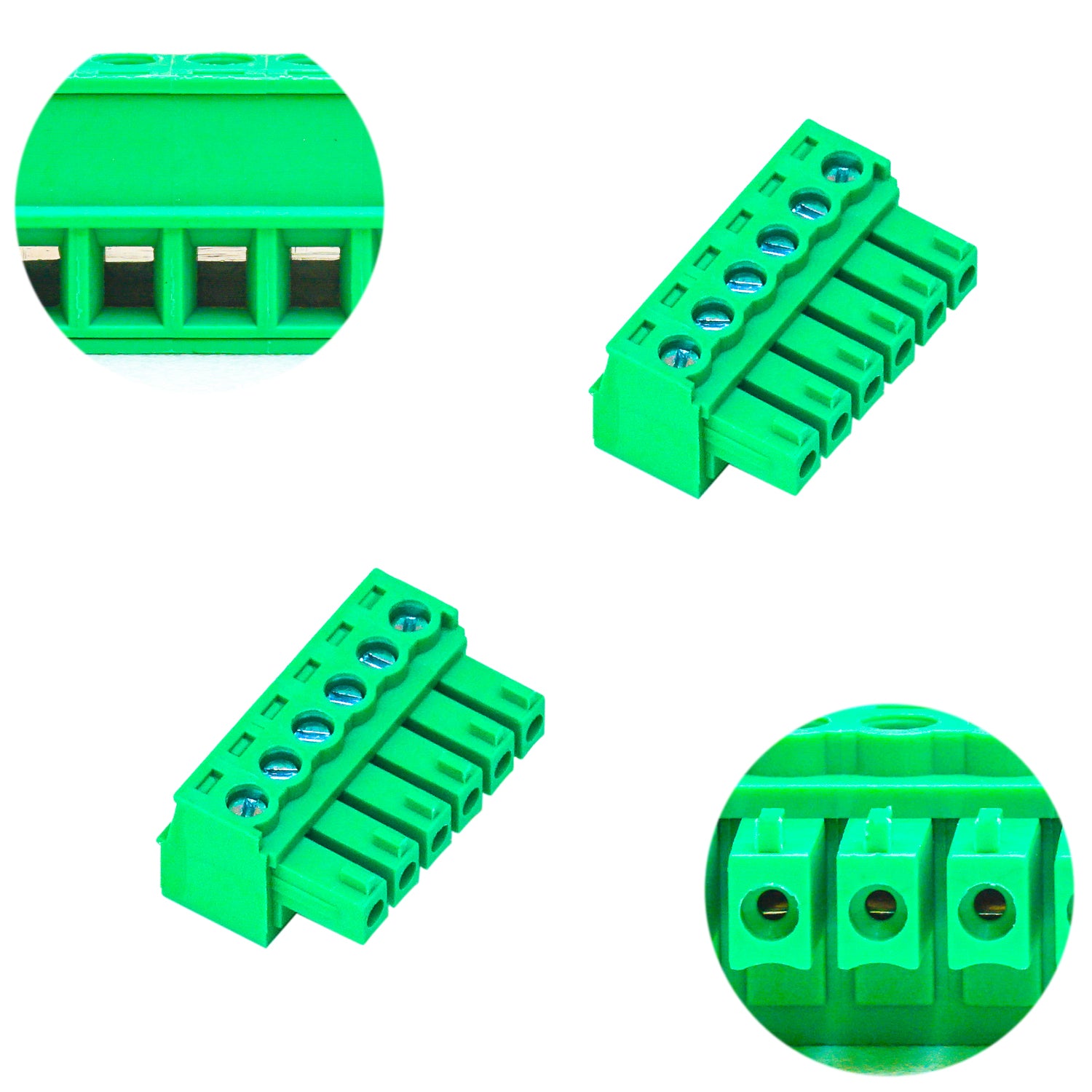

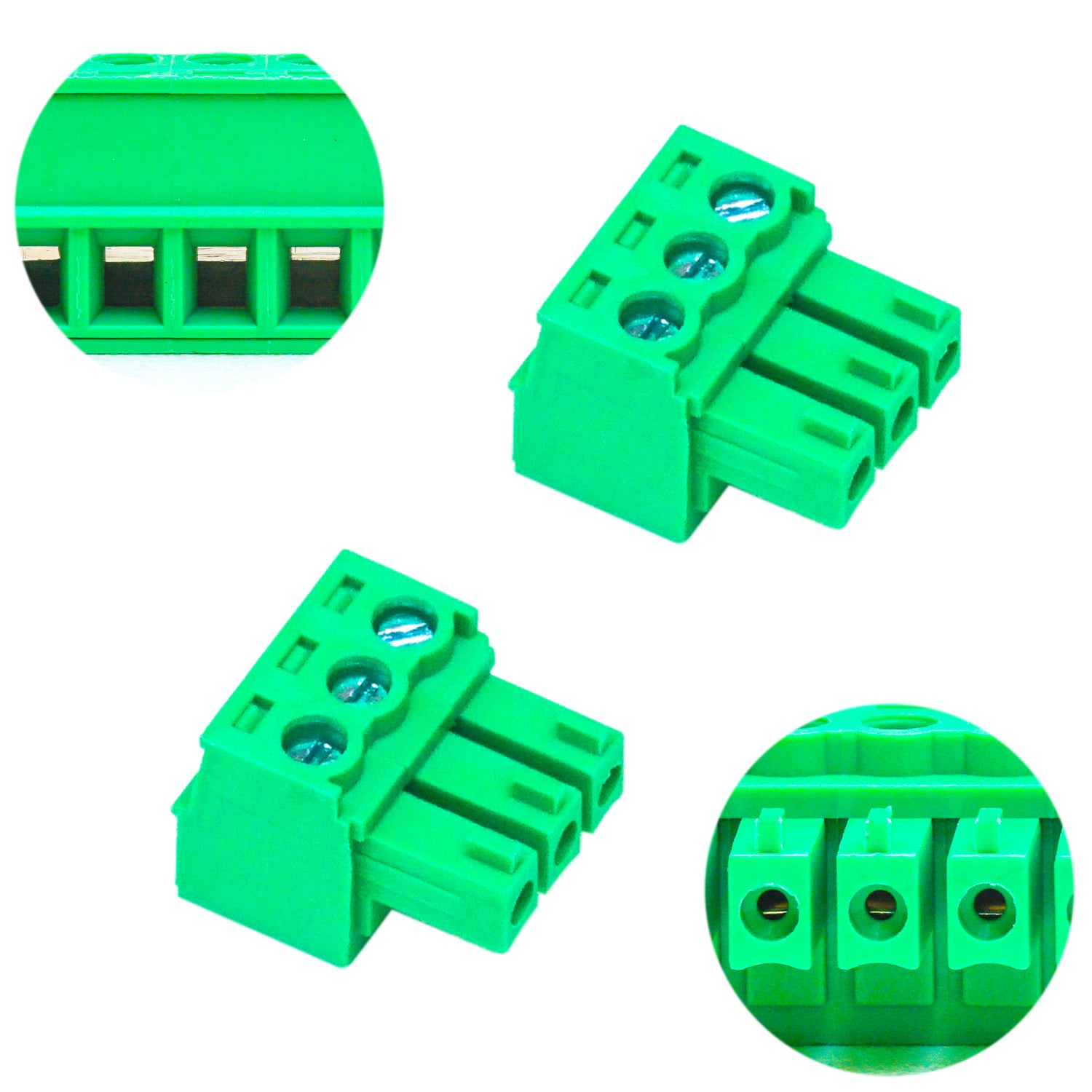

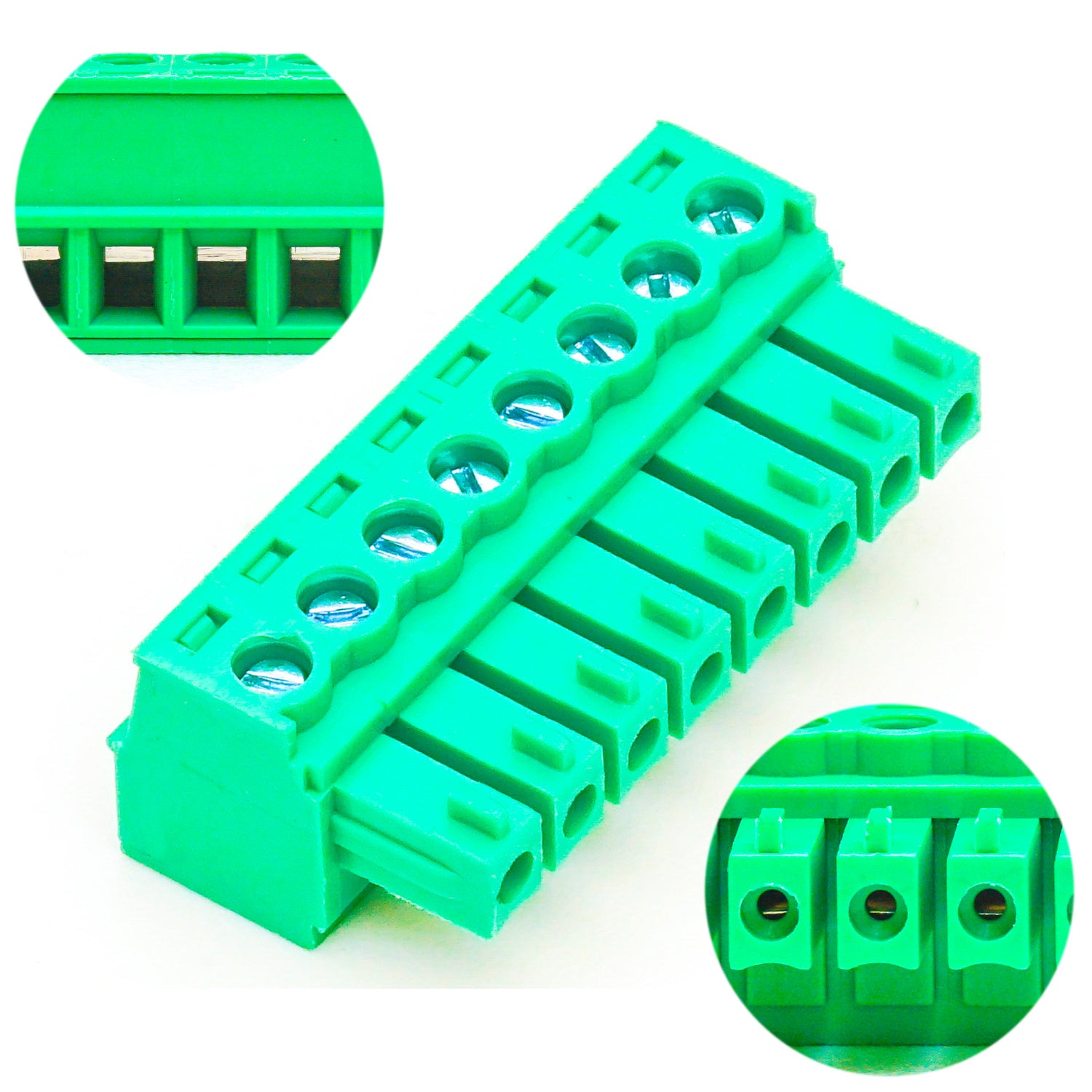

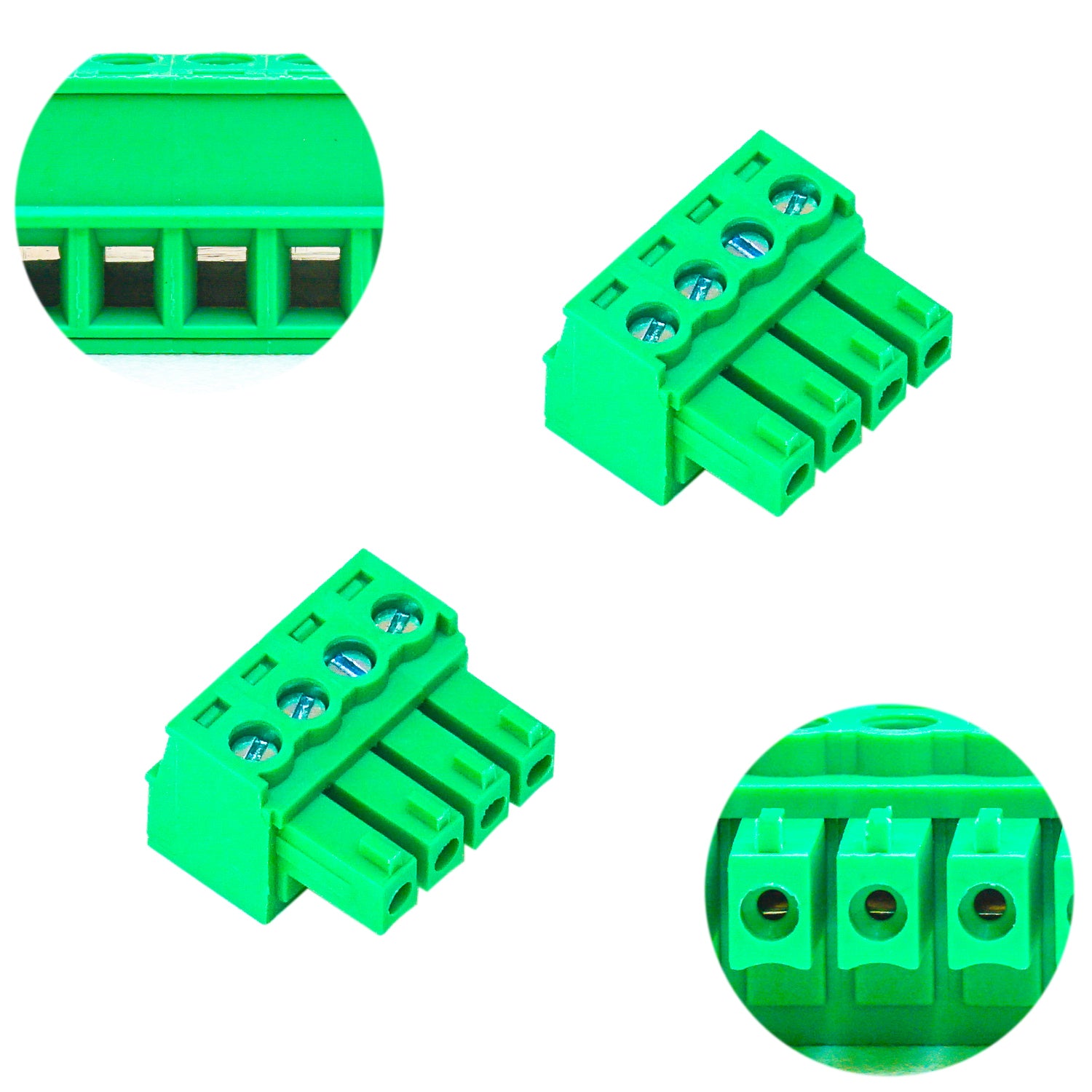

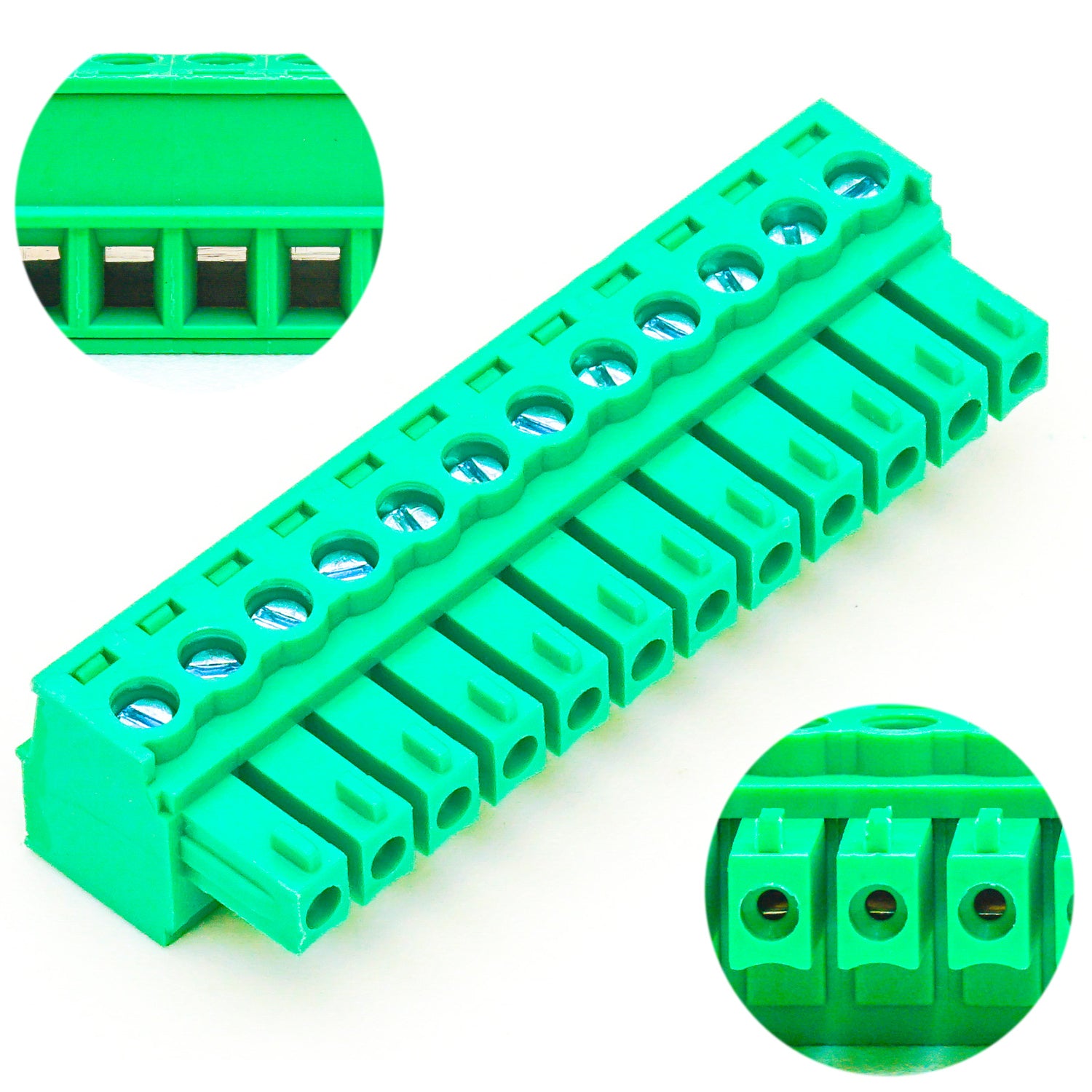

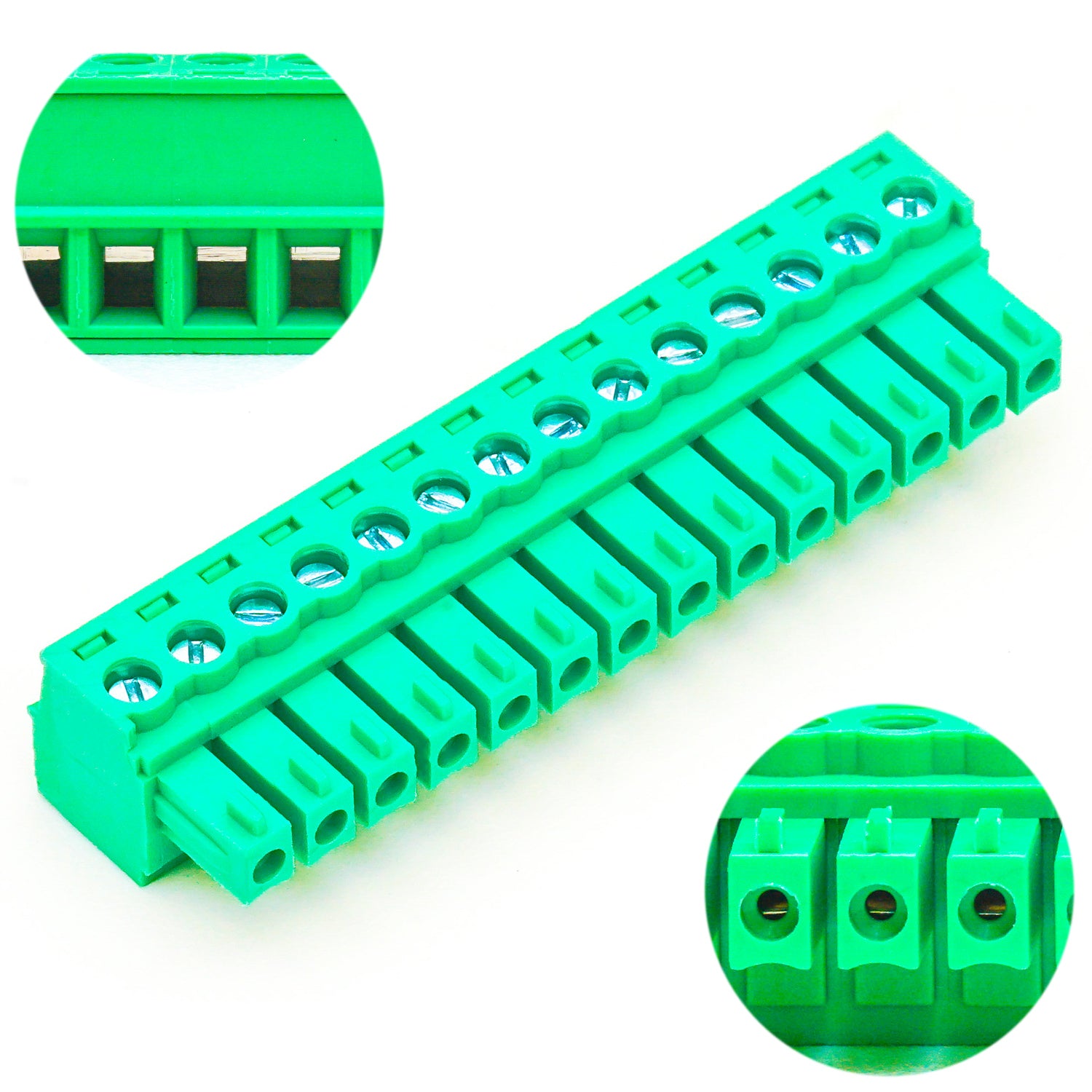

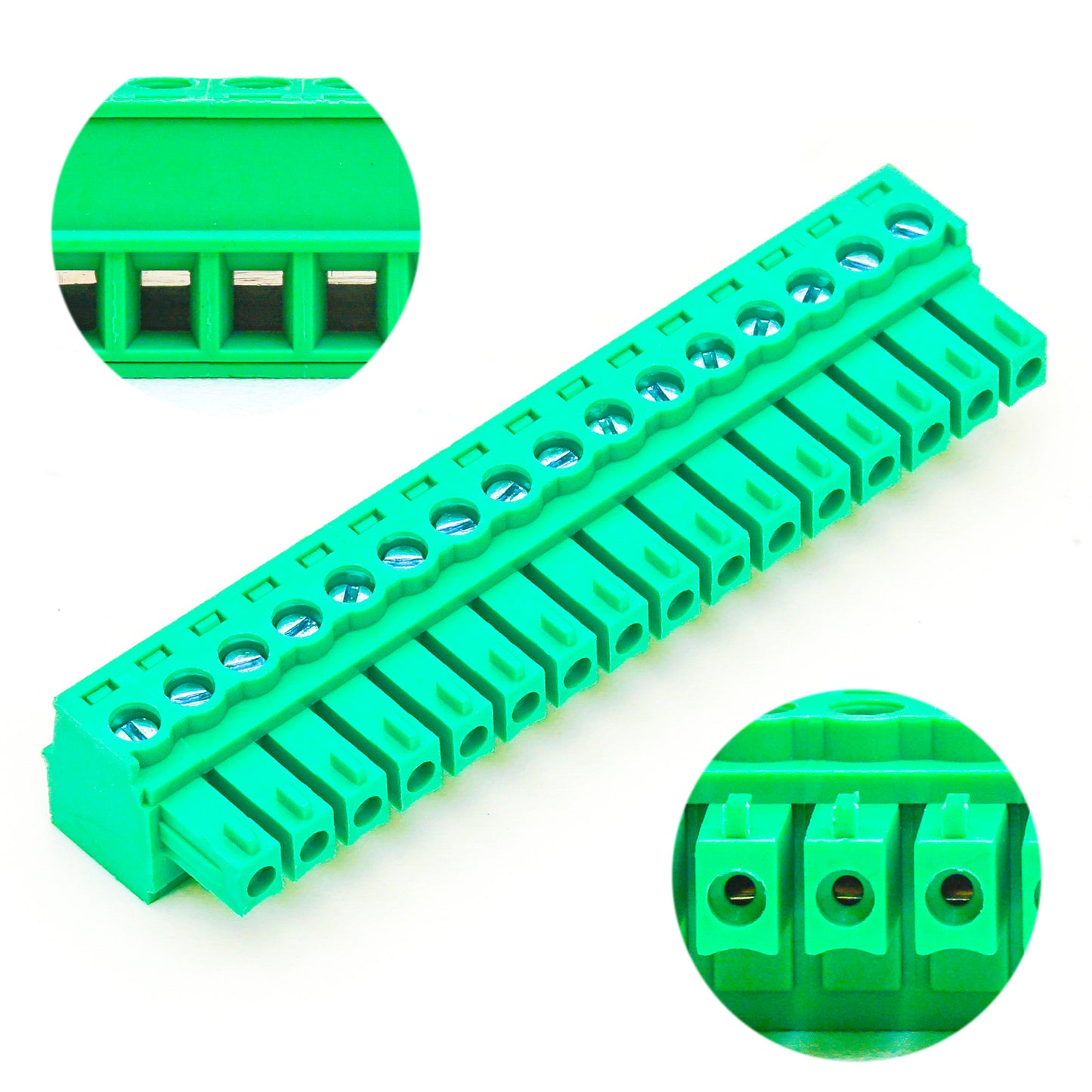

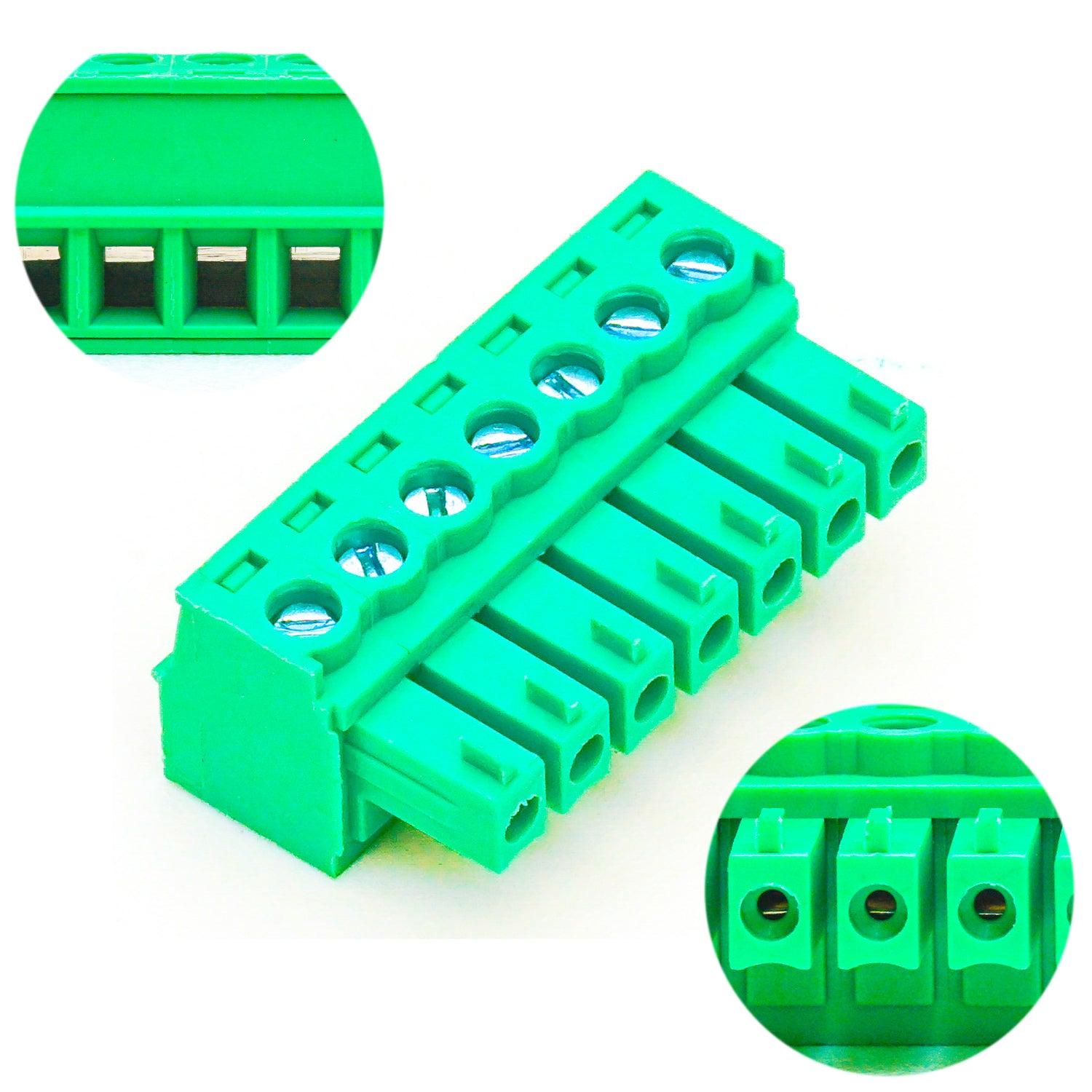

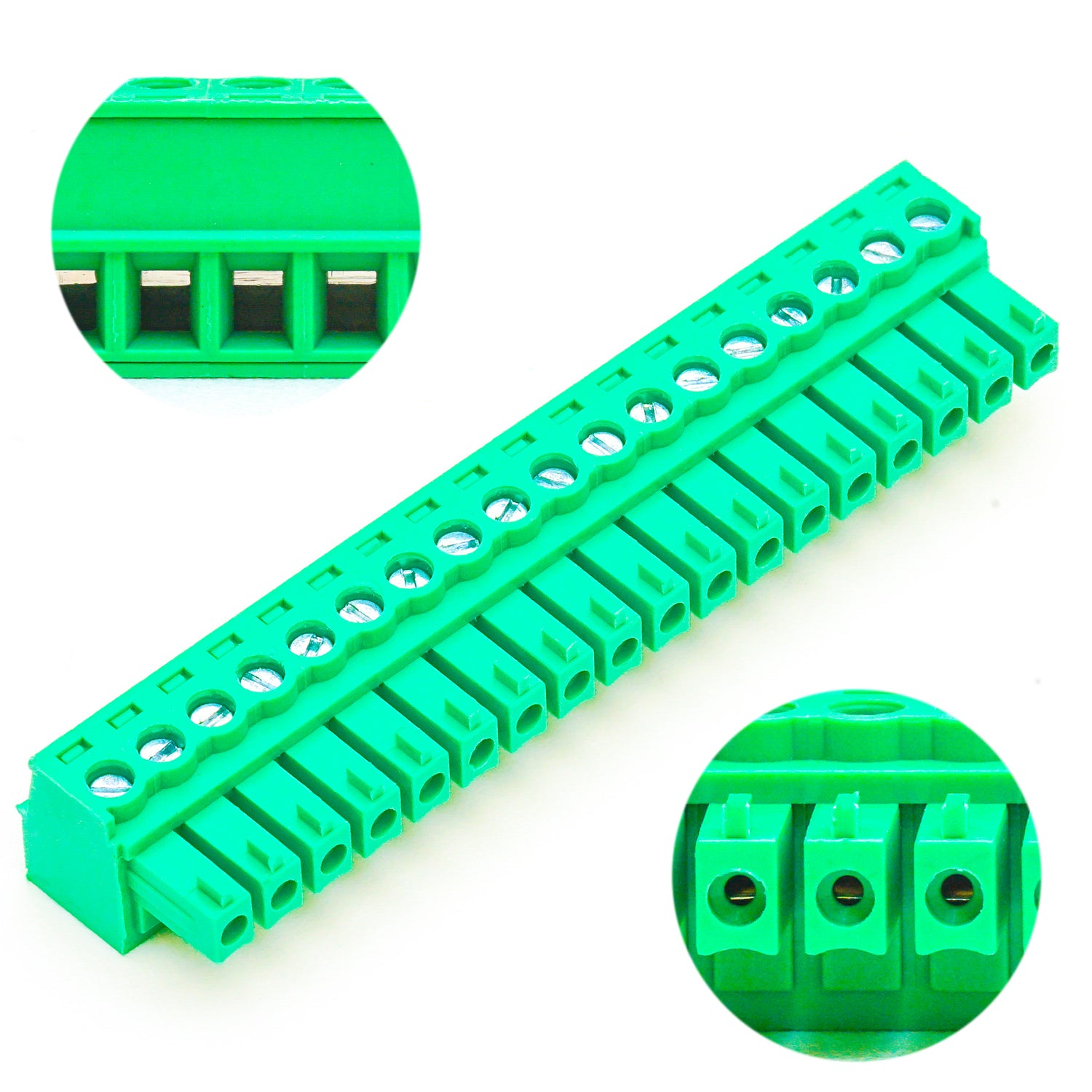

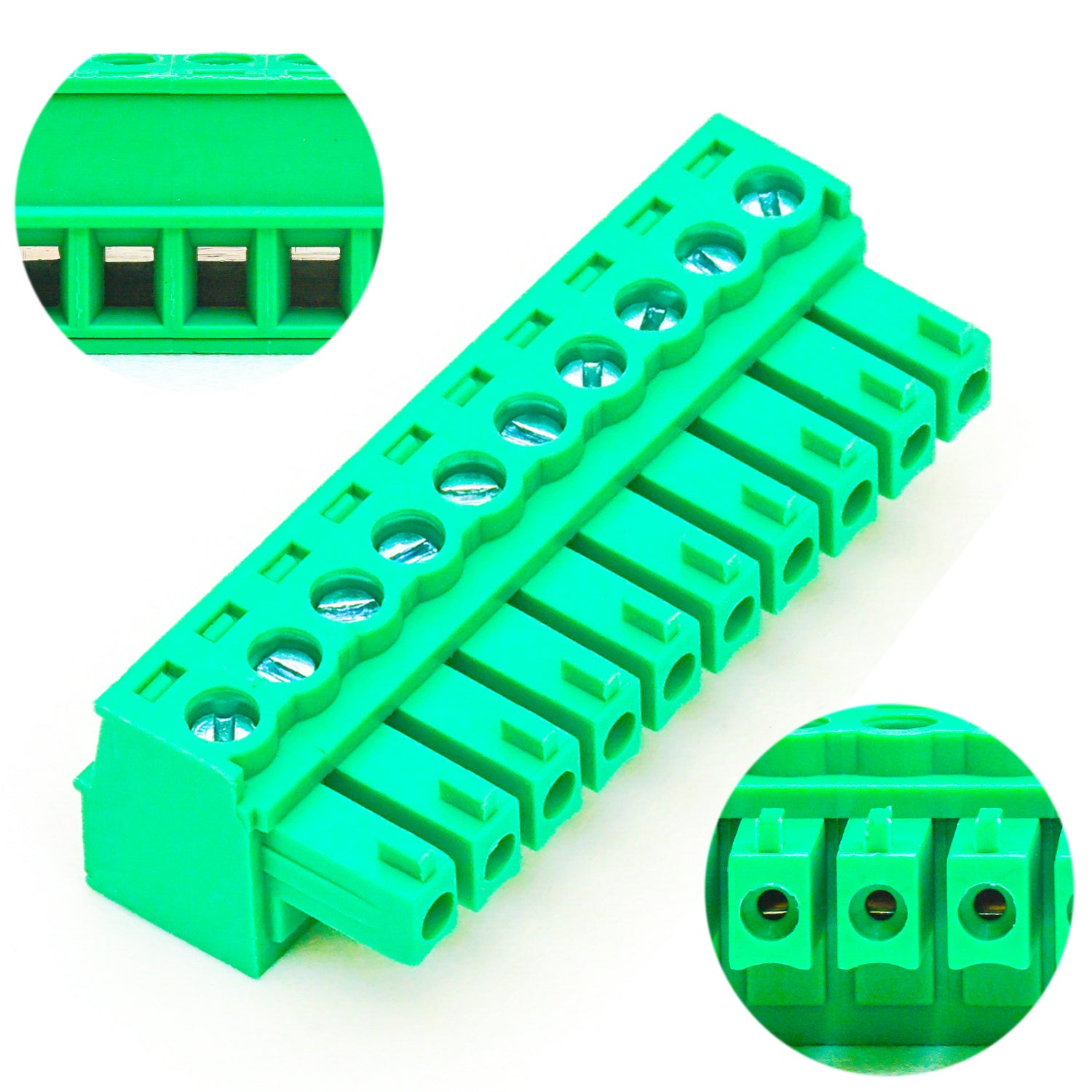

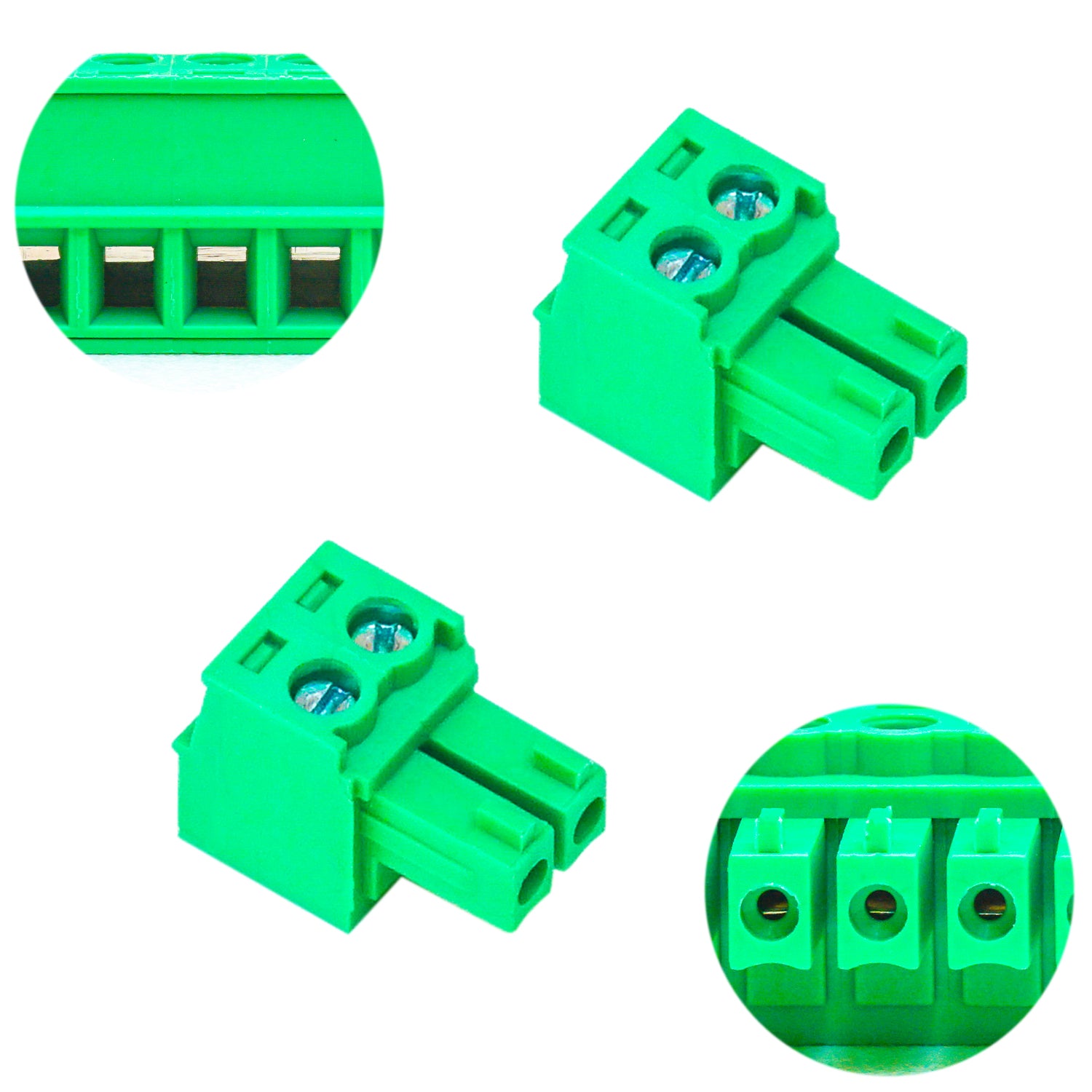

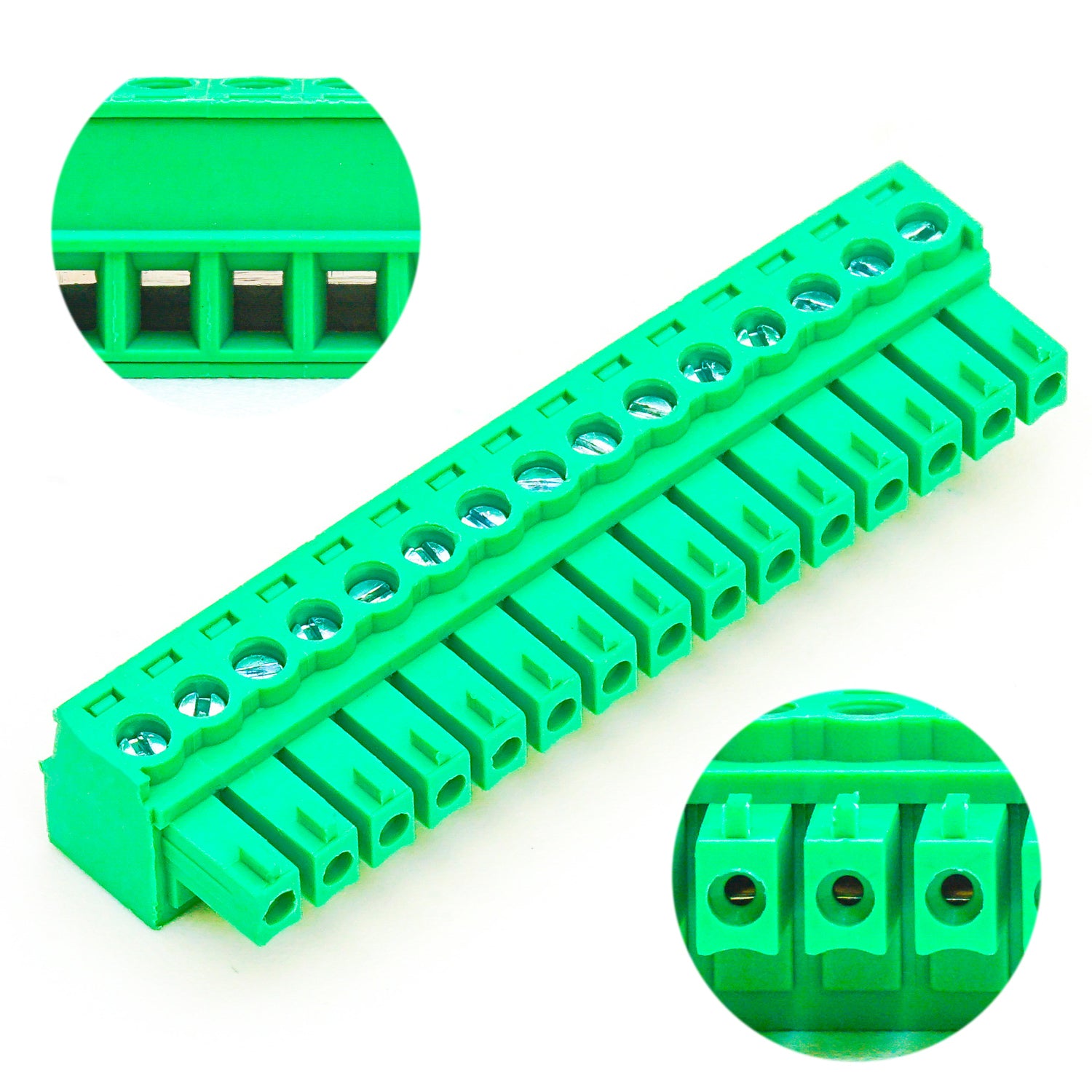

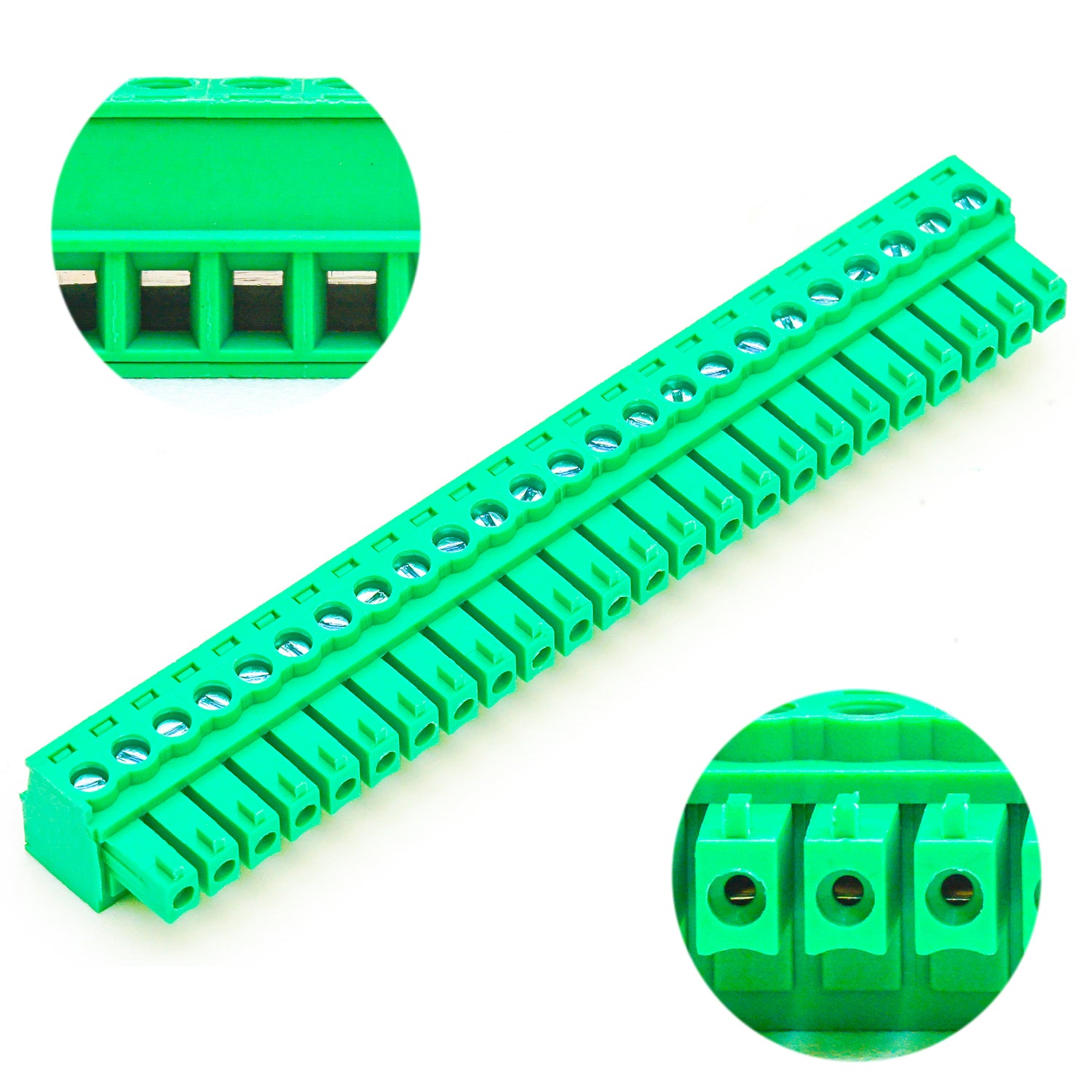

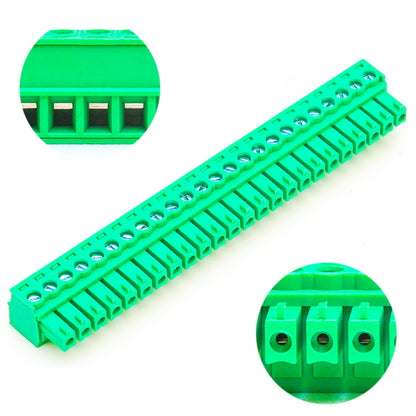

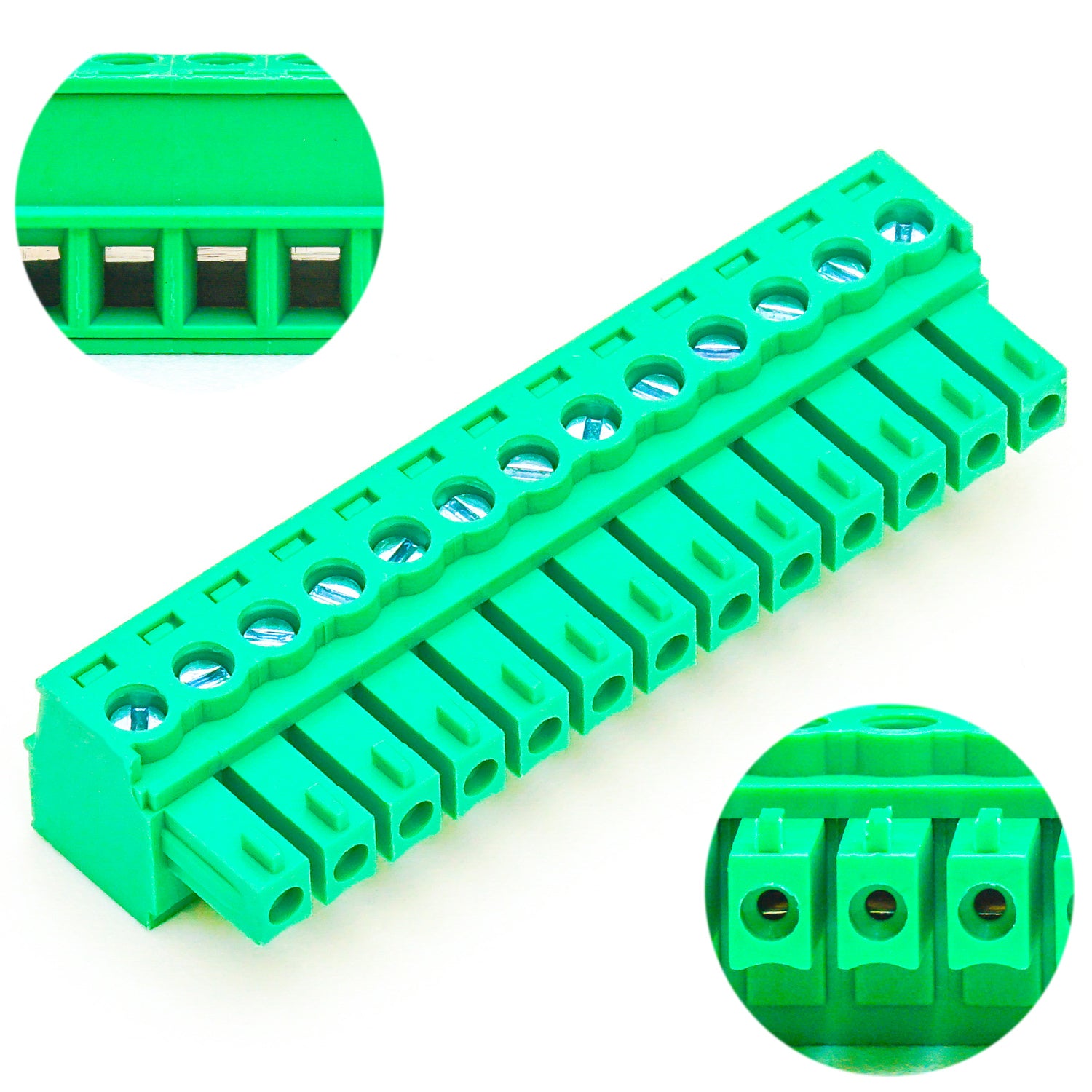

The Phoenix Contact MC series 3.5 mm pitch green pluggable terminal block (COMBICON MC 1,5/…‑ST‑3,5) is engineered for reliable and flexible electrical connections in a compact modular form.

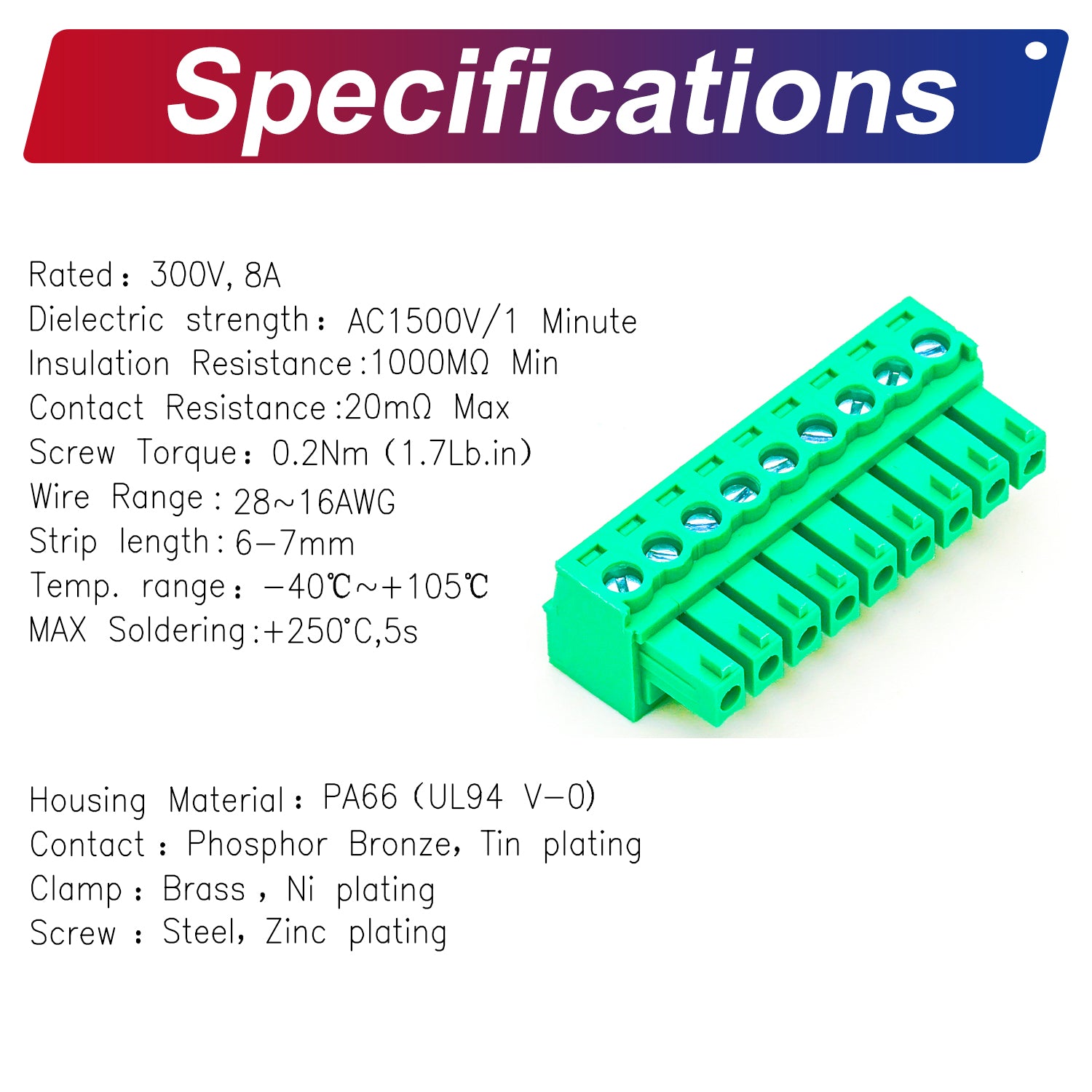

⚙️ Key Features

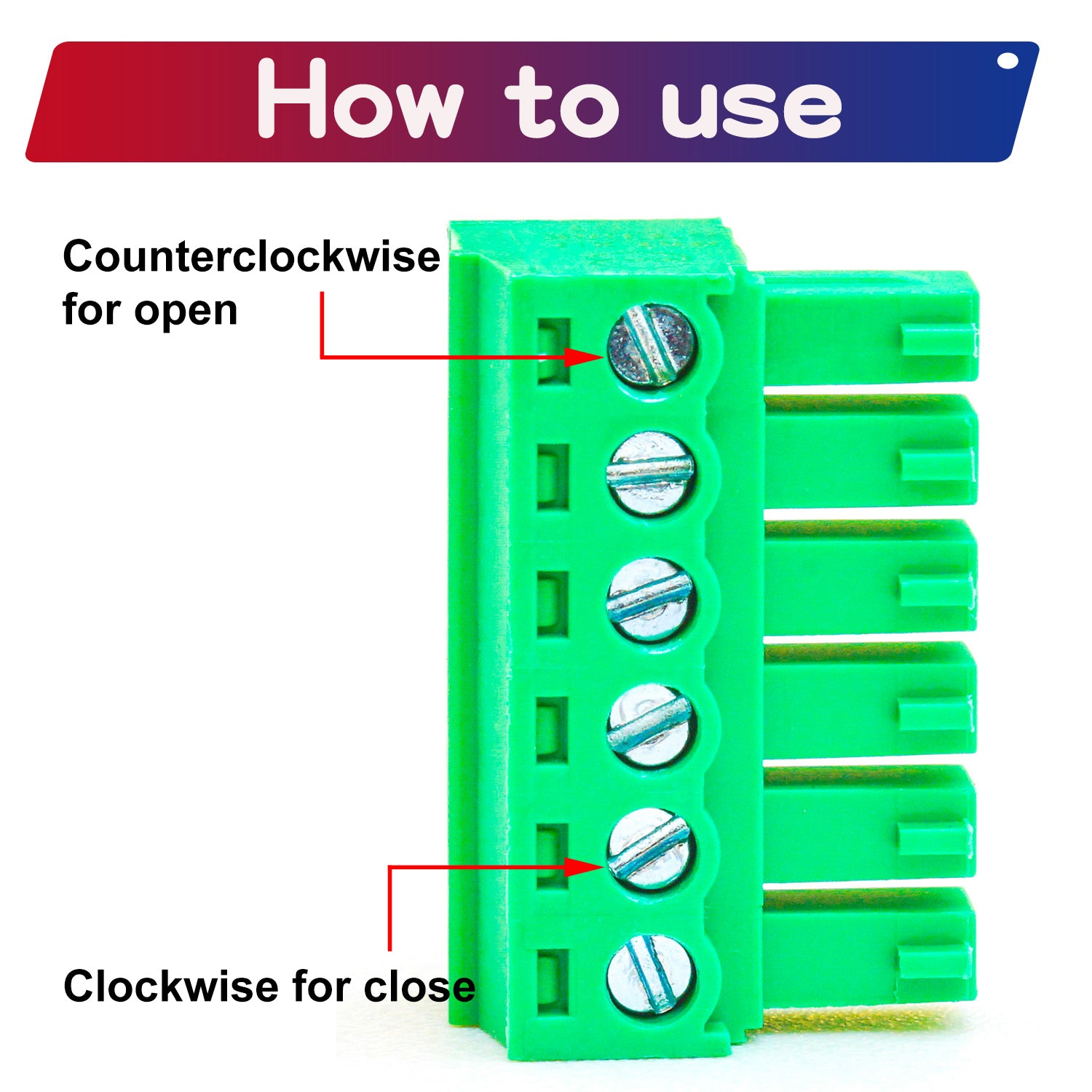

• Connection type: Screw‑type conductor connection
• Conductor size: 0.14 mm²–1.5 mm² (28–16 AWG)
• Voltage rating: 160 V
• Current rating: 8 A

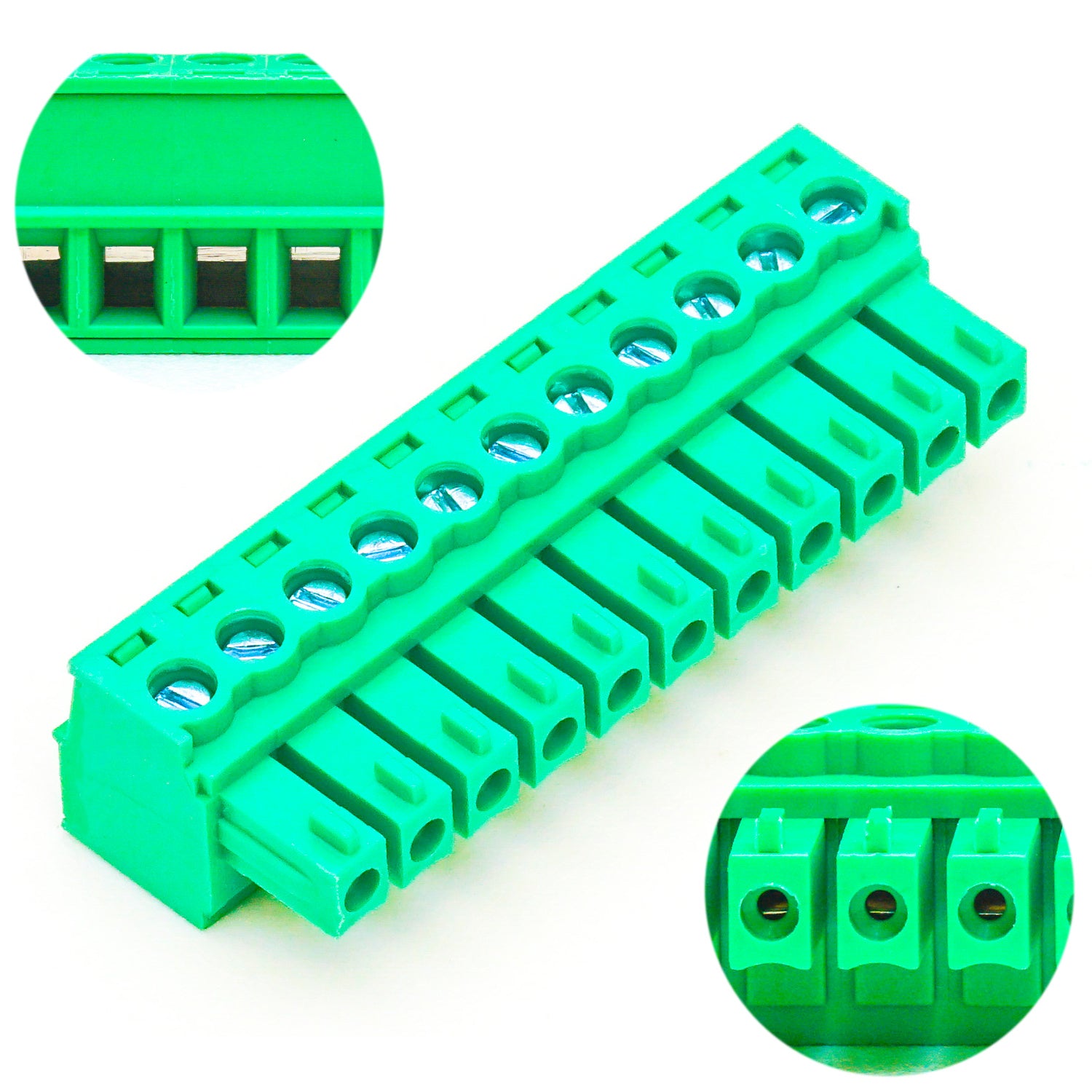

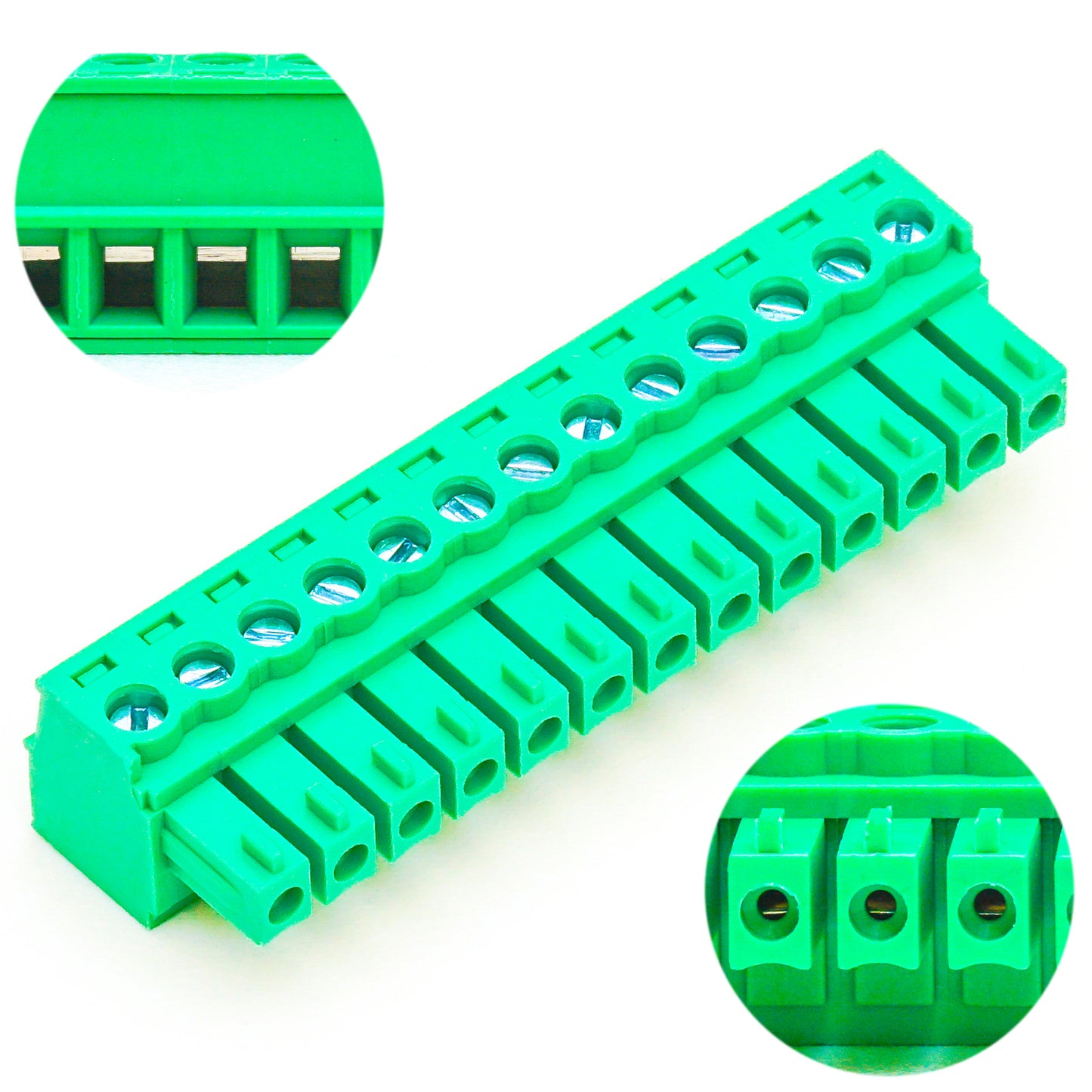

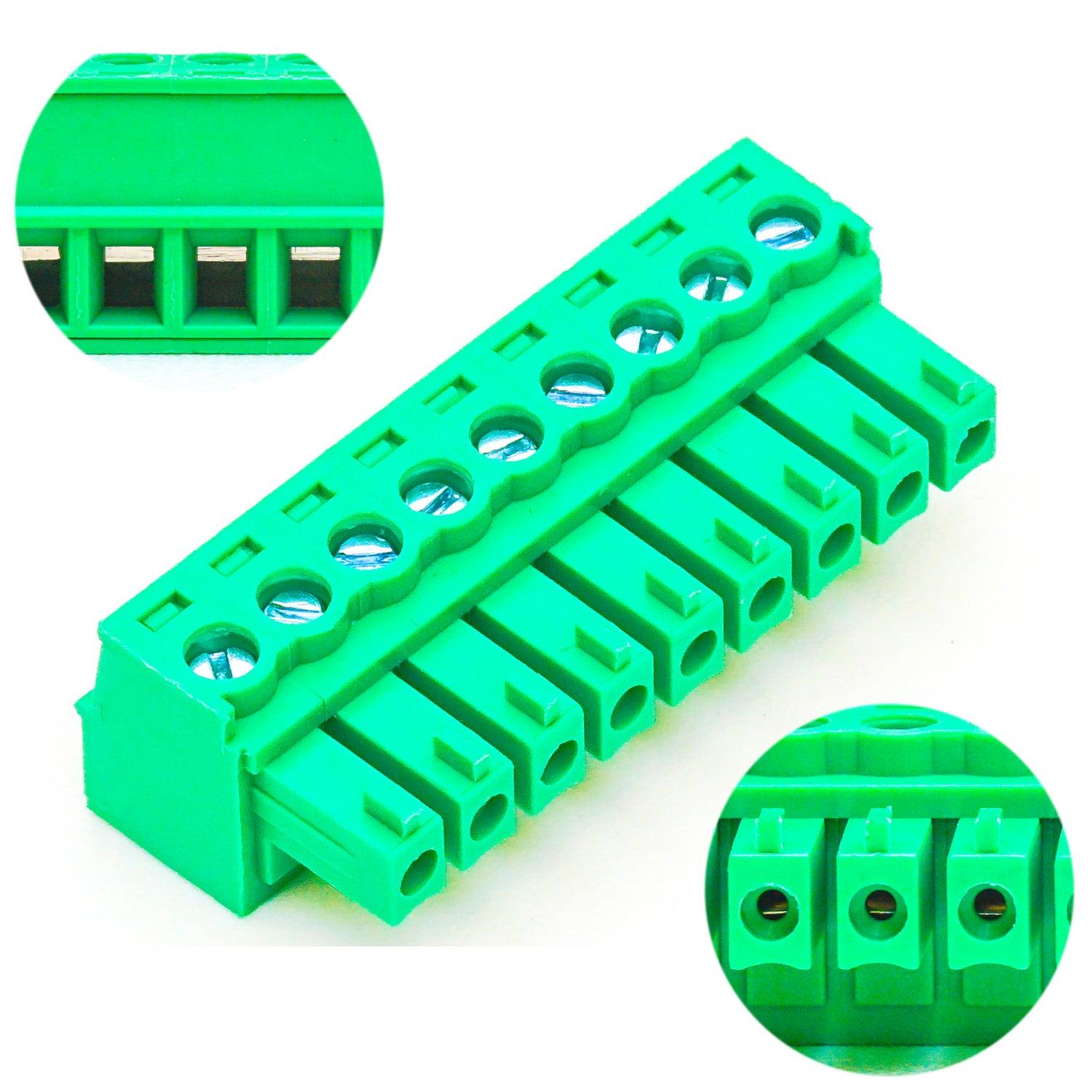

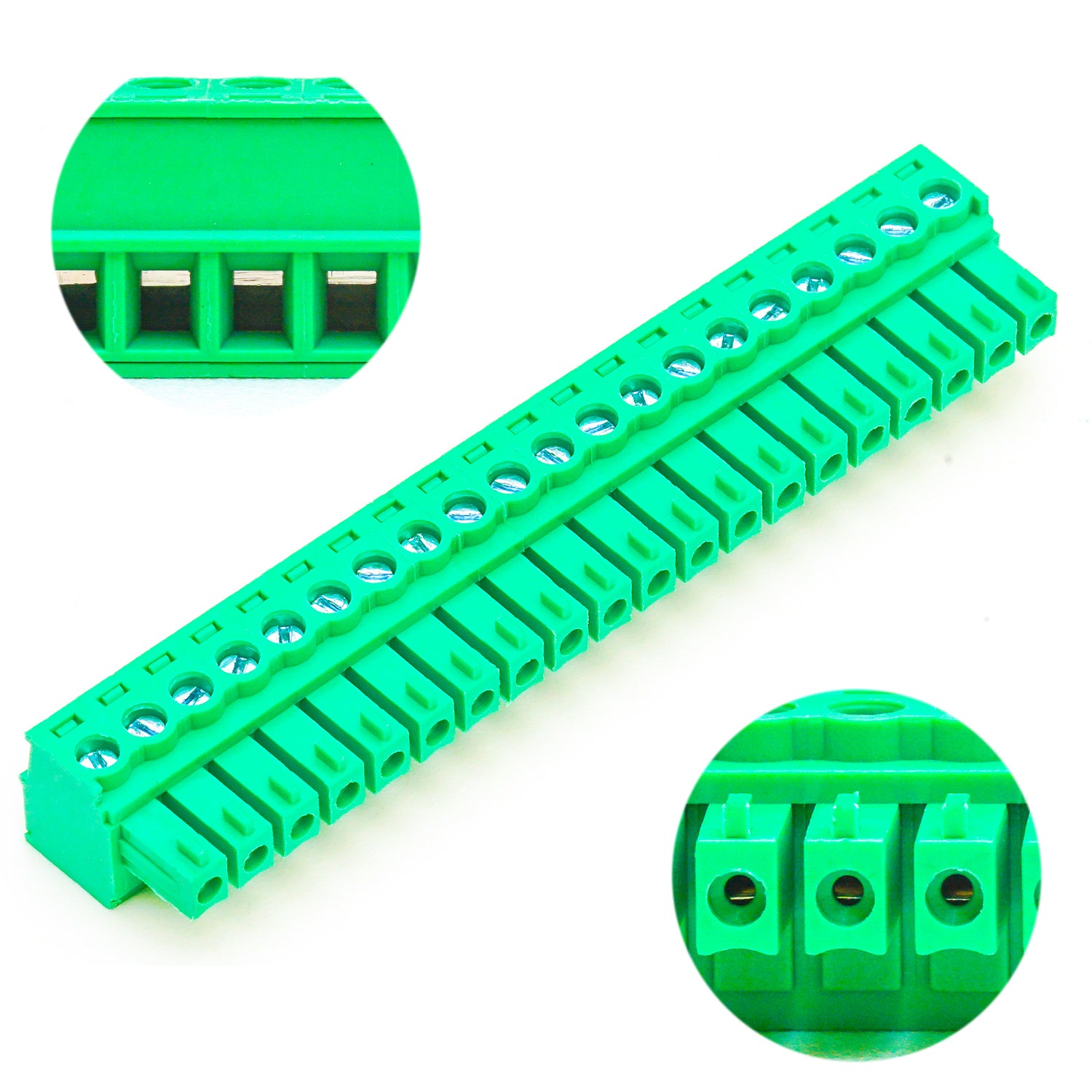

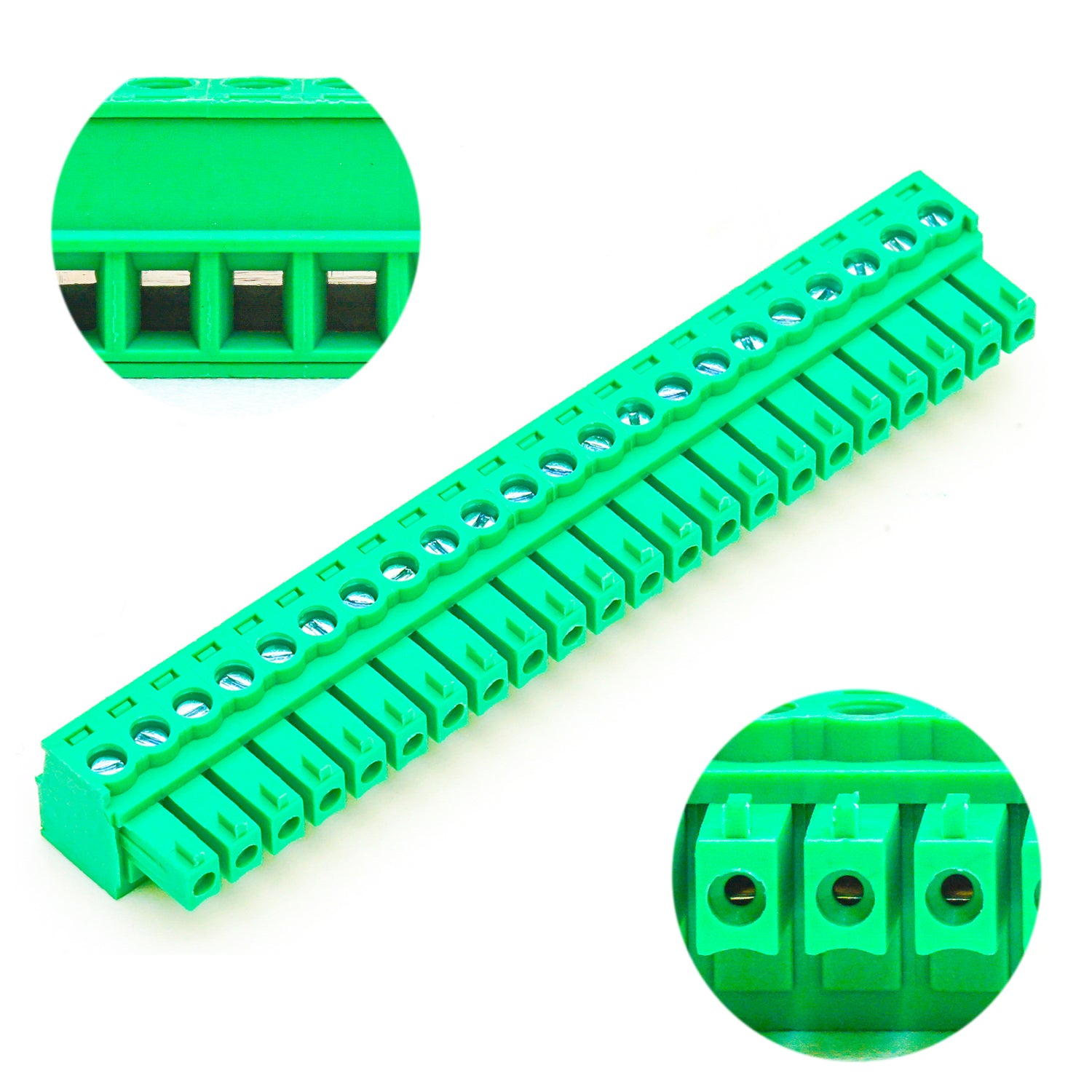

• Positions available: 2 to 24 pins (2–24P)
• Insulation color: RAL 6021 green
• Certifications: RoHS and UL compliant
• Contact material: Tin‑plated copper alloy

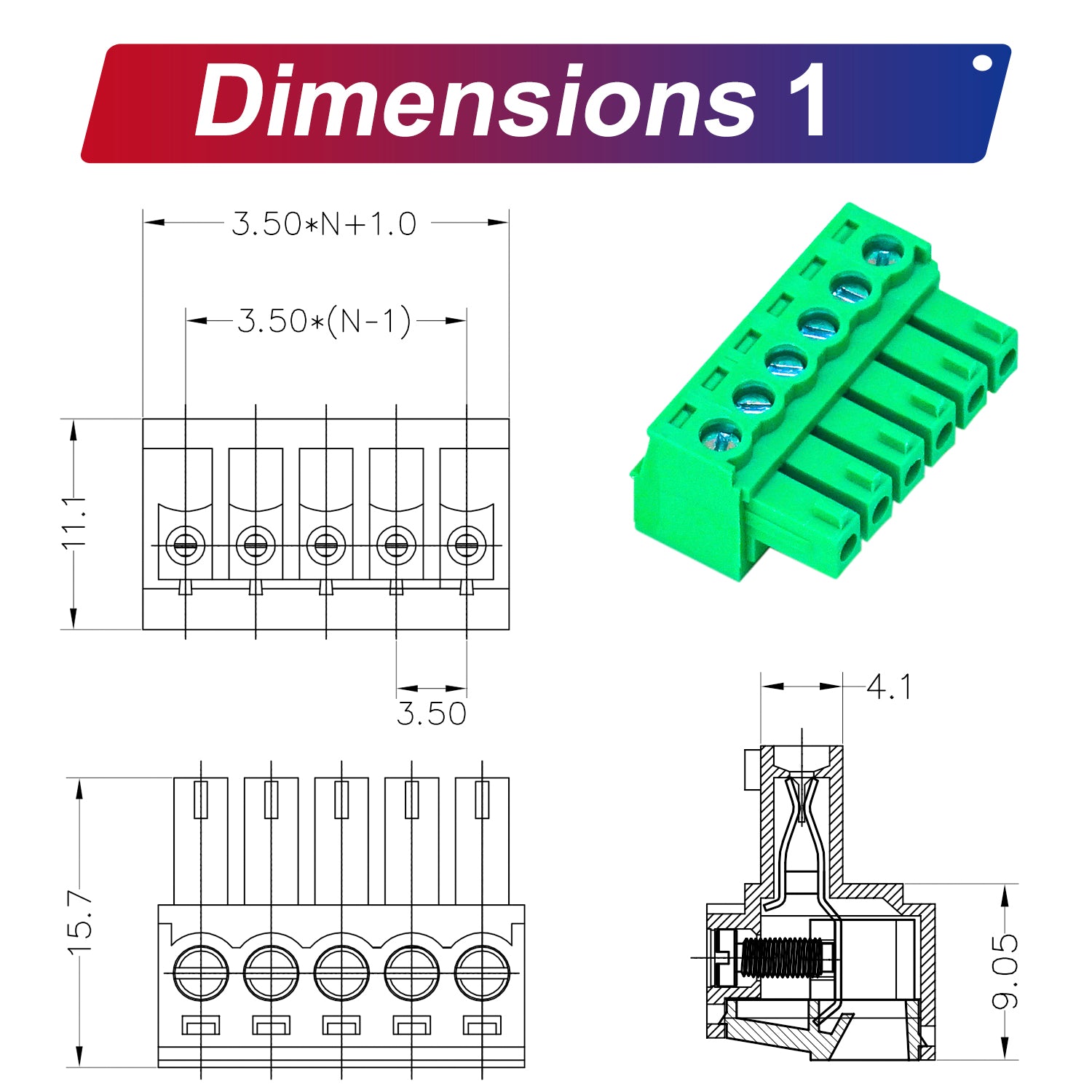

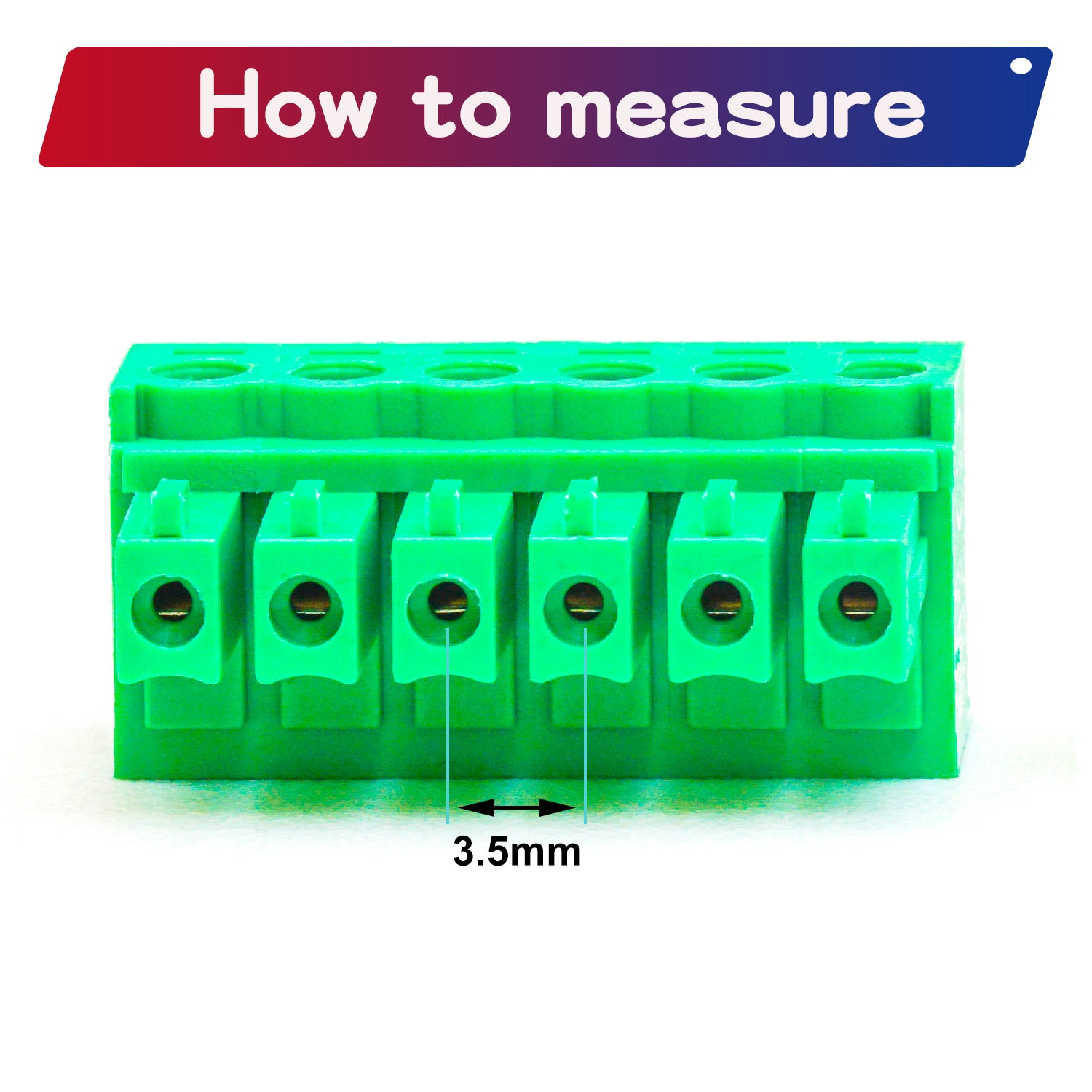

• Pitch: 3.5 mm

🛠 Applications

• PCB mounting
• Industrial control cabinets
• Field wiring systems

🔌 Advantages

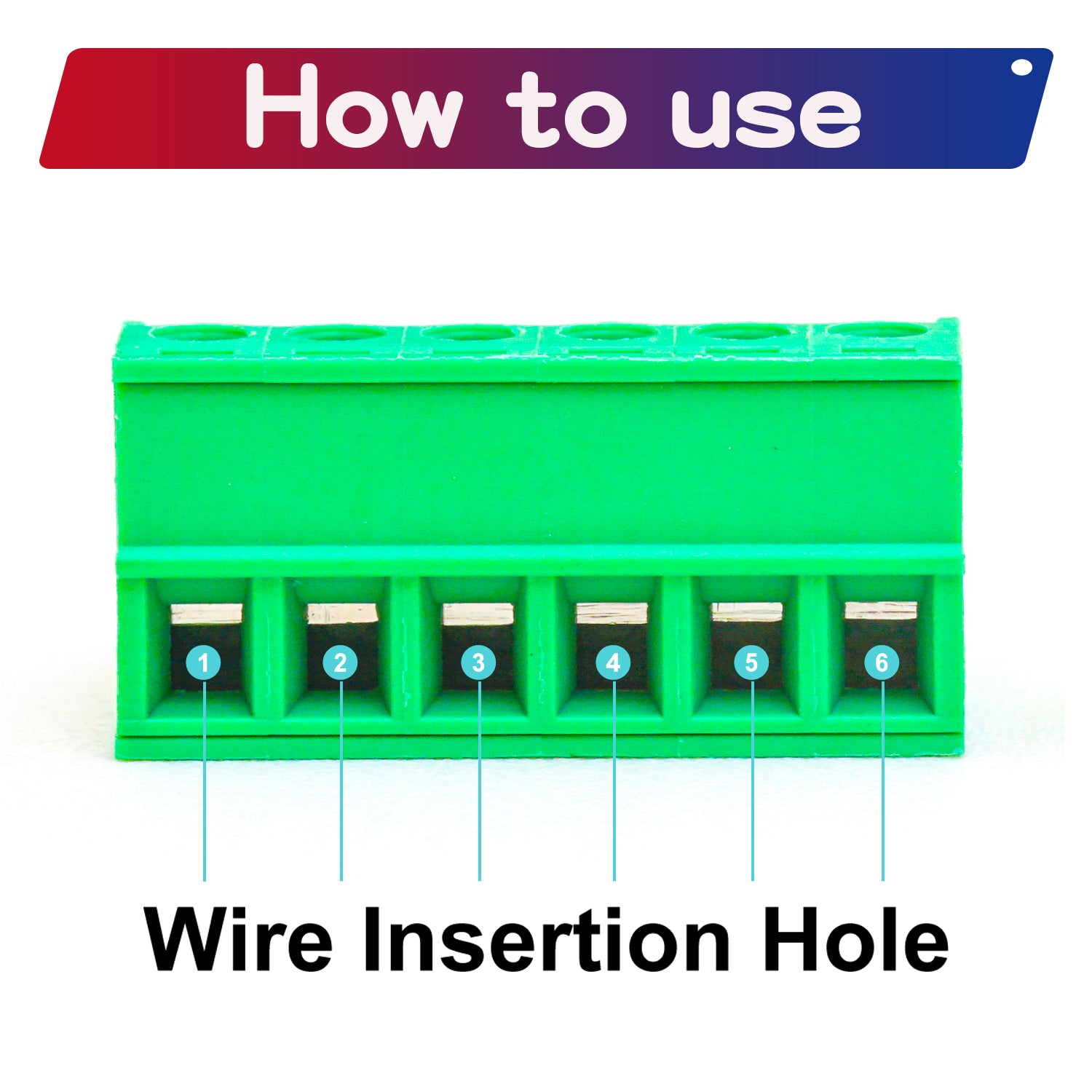

• Pluggable design: Easy insertion and removal for efficient maintenance
• High contact reliability: Tin‑plated copper alloy contacts provide durable performance
• Modular format: Supports rapid assembly and flexible configuration
• Reduced wiring errors: Visual pin guidance and screw locking prevent misconnection

🧩 Compatibility

Compatible with corresponding headers from the PHOENIX CONTACT COMBICON MC series for a complete connection system.
