Phoenix Contact 3.81mm Terminal Block Set 2–24P Fits 28–16 AWG Wire (MC Series)
Phoenix Contact 3.81mm Terminal Block Set 2–24P Fits 28–16 AWG Wire (MC Series)
Couldn't load pickup availability

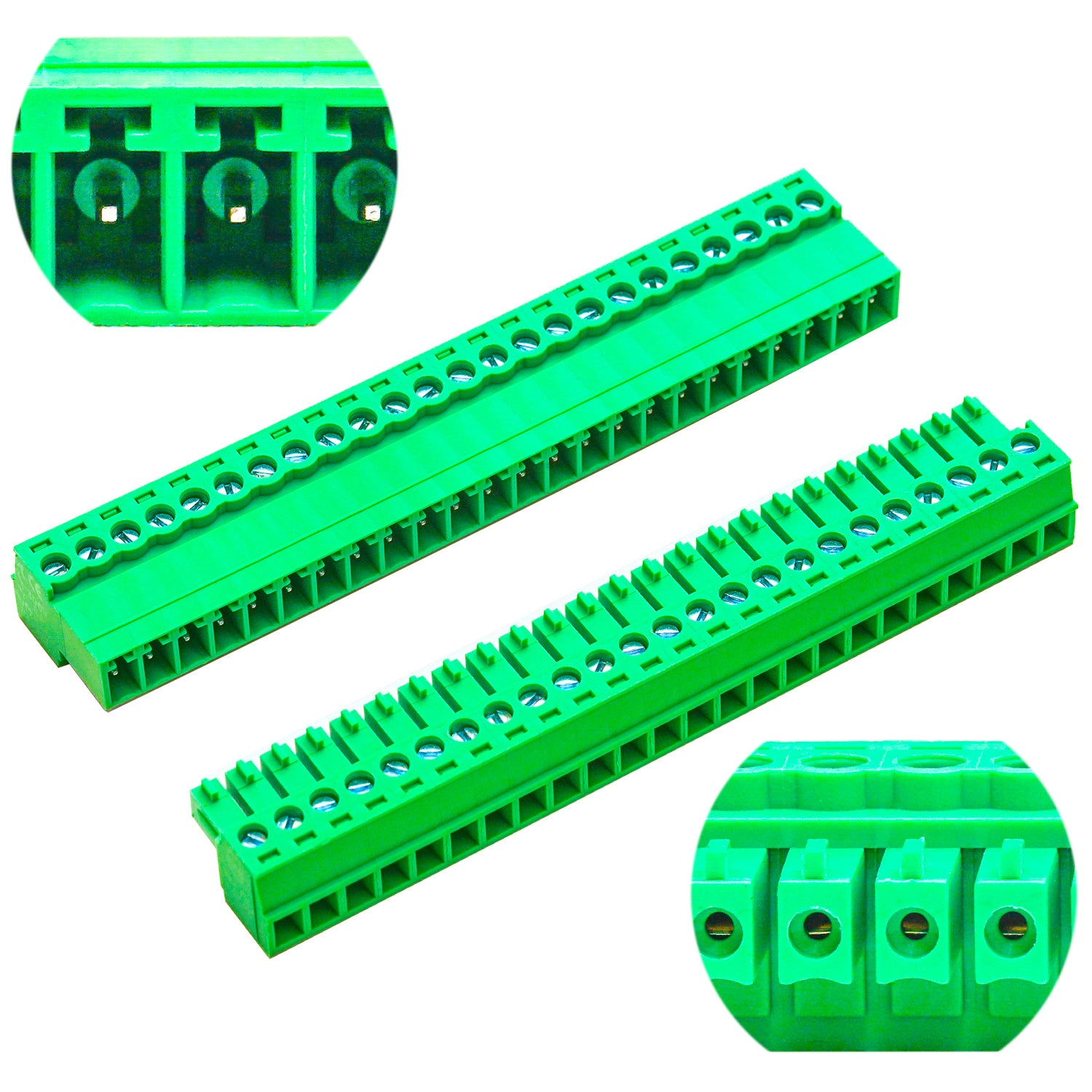

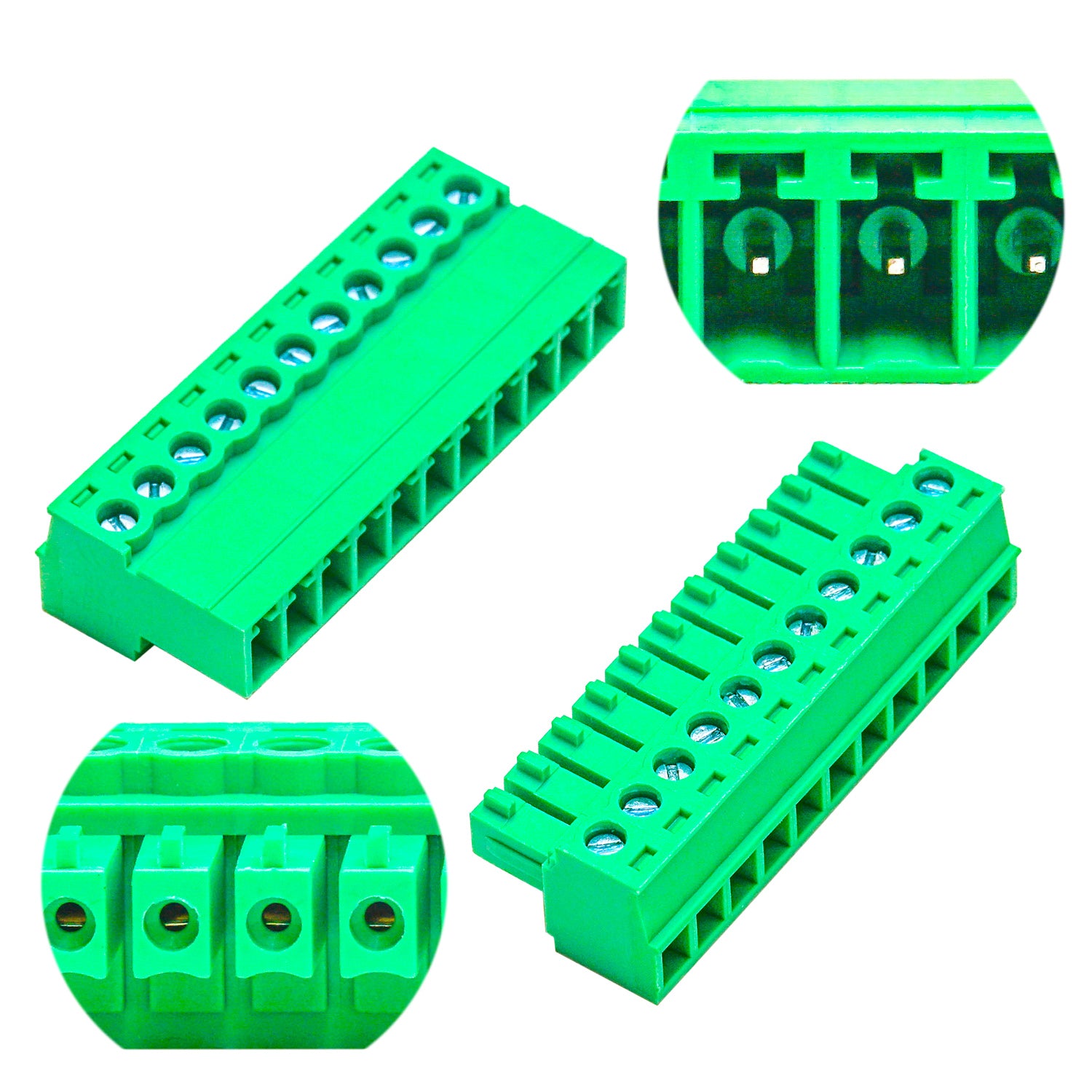

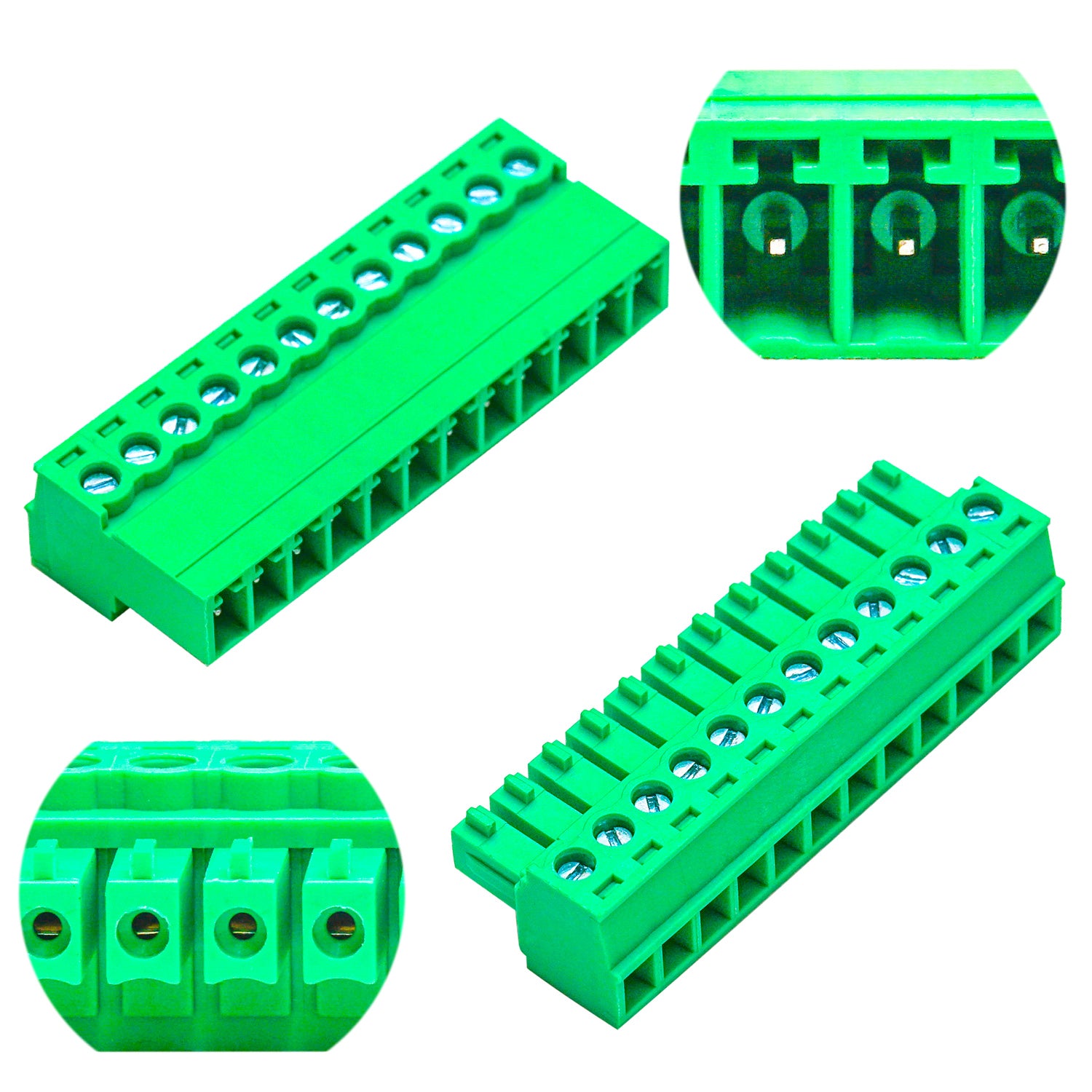

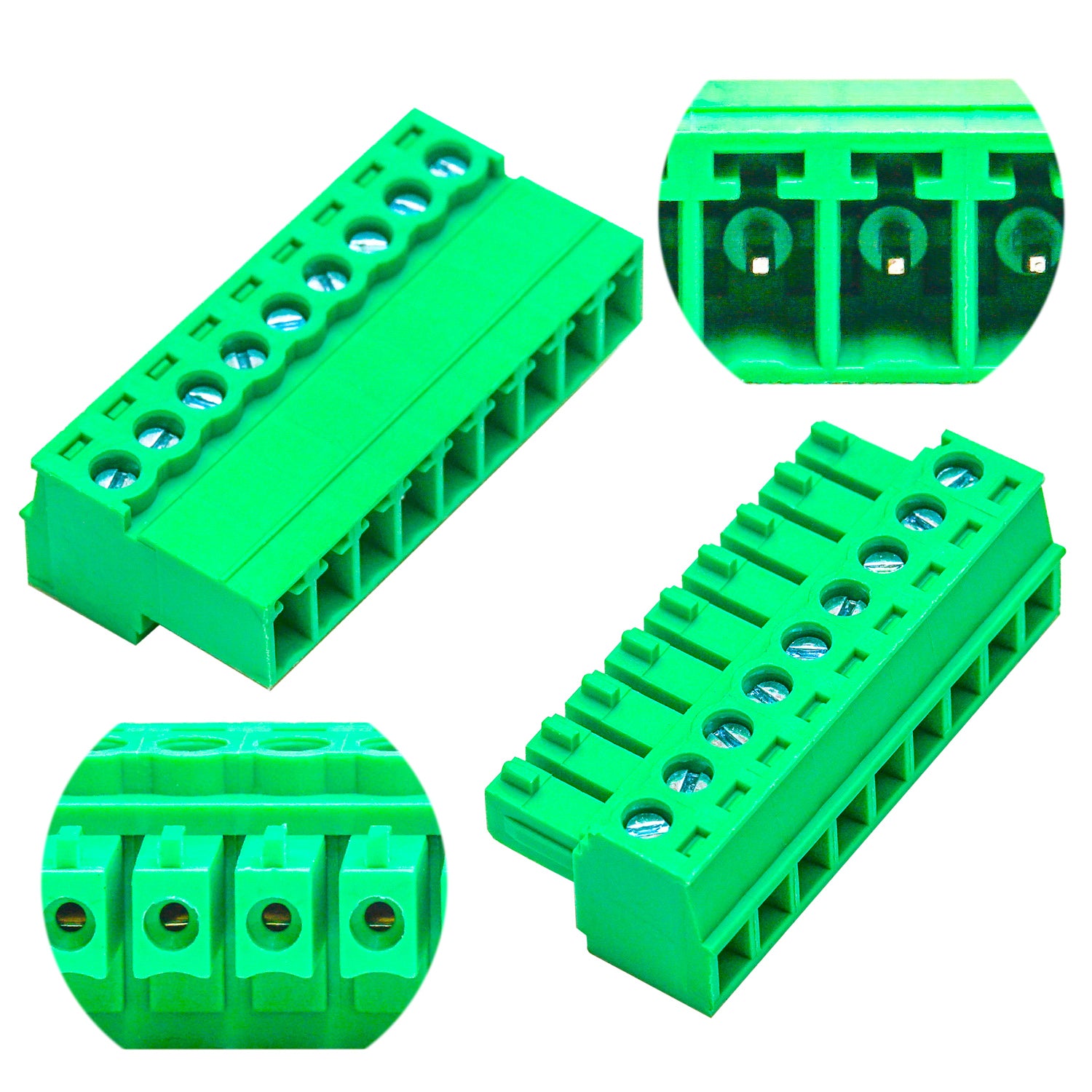

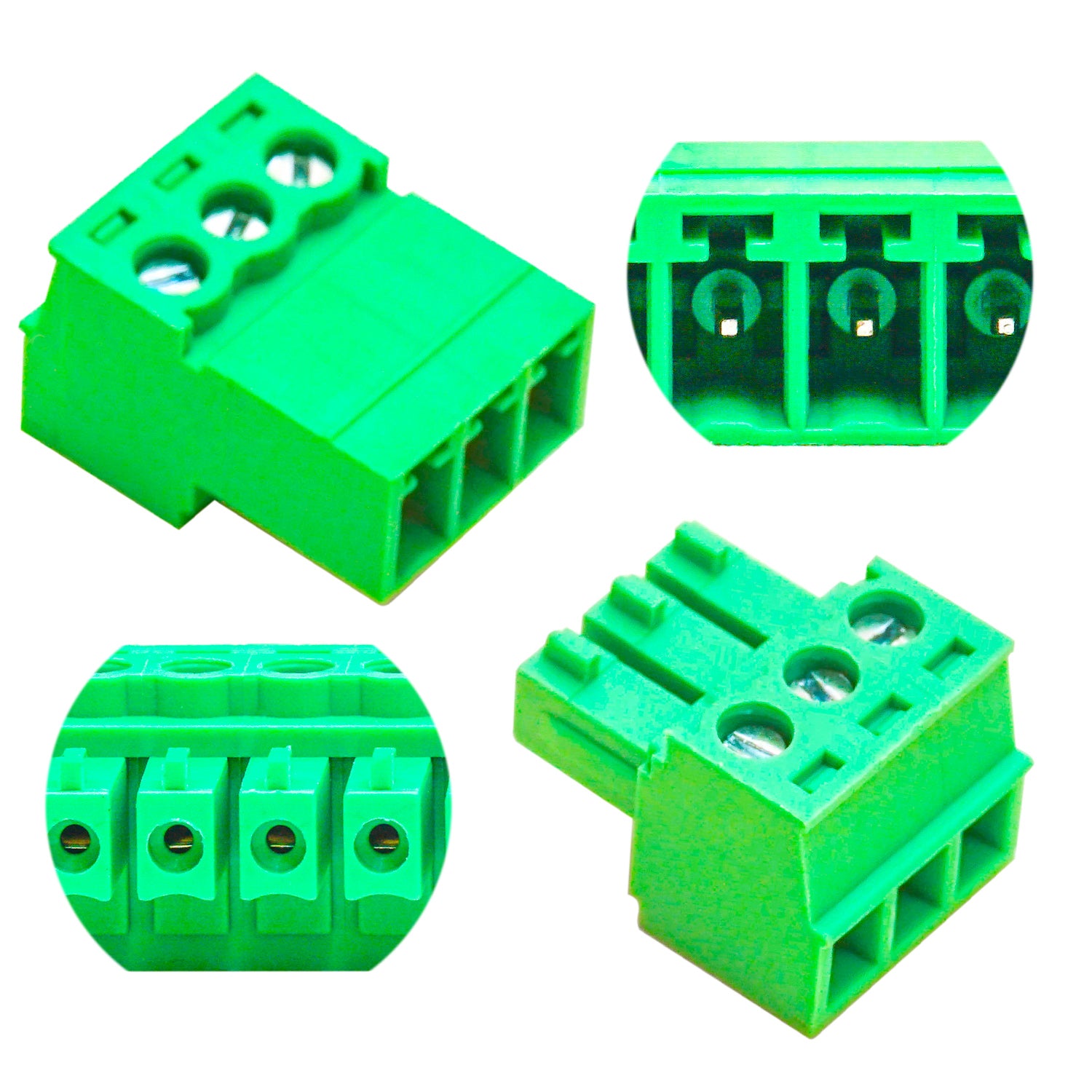

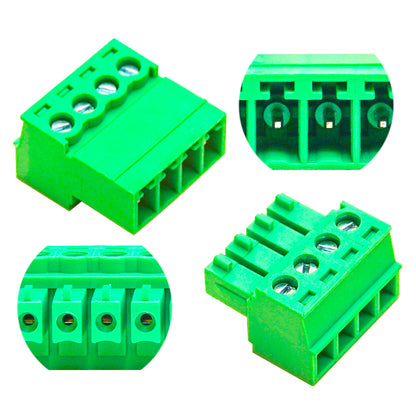

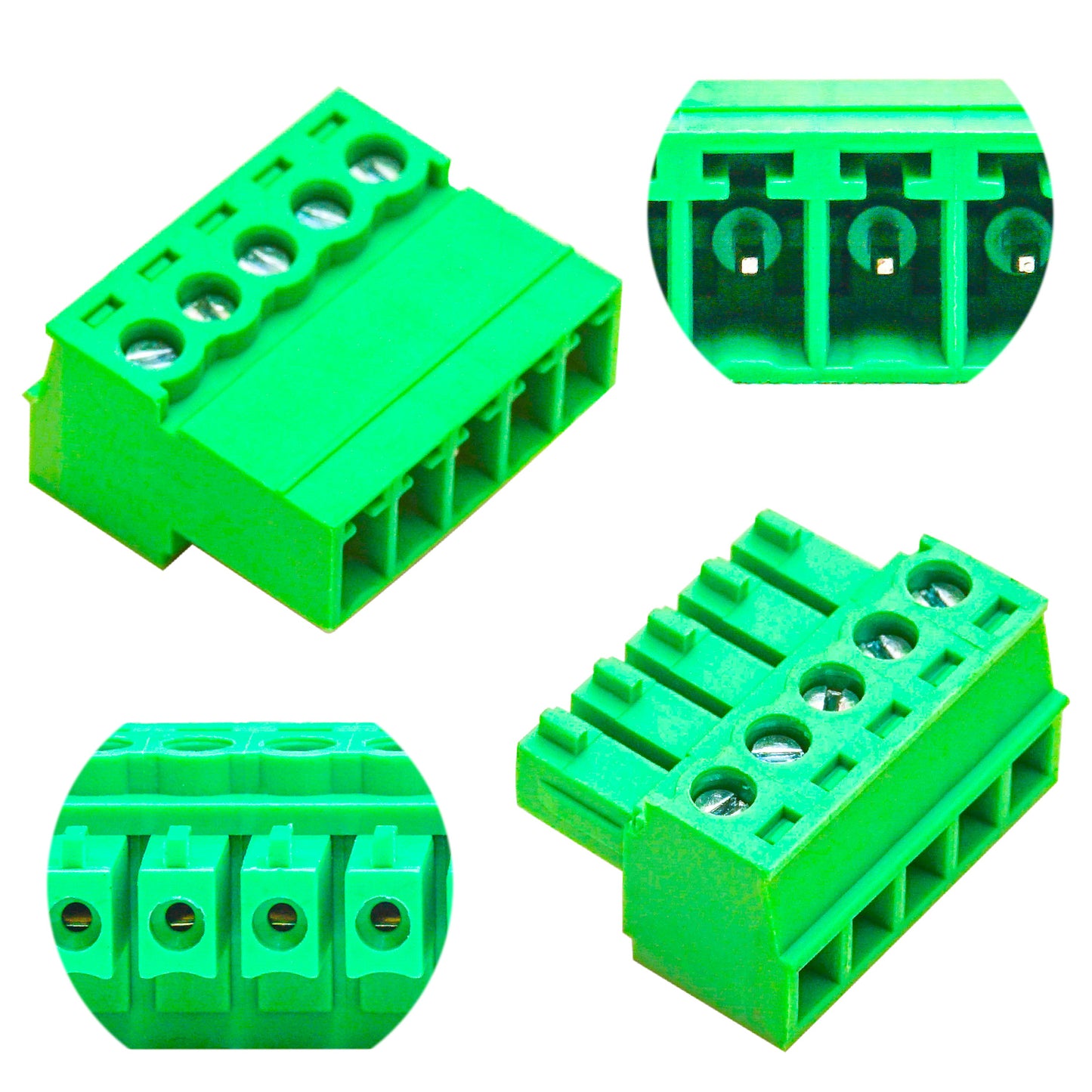

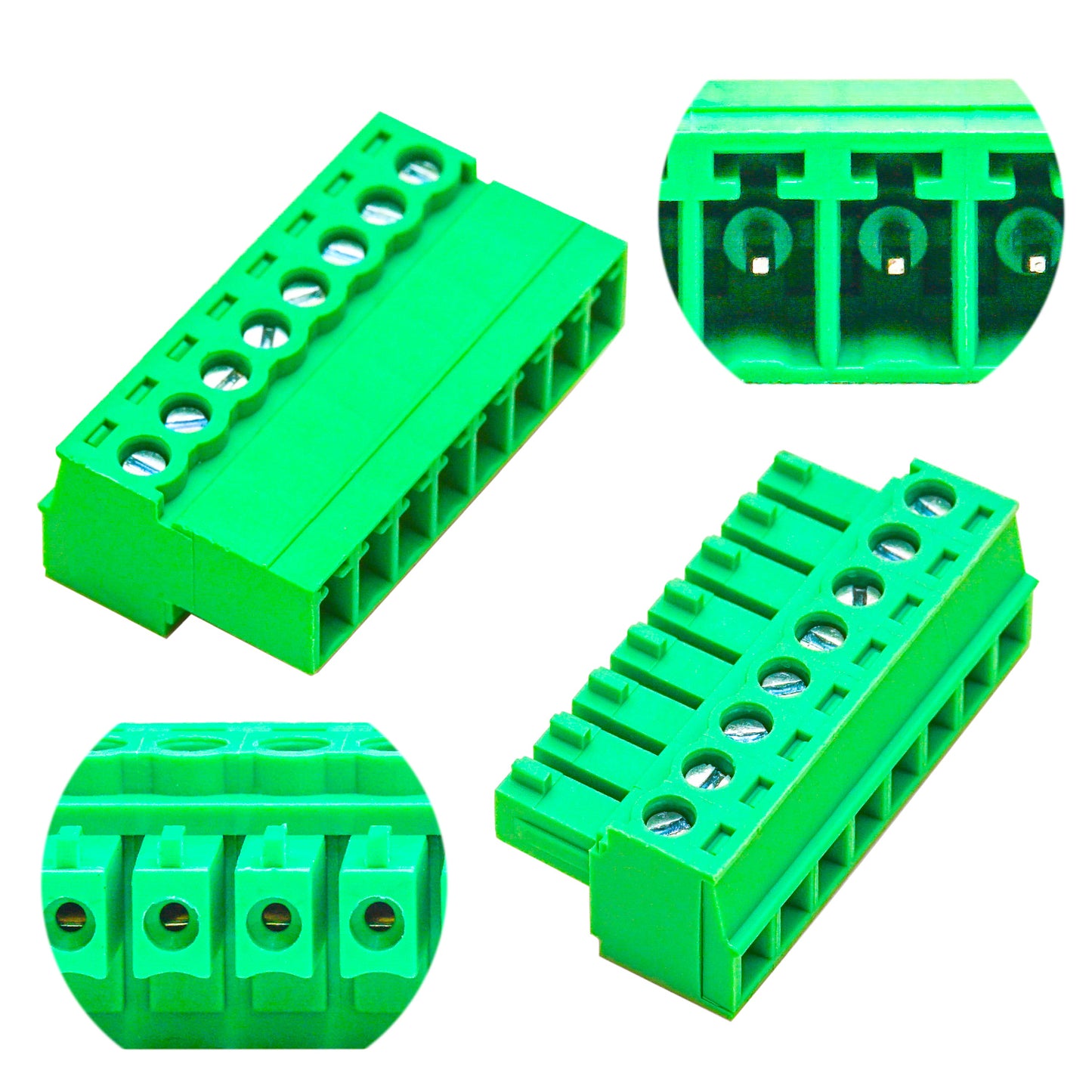

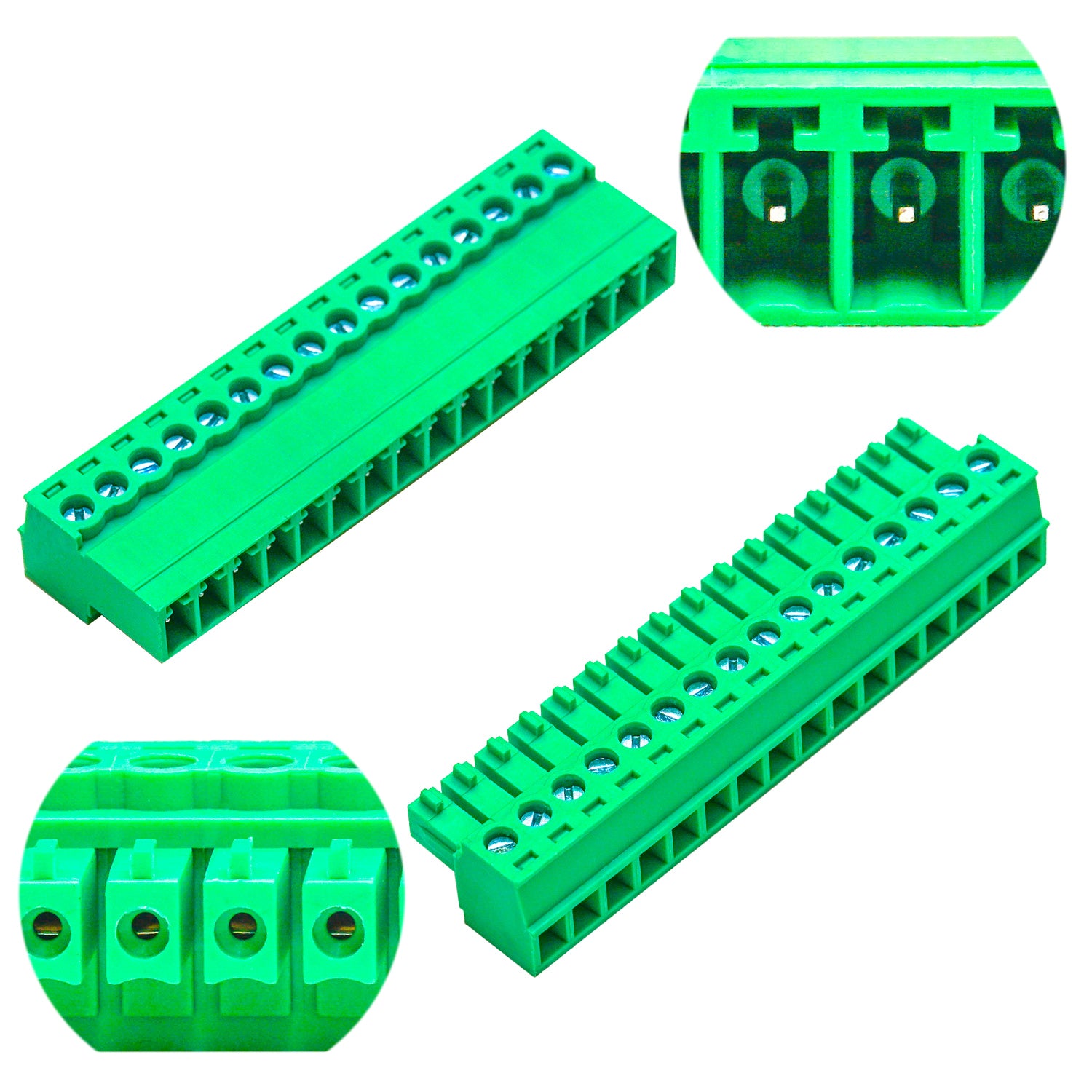

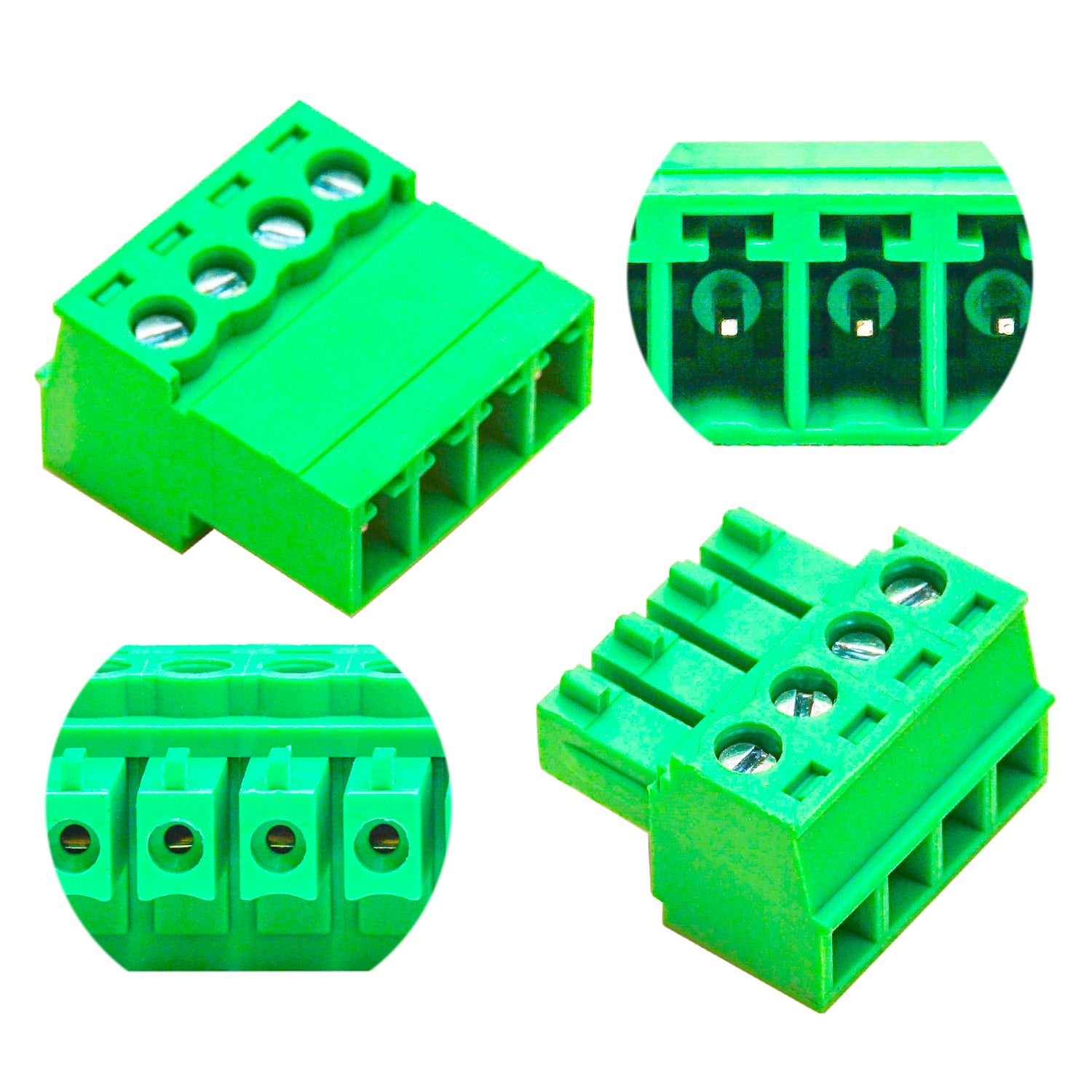

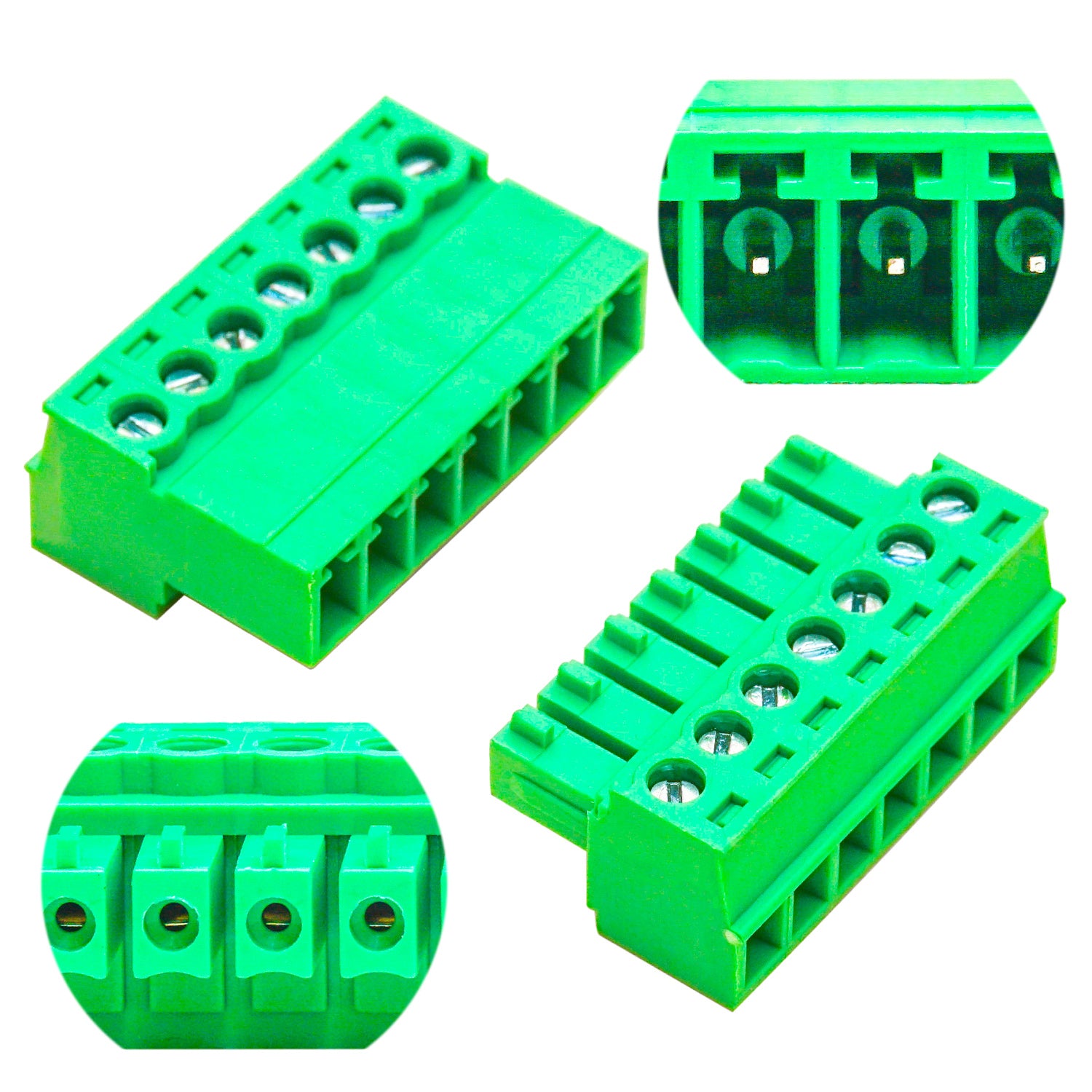

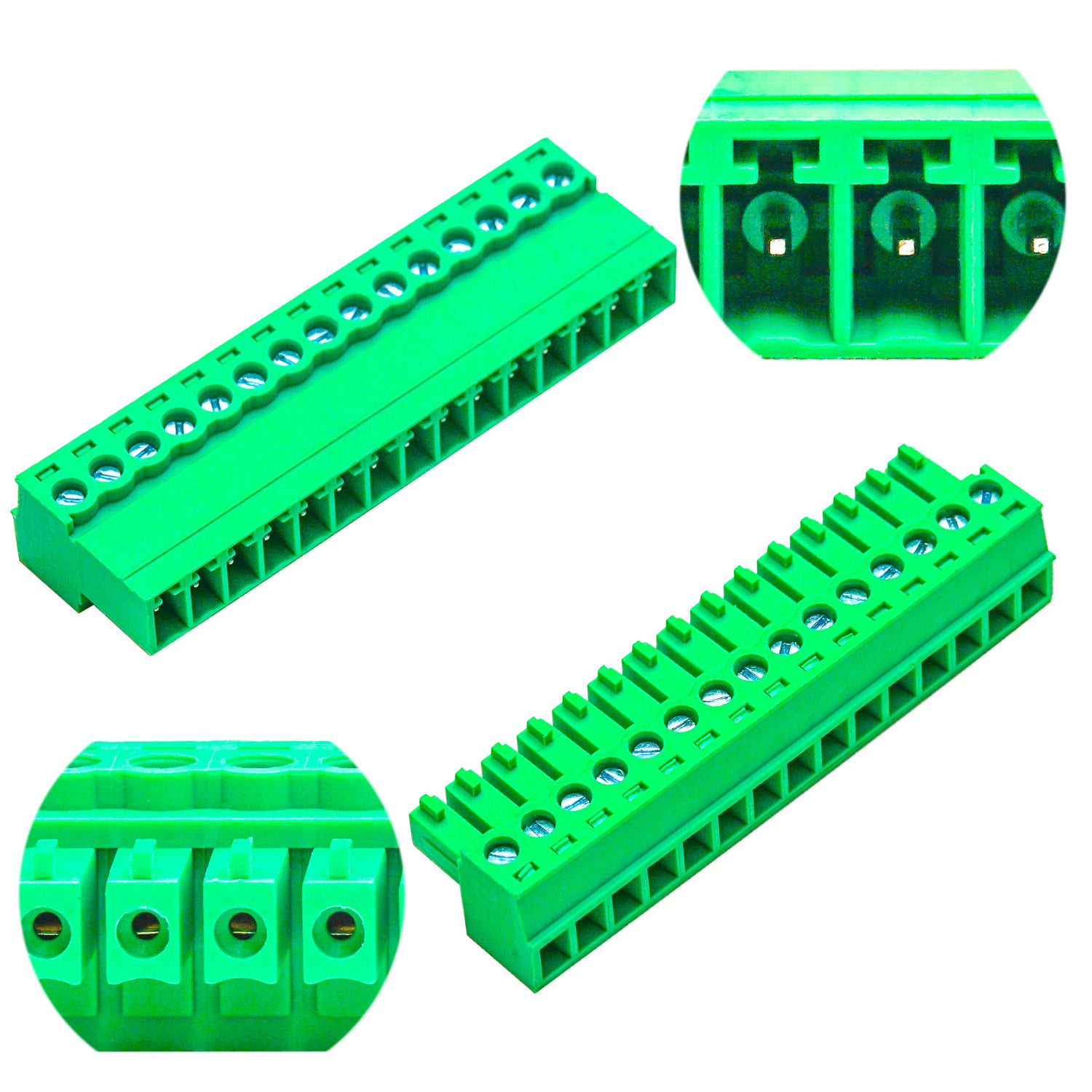

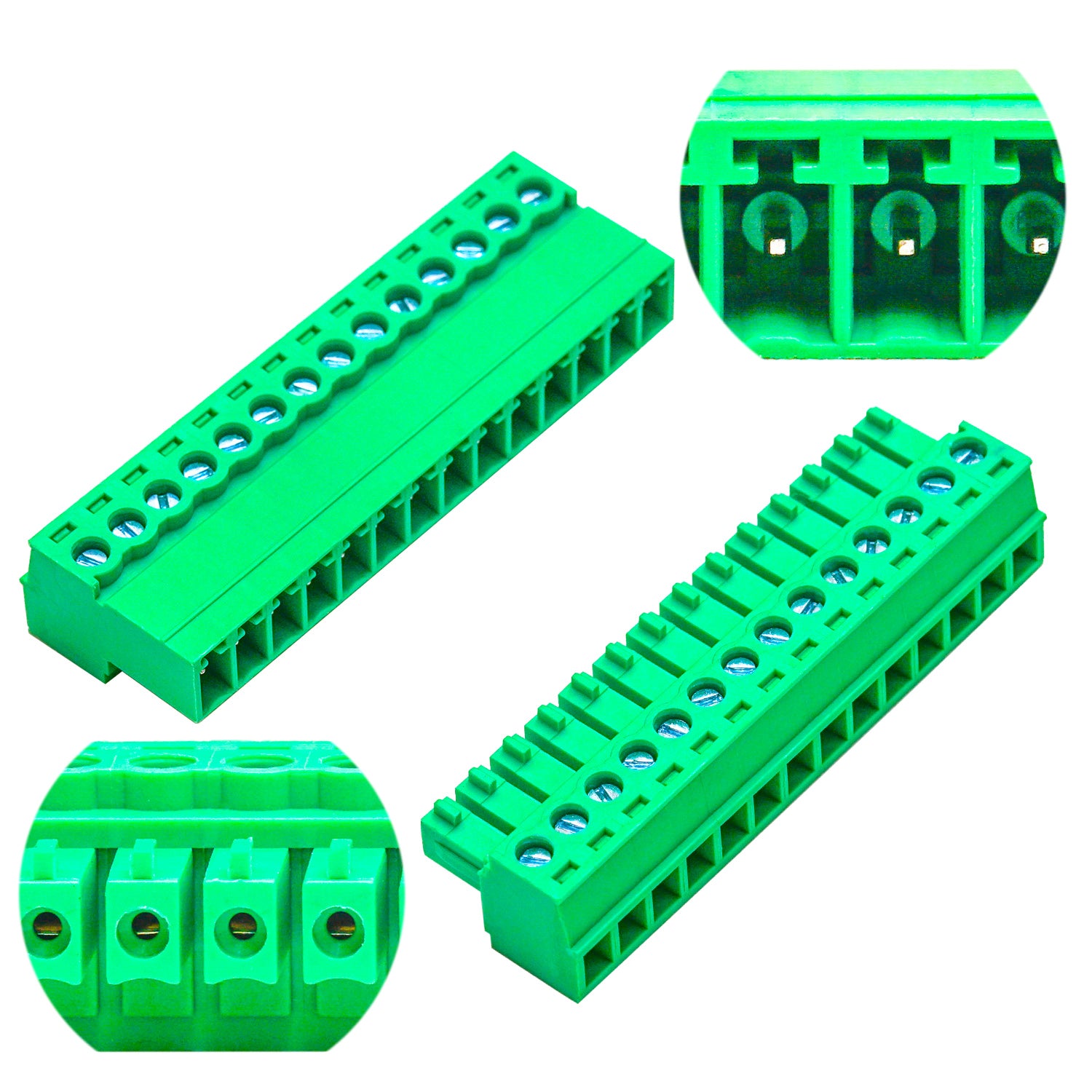

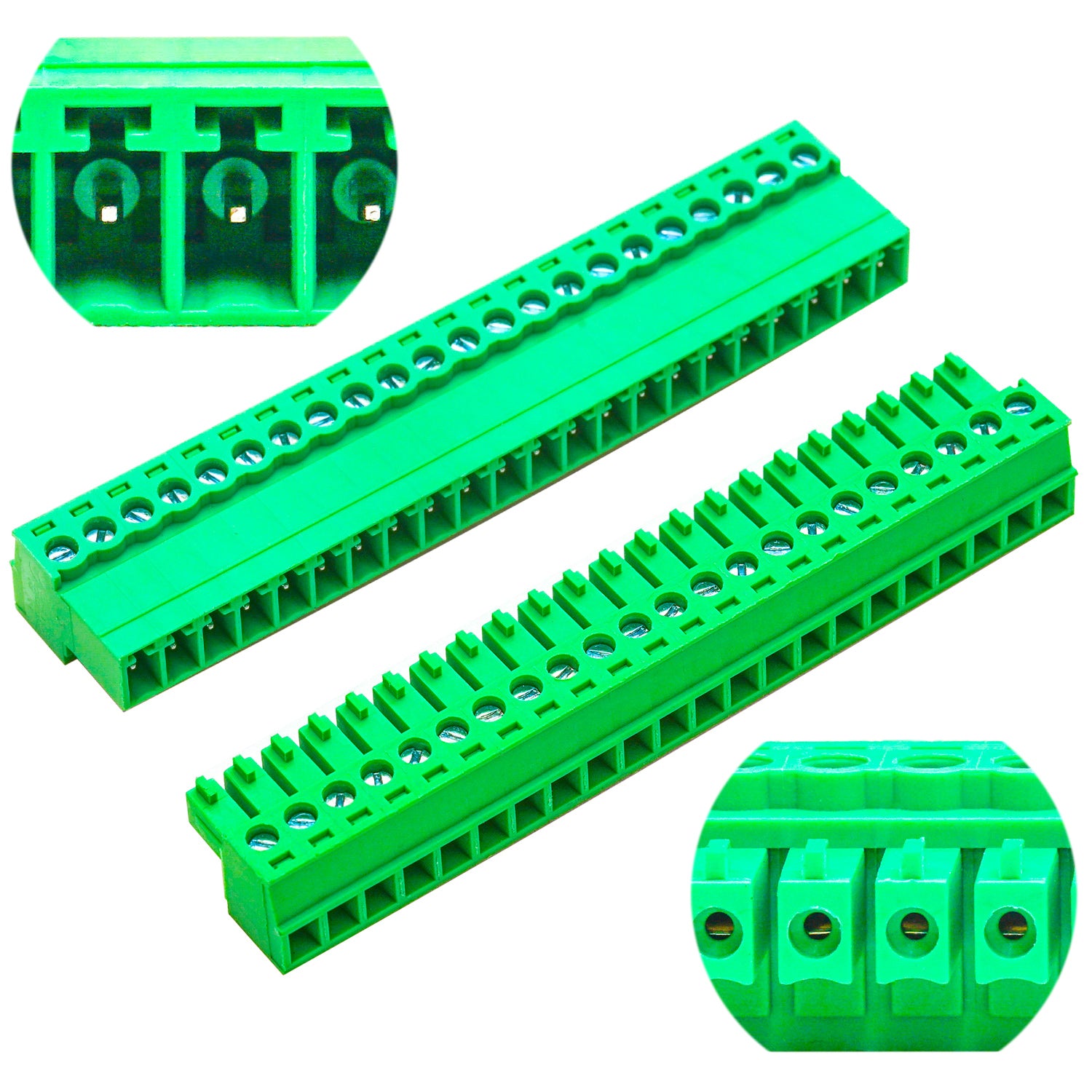

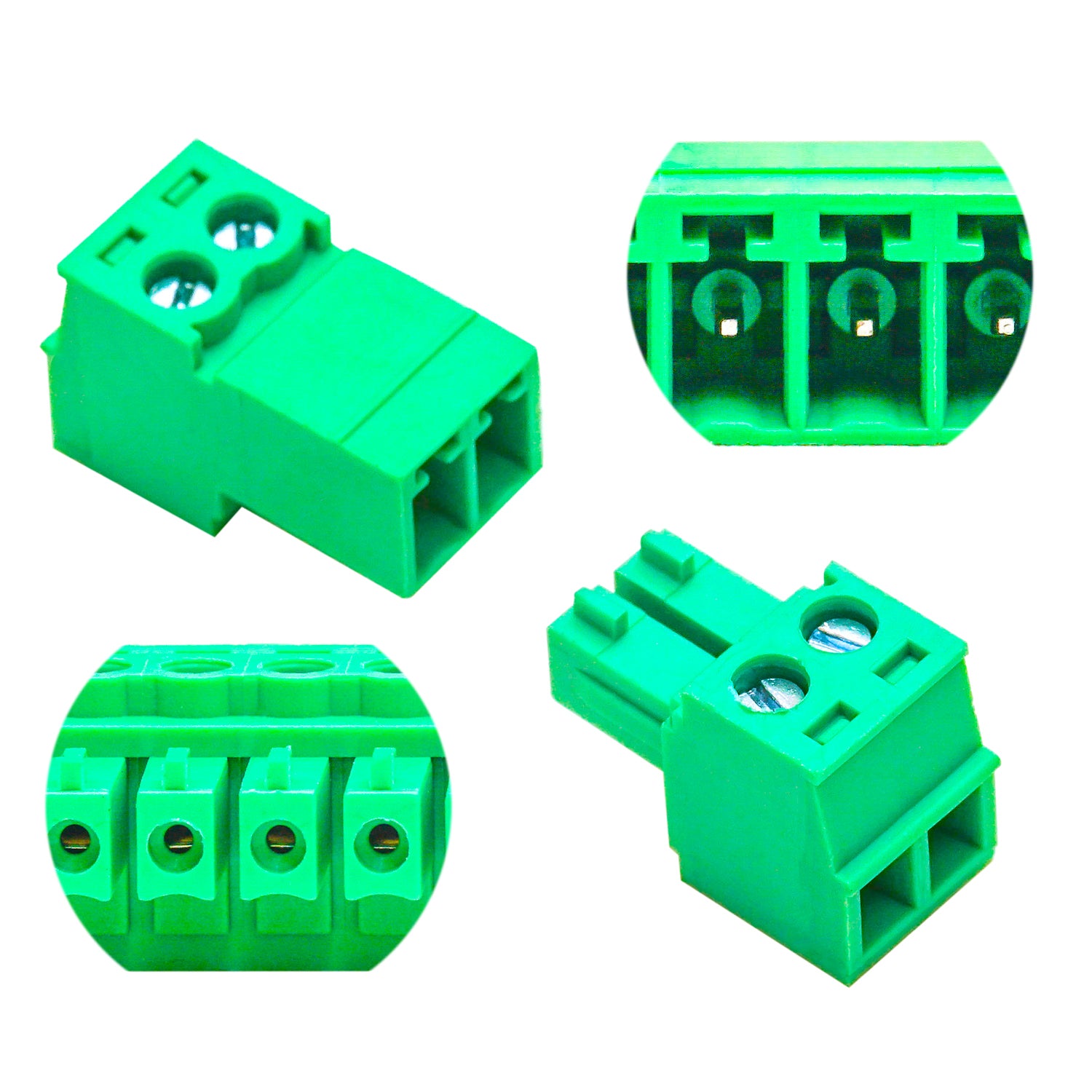

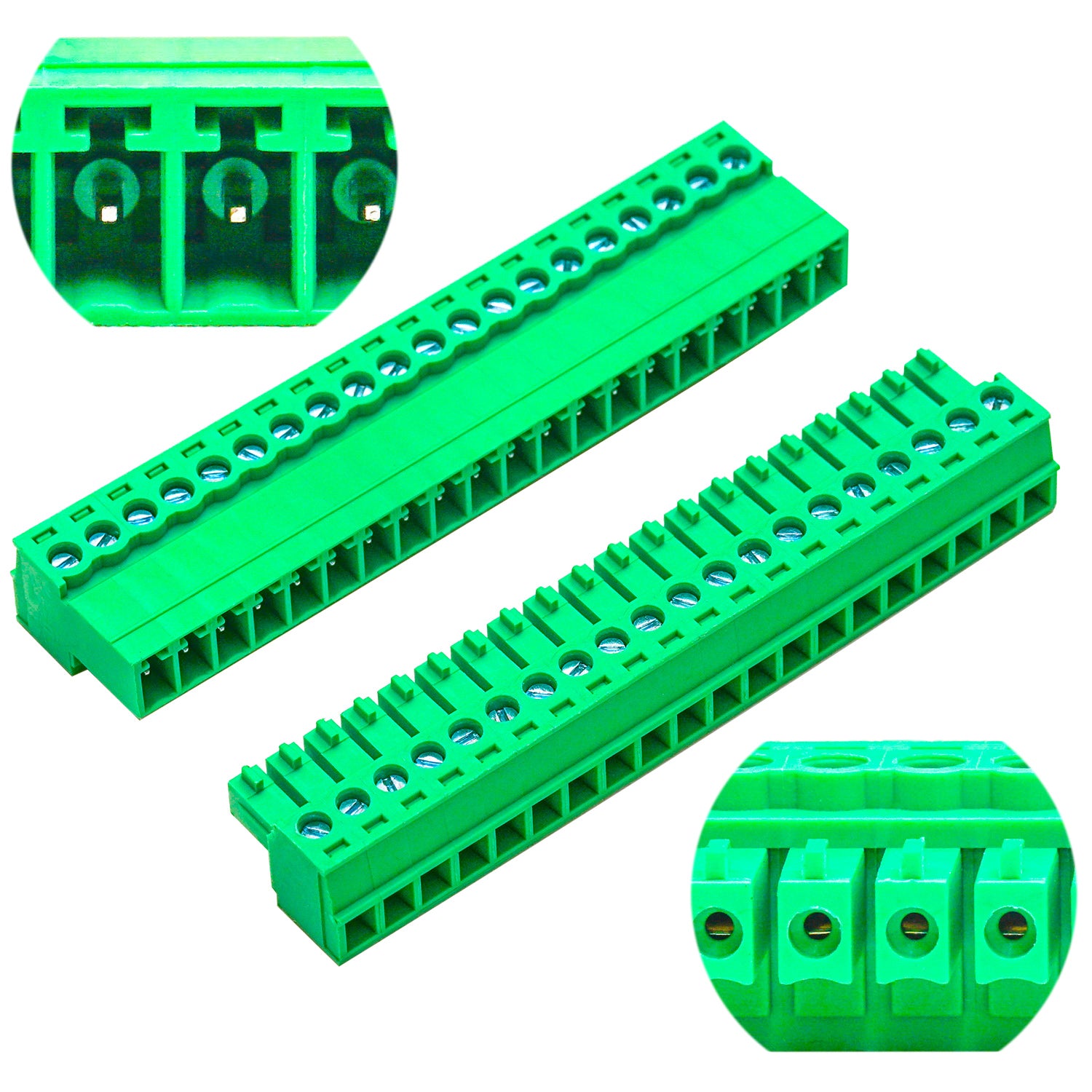

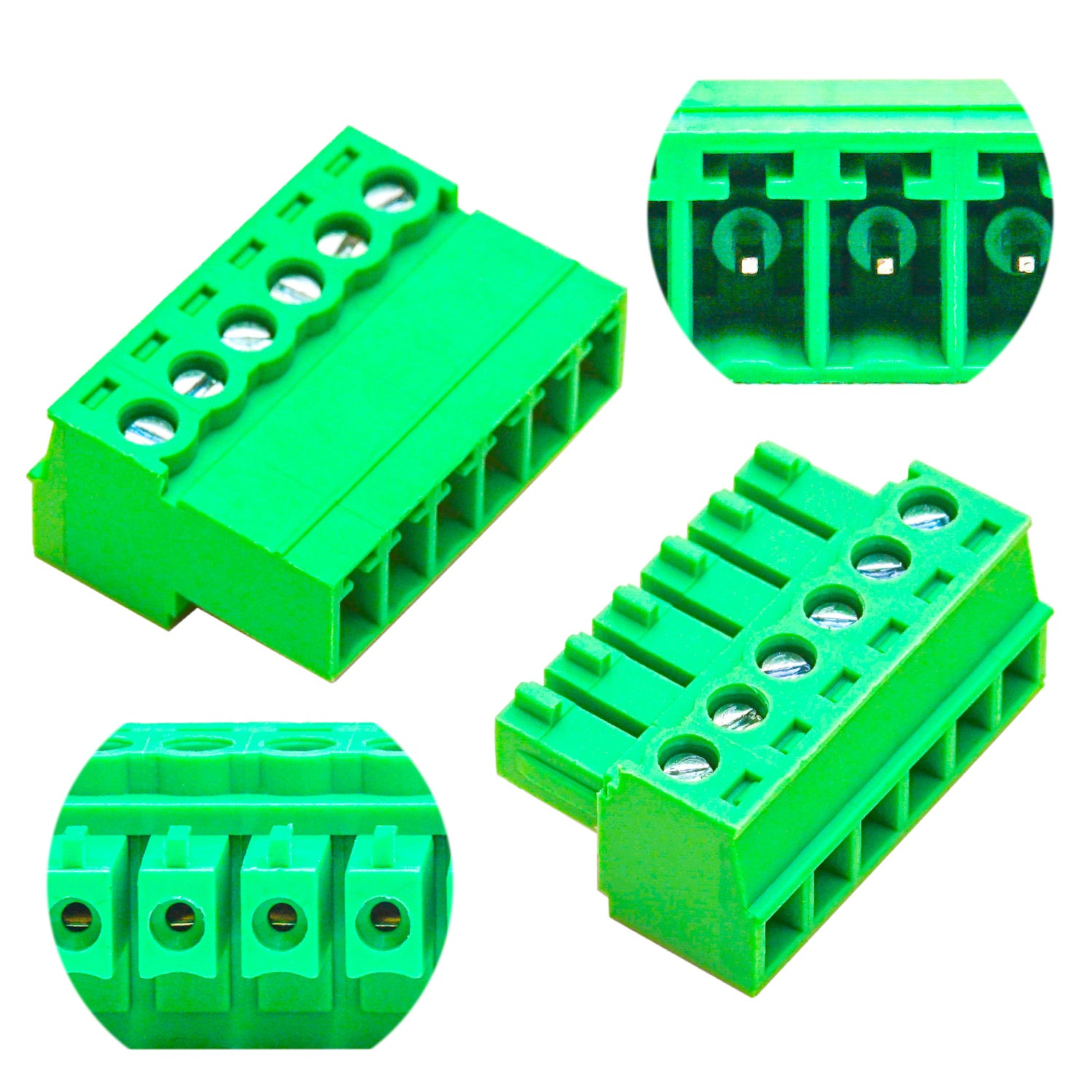

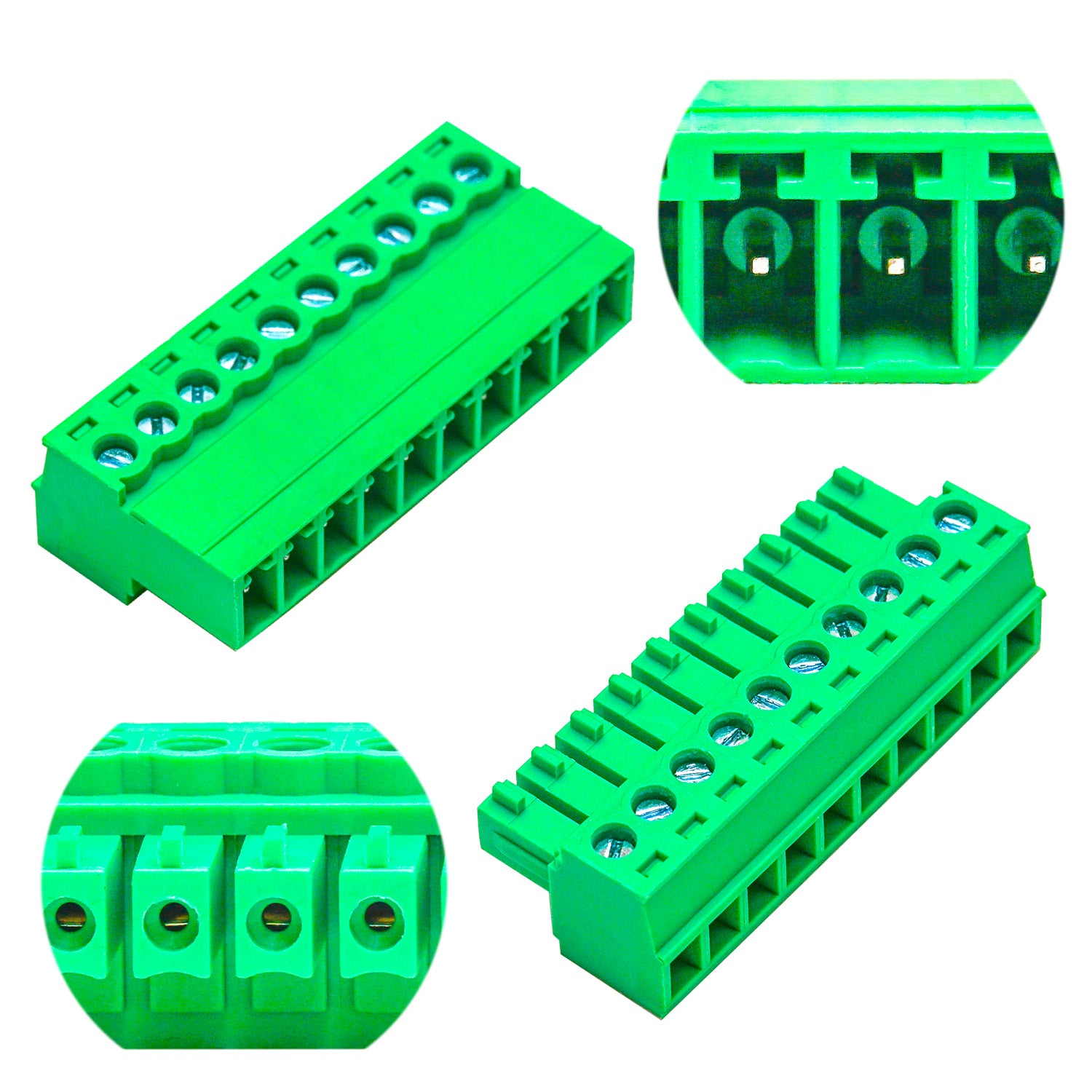

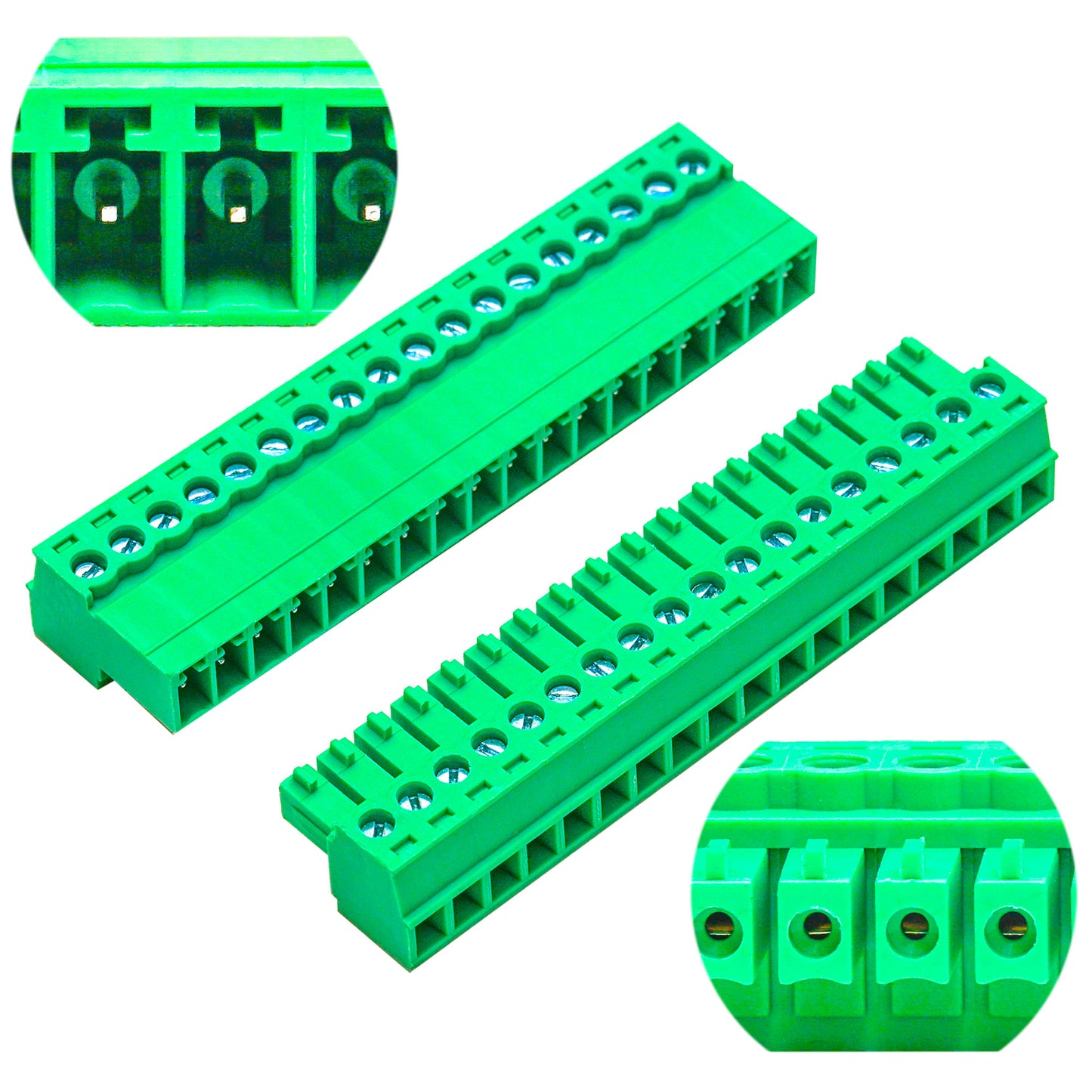

Phoenix Contact 3.81mm Terminal Block Set (Plug + Header) — 2–24P, MC Series, 8A/160V
Complete set combining the Phoenix Contact MC series 3.81mm pluggable terminal block (plug) and the corresponding PCB-mount pin header. The plug-and-socket system allows the wiring harness to be disconnected from the PCB without re-terminating individual wires.

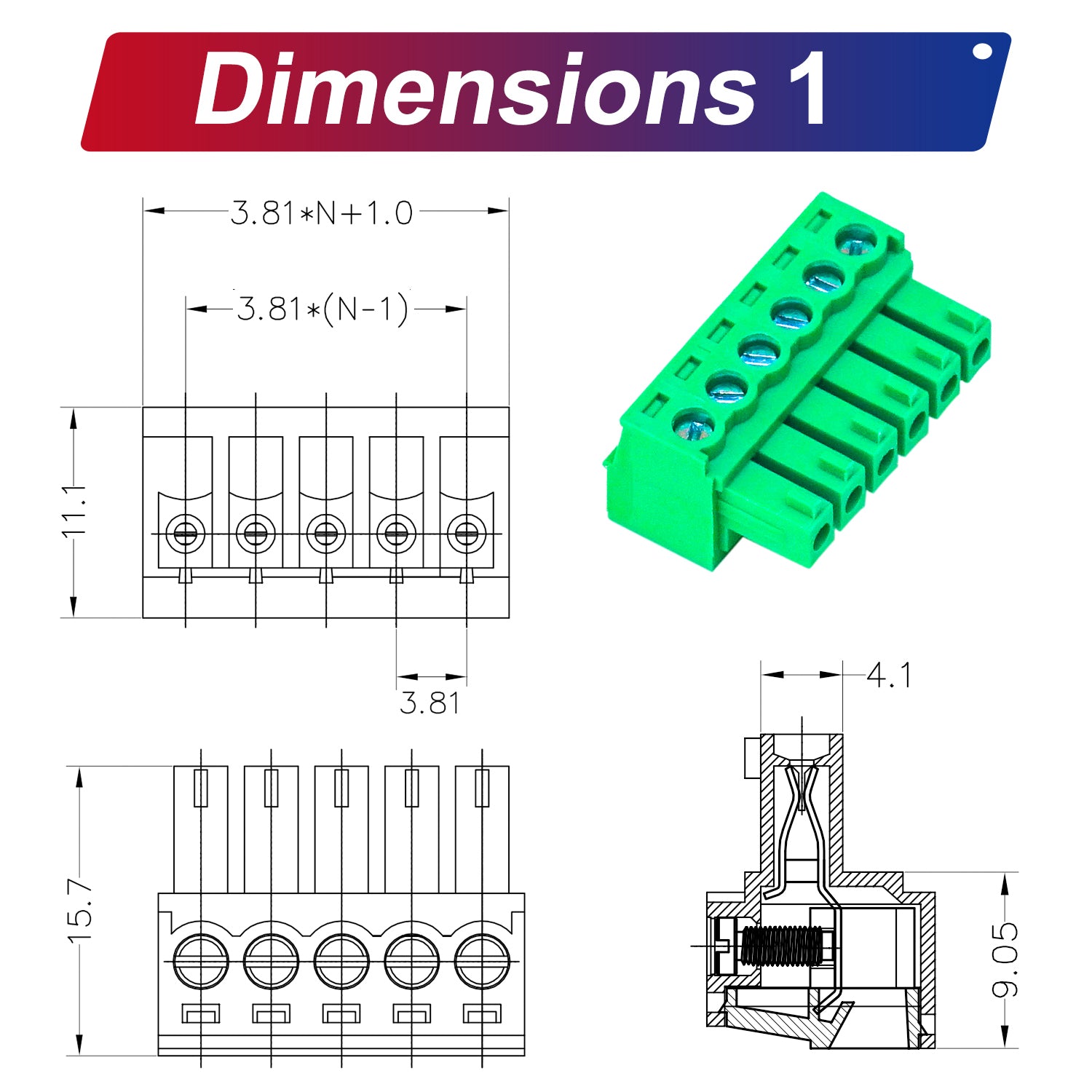

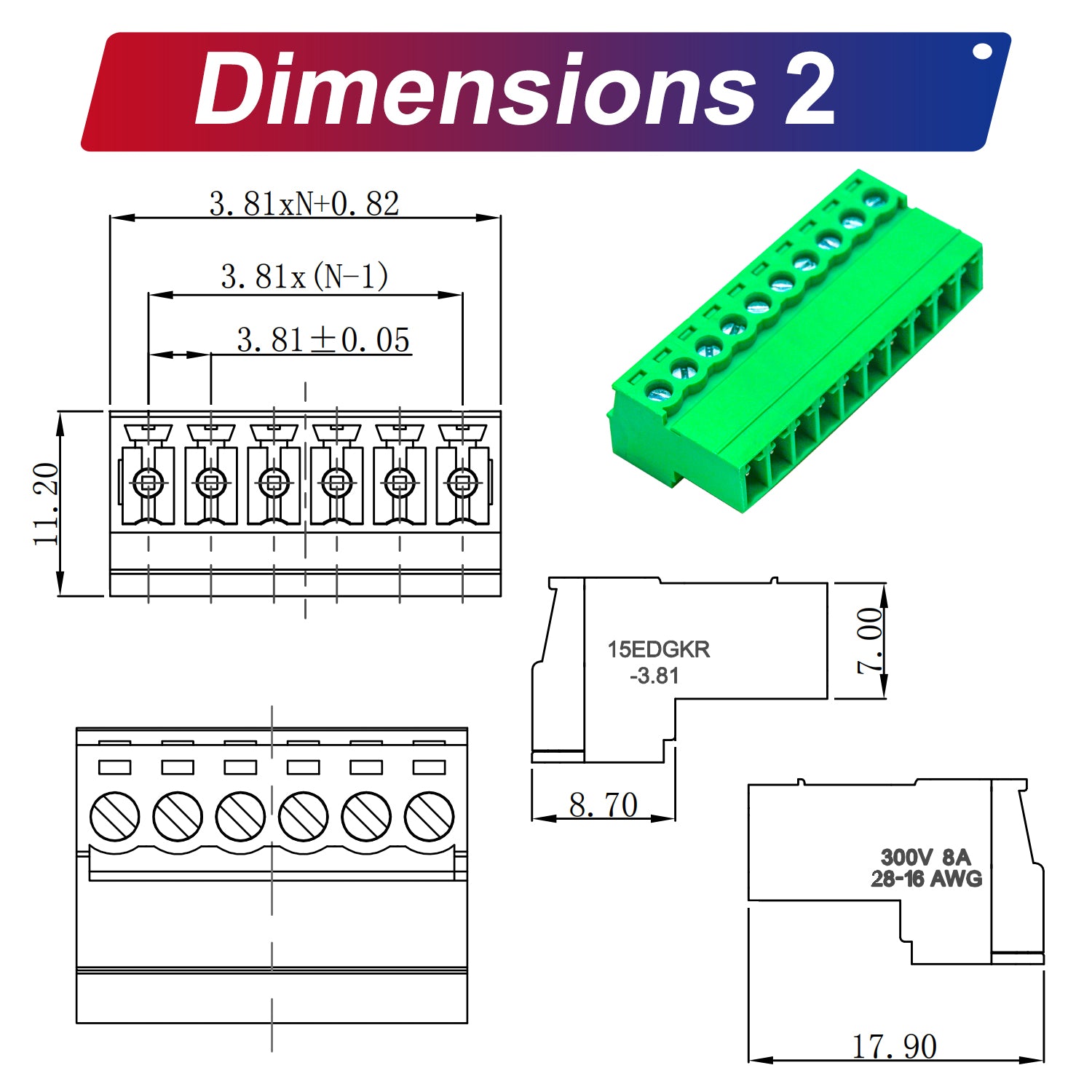

- Pitch: 3.81mm
- Positions: 2 to 24 pins
- Set includes: Plug (female, wire side) + PCB header (male, board side)
- Connection: Screw-type conductor connection
- Wire range: 0.14–1.5 mm² (28–16 AWG)
- Rating: 8A / 160V AC/DC
- Housing: Green, UL94 V-0 flame-retardant polyamide
- Contact: Tin-plated copper alloy
- Compliance: RoHS2, UL Listed
Typical applications: Industrial control panels, signal distribution boards, automation equipment, PCB-mount field wiring systems.
