Phoenix 3.96mm Plug Connector Orange Housing (2–12P)

Phoenix Contact 3.96mm Plug Connector — Orange Housing, 2–12P

The Phoenix Contact 3.96mm plug connector is the wire-side female half of the 3.96mm pluggable terminal block system. Screw-type wire termination with an orange UL-rated housing. Mates with the corresponding 3.96mm Phoenix straight or right-angle pin header.

• Pitch: 3.96mm

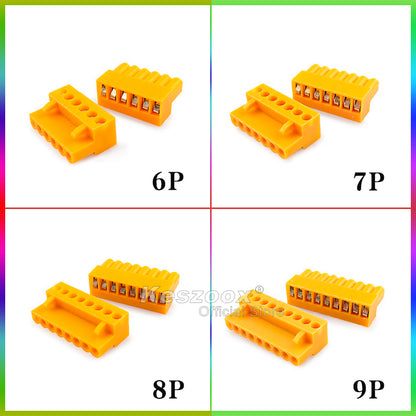

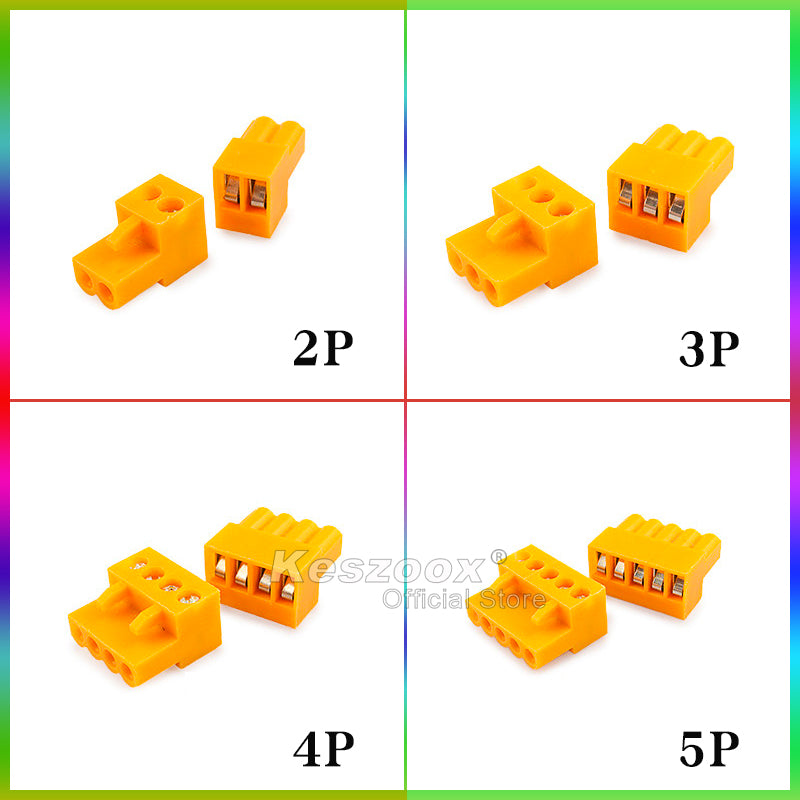

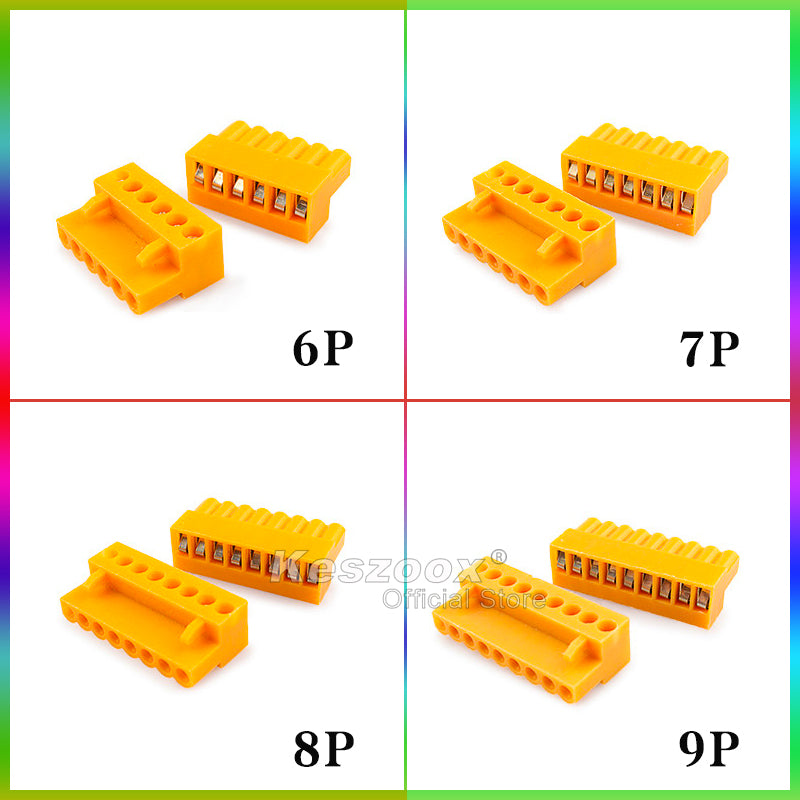

• Positions: 2 to 12 pins
• Connection: Screw-type conductor connection
• Housing: Orange, UL94 V-0 flame-retardant plastic
• Contact: Tin-plated copper alloy
• Mating header: Phoenix Contact 3.96mm straight or right-angle pin header (orange)
• Compliance: RoHS2

Typical applications: Industrial control cabinets, sensor interfaces, power modules, PLC systems, automation panels.
