JST-GH1.25 Connector Kit
JST-GH1.25 Connector Kit 1
JST-GH1.25 Connector Kit 2
JST-GH1.25 Connector Kit 3
JST-GH1.25 Connector Kit 4
JST-GH1.25 Connector Kit 5

JST-GH1.25 Connector Kit/ with Premium 28AWG Pre-Crimped Cables

SPECIFICATIONSBrand Name: keszooxOrigin: Mainland ChinaModel Number: Keszoox GH 1.25mm Connector Kit1) This is GH 1.25 Connector Kit...
Vendor: Keszoox
$23.75
$23.75

Shipping

The shipping fee depends on your address

Standard: 9-15 business days,fee is down to $3.99

Express: 4-7 business days,fee is down to $5.99

Support Customization

WE'RE READY TO BUILD A CUSTOM PRODUCT FOR YOU.

If you're looking for a custom product, we can help. Kindly contact us via email support@keszoox.com and send us the details for your need, then we'll let you know how we can deliver the right solution.

Built And process your order

We make into production usually Within 1 - 3 Bussiness Days.

Expect customization orders.
JST-GH1.25 Connector Kit

JST-GH1.25 Connector Kit/ with Premium 28AWG Pre-Crimped Cables

$23.75

JST-GH1.25 Connector Kit/ with Premium 28AWG Pre-Crimped Cables

$23.75
Default Title: Default Title

SPECIFICATIONS

Brand Name: keszoox

Origin: Mainland China

Model Number: Keszoox GH 1.25mm Connector Kit

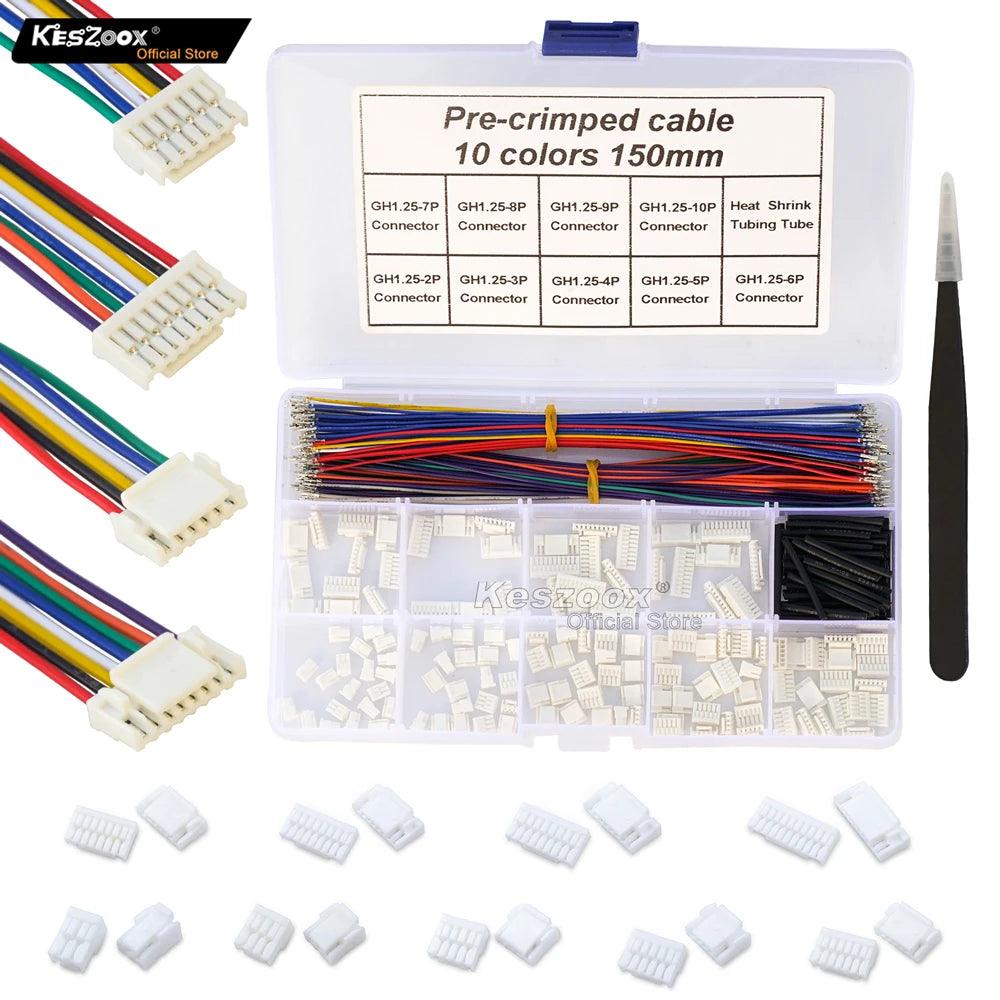

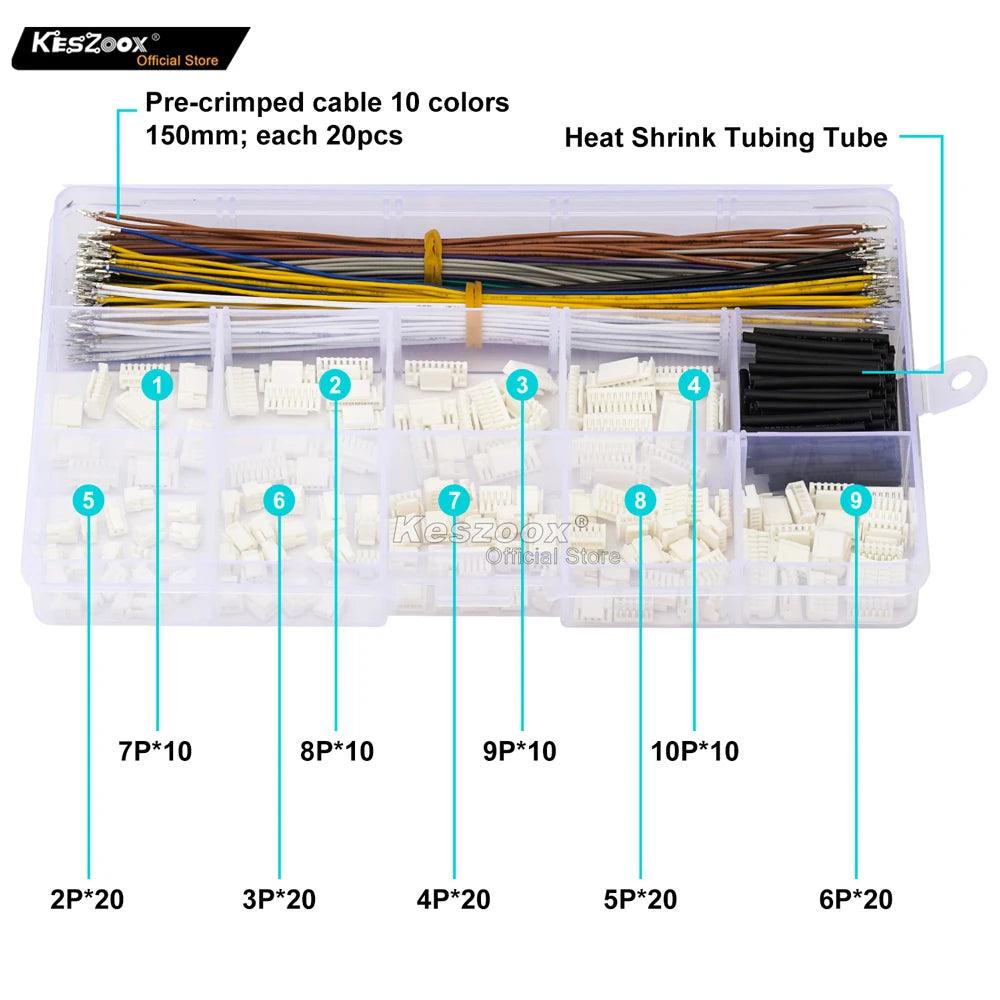

1) This is GH 1.25 Connector Kit -- includes:Total 140pcs GH1.25mm connectors and 200pcs 28AWG cables, Heat Shrink Tubing, Tweezers.It's easy to assemble, Extremely simple operation, No crimping tool needed, Just plug the pin to the housing, Completely furnished and easy to
carry.

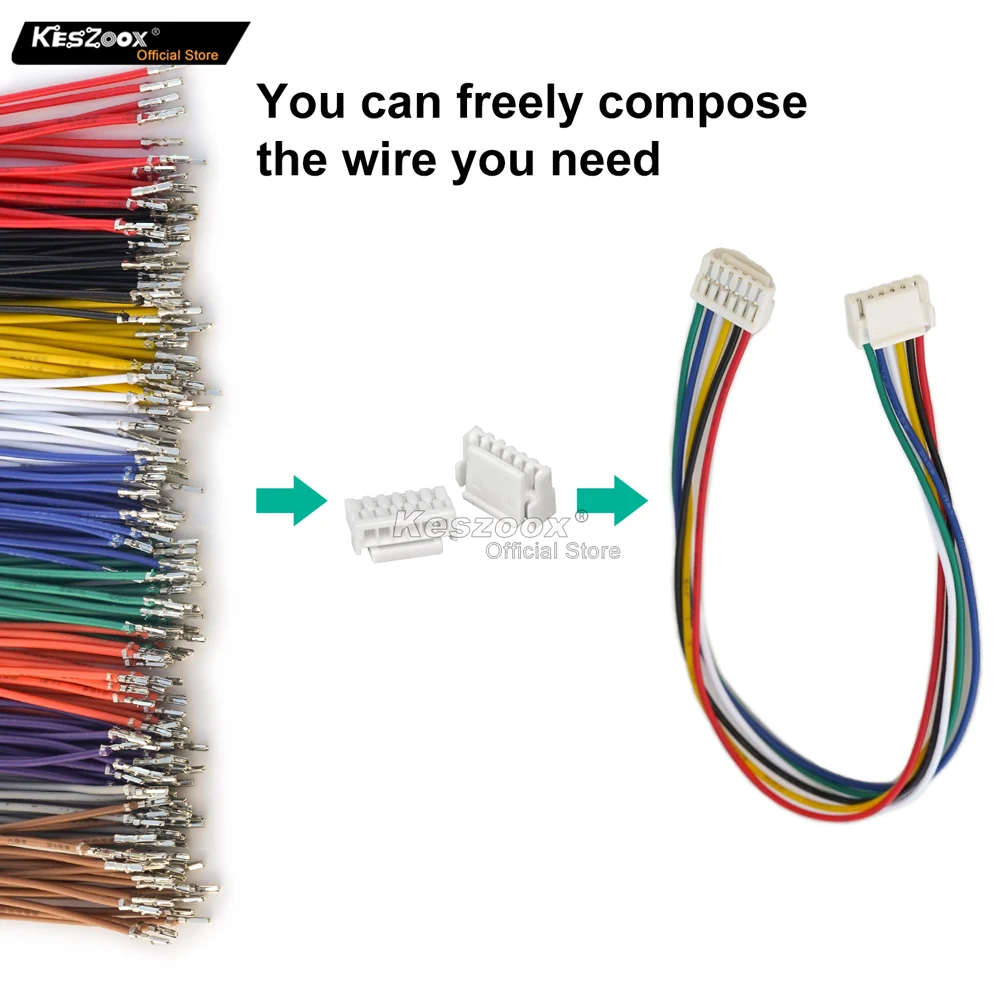

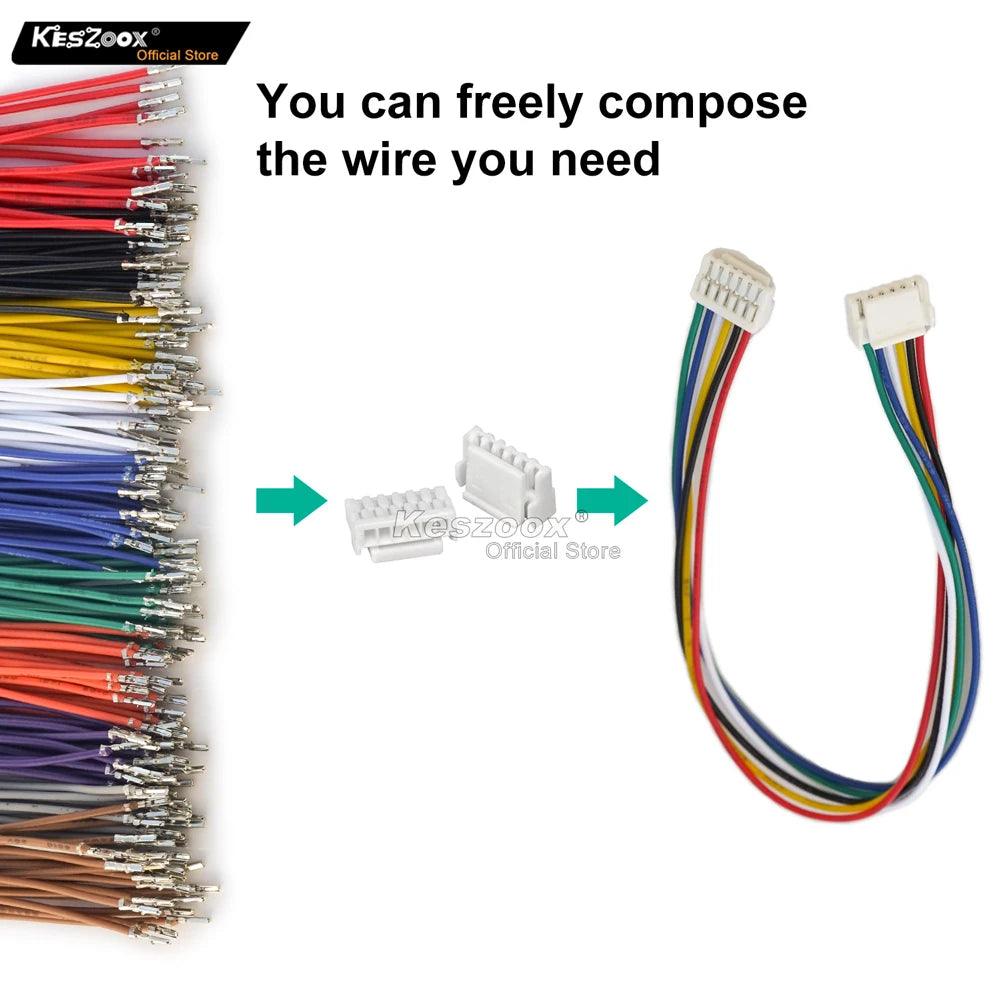

2) This is GH 1.25 Connector Kit --Designed for DIY: GH1.25mm 2/3/4/5/6/7/8/9/10 pin connectors,10 different colors wires, which can meet the different needs of design DIY. You can freely match in the range of 2pin to 10pin
according to the actual scene, providing more DIY possibilities.

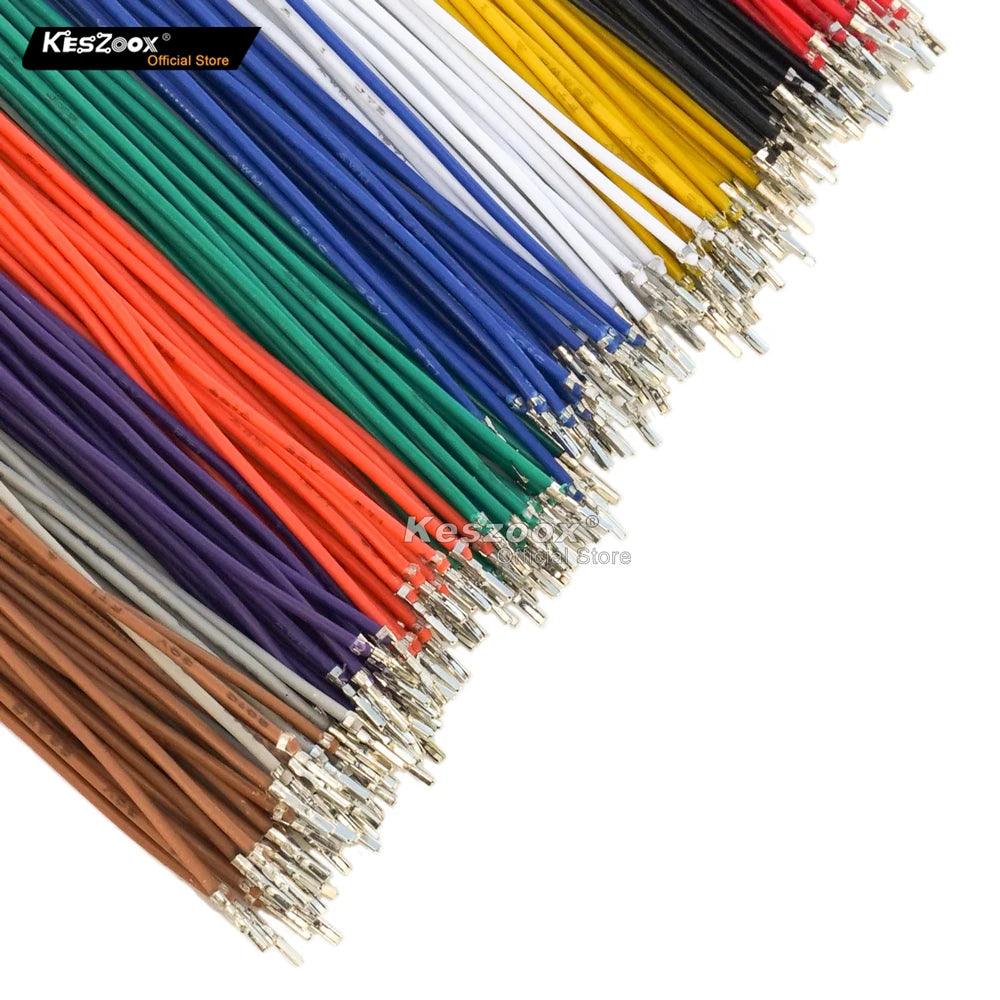

3) This is GH 1.25 Connector Kit --Premium Pre-Crimped Cables: Equipped with 200pcs 28AWG wire with length of 150mm, and both sides are crimped with GH1.25mm terminals,which have a very good connection. The wire contains 10 colors (red/black/yellow/white/blue/green/orange/purple/brown/gray), each with 20 wires, which provides richer materials for daily design and DIY.

4) This is GH 1.25 Connector Kit --Widely used: Pixhawk Flight Controller Wire Kit. Suitable for the new version of Pixhawk2 the cube, Pixhawk4,
Pixhawk4 mini, CUAV v5, Pixhack, Emlid edge, Pixracer, PXFmini, FuriousFPV F-35 Lightning, mini pix, and DJI inspire phantom flight controller.Perfect to achieve connection between flight controller and GPS, Telemetry module, Power module, Bluetooth module, OSD, airspeed meter, optical flow sensor or ultrasonic sensor etc

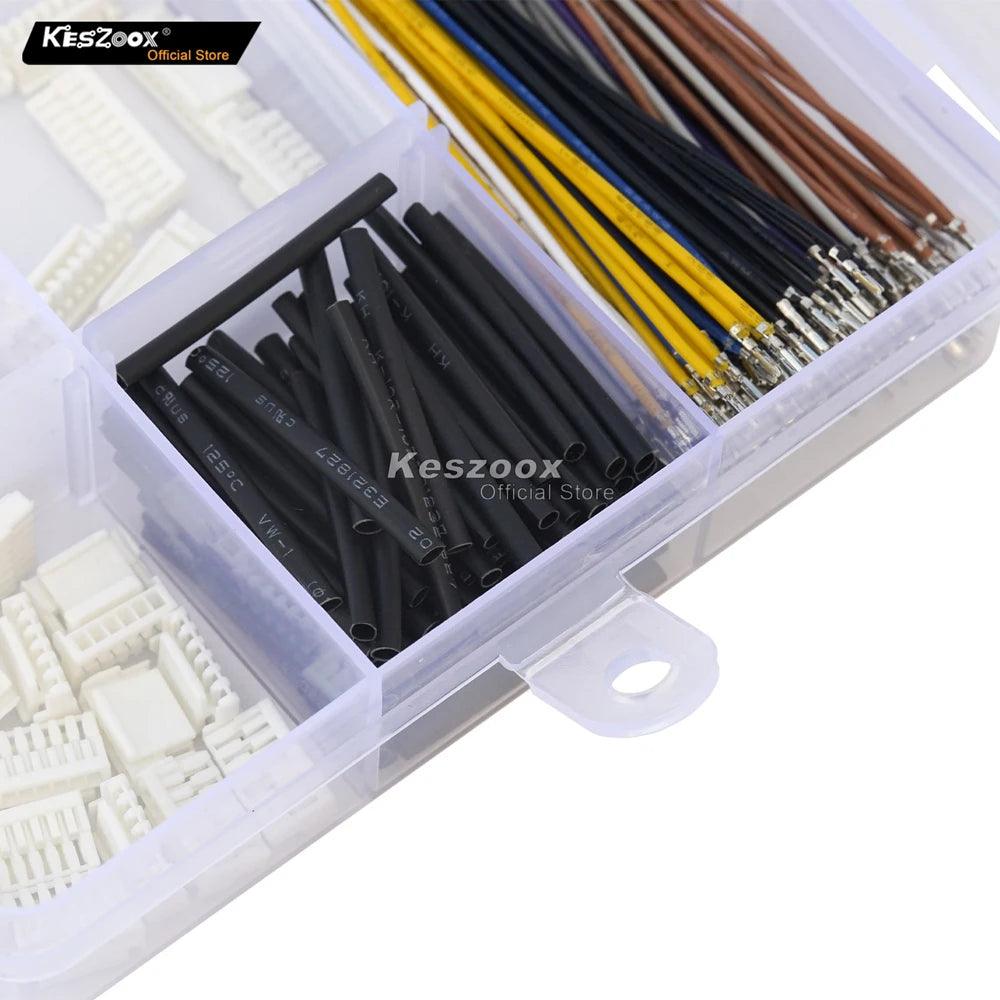

5) This is GH 1.25 Connector Kit --What you will get more: Heat Shrink Tubing Kit(φ1mm)× 100pcs; 1pcs tweezers which can help you correct the position when you put the wire into wrong position. Any question please don't hesitate to refer to the operation video we provide.
