JST SH1.0 Cable Connector Kit

JST SH 1.0mm Cable Connector Kit — Pre-Crimped 28AWG, Assorted 2–12 Pin

The JST SH 1.0mm cable connector kit is the comprehensive assortment of SH-series housings, contacts, and pre-crimped cables for FPV drones, flight controllers, wearables, and compact IoT devices. With assorted 2–12 pin counts in a single kit, you have everything needed to build, repair, and customize SH-series wiring harnesses.

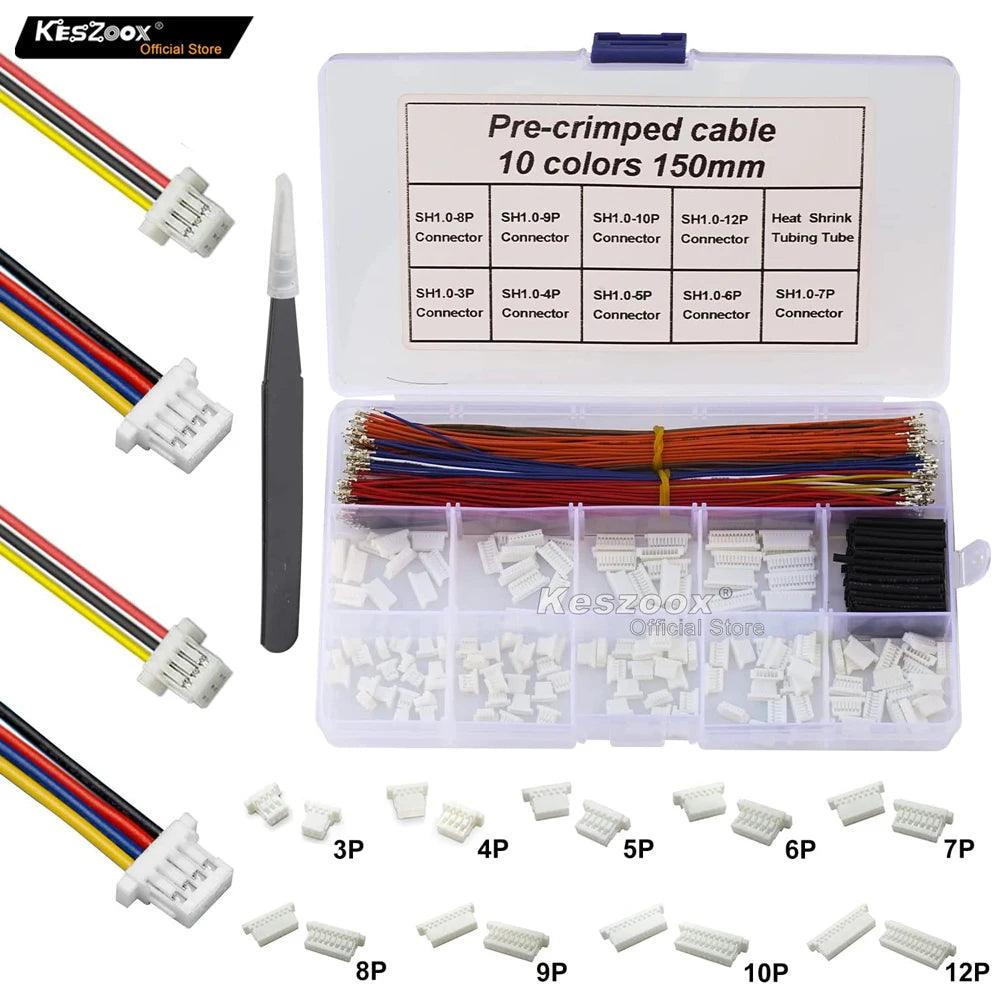

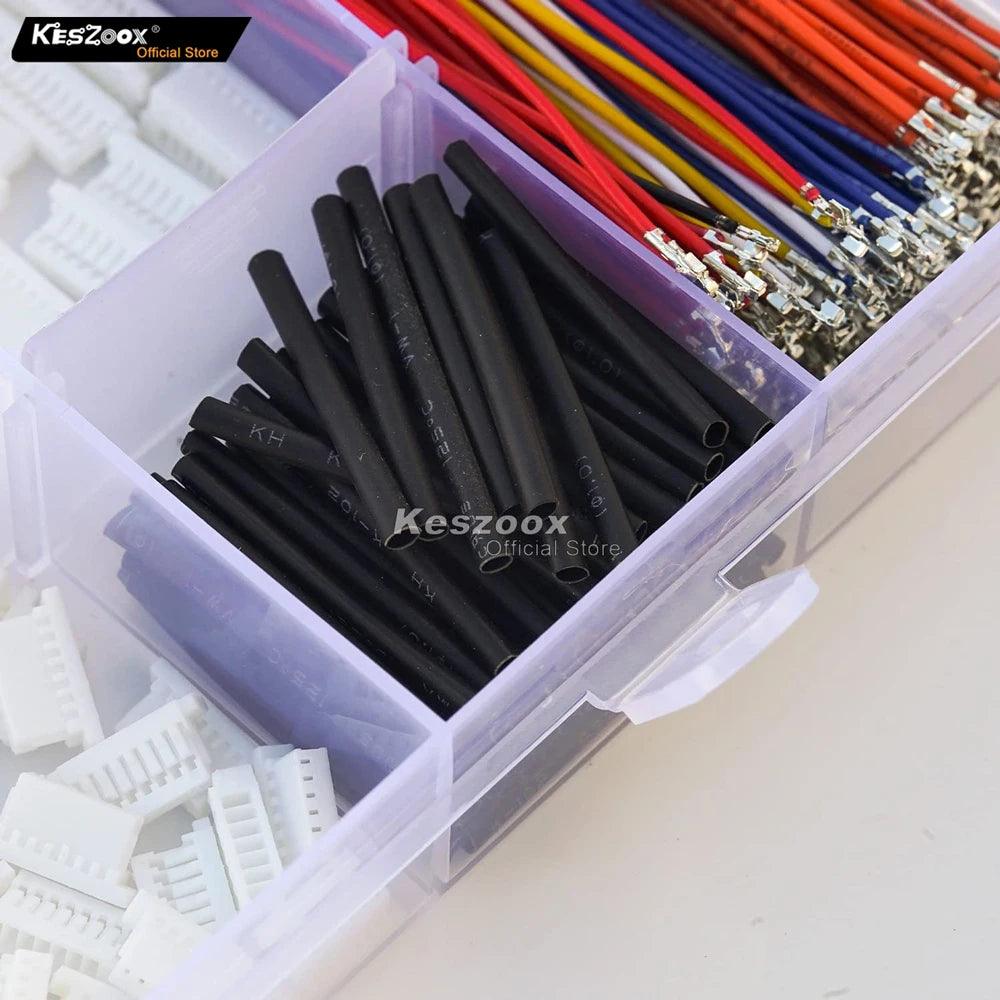

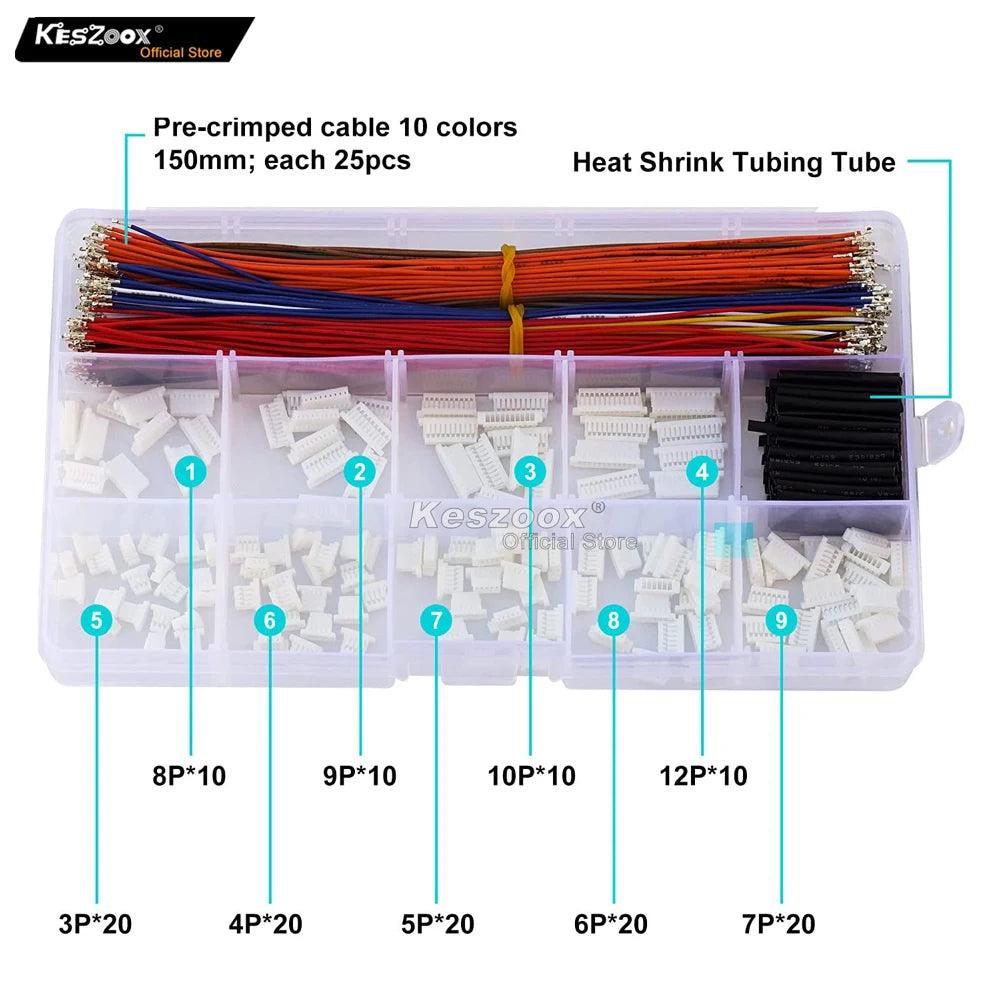

Kit Contents

• SH 1.0mm female housings — assorted 2–12 pin counts
• SSH-003T-P0.2 crimp contacts — genuine JST contacts for reliable crimped connections

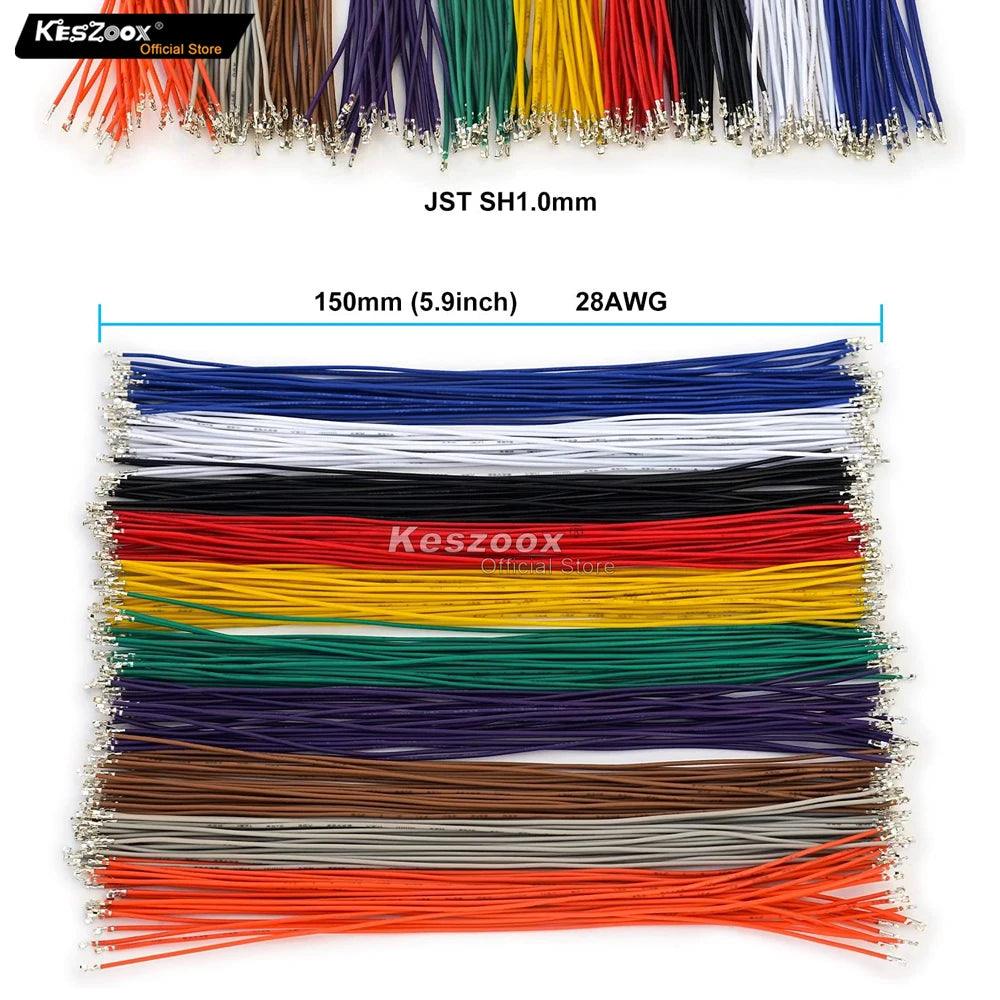

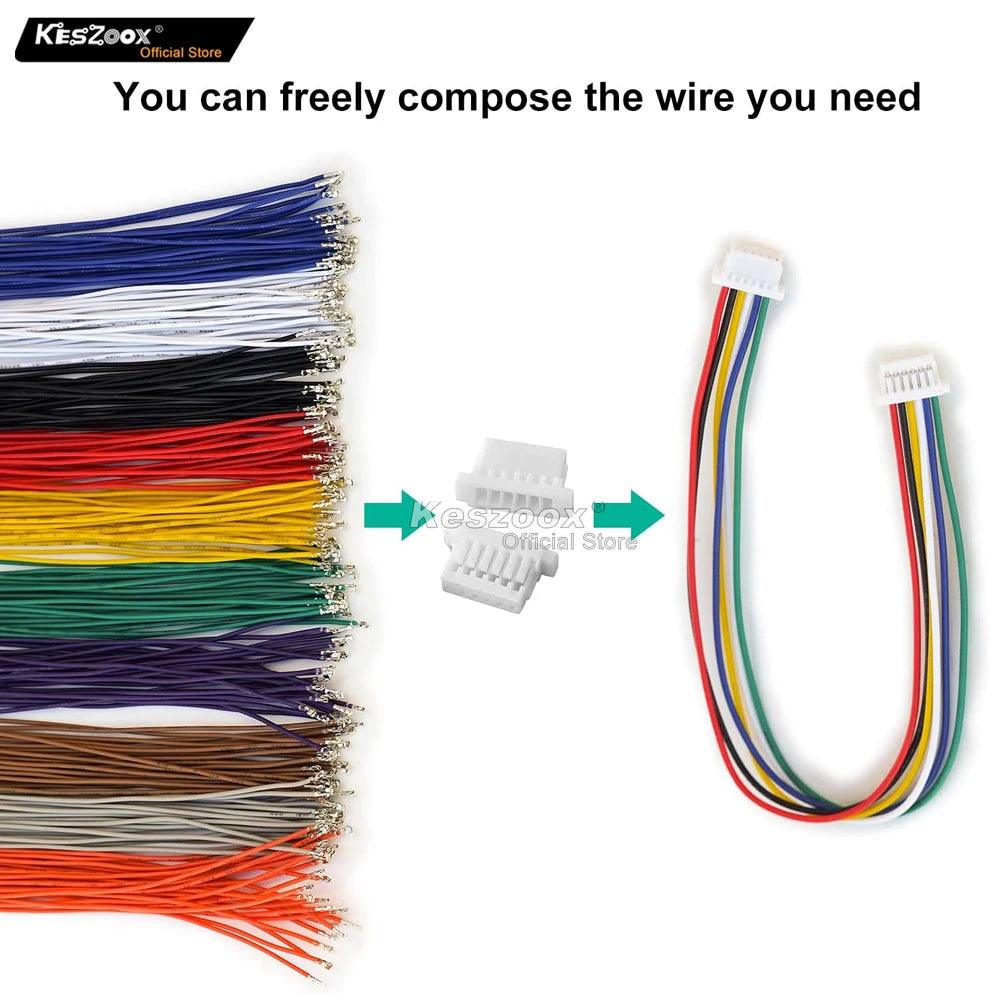

• Pre-crimped cables — 28AWG UL1571, assorted pin counts

Key Features

• JST SH 1.0mm pitch — the smallest standard JST connector, ideal for weight-critical builds
• Assorted 2–12 pin counts — covers all common SH-series configurations
• SSH-003T-P0.2 contacts — genuine JST contacts for reliable, consistent crimped connections
• 28AWG UL1571 PVC wire — ultra-fine, flexible, rated −25°C to +85°C
• 1A / 50V rating — suitable for signal and low-current power lines
• RoHS compliant

Typical Applications

• FPV drone flight controller, ESC, GPS, and receiver wiring
• Wearable electronics and fitness device connections
• Miniature IoT sensor and module connections
• RC model and robotics compact wiring harness assembly
• Custom SH-series cable fabrication and repair

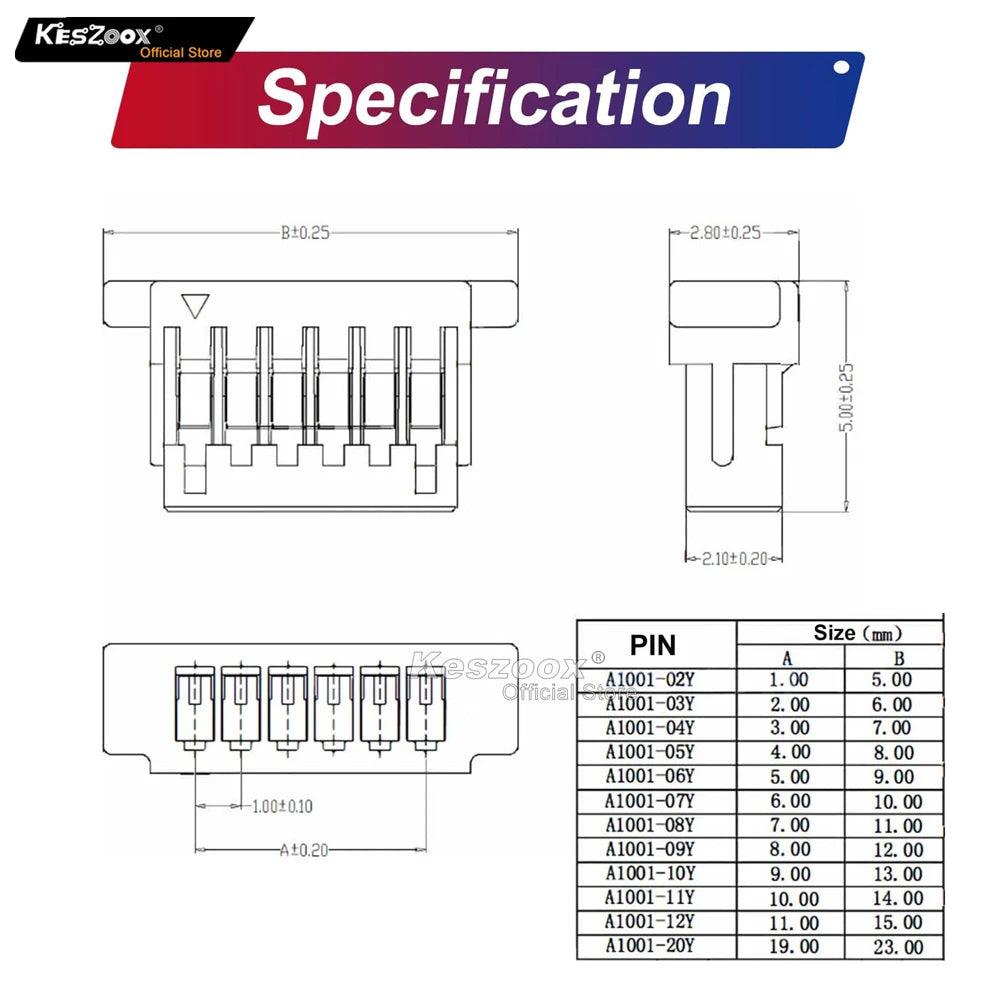

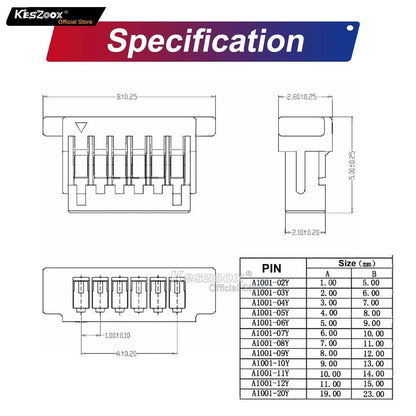

Technical Specifications

• Connector Series: JST SH
• Pitch: 1.0 mm
• Contact: SSH-003T-P0.2
• Pin Counts: 2–12 (assorted)
• Wire Gauge: 28 AWG
• Insulation: UL1571 PVC
• Voltage Rating: 50V
• Current Rating: 1A per contact
• Temperature Range: −25°C to +85°C
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
