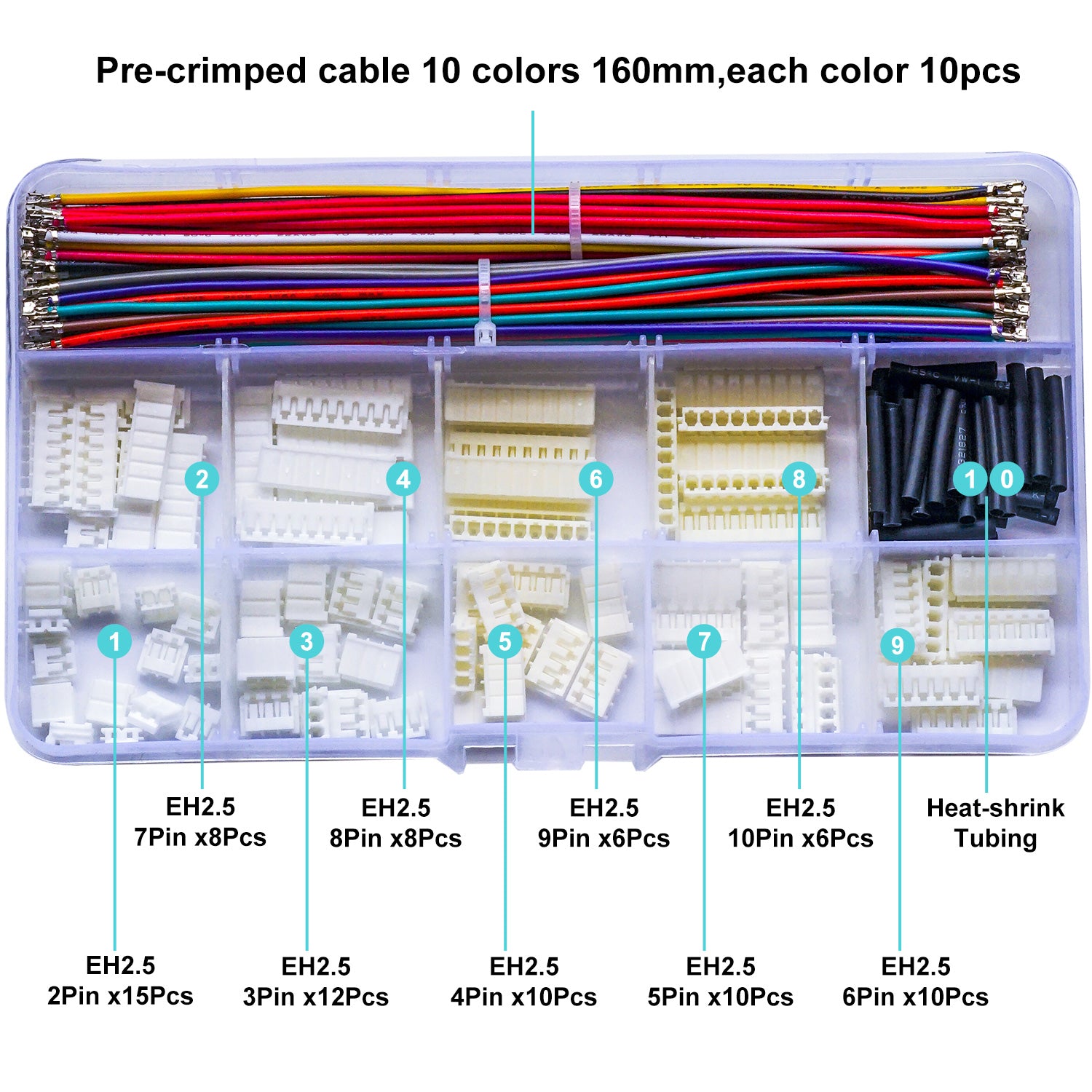

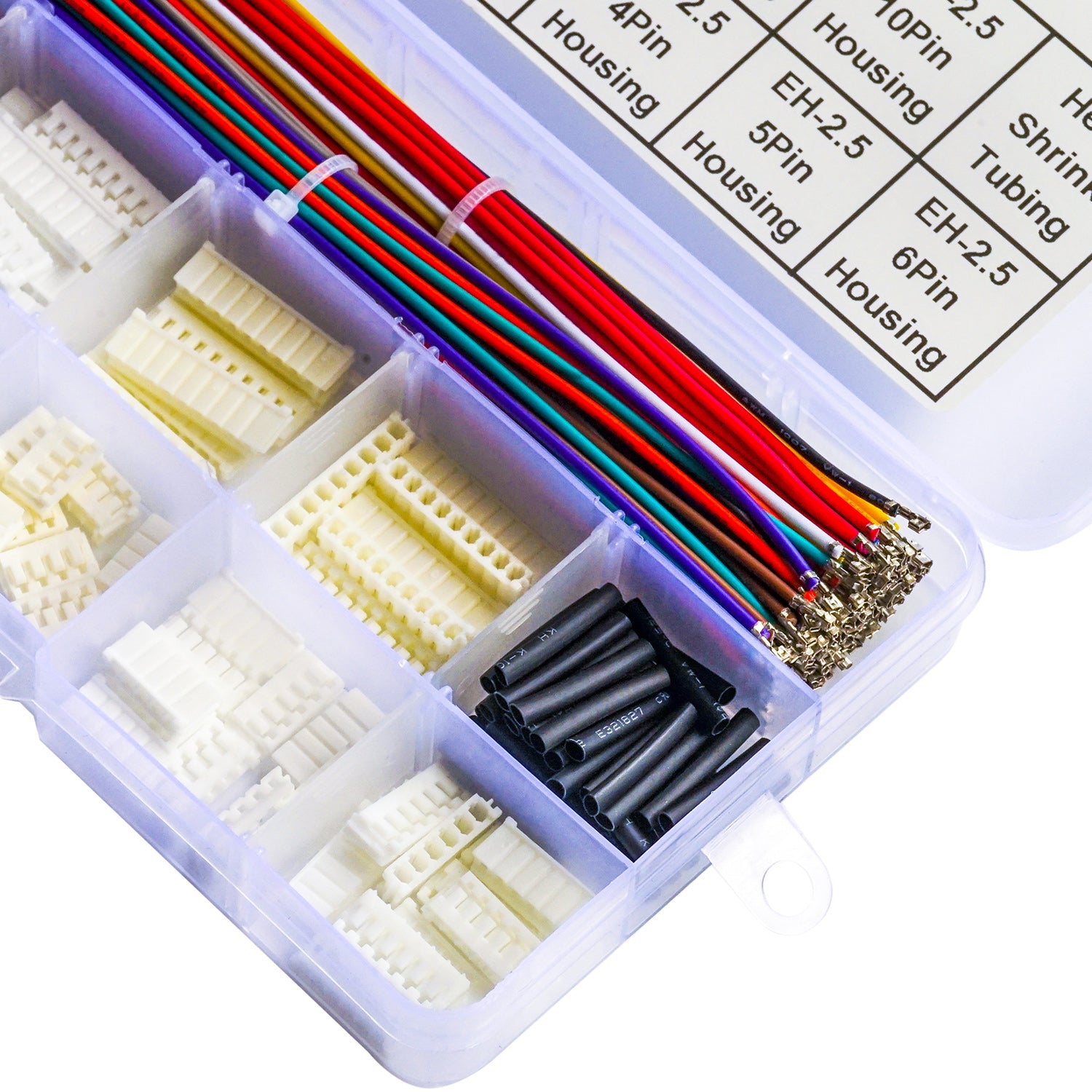

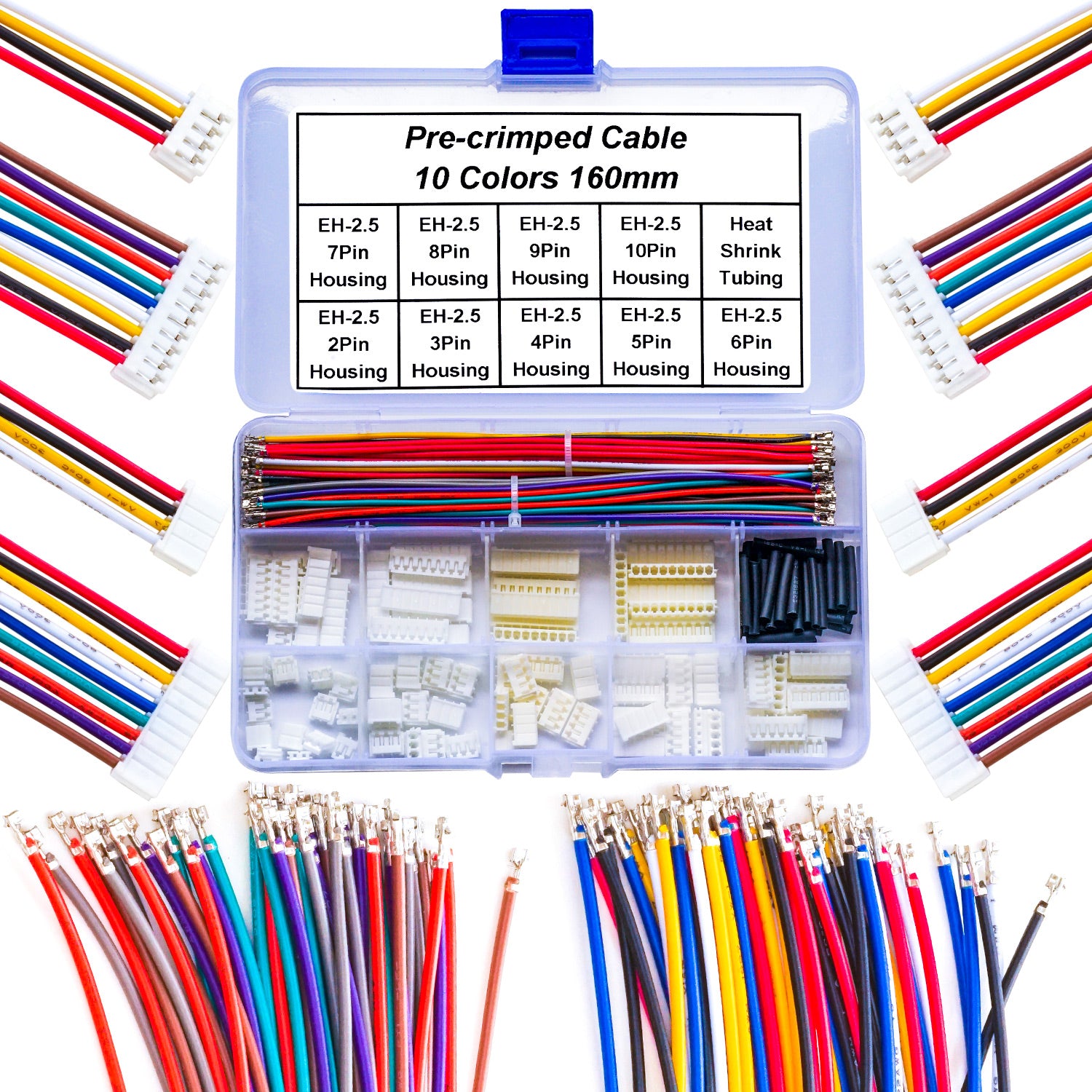

JST EH connector Kit with Premium 22AWG Pre-Crimped Cables

JST EH connector This is a 2.5 mm pitch low-profile, wire-to- board connector that meets the needs of high density PCB requirements and provides design flexibility in all sorts of electronic devices. The top entry type is 3.8 mm in thickness and 8.1 mm in height. The low profile design helps to save space. The contact design provides a high-reliability connection. The EH series also offers excellent harness workability and is easy to mate and unmate.

model: JST EH2.5 Connector
Pin-to-pin pitch：2.50 mm (0.098 in)
terminal :SEH-001T-P0.6

Current(Amp)：3A
Voltage(Volt): 250V

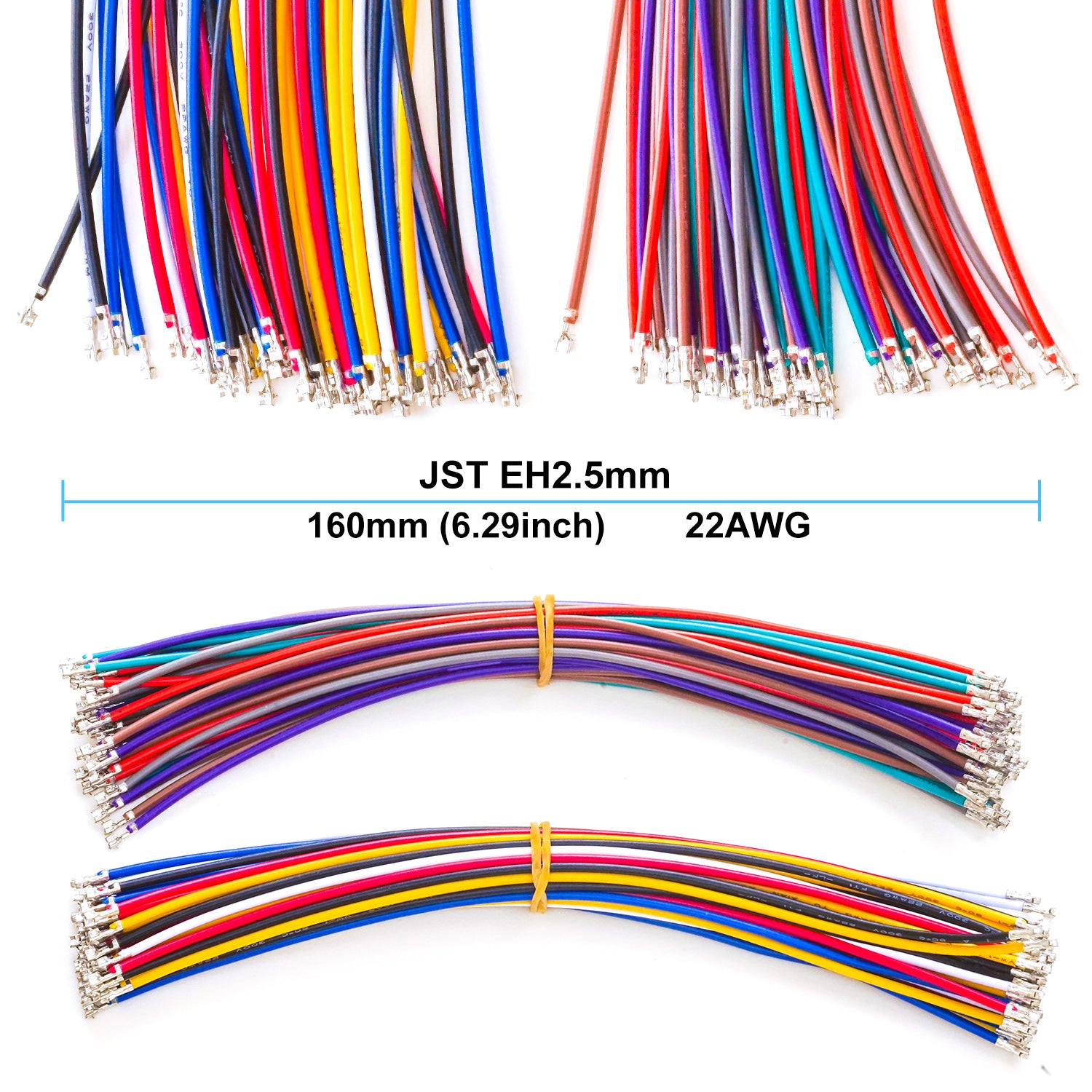

Wire size(AWG): 22AWG
Notes: Used by many radio control (R/C) batteries.
