JST XA connector Kit
  • JST XA connector Kit

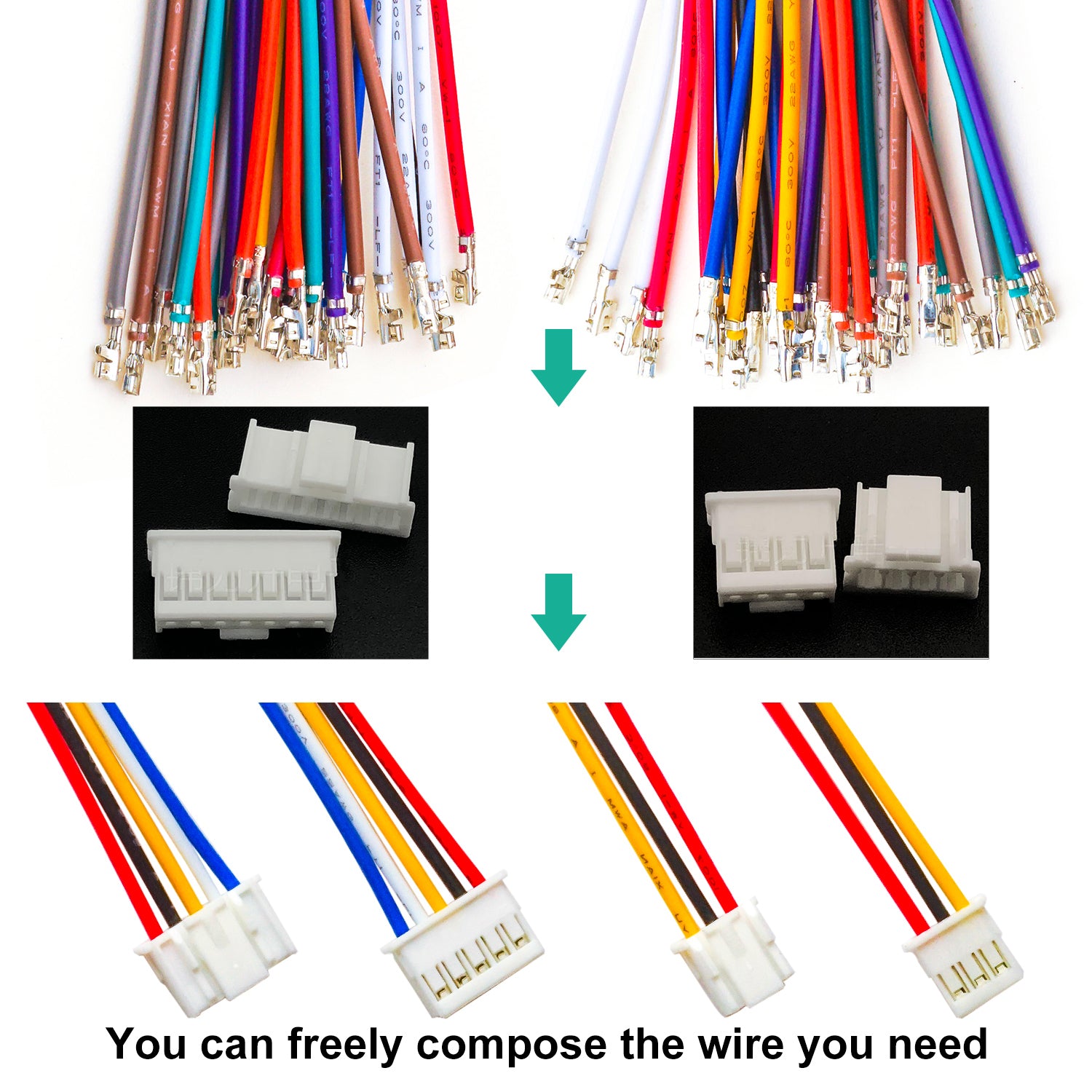

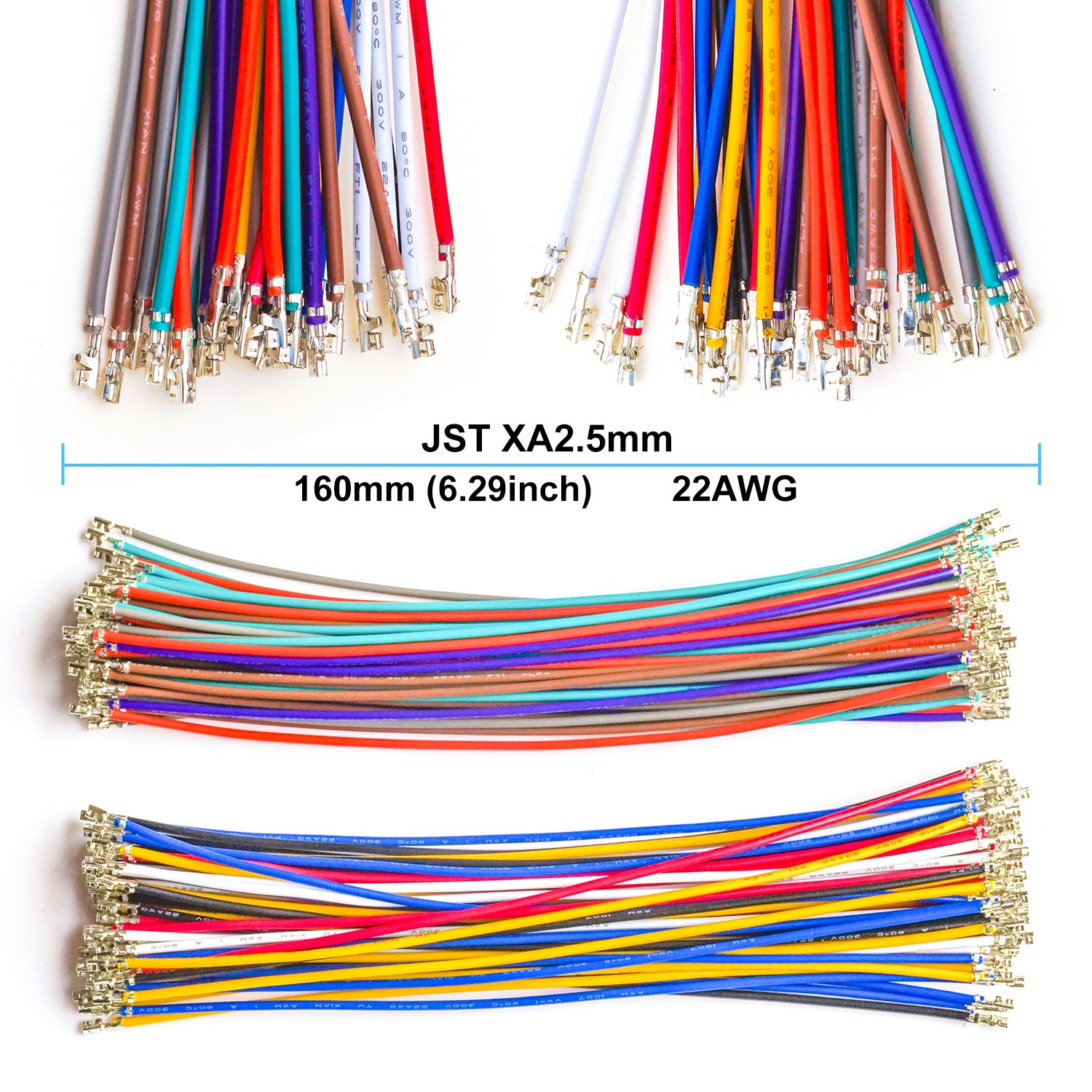

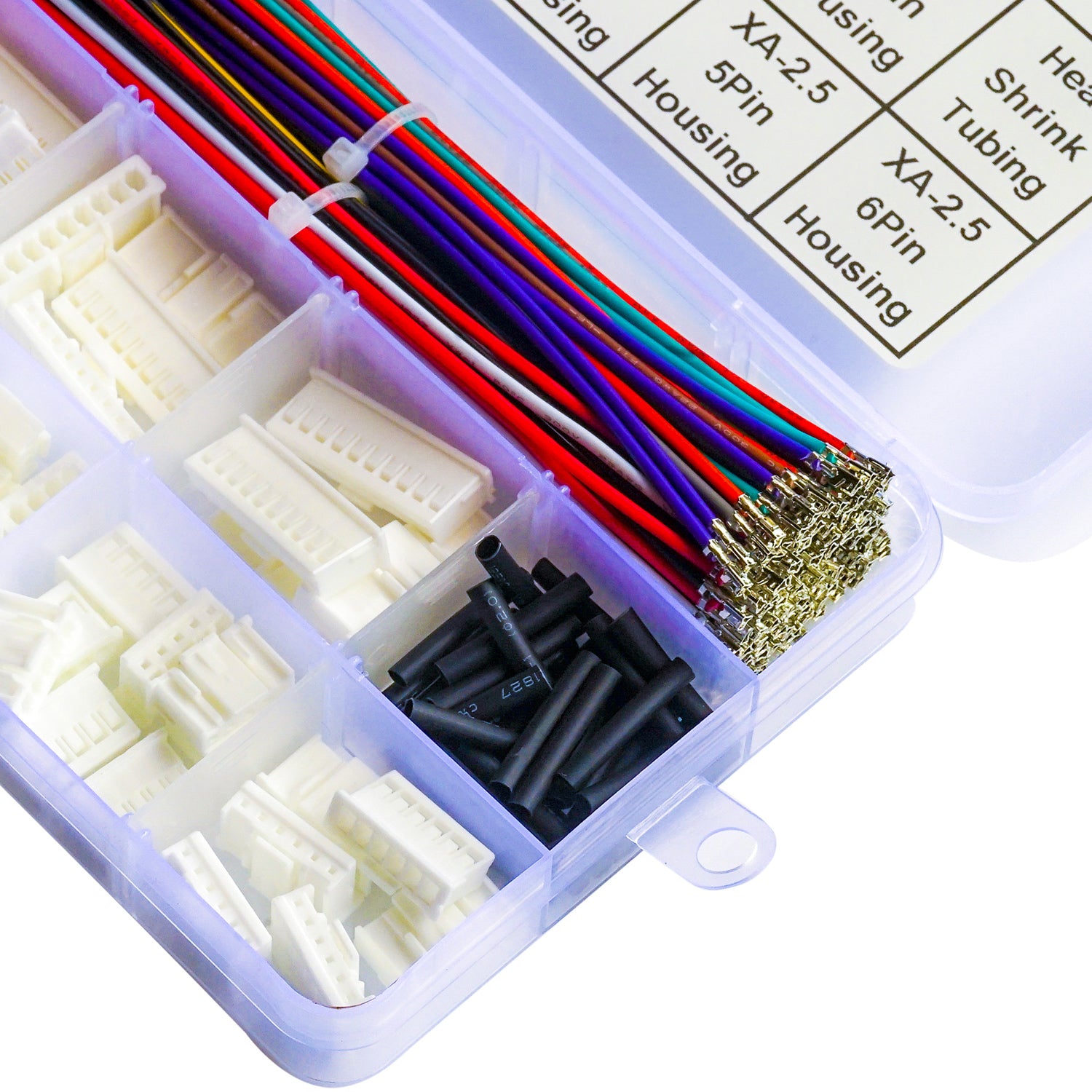

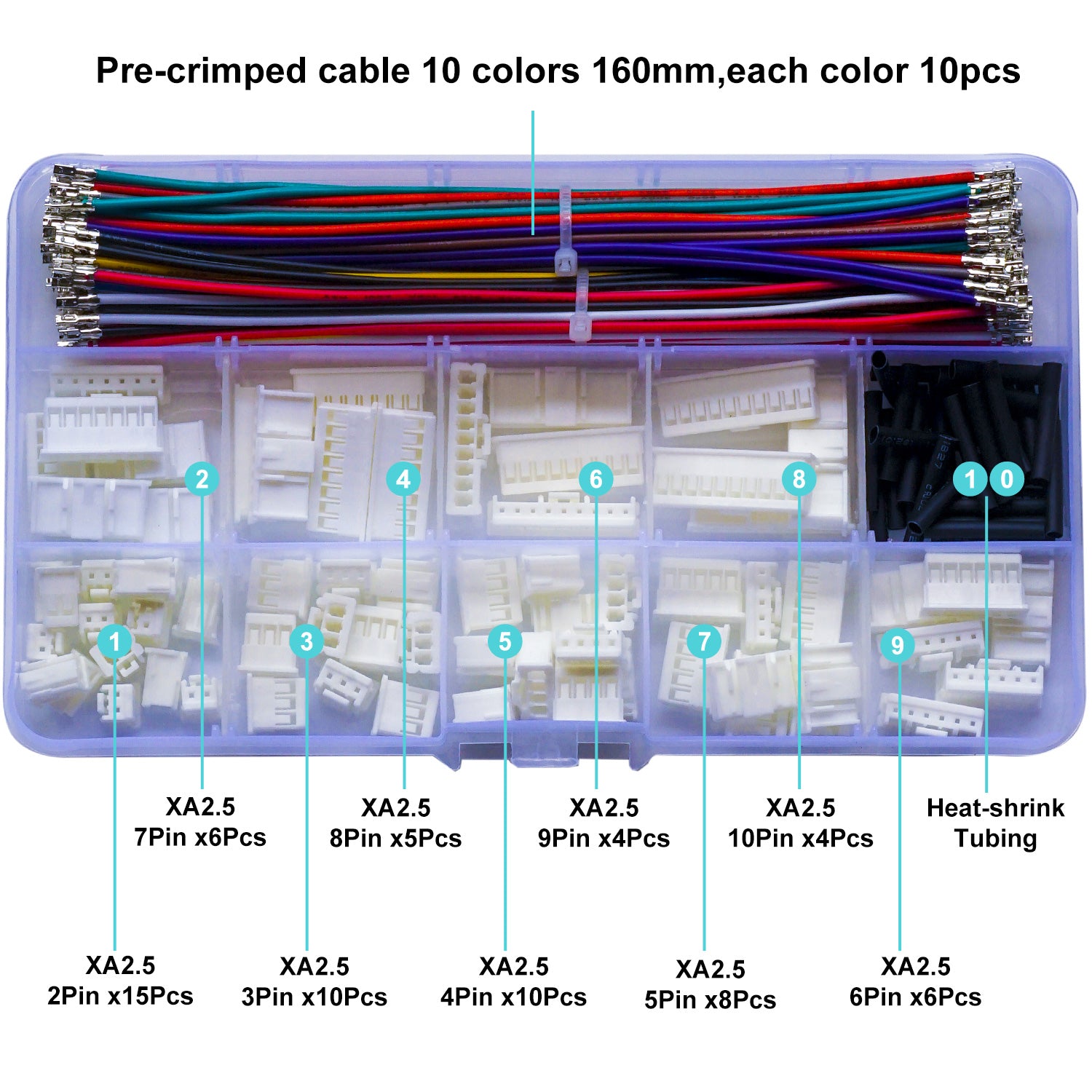

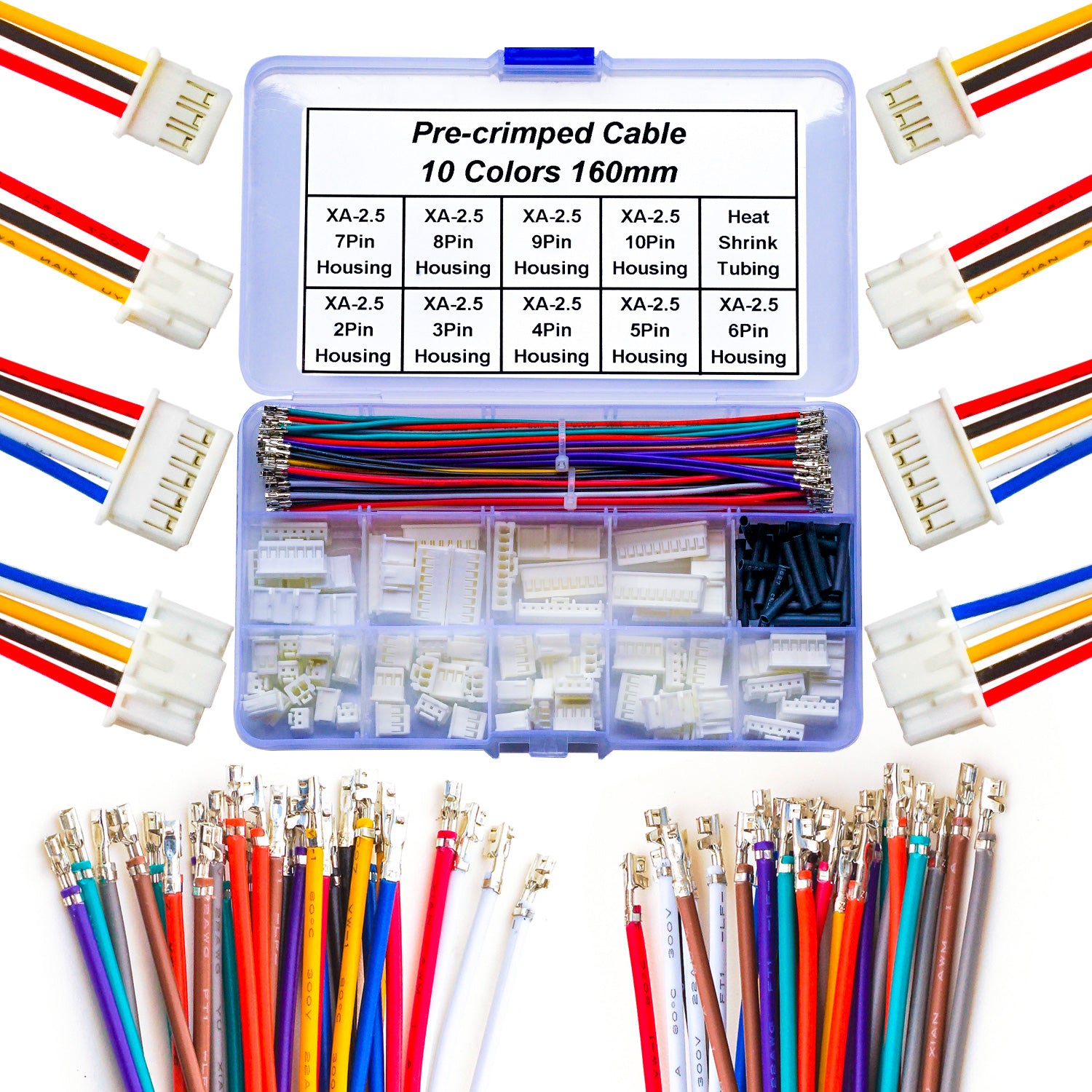

JST XA connector Kit with Premium 22AWG Pre-Crimped Cables

JST XA connector Kit with Premium 22AWG Pre-Crimped Cables

$23.45
Description
Details
Material

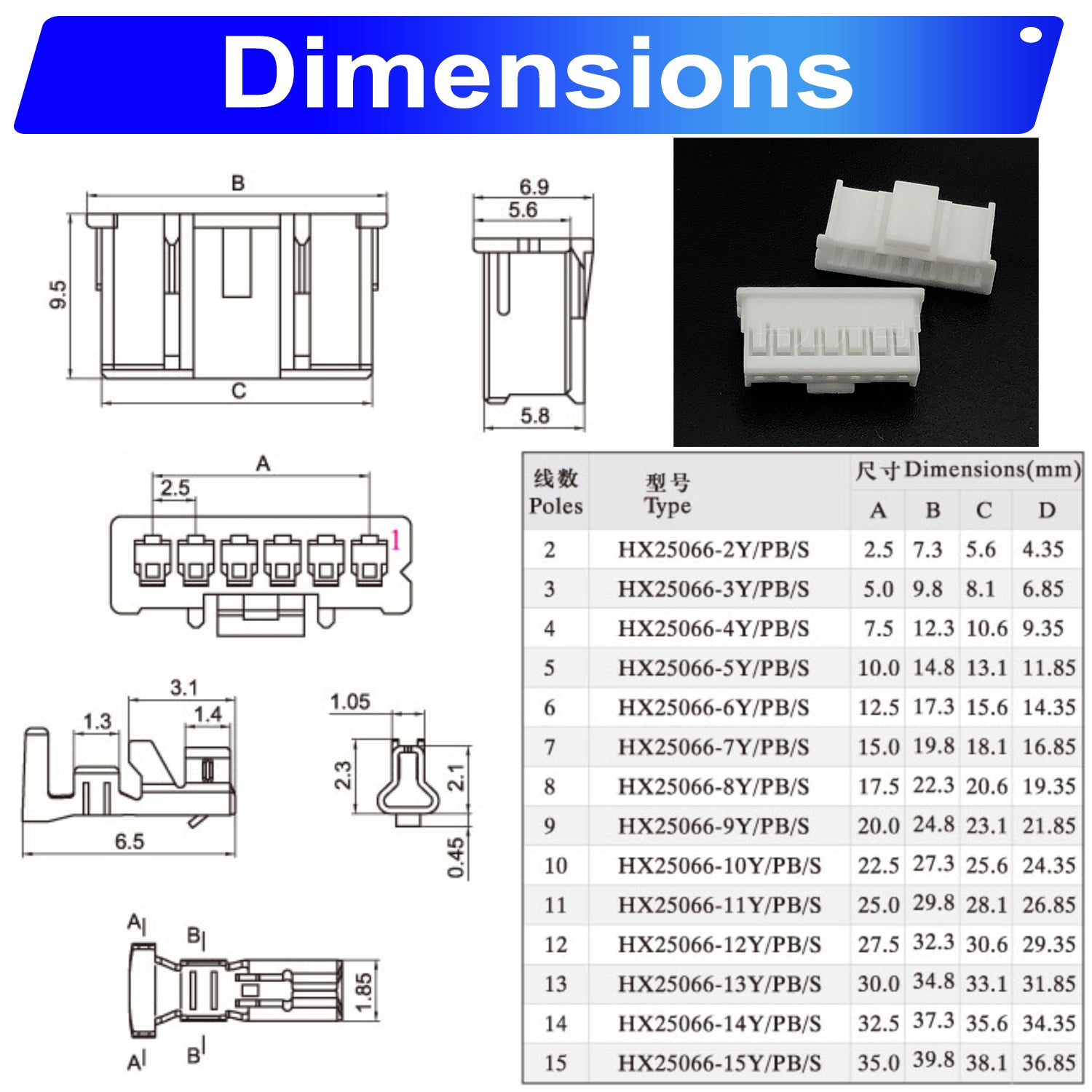

JST XA Connector Highly reliable, versatile 2.5 mm pitch wire-to-board connector with an assembled board height of 9.8 mm for low profile applications.
model: JST XA2.5 Connector
Pin-to-pin pitch：2.50 mm (0.098 in)
terminal :SXA-001T-P0.6

SXA-01T-P0.6

SXA-001T-P0.6L

Current(Amp)：3A
Voltage(Volt): 250V
Wire size(AWG): 22AWG
Notes: Used by many radio control (R/C) batteries.

Reliable JST connector cables with secure locking design, UL-certified wires, and high-quality crimping. Supports up to 3A current with compact 2.5mm pitch. Ensures stable power and signal transmission for PCB, LED, robotics, and industrial use. Custom lengths, colors, and pin counts available.

cables are made with high-purity copper wires and solid copper terminals, ensuring excellent conductivity, low resistance, and long-term reliability in power and signal transmission. Ideal for high-performance electronic applications.
