Molex KK 254 MX5264 2.54mm Connector Kit with 22AWG Pre-Crimped Cables
Molex KK 254 MX5264 2.54mm Connector Kit with 22AWG Pre-Crimped Cables
Couldn't load pickup availability
Molex KK 254 / MX5264 2.54mm Connector Kit with 22AWG Pre-Crimped Cables — Complete Assortment for Arduino, 3D Printers & Industrial PCB Wiring
The Molex KK 254 / MX5264 2.54mm connector kit with 22AWG pre-crimped cables is the all-in-one solution for Arduino builders, 3D printer enthusiasts, PC modders, and industrial PCB engineers who need a comprehensive assortment of genuine KK 254 / MX5264 connectors and pre-crimped cables in a single package. This kit includes male and female housings across multiple pin counts, along with 22AWG UL1007 pre-crimped cables — everything you need to build, repair, and prototype KK 254 wiring harnesses without ordering individual components.
The KK 254 / MX5264 2.54mm connector system is the industry standard for Arduino GPIO headers, PC fan connectors, 3D printer wiring, and general-purpose PCB connections — offering a positive-lock latch that prevents accidental disconnection, unlike standard DuPont friction-fit connectors. With genuine housings and factory pre-crimped cables, this kit ensures consistent, professional-quality connections every time.

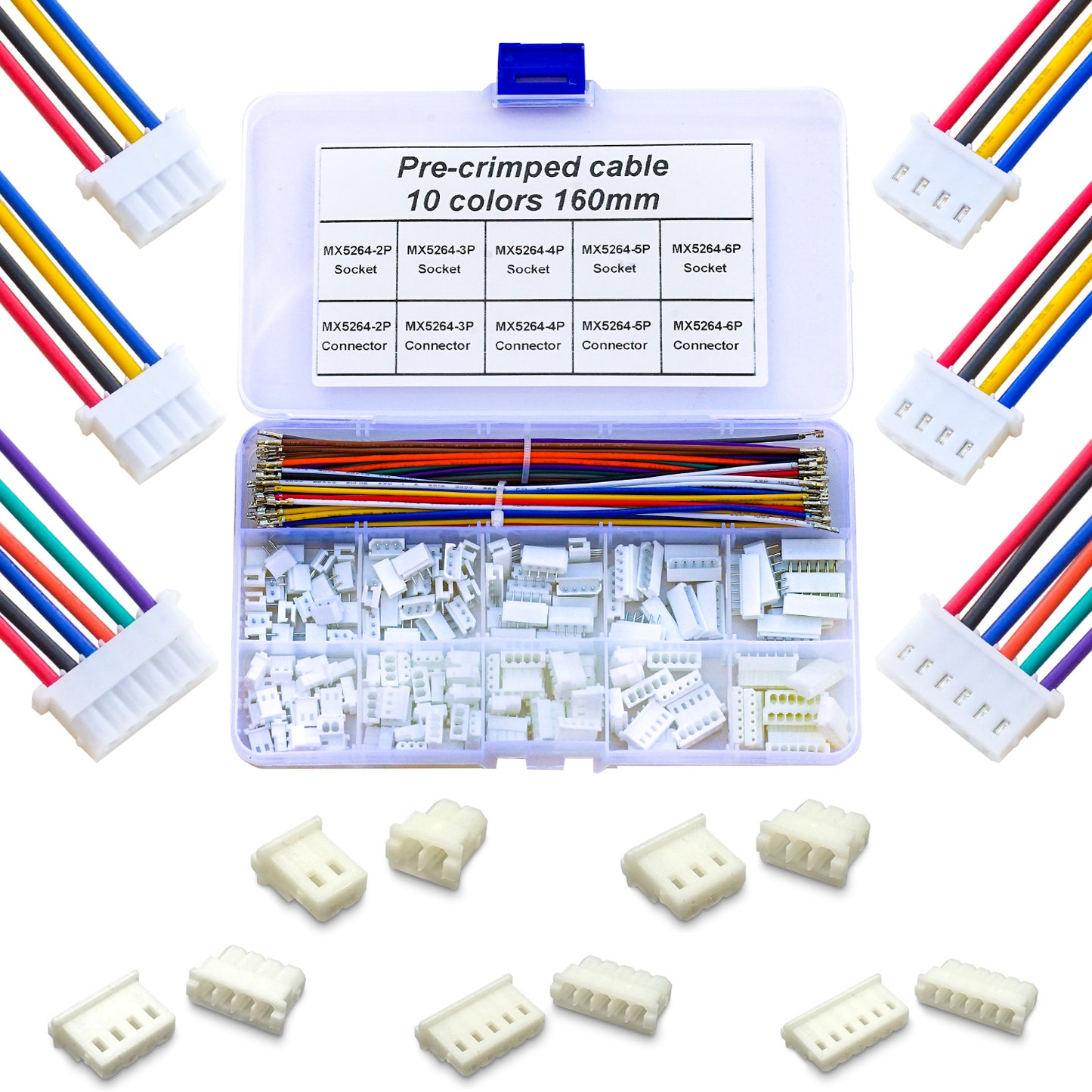

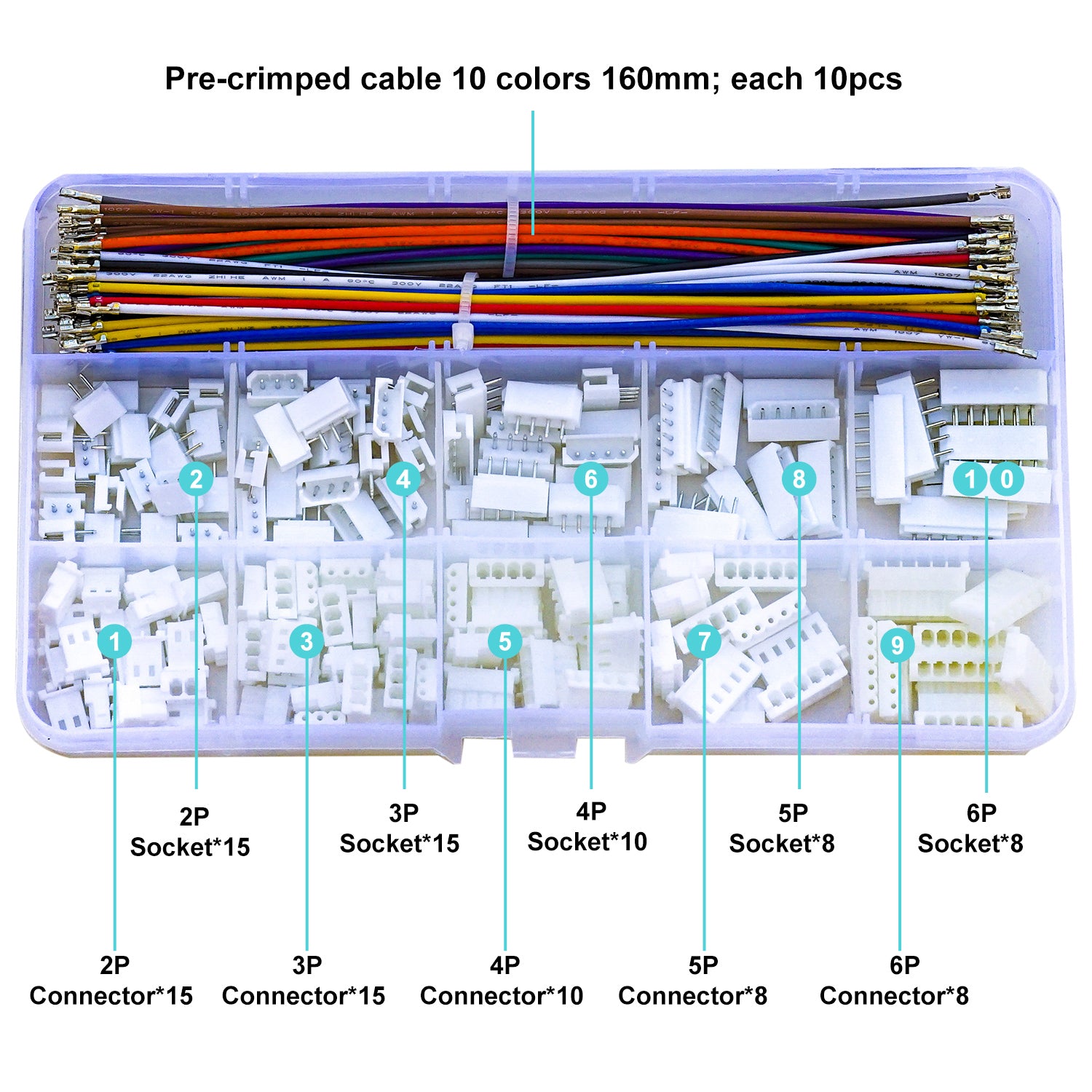

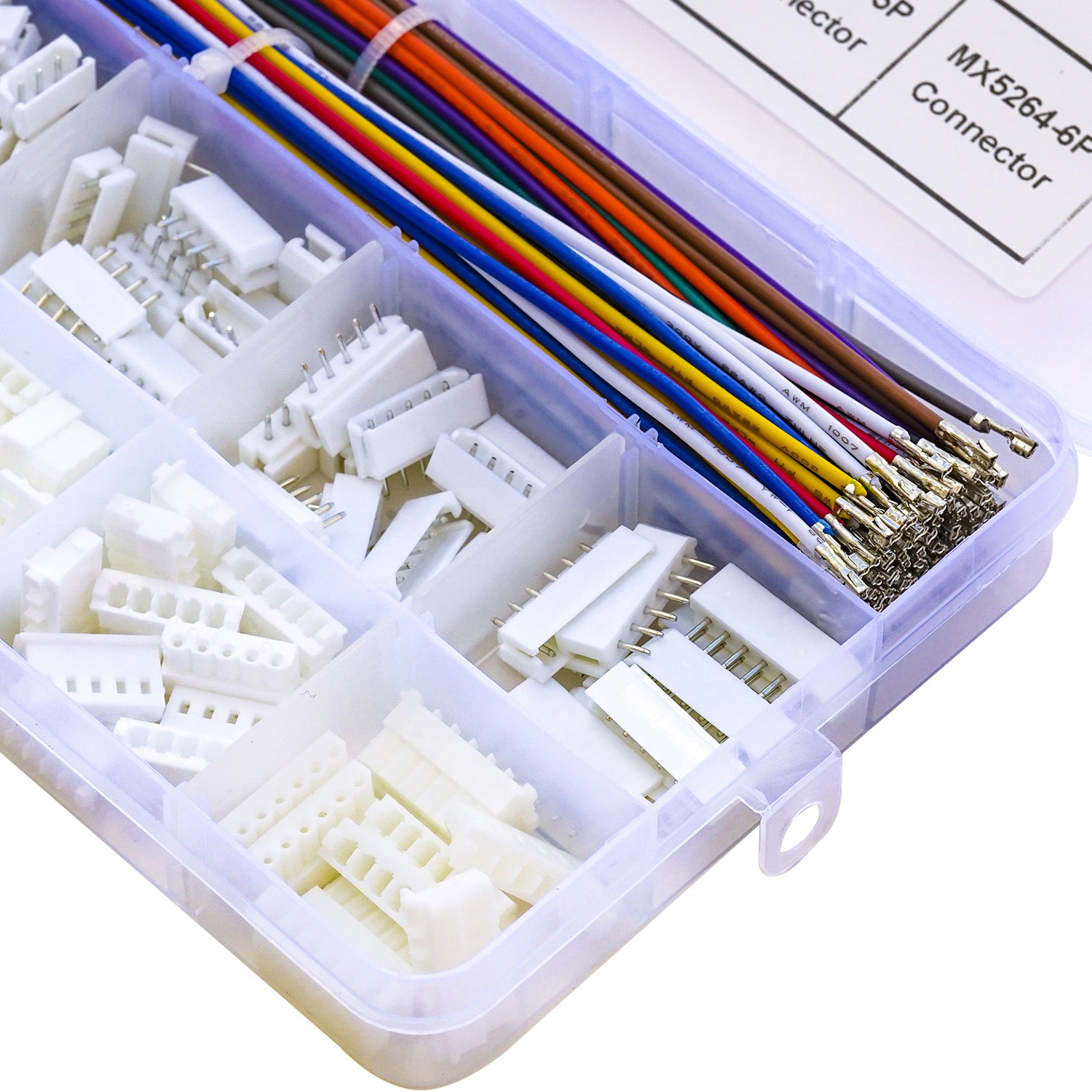

Kit Contents
- Male housings (MX5264 series) — multiple pin counts included
- Female housings (KK 254 series) — multiple pin counts included

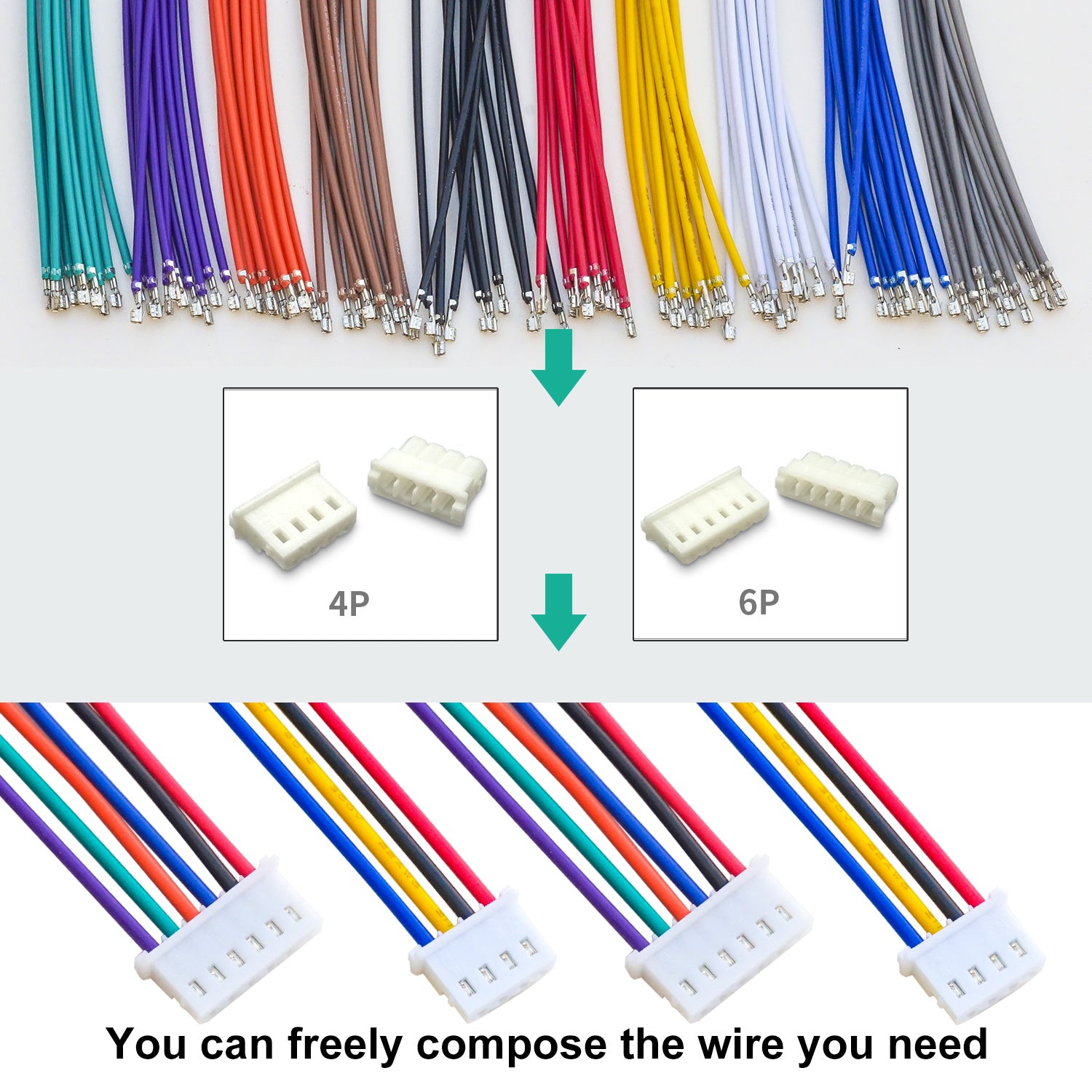

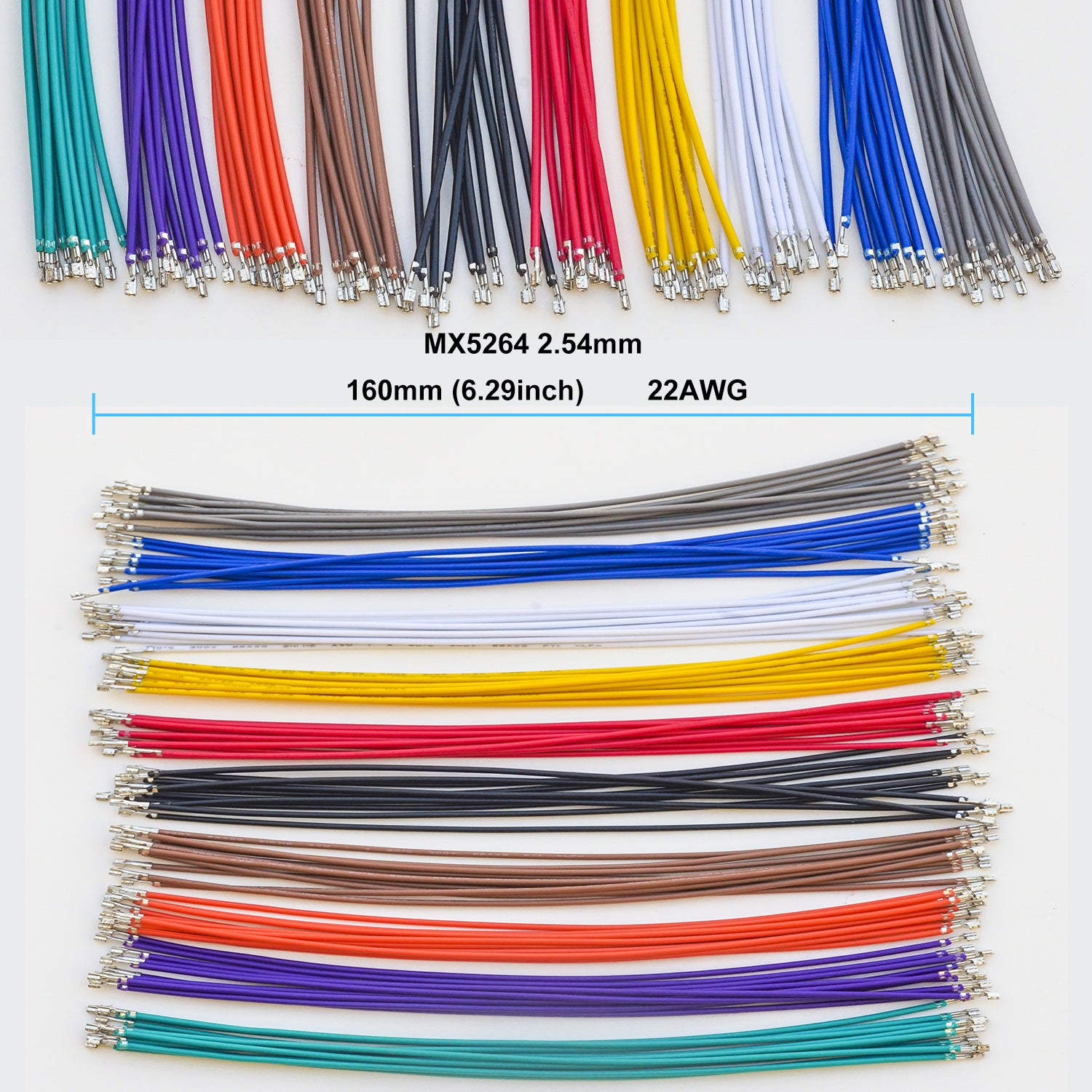

- 22AWG UL1007 pre-crimped cables — factory-crimped, rated 3A / 300V, −25°C to +80°C
- Crimp terminals — for custom harness assembly and repair
Key Features
- Genuine KK 254 / MX5264 components — positive-lock latch housings; not generic DuPont clones
- Complete assortment — multiple pin counts in a single kit
- 22AWG UL1007 pre-crimped cables — factory-crimped, rated 3A / 300V
- Ideal for prototyping and repair — build custom harnesses or replace damaged connectors
- RoHS compliant
Typical Applications
- Arduino shield and module wiring — custom harness assembly for Arduino GPIO headers and shields
- 3D printer wiring — stepper motor driver, heated bed, thermistor, and endstop harness assembly
- PC fan and cooling system wiring — custom fan header cables for PC builds and server cooling
- Industrial PCB signal wiring — PLC I/O module, sensor, and actuator connections
- CNC machine wiring — axis sensor, limit switch, and spindle feedback connections
- Electronics lab and maker space — prototyping and custom harness assembly

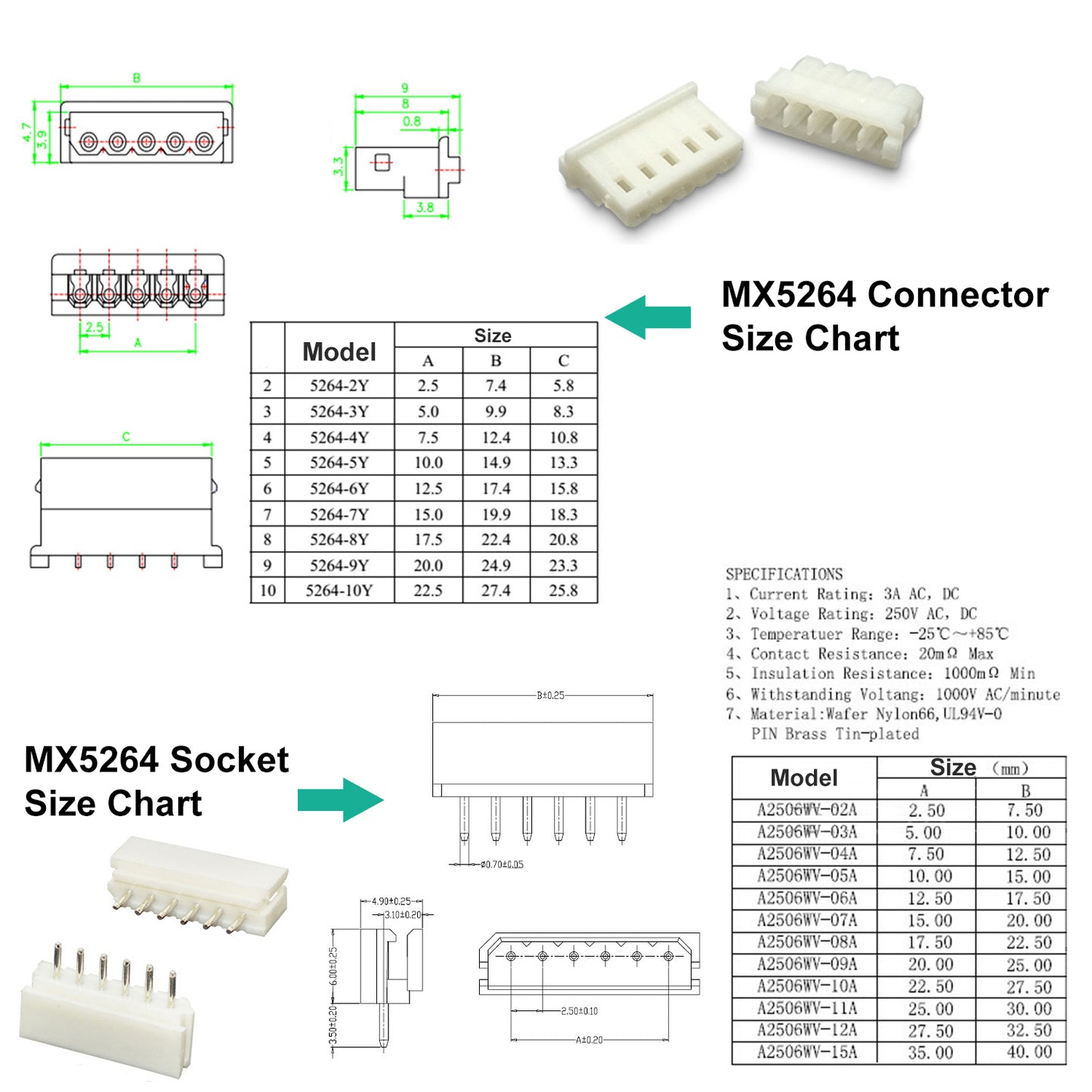

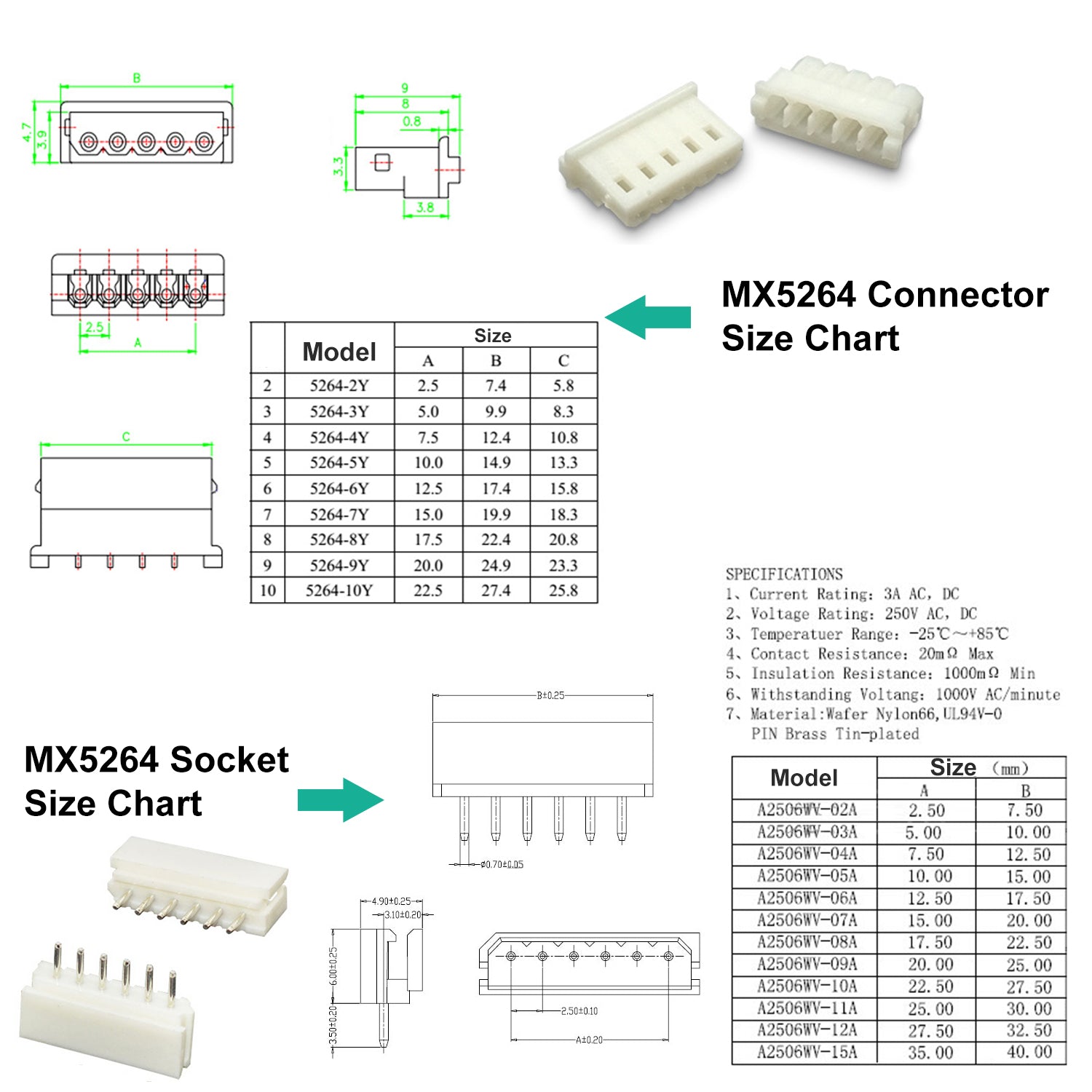

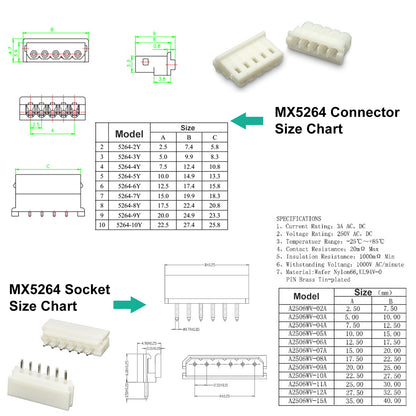

Technical Specifications
- Connector Series: Molex KK 254 / MX5264
- Pitch: 2.54 mm
- Wire Gauge: 22 AWG
- Wire Insulation: UL1007 PVC, 300V
- Voltage Rating: 300V
- Current Rating: 3A per contact
- Temperature Range: −25°C to +80°C
- RoHS Compliant: Yes
- Brand: Keszoox
- Origin: Mainland China
